Ti5 ROBOT

Ti5 ROBOT EBLM Series 6-DOF Robotic Arm | Lightweight ROS Robot Arm for Research

  • 6-DOF lightweight robotic arm series with 1 kg and 2 kg payload options.
  • 0.05 mm repeatability for compact robotics research and automation workflows.
  • Supports ROS, Python, and C++ for robotics software development.
  • IP50 aluminum alloy and resin structure with 28-48 V power input.
  • Optional Jetson Nano controller variant for edge robotics integration.
$4,140
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Ti5 ROBOT EBLM Series product manual with setup, specifications, and operating guidance ▶ Ti5 ROBOT EBLM and ARM Series robot user manual with operation and support information ▶

Ti5 ROBOT EBLM Series 6-DOF Robotic Arm

The Ti5 ROBOT EBLM Series is a lightweight 6-DOF robotic arm platform for robotics research, education, automation development, and compact robot manipulation workflows. The source listing includes Ti5 Robot Eblm-1 and Ti5 Robot Eblm-2 models with different payload and reach configurations.

The platform supports ROS, Python, and C++ interfaces, making it suitable for developers and research labs building robot arm control, automation, and software integration projects.

Features

  • **Lightweight payload options:** Ti5 Robot Eblm-1 supports 1 kg payload, while Ti5 Robot Eblm-2 supports 2 kg payload.
  • **6-DOF robotic arm structure:** Built for compact manipulation, research, and automation tasks.
  • **ROS and Python support:** Supports ROS, Python, and C++ development workflows.
  • **Integrated interfaces:** Includes USB 3.0, HDMI 2.0, and I/O interfaces for robotics integration.
  • **Optional controller:** Jetson Nano controller variant supports edge robotics development.

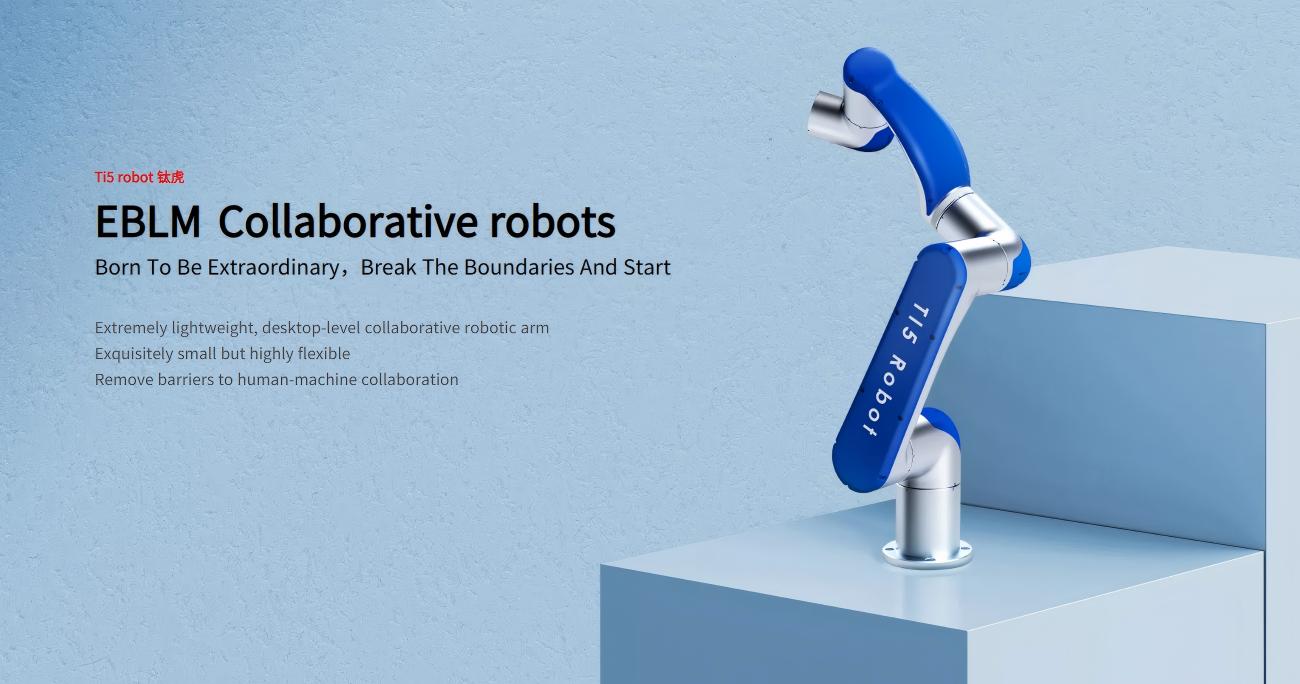

Ti5 ROBOT EBLM Series detail image 1

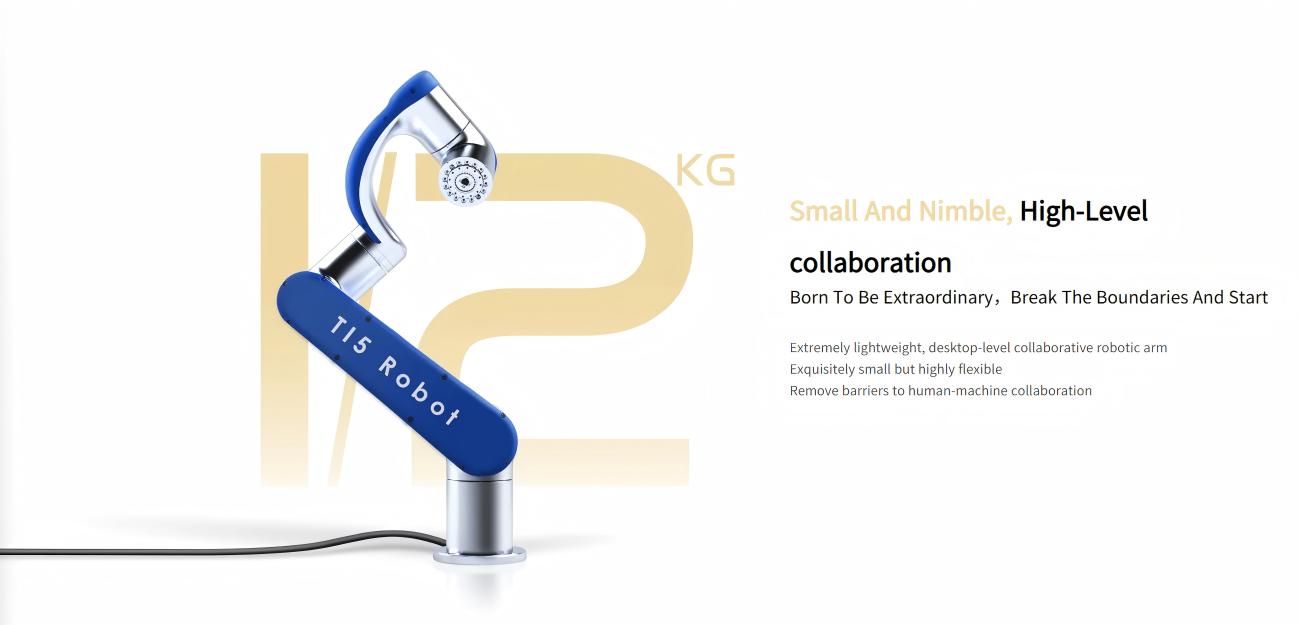

Ti5 ROBOT EBLM Series detail image 2

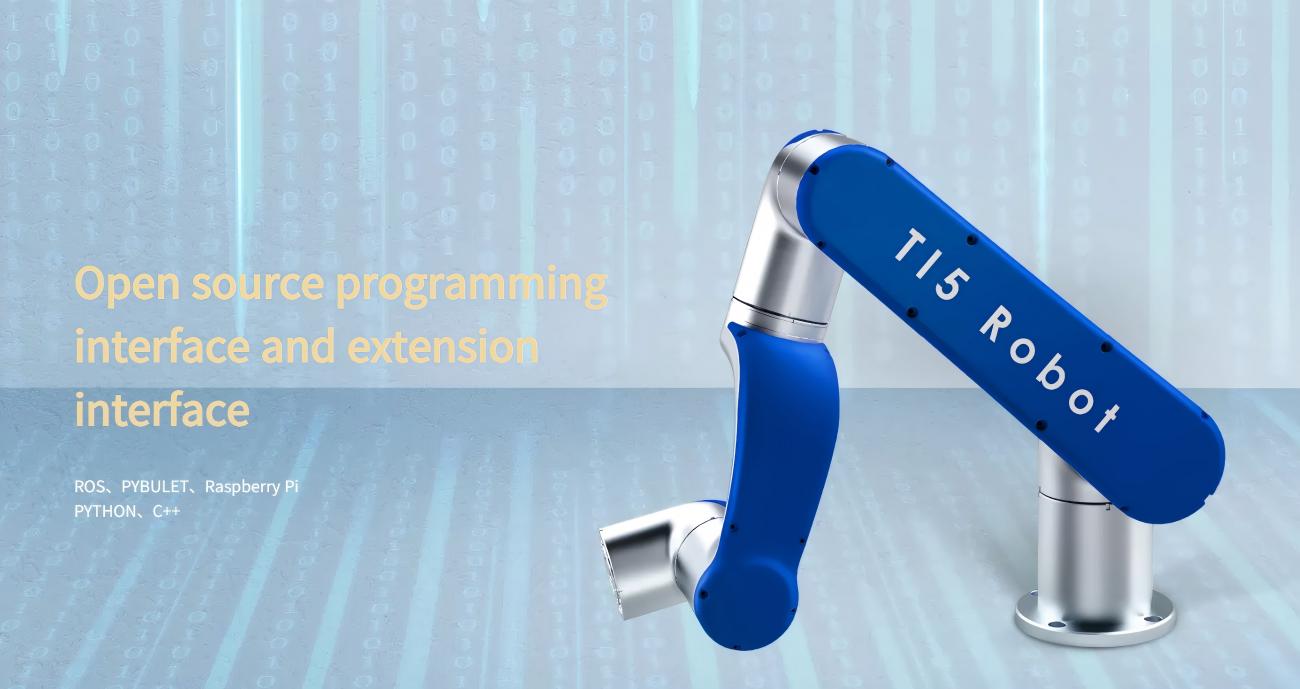

Ti5 ROBOT EBLM Series detail image 3

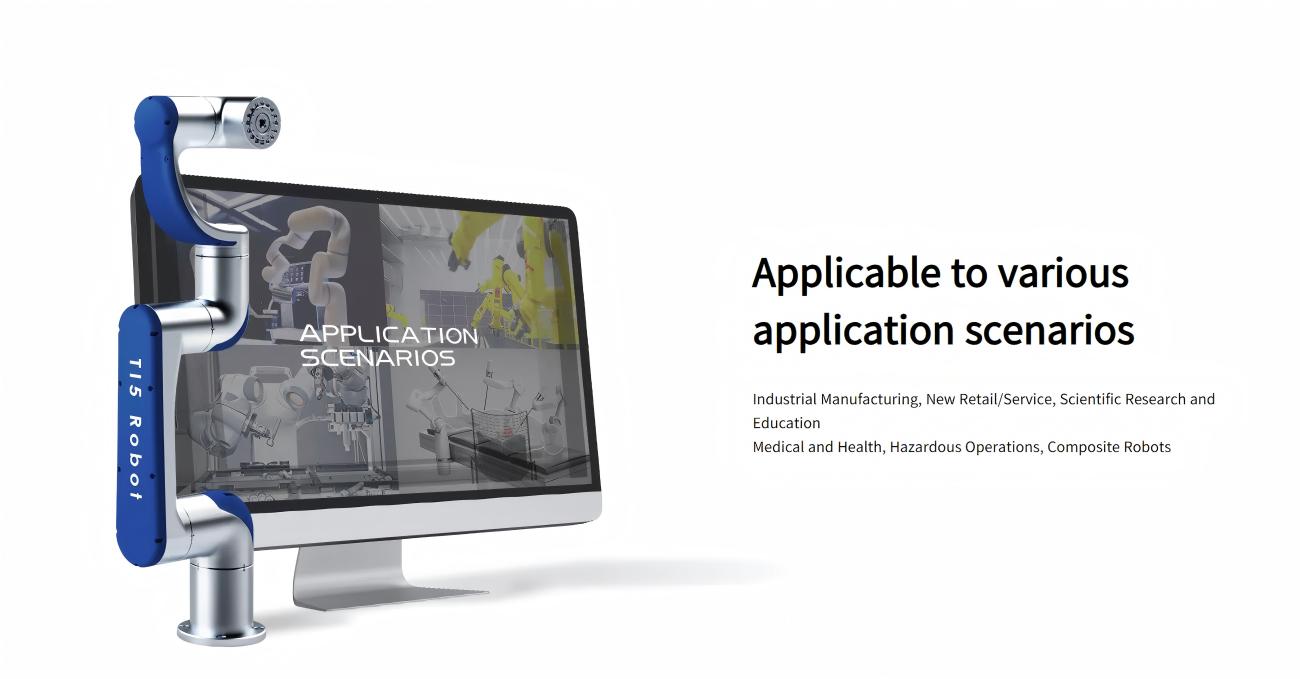

Ti5 ROBOT EBLM Series detail image 4
▤ Technical Specifications ⌃
Parameter
Ti5 Robot Arm-5
Ti5 Robot Arm-3
Name / Model
Ti5 Robot Eblm-1
Ti5 Robot Eblm-2
Mass
2.6kg
4.5kg
Payload
1kg
2kg
Working Radius
3800mm
520mm
Repeatability
0.05mm
0.05mm
DOF
6
6
Power
100W
200W
Interfaces & Openness
ROS, PYTHON, C++
ROS, PYTHON, C++
Power Supply Voltage Range
28～48V
28～48V
Joint Range of Motion
J1(±180°), J2(±90°), J3(±135°), J4(±180°), J5(±150°), J6(±180°)
J1(±180°), J2(±90°), J3(±135°), J4(±180°), J5(±150°), J6(±180°)
Max. Joint Speed
106°/s
106°/s
IP Rating
IP50
IP50
Material
Aluminum alloy, Resin
Aluminum alloy, Resin
Operating Temperature Range
0°C～50°C
0°C～50°C
Power Supply
DC 48V, 5A; DC 28V, 10A
DC 48V, 5A; DC 28V, 10A
USB
USB3.0*4
USB3.0*4
HDMI
HDMI2.0
HDMI2.0
I/O Interface
SPI/12C/GPI0/MART
SPI/12C/GPI0/LNRT
Standard Cable Length
1m
1m
