EYOU

EYOU PH25 Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$790
Version
Gear Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU PH25 Motor CAD model for mechanical integration.stp ▶ EYOU PH25 Motor dimension drawing for installation reference.pdf ▶

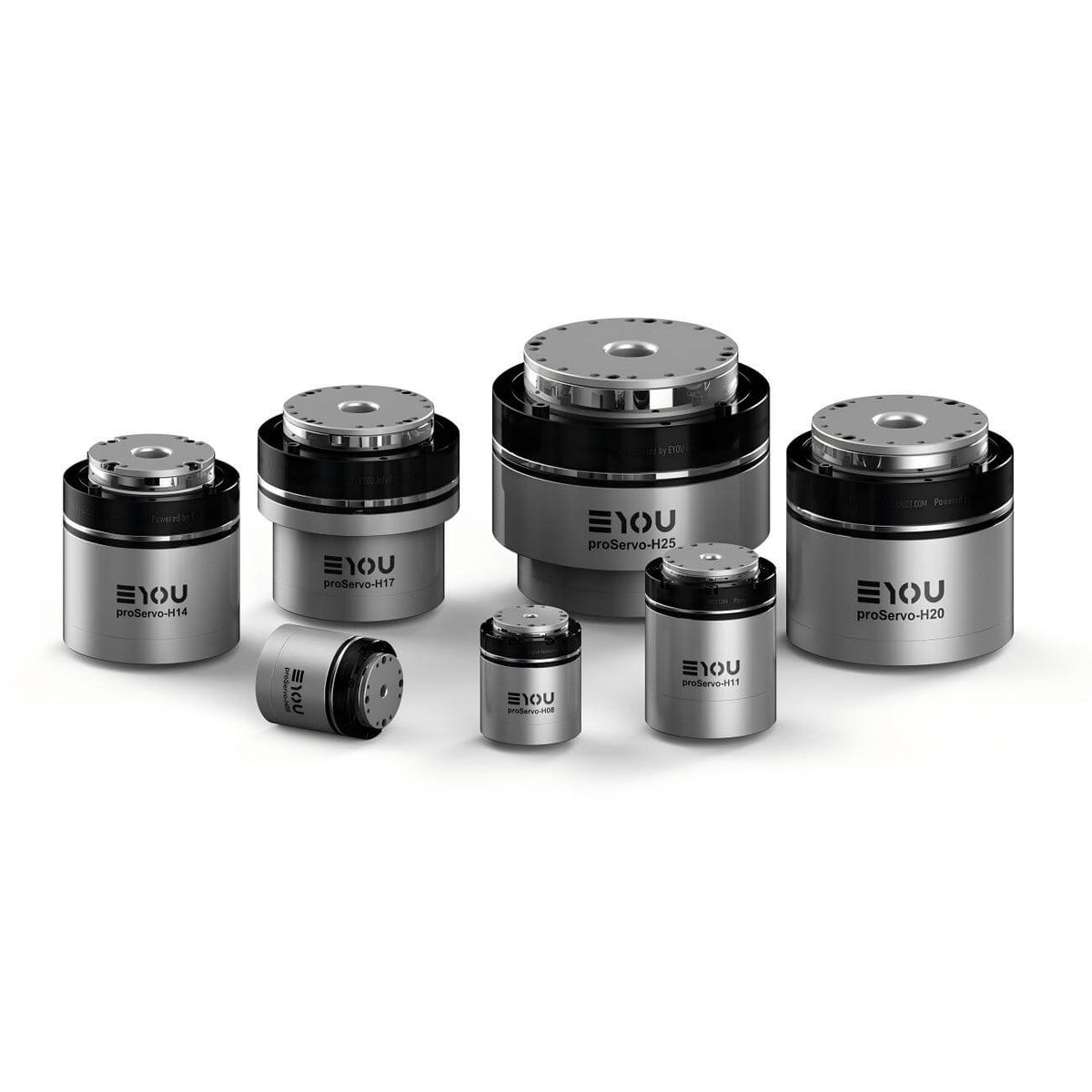

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 1

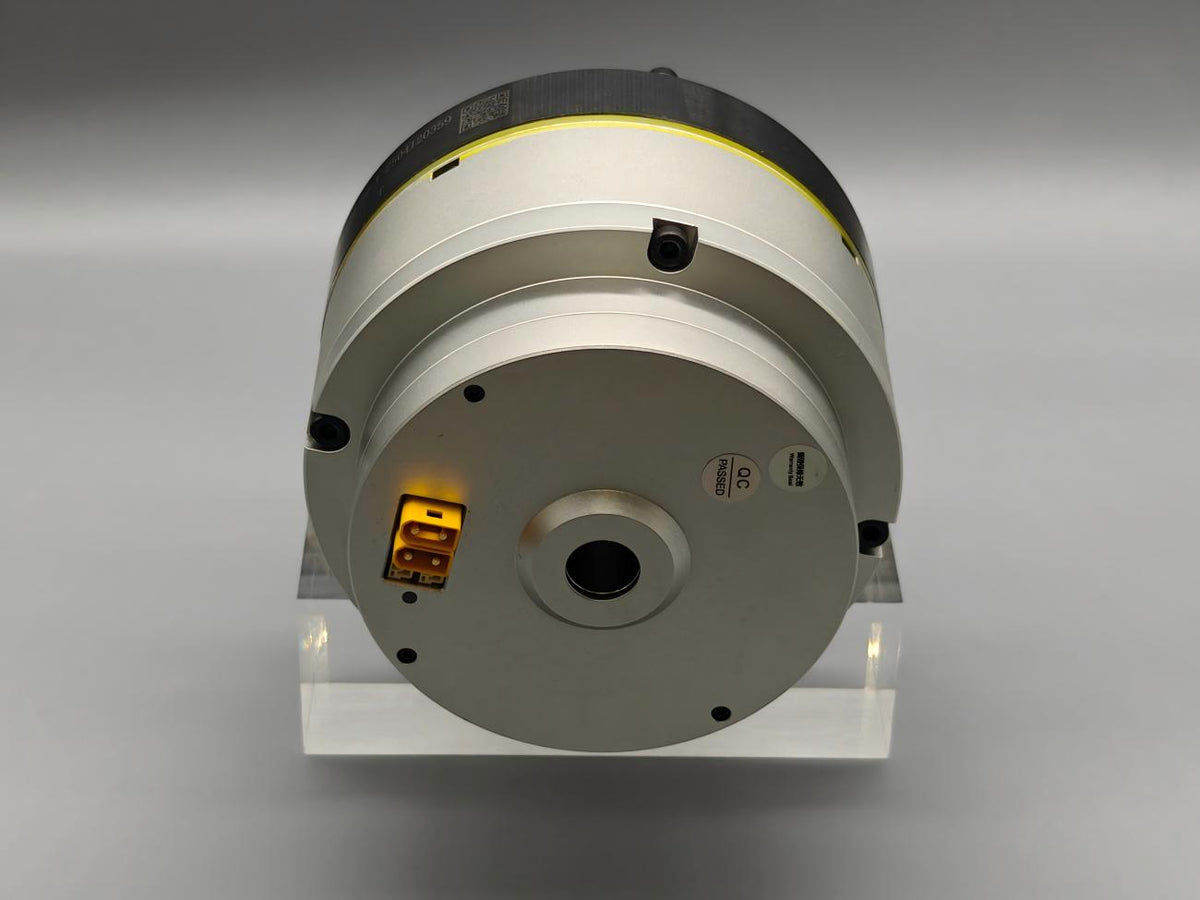

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 2

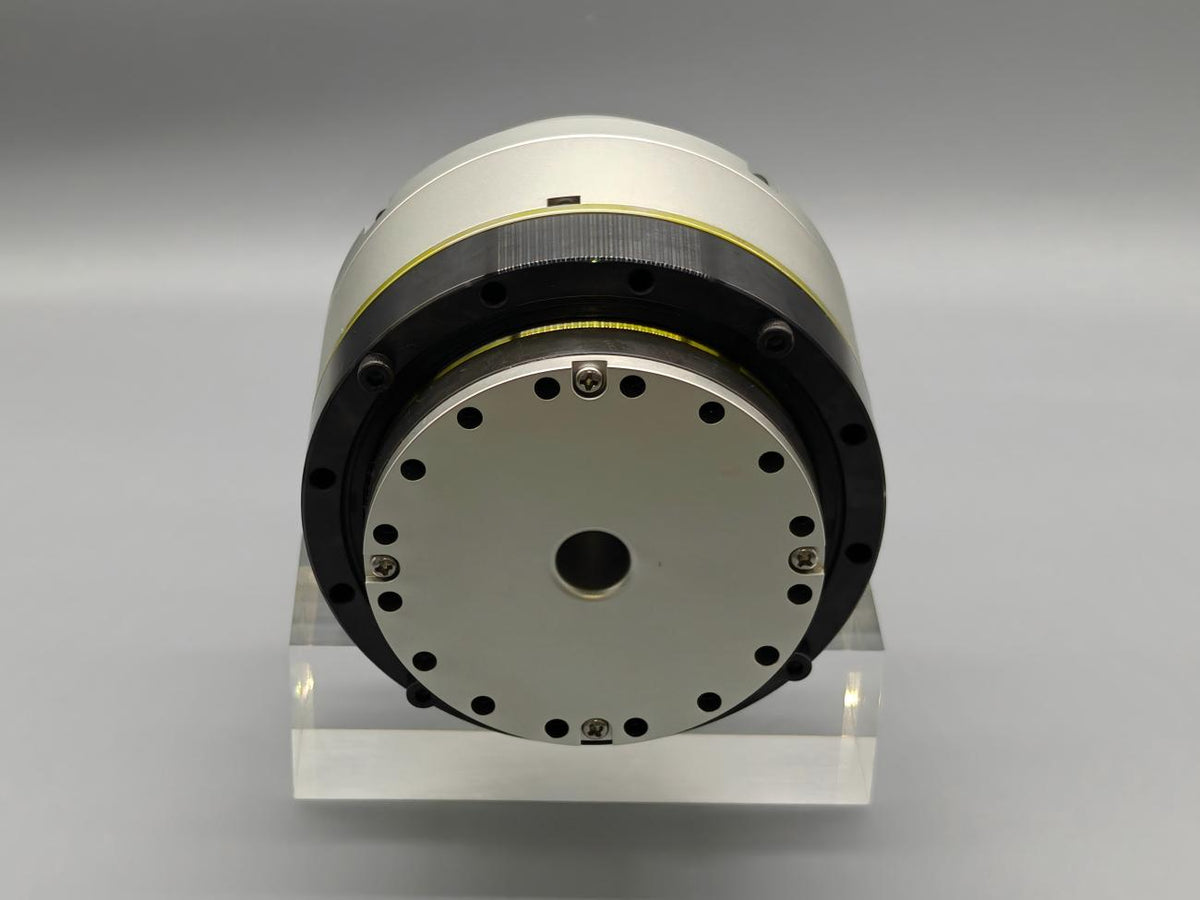

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 3

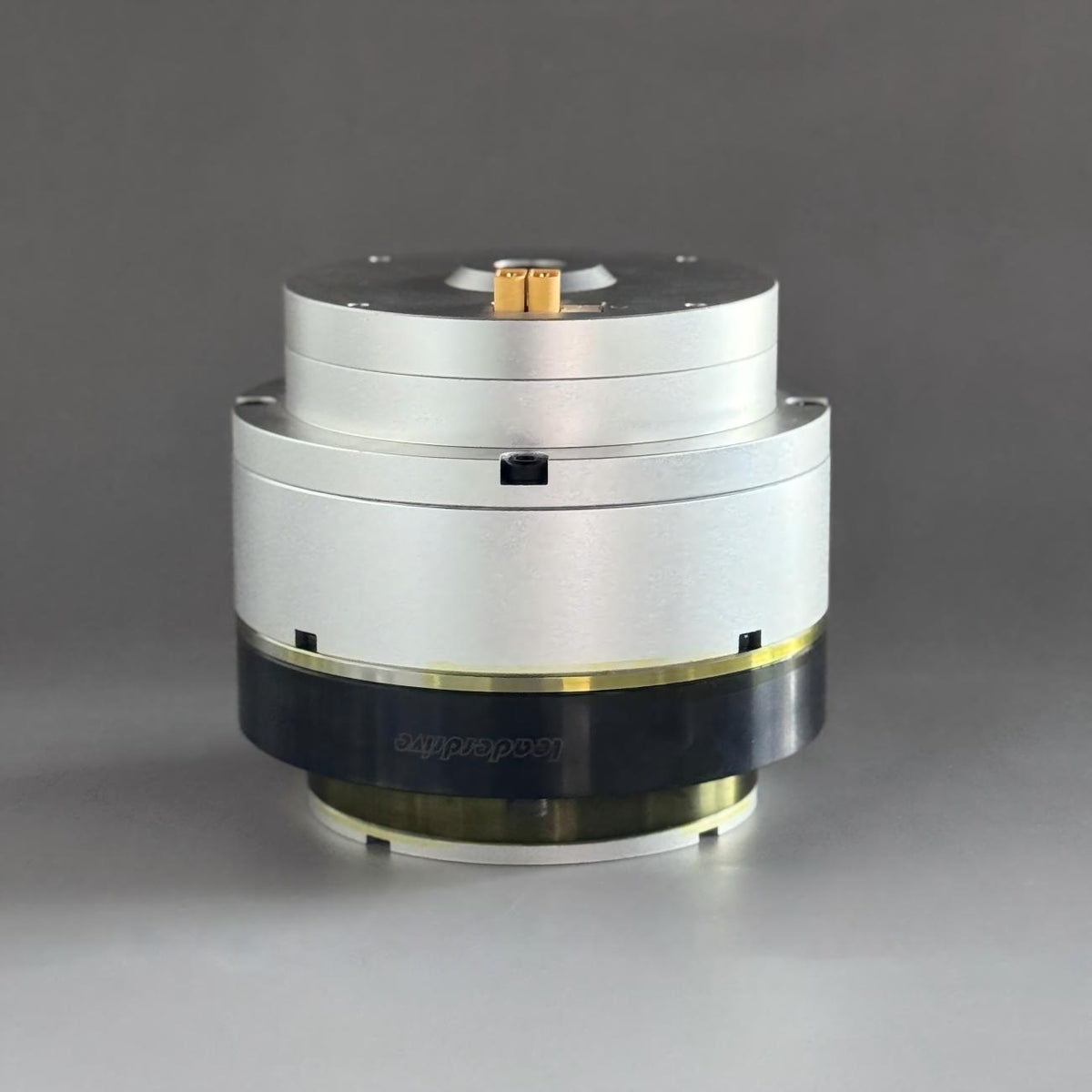

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 4

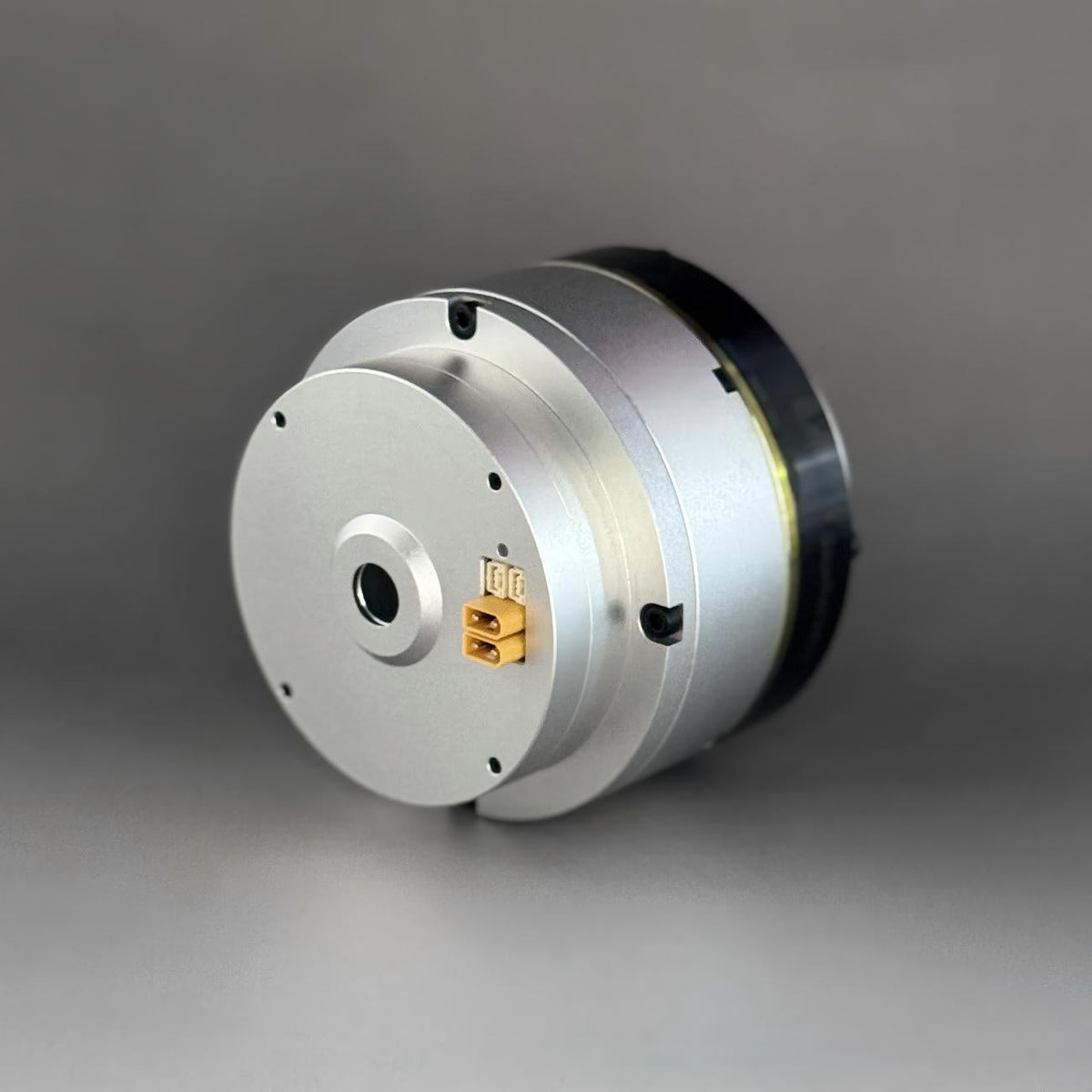

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 5

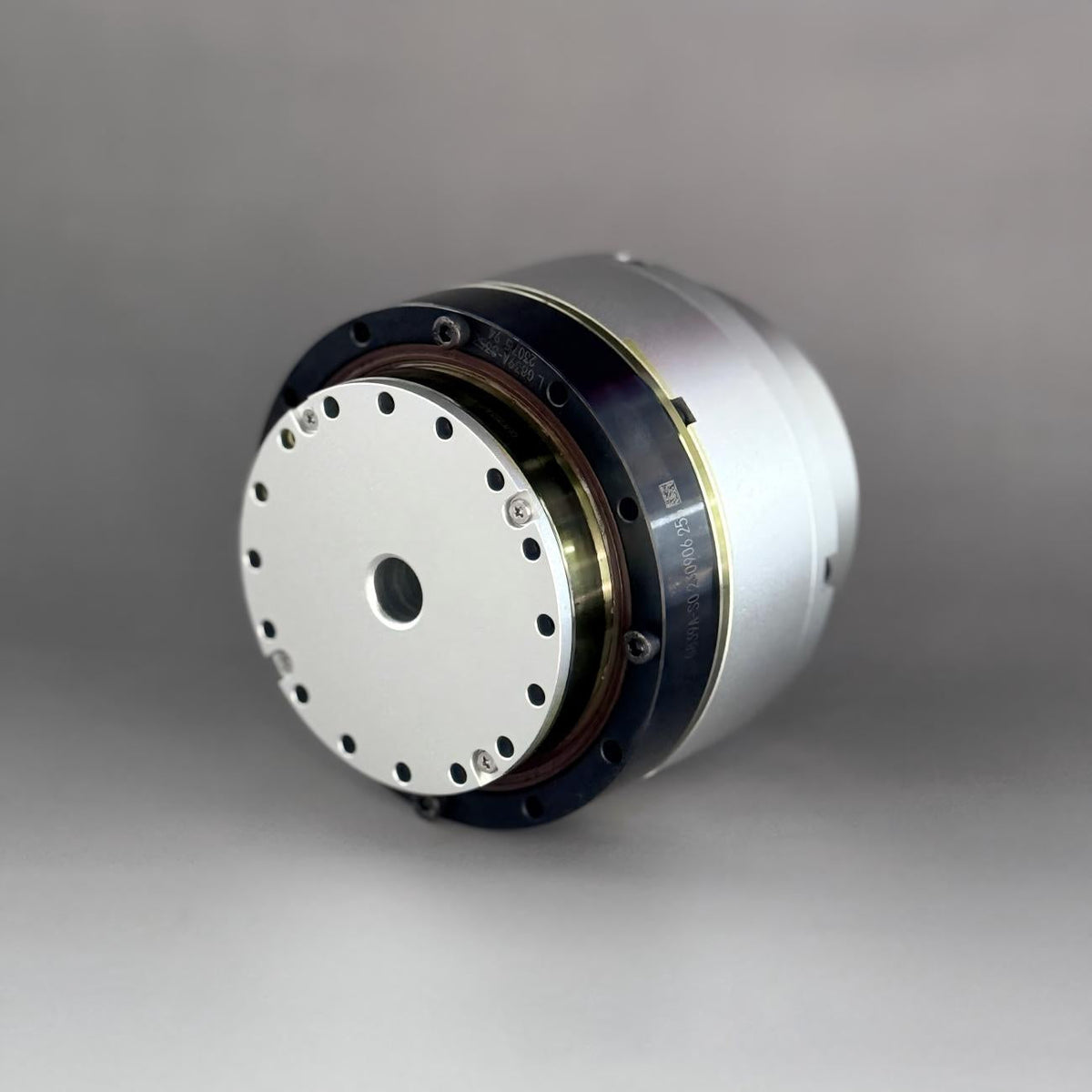

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 6

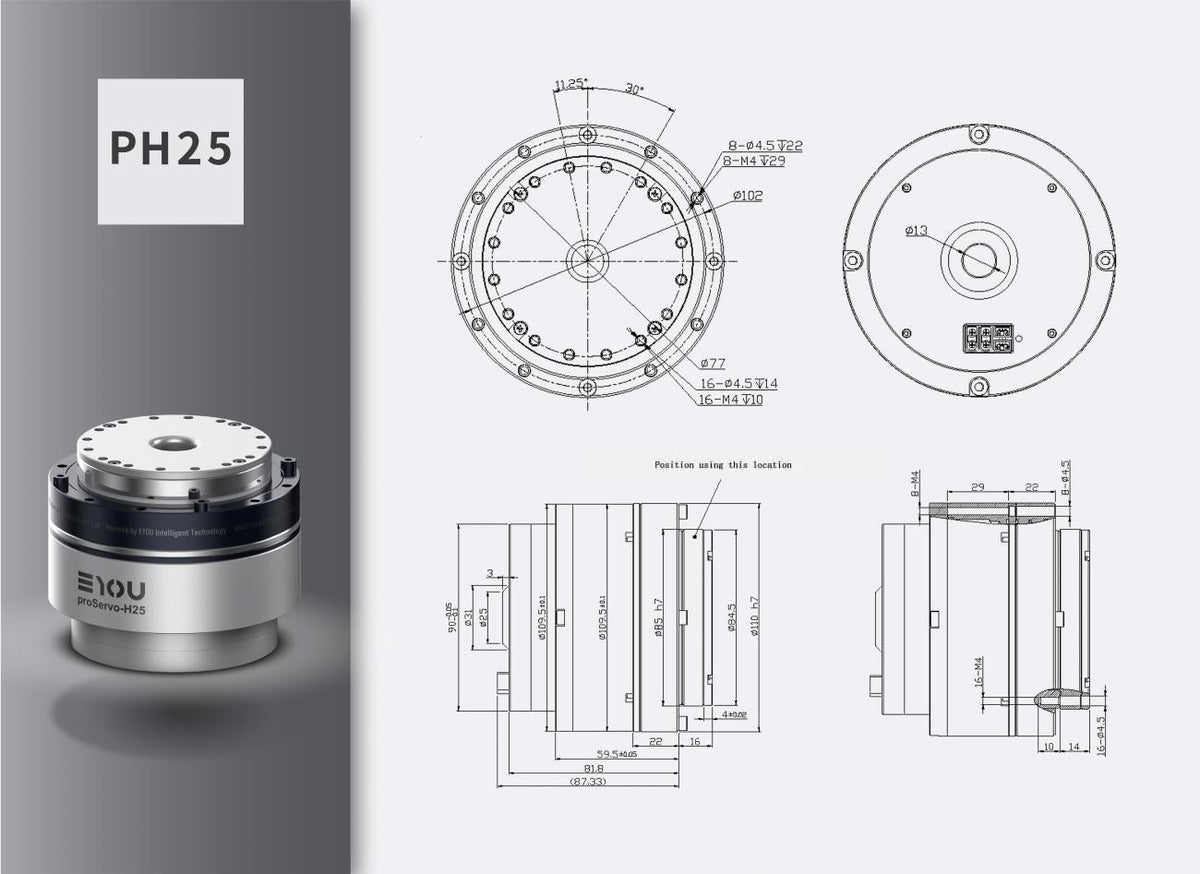

EYOU PH25 Motor | Robot Servo Motor for Robotics Development detail image 7
▤ Technical Specifications ⌃
Parameter Value Value
Model PH25 PH25
Motor Type Internal Rotor Torque Motor Internal Rotor Torque Motor
Diameter 110mm 110mm
Through Bore ID 18mm 18mm
Weight（With Brake / Without Brake） 3098/2927g 3098/2927g
Backlash 15arcsec 15arcsec
Noise ＜70db ＜70db
Temperature Range -20~80℃ -20~80℃
Operating Voltage 24~48v 24~48v
Rated Power 500w 500w
Gear Ratio 81 121
Rated Speed 38rpm 25rpm
Rated Torque 96N.M 144N.M
Peak Torque 206N.M 220N.M
Encoder Accuracy 19bit 19bit
Encoder Type Dual Magnetic Encoder Dual Magnetic Encoder
