CubeMars

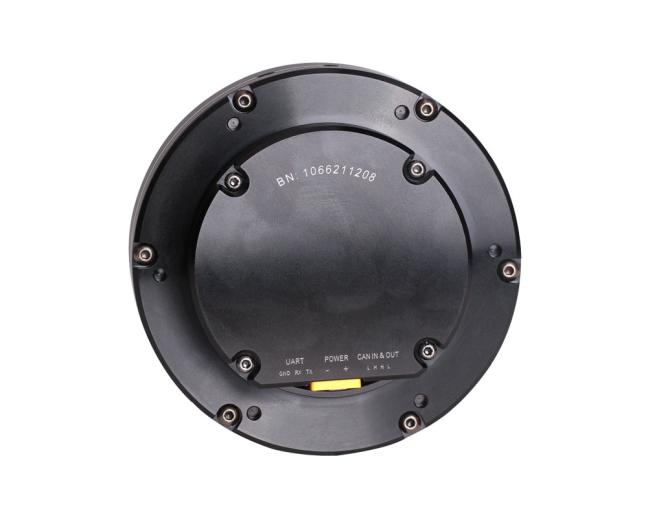

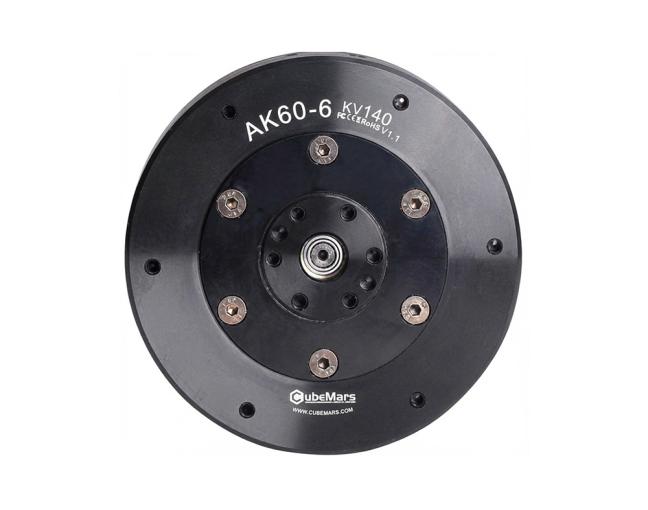

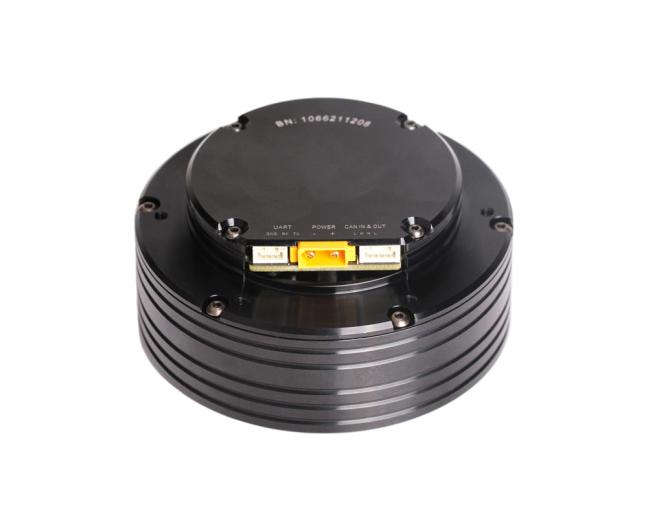

CubeMars AK60-6 Robotic Actuator | Compact Robot Joint Motor

• Ideal for humanoid robots, robotic arms, and lightweight robotic systems
• Suitable for robotics research, educational projects, and robot joint development
• Compact integrated actuator combining motor, gearbox, and driver
• Lightweight 368g design for space- and weight-constrained applications
• Peak torque up to 9Nm with a precision 6:1 planetary gearbox
• Supports servo control and MIT hybrid control modes
• Built-in protection against overcurrent, overvoltage, and overheating
$280
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

CubeMars AK Series Robot Actuator Comparison

Swipe to compare →
CubeMars AK70-10 Robotic Actuator | High Torque Robot Actuator Motor
$455
CubeMars AK80-9 Robotic Actuator | High Torque Robot Joint Motor
$370
CubeMars AK60-6 Robotic Actuator | Compact Robot Joint Motor
$280
Peak Torque (Nm)
24.8
22
9
Rated Torque (Nm)
8.3
9
3
Rated Speed (rpm)
148/310
390
420
Reduction Ratio
10:1
9:1
6:1
Weight (g)
621
490
368
KV (rpm/V)
100
100
140
Peak Current (ADC)
23.2
28
22.7
Rated Voltage (V)
24/48
48
24
Encoder Resolution
14bit
16bit
14bit
Torque Density (Nm/kg)
47.6
44.9
24.46
CubeMars AK60-6 Robotic Actuator | Compact Robot Joint Motor CubeMars AK60-6 Robotic Actuator | Compact Robot Joint Motor
▤ PARAMETER ⌃
Application
Legged Robot, Exoskeleton, AGV
Driving Way
FOC
Operating Temperature
-20°C~50°C
Winding Type
Delta
Insulation Class
C
Pole Pairs
14
Reduction Ratio
6:1
Back Drive (Nm)
0.2
Backlash
0.55°
Rated Voltage (V)
24
Rated Torque (Nm)
3
Rated Speed (rpm)
420
Rated Current (ADC)
6.5
Peak Torque (Nm)
9
Peak Current (ADC)
22.7
KV (rpm/V)
140
KT (Nm/A)
0.078
KE (V/krpm)
7.5
Phase Resistance (mΩ)
202
Phase Inductance (μH)
138
Rotor Inertia (gcm²)
243.5
Motor Constant (Nm/√W)
0.17
Mechanical Time Constant (ms)
0.81
Electrical Time Constant (ms)
0.68
Weight (g)
368
Torque Density (Nm/kg)
24.46
CAN Connector
A1257WR-S-4P
UART Connector
A1257WR-S-3P
Power Connector
XT30PW-M
Encoder Type
Magnetic Encoder
Encoder Resolution
14bit
Number of Encoders
1
