DAMIAO

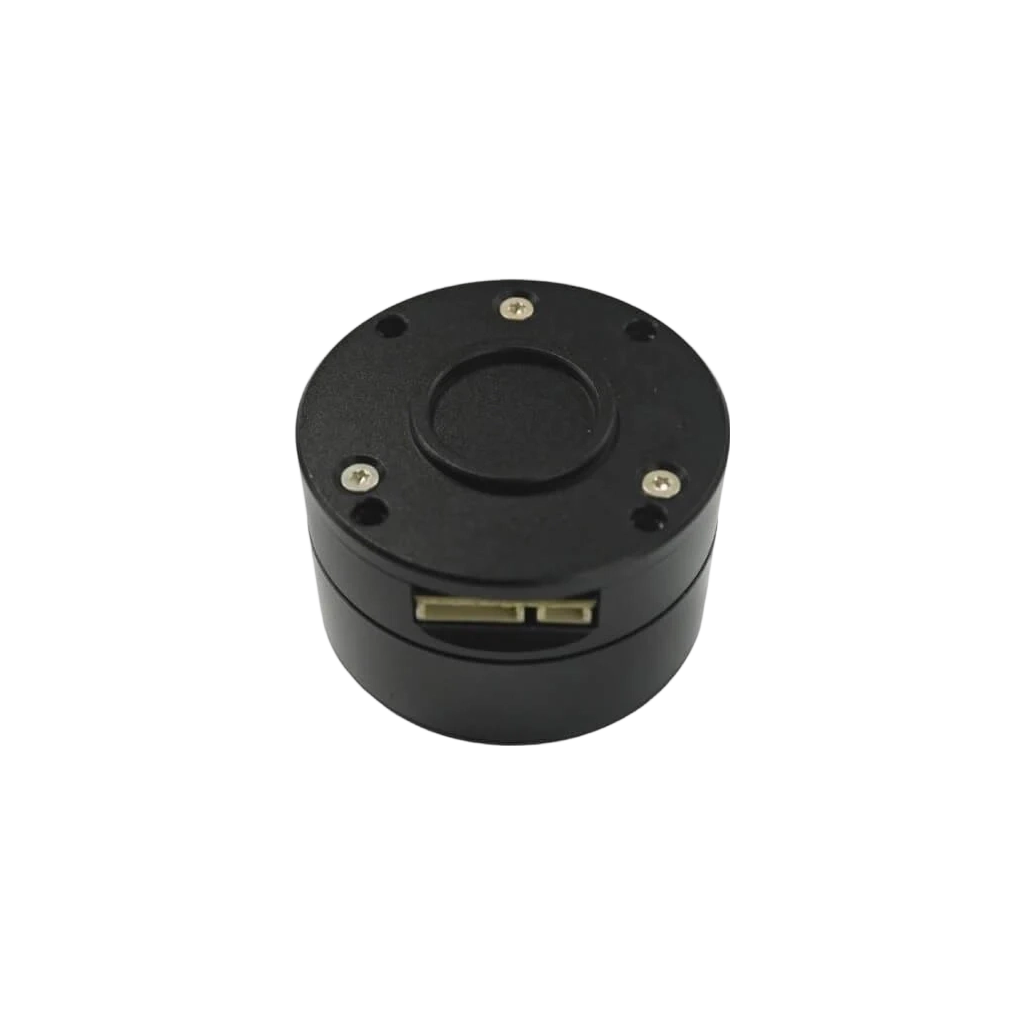

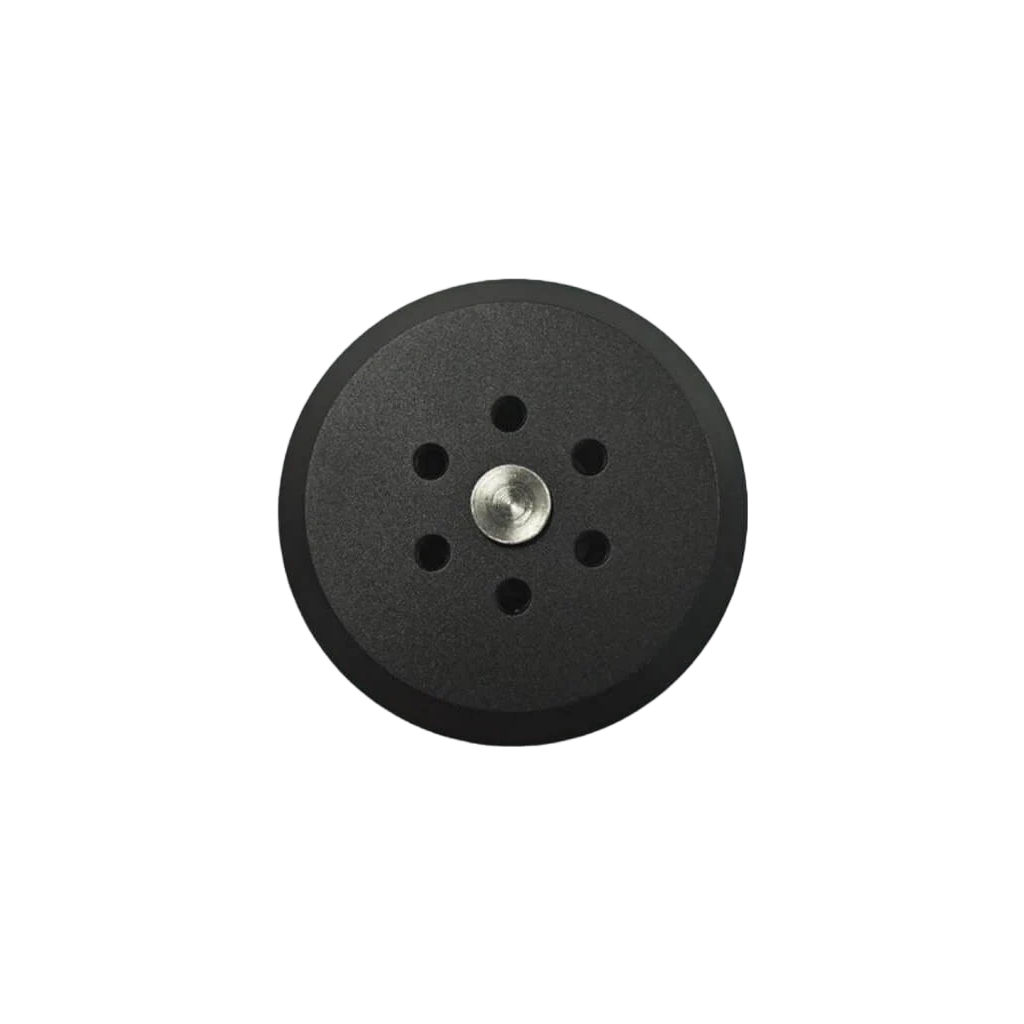

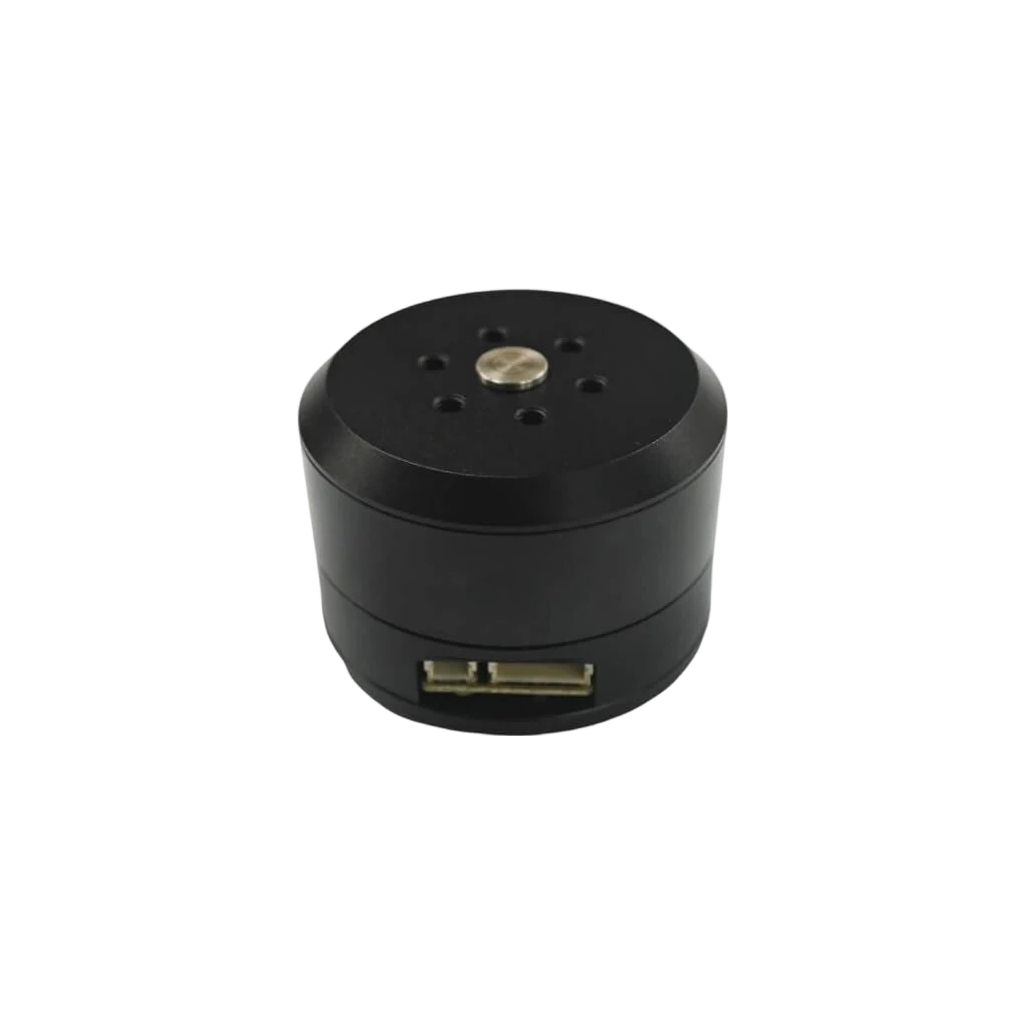

DAMIAO DM-H3510 Servo Motor for Robot Joints | Bulk Supply

Model: DM-H3510
$50
Version

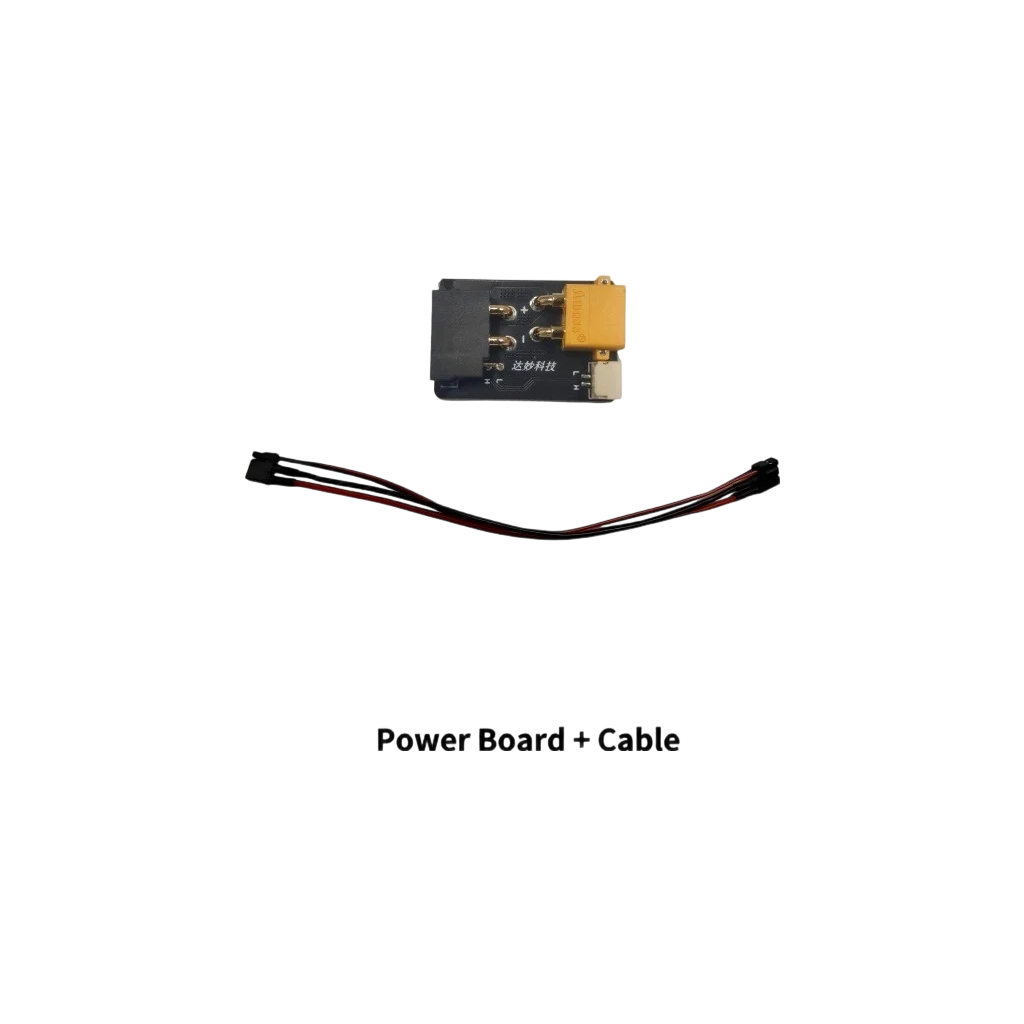

Communication Module
Accessory Kit

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DMH3510
Nominal Voltage
24 V DC
Nominal Current
1.1 A
Peak Current
3.2 A
Nominal Torque
0.18 N·m
Peak Torque
0.45 N·m
Nominal Speed
500 rpm
Maximum No-Load Speed
1800 rpm
Reduction Ratio
1:1
Pole Pairs
7
Phase Inductance
1.67 µH
Phase Resistance
2.25 Ω
Outer Diameter
42 mm
Height
31.5 mm
Motor Weight
116 g
Encoder Type
Magnetic Encoder
Control Interface
CAN (1 Mbps), CAN FD (5 Mbps)
Configuration Interface
UART (921600 bps)

Technical Documentation

STP
DAMIAO_DMH3510_Motor.stp
PDF
DM-H3510_User_Manual-1.pdf
