MUWEIDU

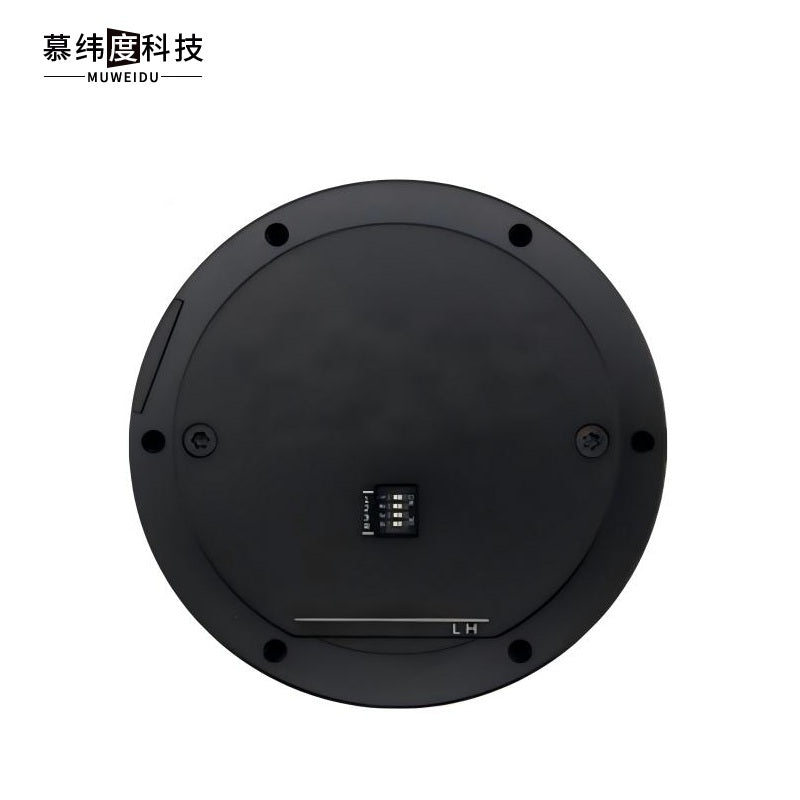

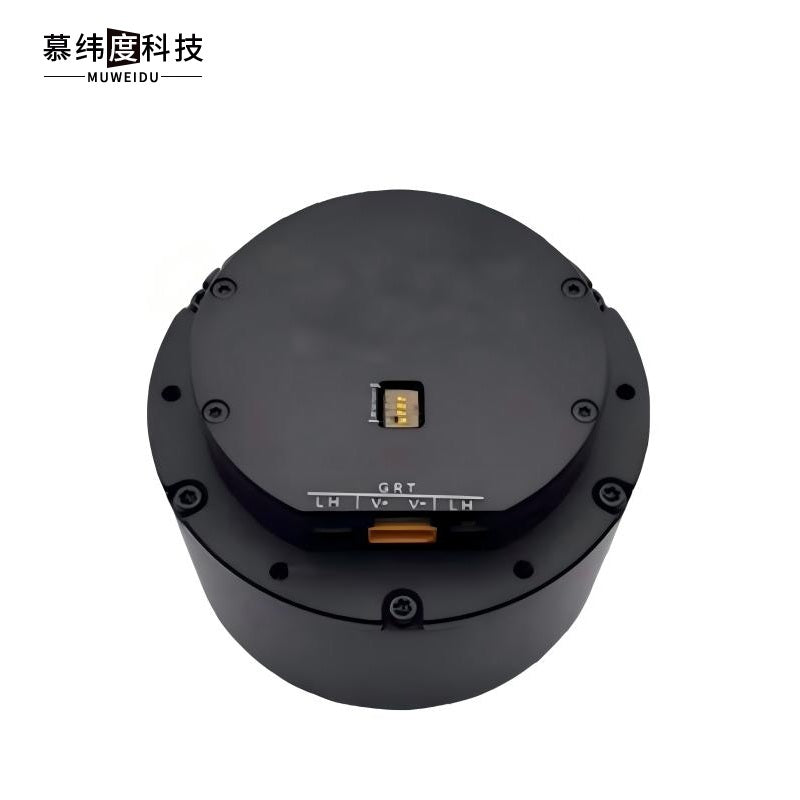

MUWEIDU TS8006-8 Motor | Robot Servo Motor for Robotics Development

  • MUWEIDU robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, research platforms, education projects, and prototype robots.
  • Designed for practical integration in robot actuator, motion-control, compact mechanism, and embedded hardware workflows.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$715
Version
Communication Mode

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

MUWEIDU TS8006-8 Motor CAD model for mechanical integration.stp ▶ MUWEIDU TS8006-8B Motor CAD model for mechanical integration.stp ▶ MUWEIDU TS8006-8 Motor dimension drawing for installation reference.pdf ▶ MUWEIDU TS8006-8B Motor dimension drawing for installation reference.pdf ▶
MUWEIDU TS8006-8 Motor | Robot Servo Motor for Robotics Development detail image 1
MUWEIDU TS8006-8 Motor | Robot Servo Motor for Robotics Development detail image 2
MUWEIDU TS8006-8 Motor | Robot Servo Motor for Robotics Development detail image 3
▤ PARAMETER ⌃
Model
TS8006-8
Rated Voltage
48V
Rated Current
3.5A
Rated Current (with brake)
6.8A
Peak Power
294W
Peak Power (with brake)
670W
Rated Torque
6N.m
Peak Torque
16N.m
Peak Torque (with brake)
12N.m
Rated Speed
256rpm
Rated Speed (with brake)
177rpm
Encoder
18bit + 14bit
Rotor Inertia
930gcm²
Rotor Inertia (with brake)
2570gcm²
Reduction Ratio
1:8
Control Modes
Torque/Speed/Position
Communication Protocol
RS485/CAN
Overall Dimensions
Φ80mm×44.5mm
Overall Dimensions (with brake)
Φ80mm×61mm
Weight
430g
Weight (with brake)
695g
