XGRIDS

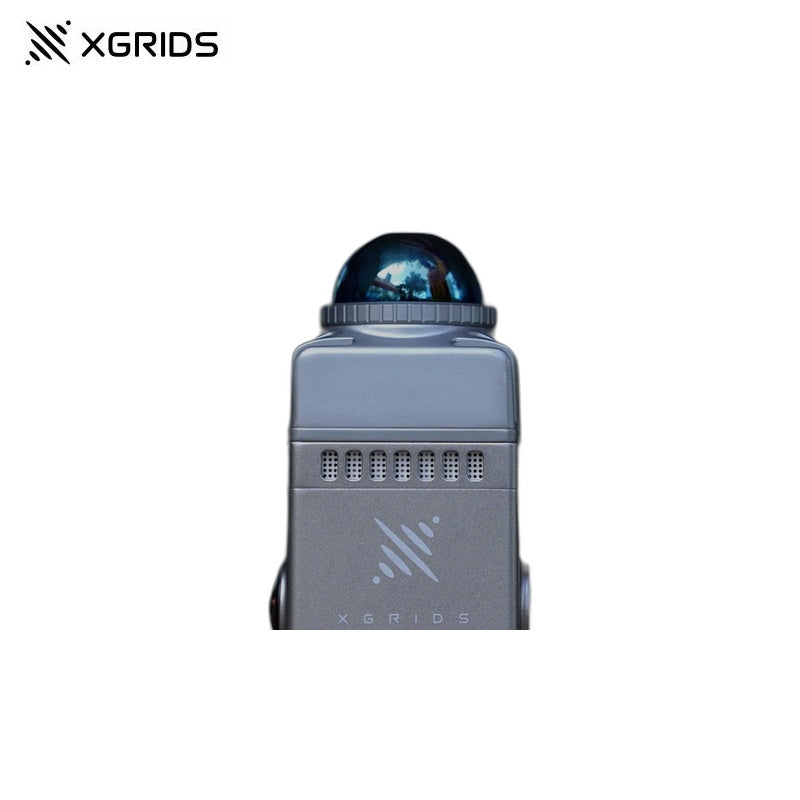

XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Power Input: 14.4V
  • Suitable for mobile robots, autonomous platforms, robotics research, field mapping, and automation systems.
  • Designed for robot sensing workflows that require perception, localization, and environmental awareness.
  • Useful for developers building SLAM, spatial mapping, robot vision, and autonomous robotics applications.
$13,700
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

XGRIDS Lixel K1 LiDAR product documentation for robotics integration.pdf ▶ XGRIDS Lixel K1 LiDAR user manual for setup and operation.pdf ▶
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

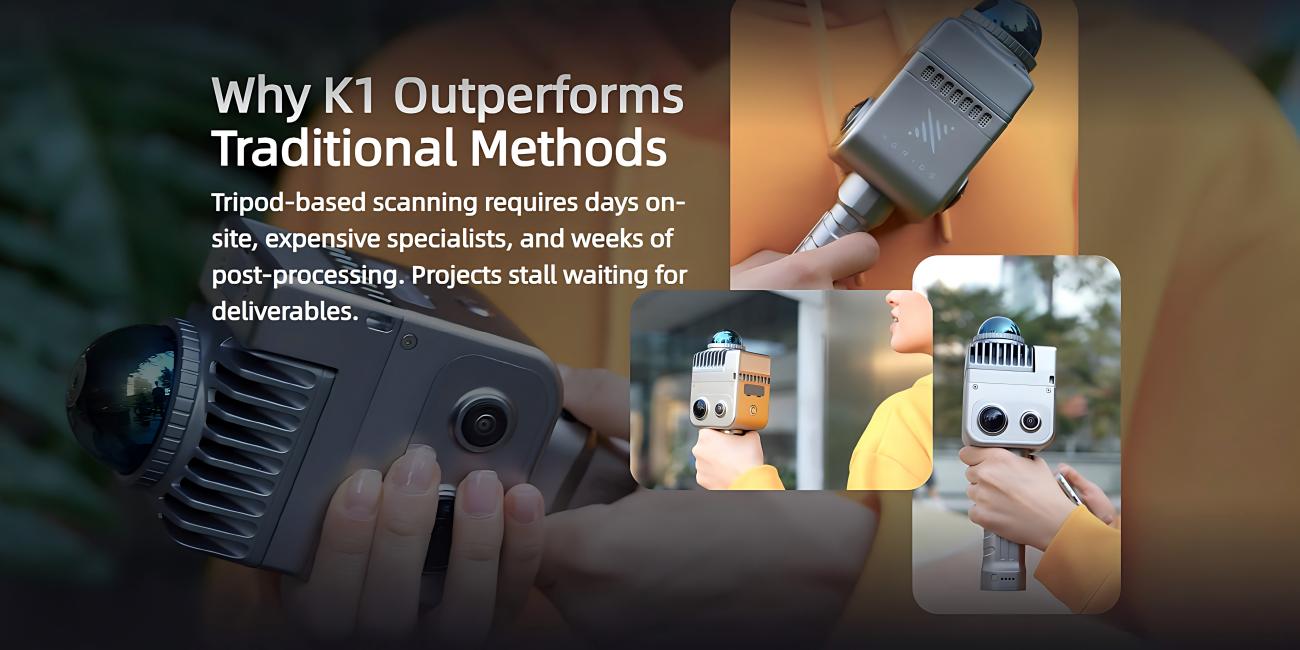

XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

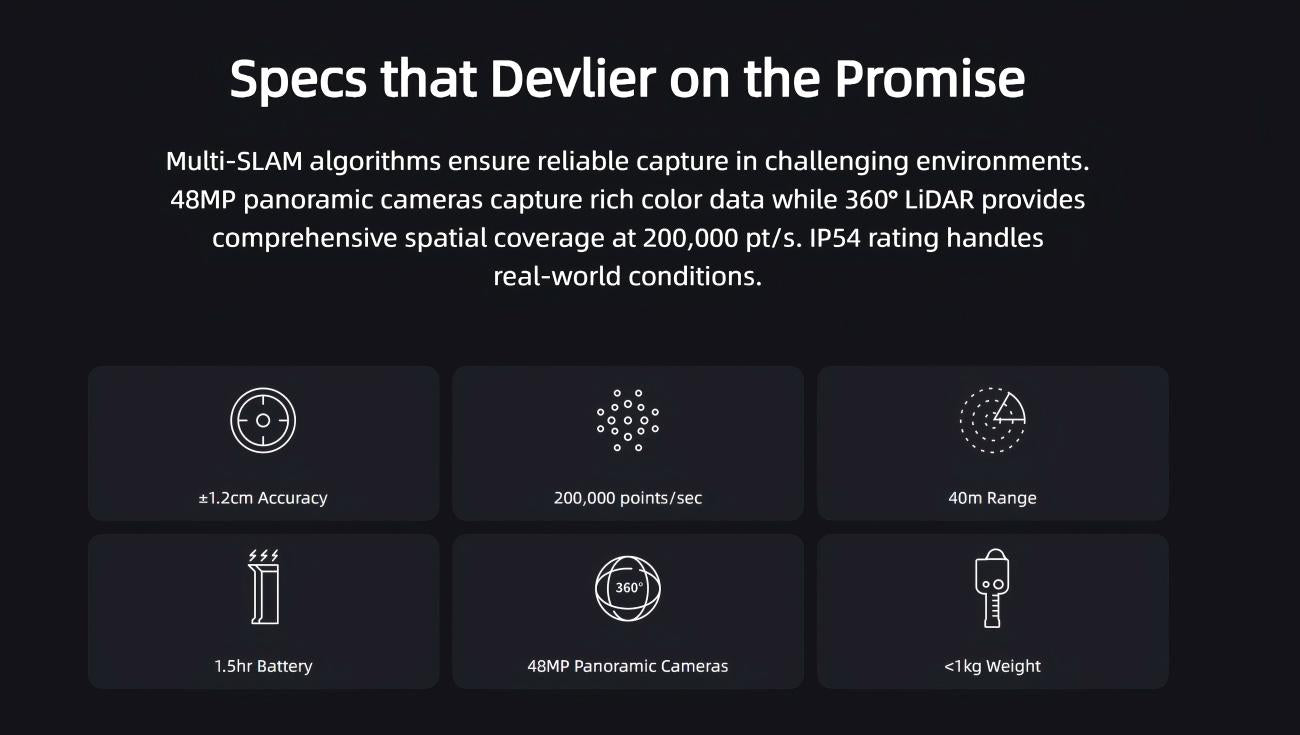

XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9

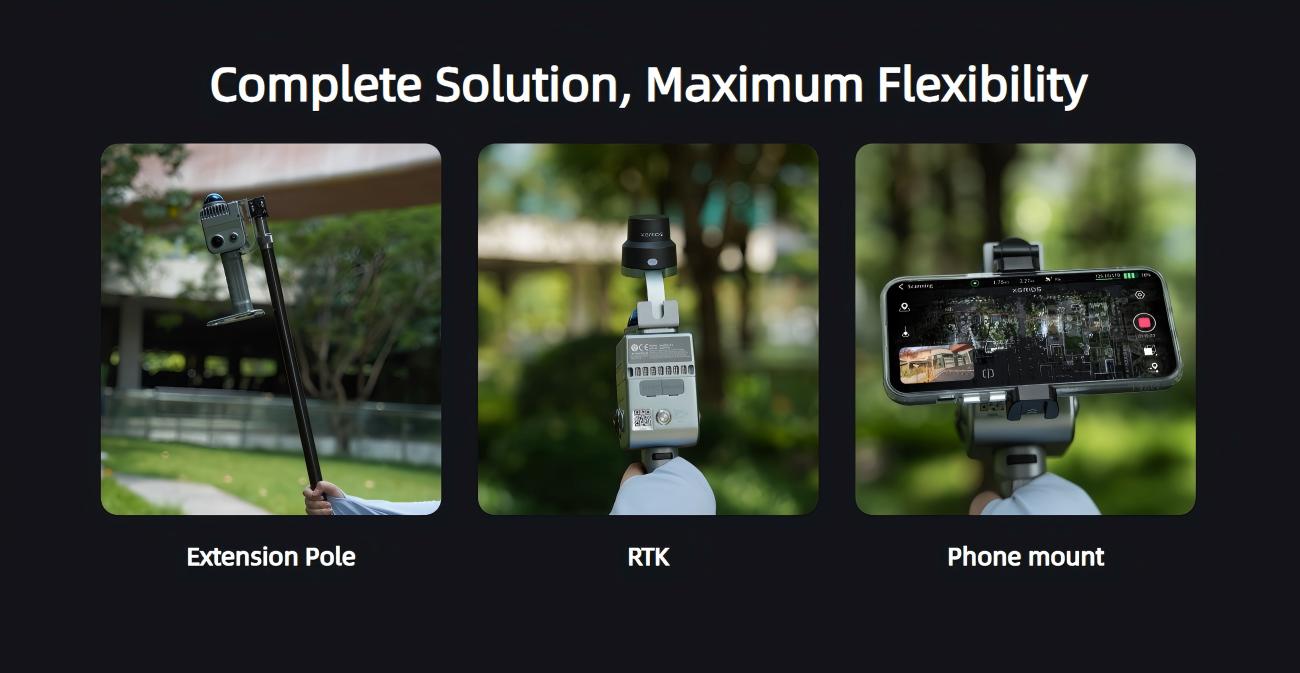

XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 11
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 12
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 13
XGRIDS Lixel K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 14
▤ PARAMETER ⌃
Power Input
14.4V
Weight
1kg
Storage Capacity
TF card 256G
OperatingTemperature
-20°C~50°C
Product Shell
Navigational Aluminum
Operating Time
1.5h
Number of Cameras
4
APP WiFi Distance
20m
Power Consumption
<20W
Data Interface
USB3.1 Gen2
Connection Mode
Wifi/Bluetooth 2.4G Wifi 2412-2472MHz 5G2 Wifi 5180-5240MHz 5G8 Wifi 5745-5825MHz
Protection Level
IP54
Product Shell
Navigational Aluminum
Power Supply
Fast-lock battery/external power
Battery Capacity
28.8wh
Visual-Aided Positioning
Supported
RTK Module
Supported
Relative Accuracy
1.2cm
Repeat Accuracy
2cm
Working Range
0.1m~40m@10%, 70m@80%
Scan Mode
Mobile
Scan Speed
200,000 points/s
Laser Class
Class1/905nm
Absolute Accuracy
3cm
Horizontal Accuracy
0.015°
LiDAR FOV
360°*-7~+52°
Camera FOV
Color panorama HDV 360°*360°
Panoramic Image Resolution
Max 56MP
Camera Resolution
48 MP x2
Calculating Mode
Real-time calculating/Mixed calculating
Point Cloud Format
.las
Calculating Software
Lixel Studio post-processing software for Win
Color Point Cloud
Supported
