CubeMars AKH70-16 Motor | High-Torque Robot Actuator for Robotics Development

  • High-torque robot actuator for robotic joints and robotics development.
  • Designed for robot arms, legged robots, and mobile robotics projects.
  • CubeMars AKH-series motor platform for developers, research teams, and education labs.
  • Suitable for automation prototyping and robot hardware integration.
  • Prepared with source specifications, product imagery, and downloadable resources when available.
$599
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CubeMars AKH70-16 motor documentation with product specifications and integration reference information ▶ CubeMars AKH70-16 motor STEP CAD model for mechanical integration and design reference ▶ CubeMars AKH70-16 motor STEP CAD model for mechanical integration and design reference ▶

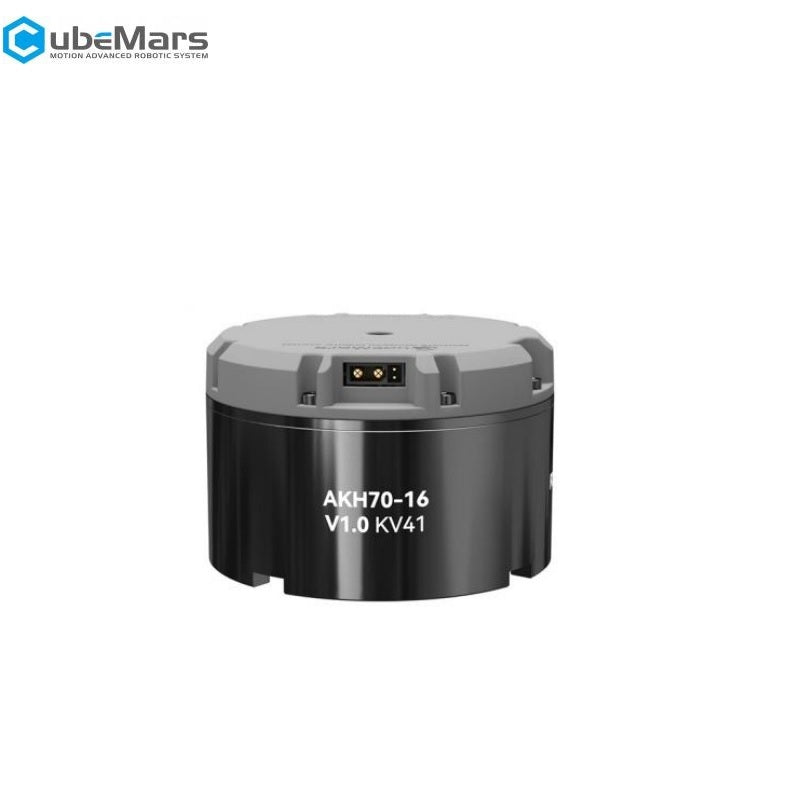

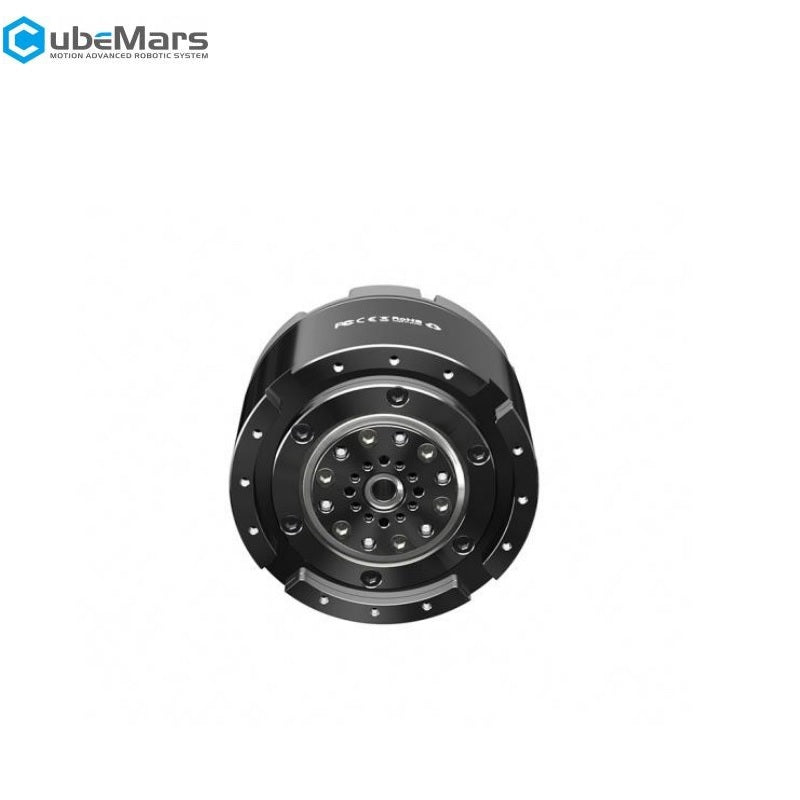

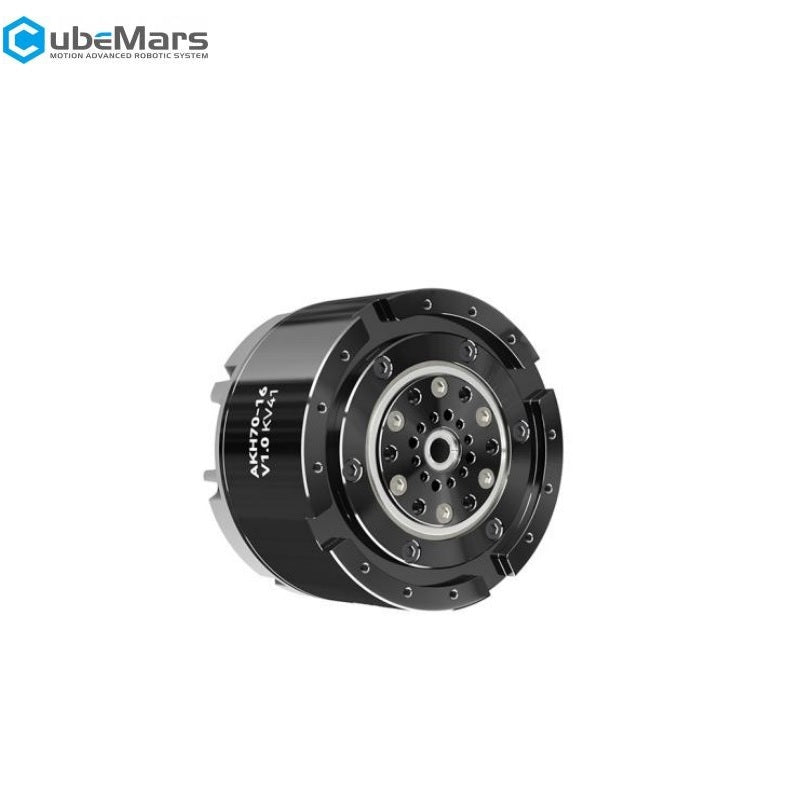

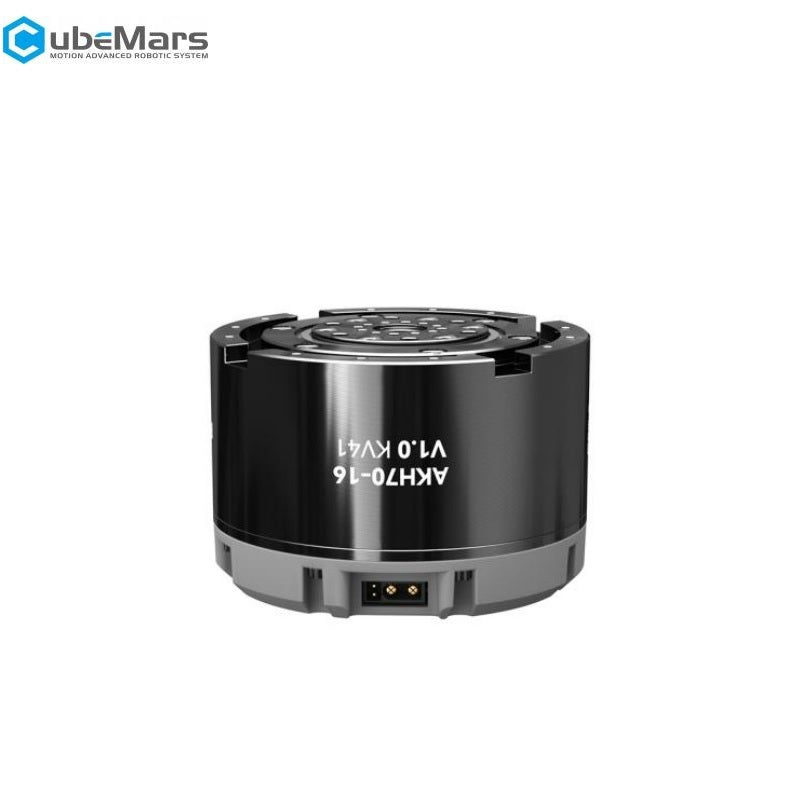

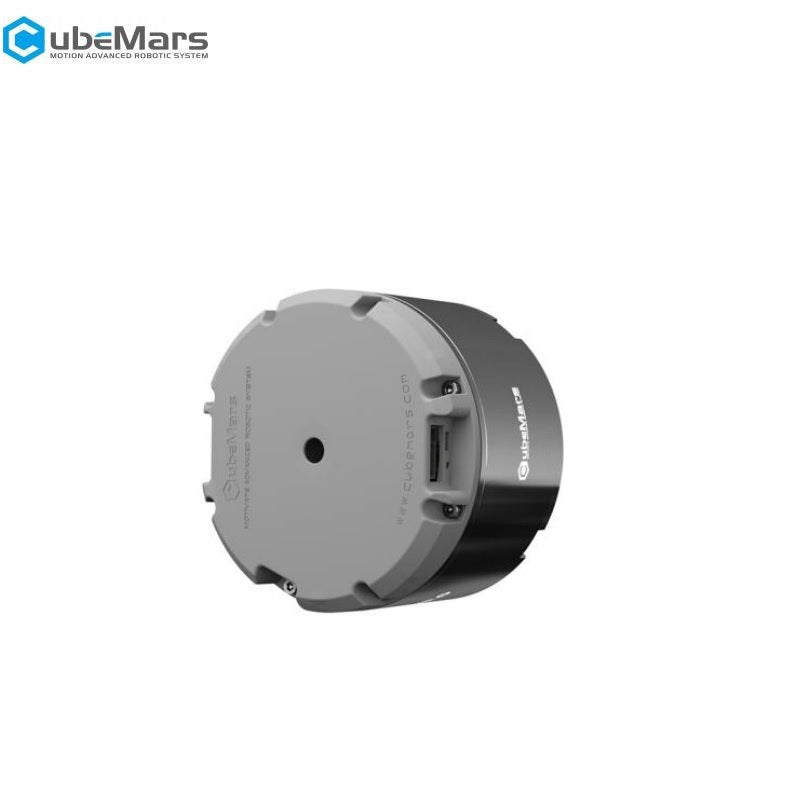

CubeMars AKH70-16 Motor

The CubeMars AKH70-16 Motor is a high-torque robot actuator for robotics development, robotic joints, robot arms, legged robots, and automation prototypes. It is suitable for developers, research labs, and education teams building robot hardware systems.

Features

  • **High-torque actuator platform:** Designed for robotic joint and robot hardware development.
  • **Robotics integration:** Suitable for robot arms, legged robots, and automation prototypes.
  • **Developer-focused:** Built for robotics research, education labs, and engineering projects.
  • **Source-backed listing:** Specifications and media are extracted from the reference product page.

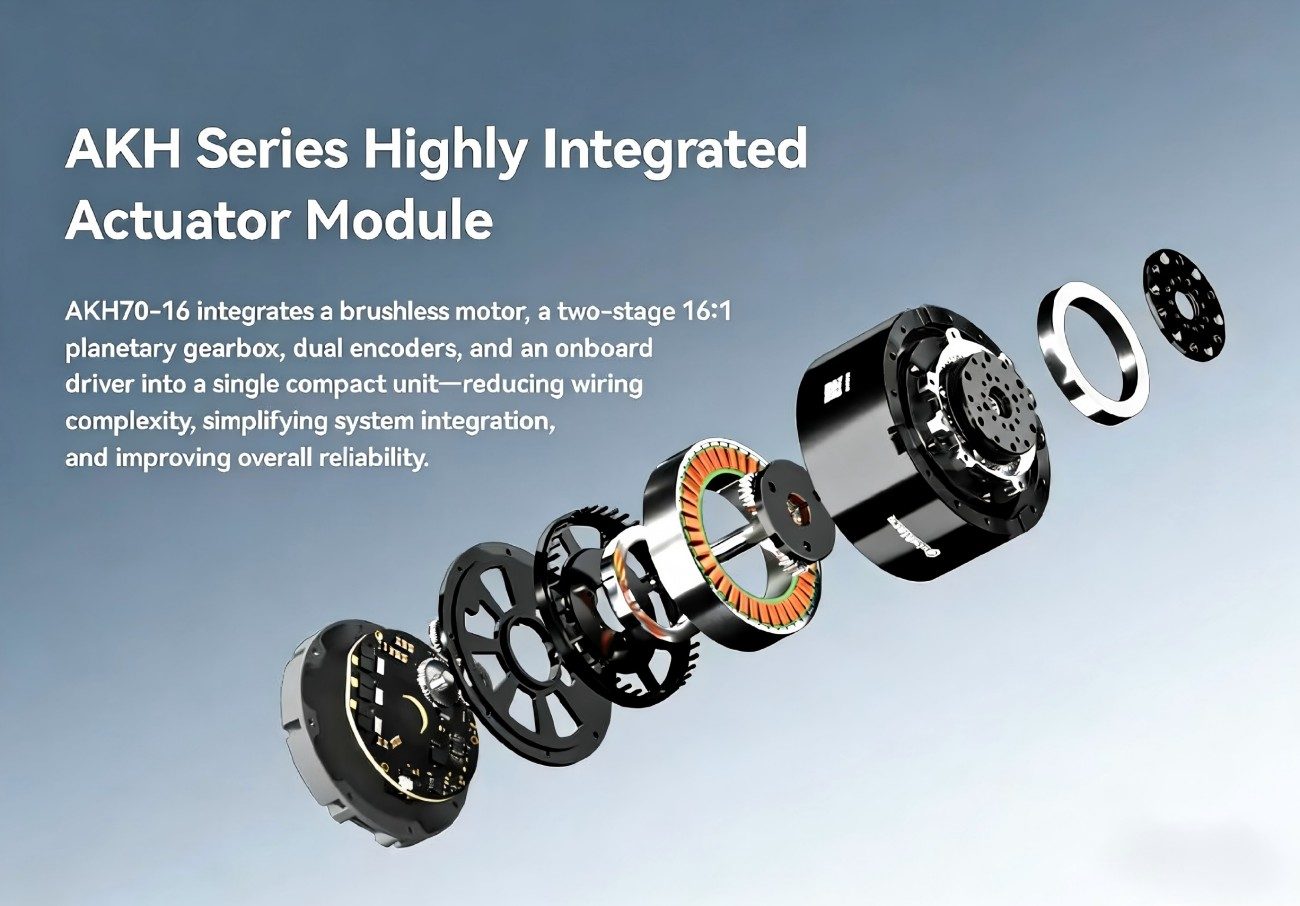

CubeMars AKH70-16 motor detail image 1

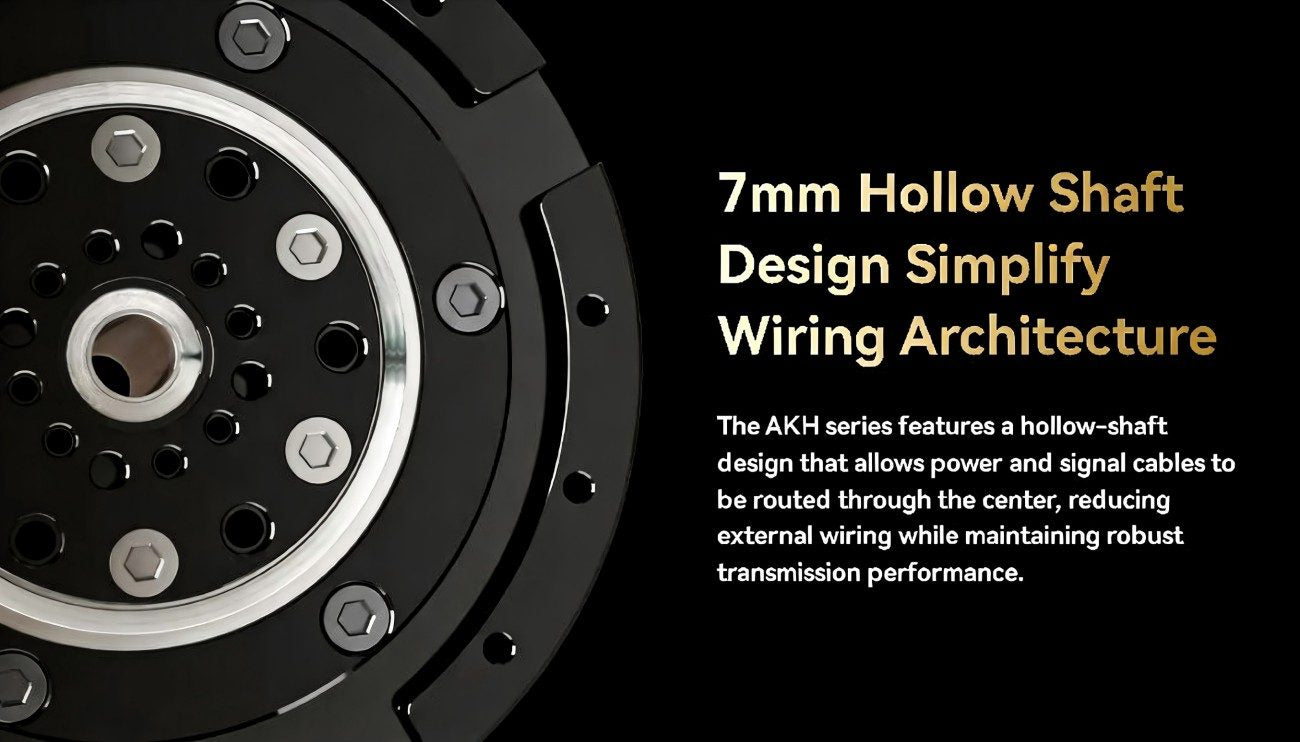

CubeMars AKH70-16 motor detail image 2

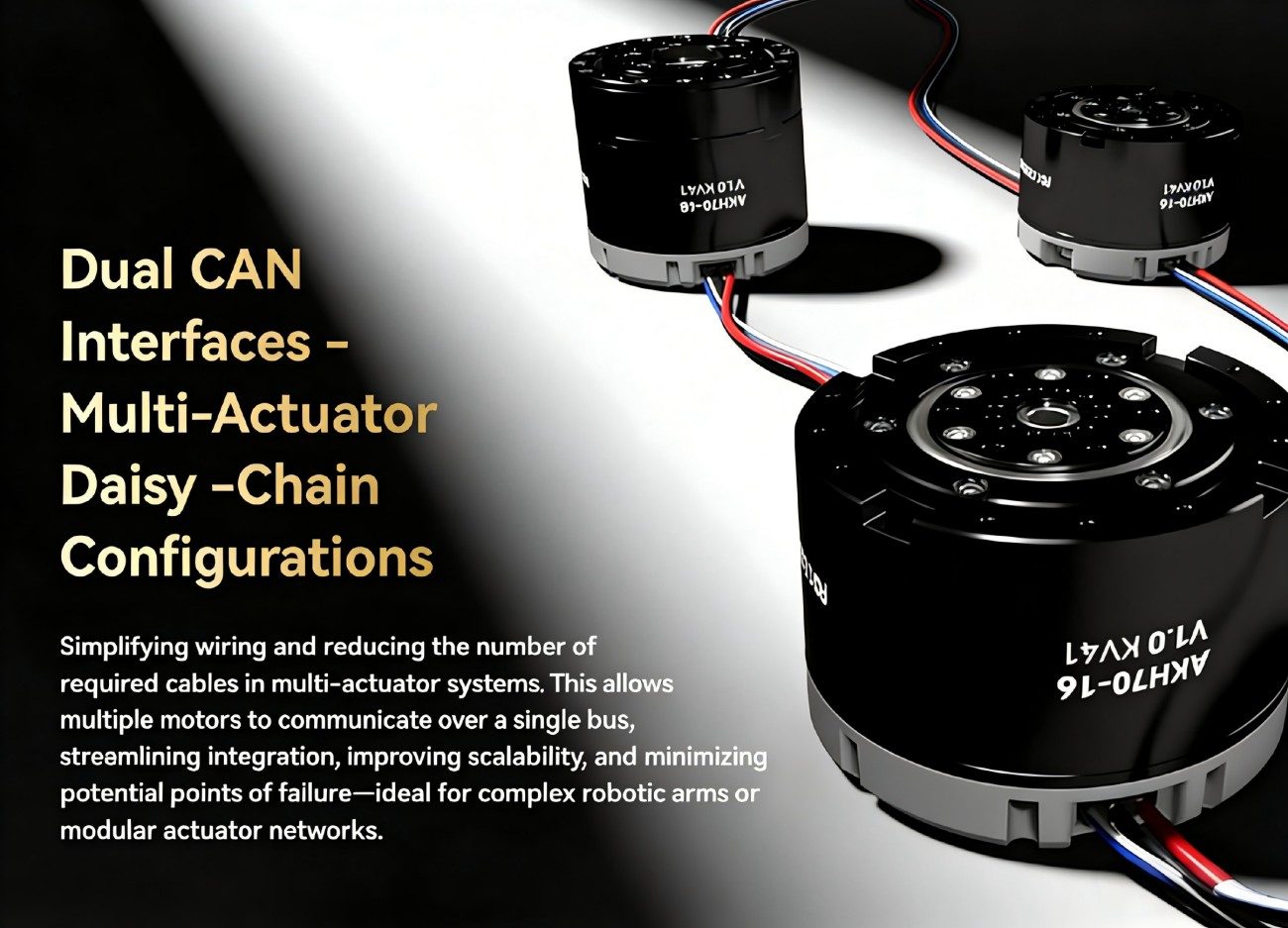

CubeMars AKH70-16 motor detail image 3
CubeMars AKH70-16 motor detail image 4

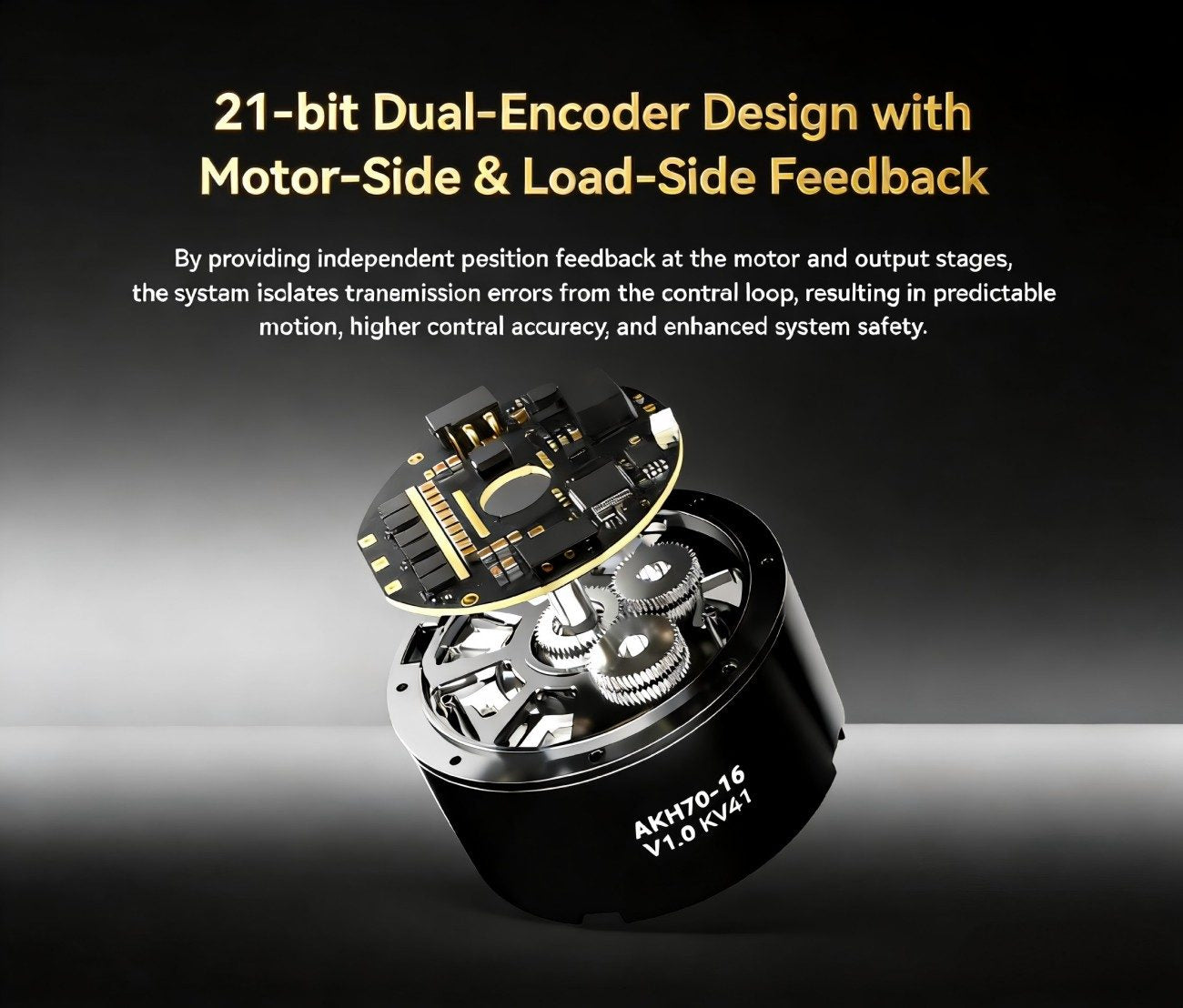

CubeMars AKH70-16 motor detail image 5

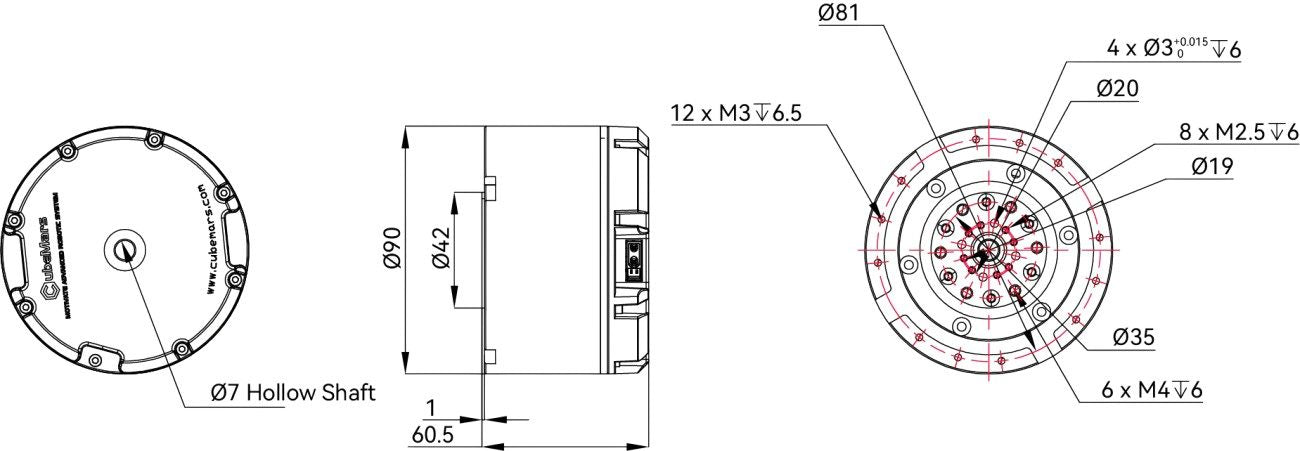

CubeMars AKH70-16 motor detail image 6

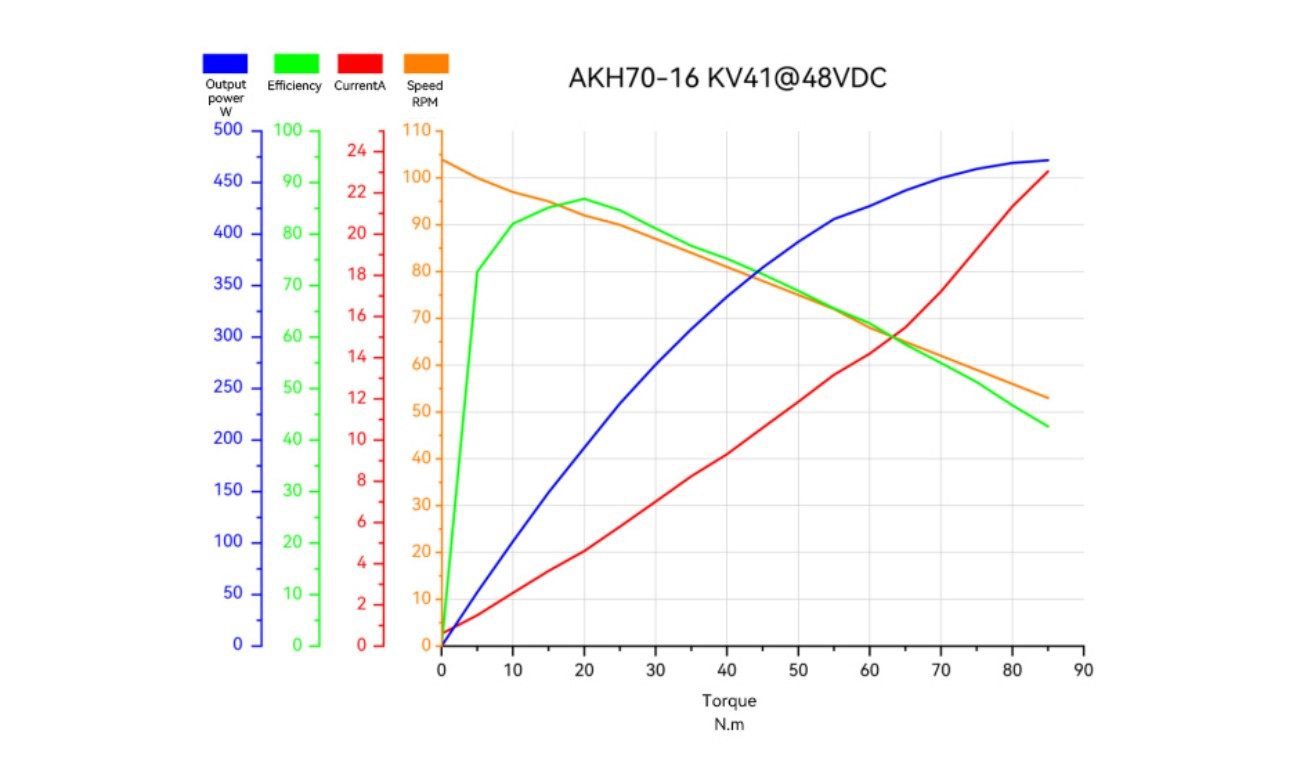

CubeMars AKH70-16 motor detail image 7
▤ PARAMETER ⌃
Parameter
Value
Application
Legged Robot, Exoskeleton, AGV
Driving Way
FOC
Operation Ambient Temperature
-20~50°C
Winding Type
Delta
Insulation Level
F
Insulation High-Voltage
500V 5mA/2s
Insulation Resistance
500V 10MΩ
Number Of Slots
36
Pole Pairs
21
Reduction Ratio
16:1
Back Drive (N·m)
0.78
Backlash (arcmin)
12
Temperature Sensor
NTC MF51B 103F3950
Noise dB (65cm Away The Motor)
65
Basic Dynamic Load Rating (CN)
6350
Basic Static Load Rating (C₀N)
5550
Rated Voltage (V)
48
Rated Torque (N·m)
26
Rated Speed (RPM)
90
Rated Current (ADC)
6.5
Weight (g)
879
Peak Torque (N·m)
78
Peak Current (ADC)
19.5
No-Load Speed (RPM)
105
KV (RPM/V)
41
KT (N·m/A)
0.23
KE (V/KRPM)
2.4
Phase to Phase Resistance (Ω)
0.56
Phase to Phase Inductance (mH)
0.6
Rotor Inertia (gcm²)
1170
Motor Constant (N·m/√W)
0.31
Mechanical Time Constant (ms)
2.28
Maximum Torque Density (N·m/kg)
88.74

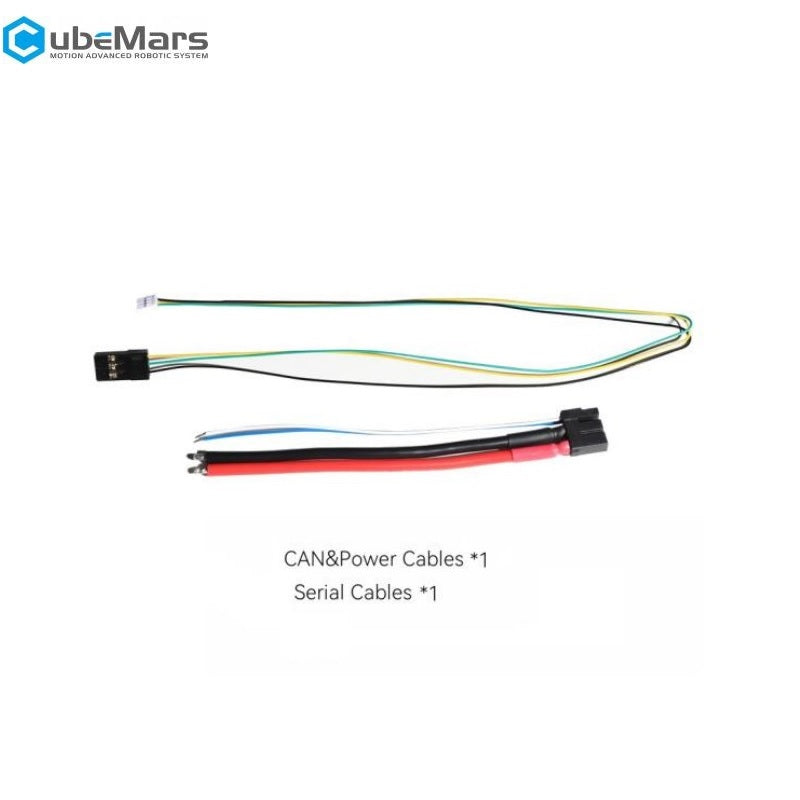

CAN Connector
XT30PW (2+2)-M
UART Connector
A1257WR-S-3P
Power Connector
XT30PW (2+2)-M
Inner Loop Encoder Type
Magnetic
Inner Loop Encoder Resolution
21bit
Outer Loop Encoder Type
Magnetic
Outer Loop Encoder Resolution
21bit
Number of Encoder
2
