ChangingTek Robotics

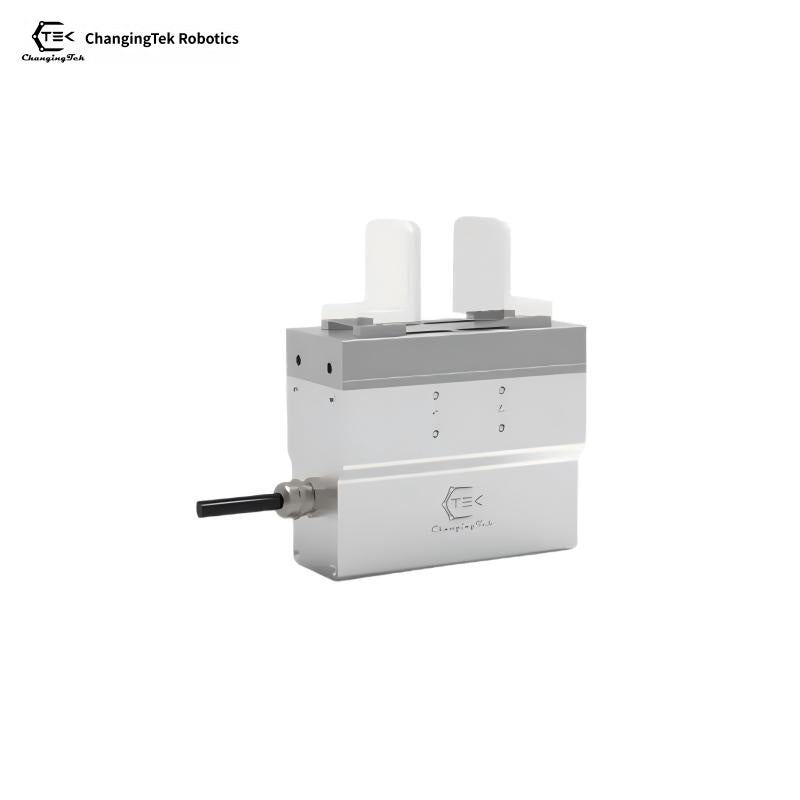

ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation

  • Servo robot gripper with 40 mm maximum stroke
  • Up to 100 N maximum gripping force for automation handling
  • +/-0.02 mm repeat positioning accuracy for precision robot gripping
  • 30 mm/s maximum gripping speed for controlled motion
  • Supports Modbus RTU (RS485), I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.) communication for robot arm and automation integration
$1,280
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ChangingTek CTPM2F40 dimensional drawing with mounting dimensions and mechanical views ▶
ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F40 Gripper | Servo Robot Gripper for Automation
▤ PARAMETER ⌃
Parameter
Value
Product Name
ChangingTek Robotics CTPM2F40 Gripper
Drive Type
Servo Drive
Maximum Stroke
40 mm
Maximum Gripping Force
100 N
Maximum Gripping Speed
30 mm/s
Repeat Positioning Accuracy
+/-0.02 mm
Maximum Recommended Payload
1.5 kg
Allowable Load Torque
MR: 15.8 Nm, MP: 9.6 Nm, MY: 9.6 Nm
Weight
1.2 kg
Peak Current
2 A
Operating Voltage
24 V
Programmable Parameters
Position, Speed, Force
Feedback Parameters
Position, Dimension, Speed, Force
Communication Protocol
Modbus RTU (RS485), I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.)
Recommended Operating Environment (Temperature & Humidity)
0~40 deg C, < =85%RH (No Condensation)
