MUWEIDU

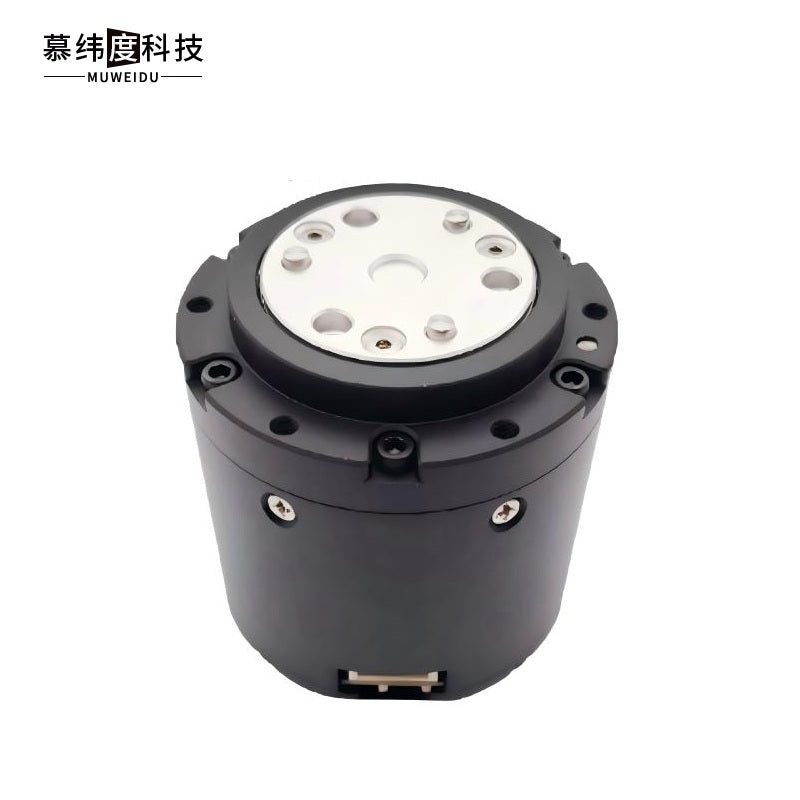

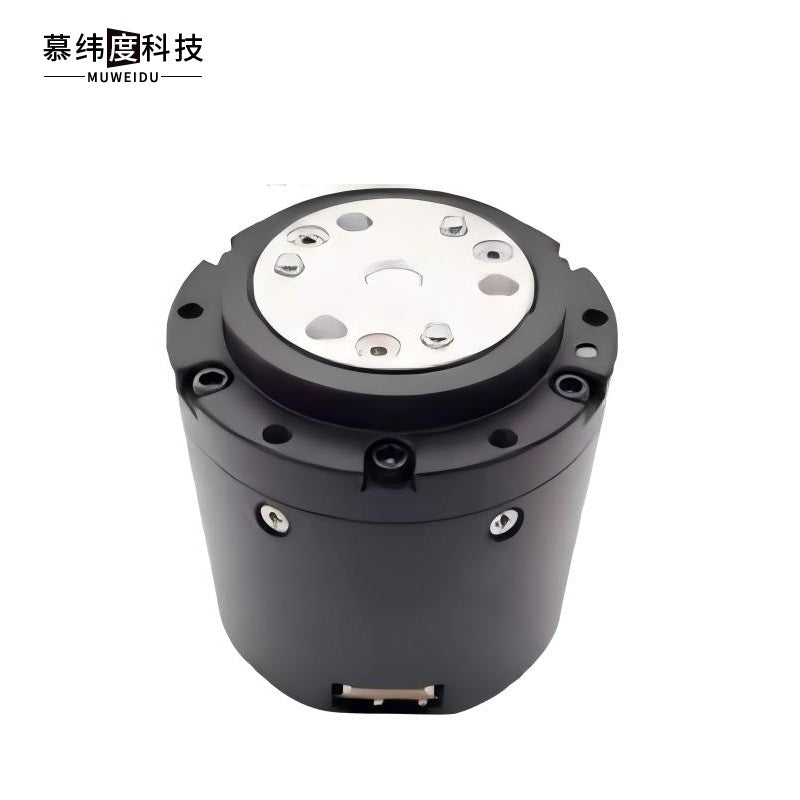

MUWEIDU TS5009-36 Motor | Robot Servo Motor for Robotics Development

  • MUWEIDU robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, research platforms, education projects, and prototype robots.
  • Designed for practical integration in robot actuator, motion-control, compact mechanism, and embedded hardware workflows.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$500
Version
Communication Mode

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

MUWEIDU TS5009-36 Motor CAD model for mechanical integration.stp ▶ MUWEIDU TS5009-36B Motor CAD model for mechanical integration.stp ▶ MUWEIDU TS5009-36 Motor dimension drawing for installation reference.pdf ▶ MUWEIDU TS5009-36B Motor dimension drawing for installation reference.pdf ▶
MUWEIDU TS5009-36 Motor | Robot Servo Motor for Robotics Development detail image 1

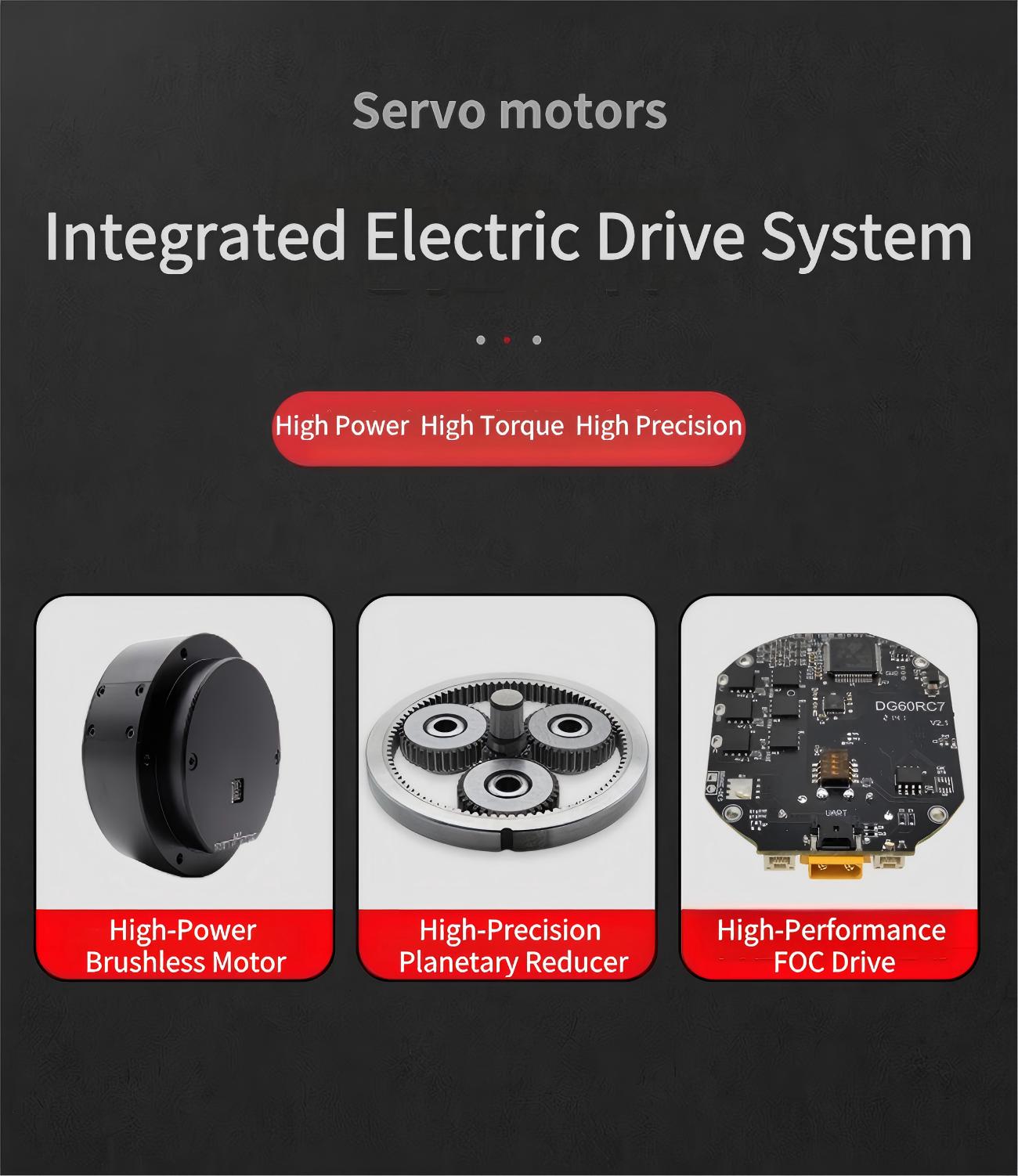

MUWEIDU TS5009-36 Motor | Robot Servo Motor for Robotics Development detail image 2

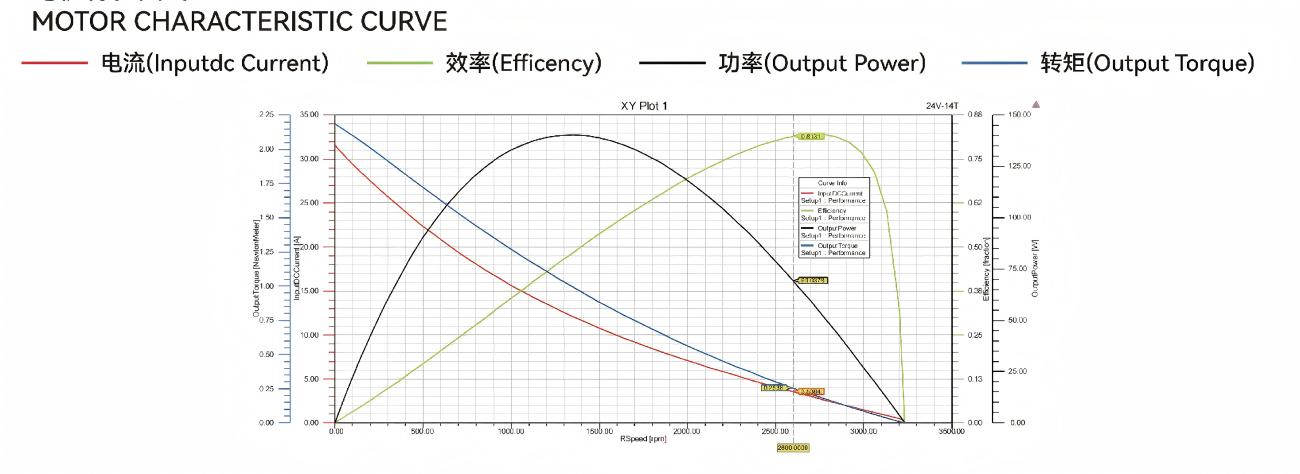

MUWEIDU TS5009-36 Motor | Robot Servo Motor for Robotics Development detail image 3
MUWEIDU TS5009-36 Motor | Robot Servo Motor for Robotics Development detail image 4
▤ PARAMETER ⌃
Model
TS5009-36
Rated Voltage
24V
Rated Voltage (with brake)
24V/48V
Rated Current
3.5A
Peak Power
140W
Rated Torque
9N.m
Peak Torque
18N.m
Rated Speed
30rpm/90rpm
Encoder
18bit + 14bit
Rotor Inertia
140gcm²
Reduction Ratio
1:36
Control Modes
Torque/Speed/Position
Communication Protocol
RS485/CAN
Overall Dimensions
Φ53mm×41mm
Weight
350g
