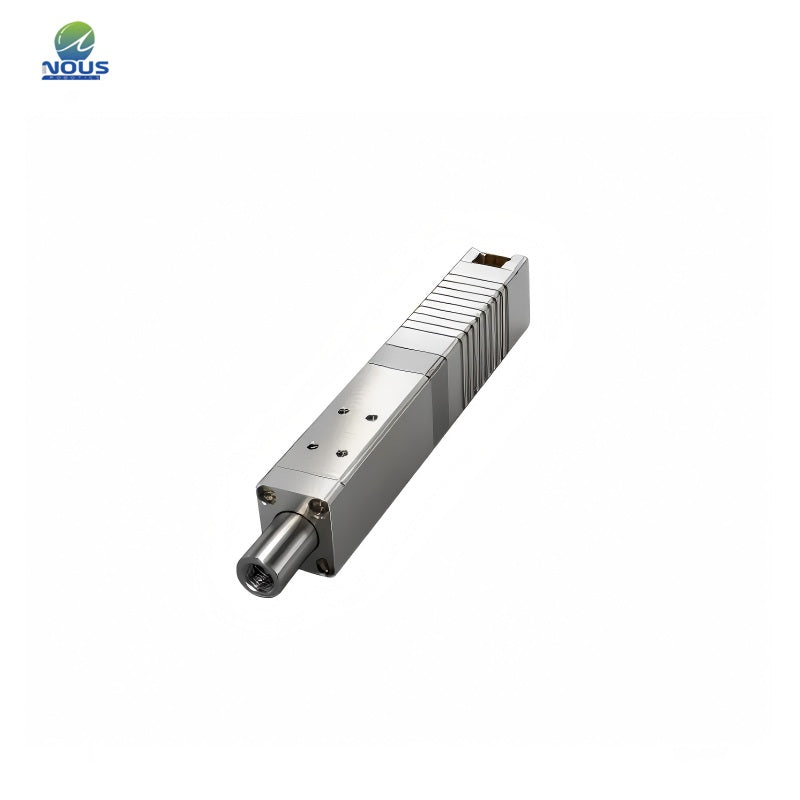

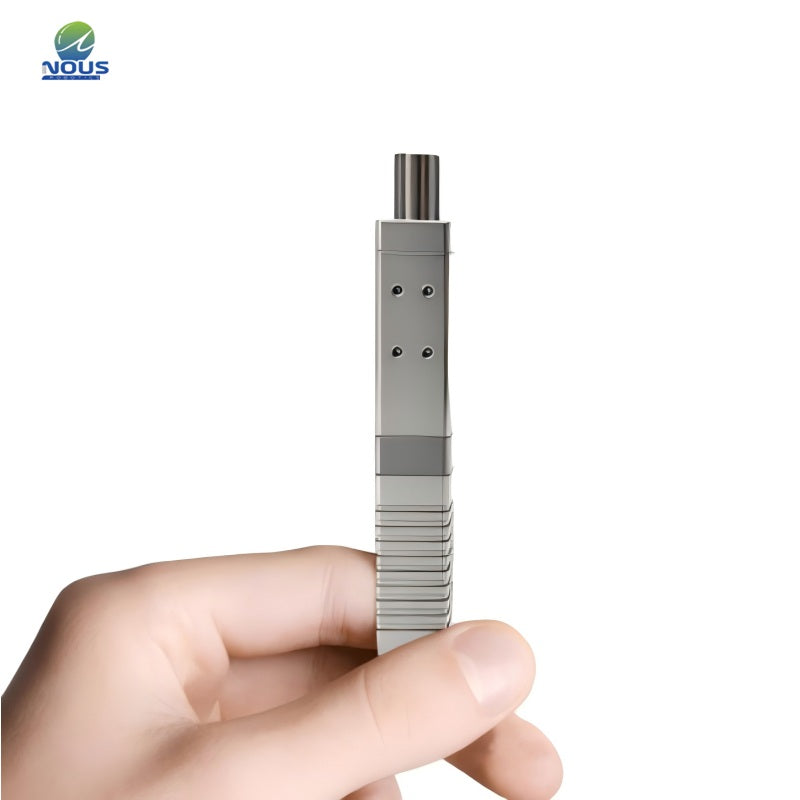

NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development

  • NOUS robot actuator for robot joints, compact motion systems, robotics development, and automation hardware.
  • Suitable for engineers building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in actuator modules, robot servo systems, and compact robotic assemblies.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$840
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

NOUS DH08L-10-01-1-RS dimension drawing for installation reference.pdf ▶ NOUS DH08L-20-01-1-RS dimension drawing for installation reference.pdf ▶ NOUS DH08L-30-01-1-RS dimension drawing for installation reference.pdf ▶
NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 1
NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 2

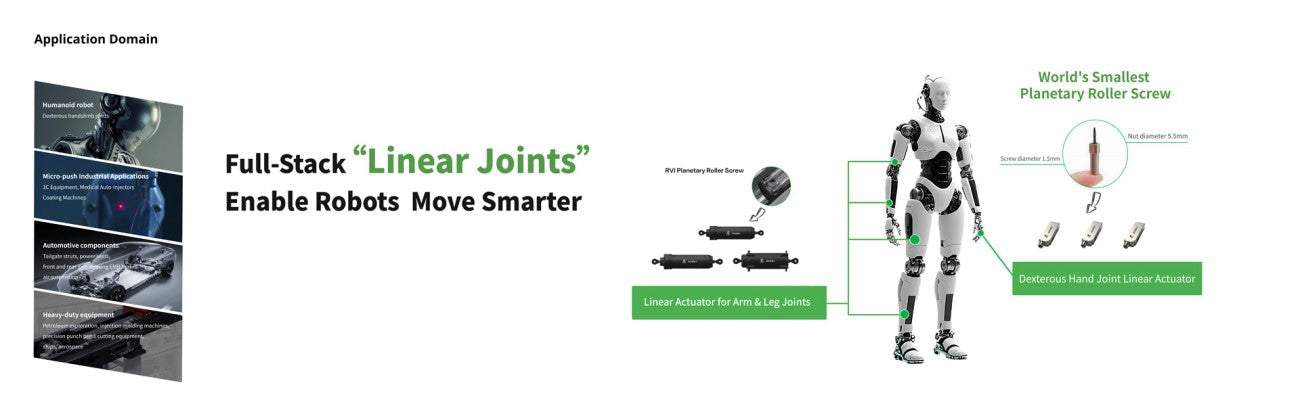

NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 3
NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 4
NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 5
NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 6
NOUS DH08L Series Micro Actuator | Robot Actuator for Robotics Development detail image 7
▤ Technical Specifications ⌃
Parameter Vaule Vaule Vaule
Model DH08L‑10‑01‑1‑RS DH08L‑20‑01‑1‑RS DH08L‑30‑01‑1‑RS
External dimensions (mm) 10*12*58.4 10*12*68.4 10*12*78.4
Rated thrust (N) 60 60 60
Maximum thrust (N) 150 150 150
Maximum self‑locking force (N) 200 200 200
Rated linear velocity (mm/s) 3 3 3
Maximum linear velocity (mm/s) 7 7 7
Stroke (mm) 10 20 30
Repeatability (mm) ±0.01 ±0.01 ±0.01
Weight (g) < 30 < 35 < 40
Temperature (℃) -10‑45℃ -10‑45℃ -10‑45℃
IP Level IP54 IP54 IP54
Screw type Planetary roller screw Planetary roller screw Planetary roller screw
Motor type Brushless Hollow Cup Motor Brushless Hollow Cup Motor Brushless Hollow Cup Motor
Rated voltage (VDC) DC12±10% DC12±10% DC12±10%
Rated current (A) 0.88 0.88 0.88
Instantaneous maximum current (A) 1.2 1.2 1.2
Encoder type Incremental encoder Incremental encoder Incremental encoder
Drive control External External External
Location feedback No No No
Torque feedback No No No
Communication interface RS485 or LVTTL Optional RS485 or LVTTL Optional RS485 or LVTTL Optional
