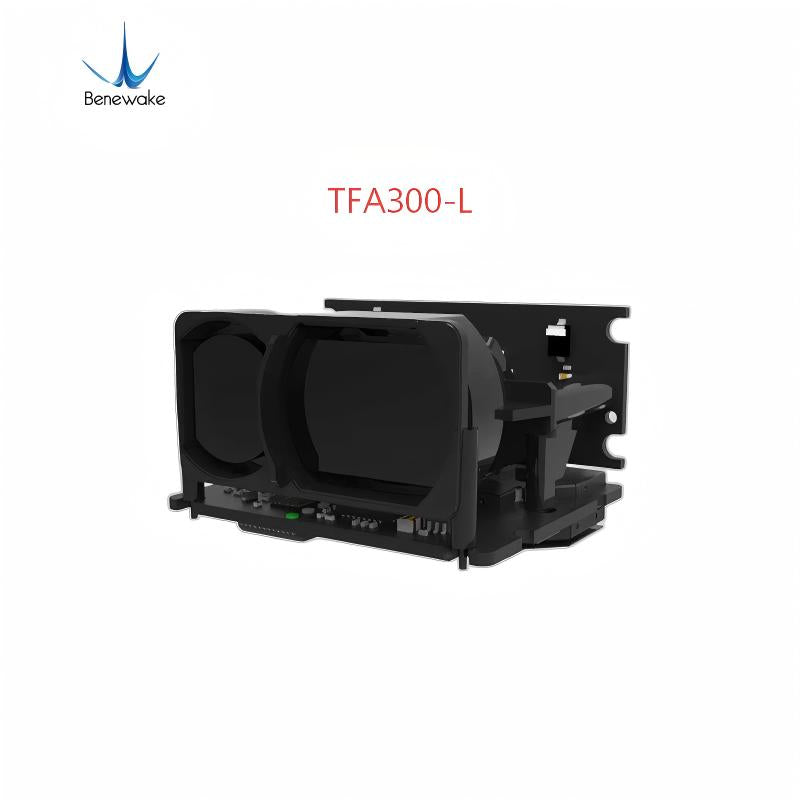

Benewake TFA300 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection range: 270m@90%ref.100KLux
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$615
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TFA300 Series datasheet with technical specifications.pdf ▶ Benewake TFA300 Series user manual for setup and integration.pdf ▶ Benewake TFA300 IP67 dimension drawing for installation reference.pdf ▶ Benewake TFA300-L dimension drawing for installation reference.pdf ▶
Benewake TFA300 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Benewake TFA300 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake TFA300 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Benewake TFA300 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Benewake TFA300 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
▤ Technical Specifications ⌃
Parameter TFA300 TFA300-L
Detection range 270m@90%ref.100KLux 290m@90%ref.100KLux
Detection range 150m@30%ref.100KLux 170m@30%ref.100KLux
Detection range 90m@10%ref.100KLux 100m@10%ref.100KLux
Blind zone ≤ 0.1 m -
Accuracy ±10 cm (< 10 m), 1% (≥ 10 m) -
Repeatability < 3 cm @ 1σ -
Distance resolution 1 cm -
Default frame rate Up to 10,000 Hz (1 ~ 10,000 Hz configurable, default 50 Hz) -
Ambient light resistance 100 KLux -
Light source EEL -
Central wavelength 905 nm -
Field of View (FoV) < 0.5° -
Eye safety Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021) -
Average power consumption ≤ 0.45 W -
Peak current < 0.75 A -
Power supply DC 5 V ± 10% -
Logical voltage 3.3 V TTL -
Connector JST GH 1.25 mm 6 pin -
Operating temperature -20 °C ~ +60 °C -
Storage temperature -40 °C ~ +80 °C -

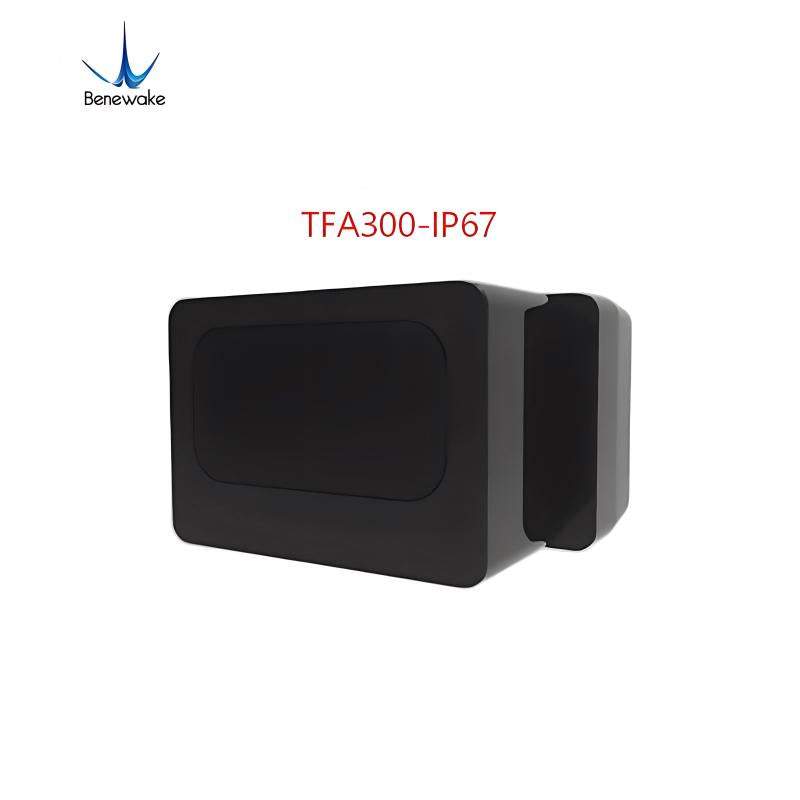

Protection level IP67 NA
Typ. Dimensions 49.4 mm × 37.0 mm × 28.6 mm 32.0mm×30.2mm×20.2mm
Typ. Weight 34.5 g 10.5g
Communication Interface UART / CAN (switchable by command) -
Baud rate Default 115200 (configurable) -
Data bit 8 -
Stop bit 1 -
Parity None -
