Intel RealSense

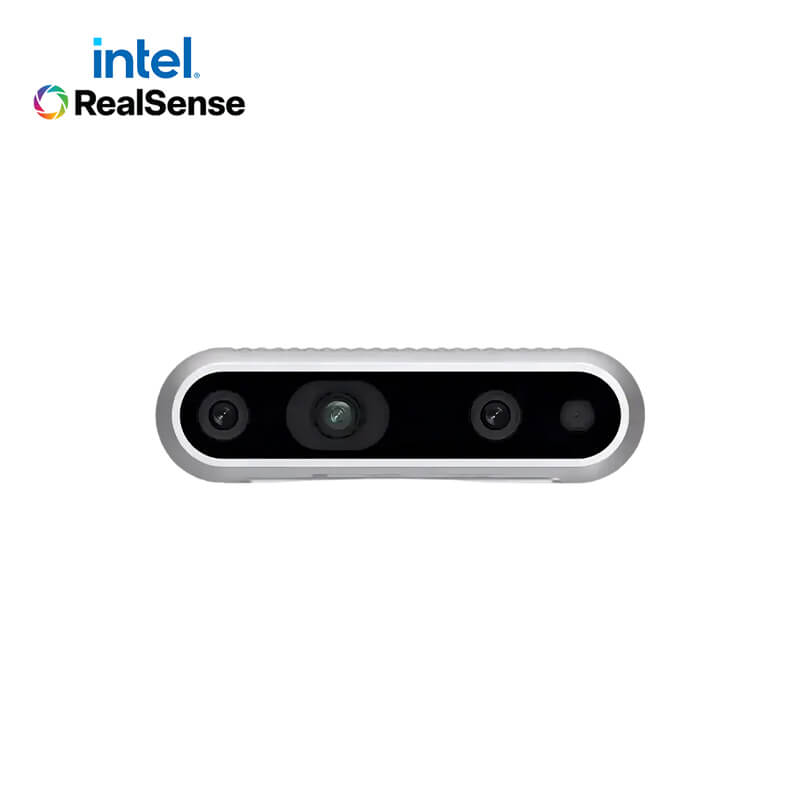

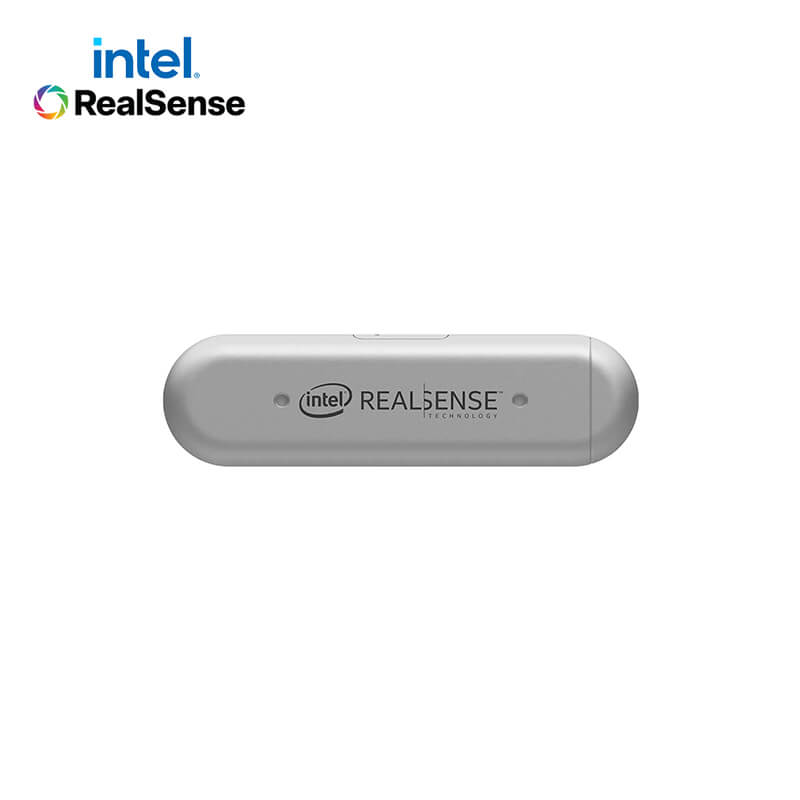

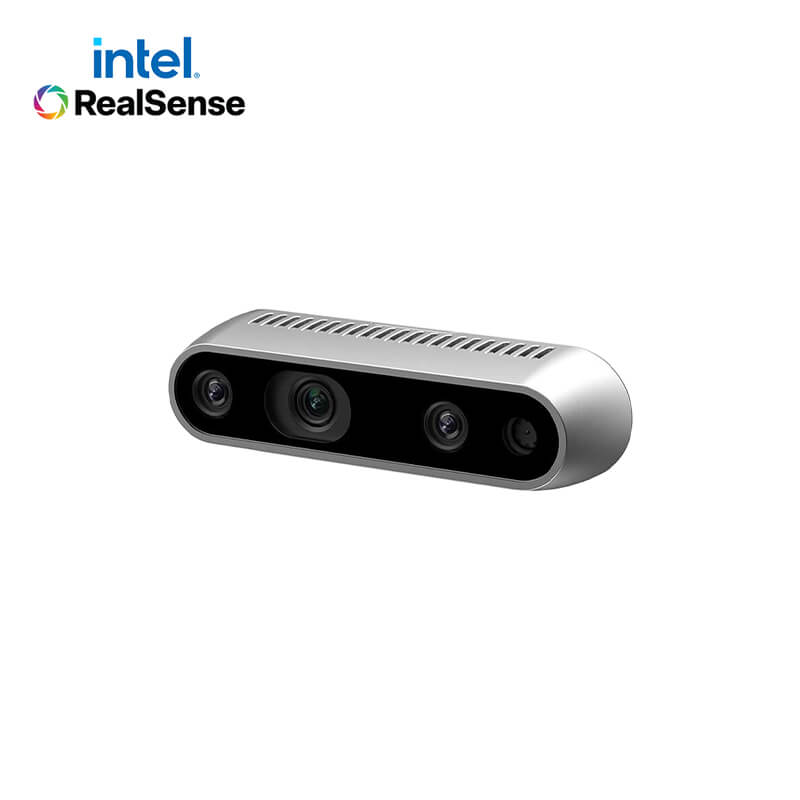

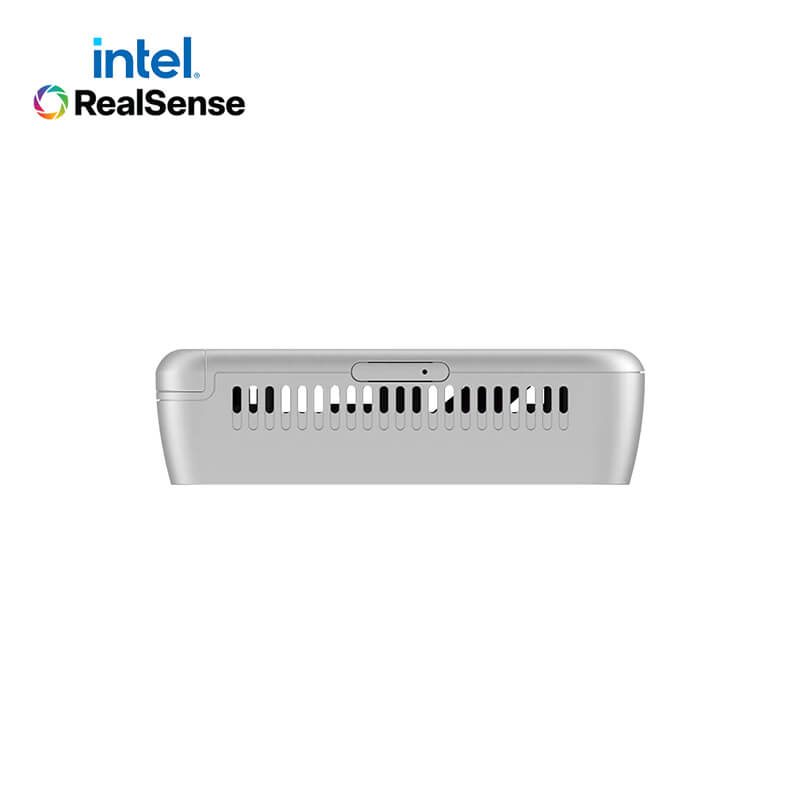

Intel RealSense D435if Stereo Depth Camera with IMU & IR Pass Filter

• Wide field of view optimized for robotics and SLAM
• Integrated IMU for motion tracking and navigation
• Factory-installed 750nm IR pass filter reduces depth noise
• Global shutter stereo sensors for dynamic environments
• Compatible with Intel RealSense SDK 2.0 and ROS ecosystems
$541

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Developer Support

Intel RealSense D435if Guide ▶

Intel RealSense D435if Stereo Depth Camera

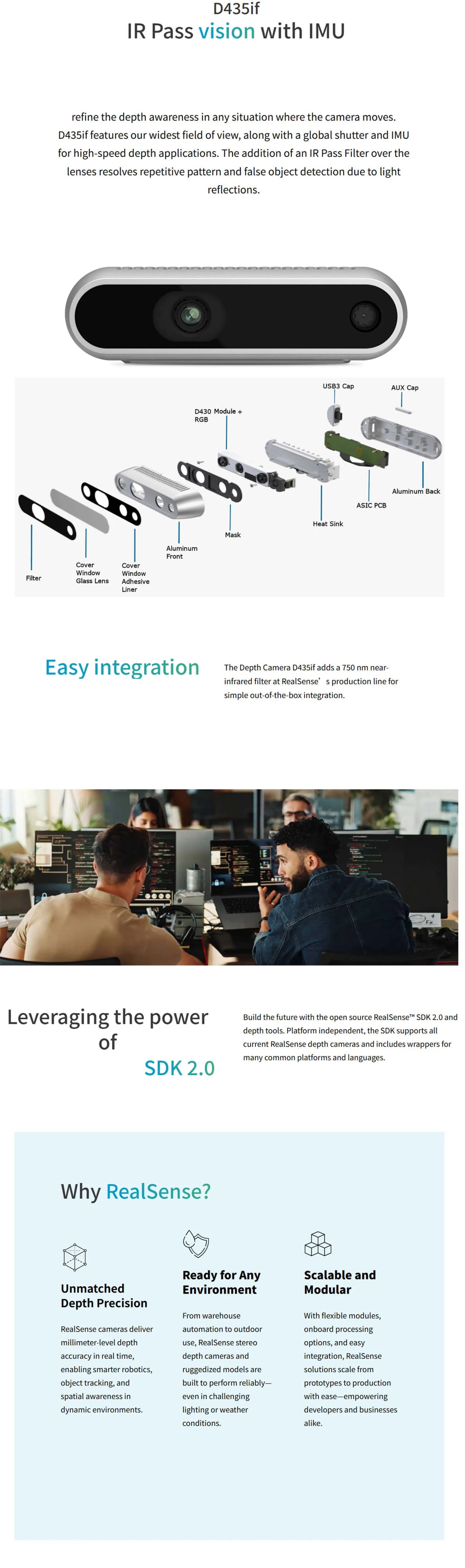

The Intel RealSense D435if is an advanced stereo depth camera built for robotics, autonomous navigation, and AI vision systems. Combining Intel's widest field of view with global shutter sensors, an integrated IMU, and a factory-installed 750nm IR pass filter, the D435if delivers highly reliable depth perception in dynamic and reflective environments.

The integrated IMU improves motion tracking and environmental awareness whenever the camera moves, making the D435if particularly suitable for mobile robots, drones, SLAM, and autonomous navigation systems.

Powered by the open-source Intel RealSense SDK 2.0, the D435if offers rapid deployment and broad compatibility across operating systems, programming languages, and robotics frameworks.

Features

  • Wide Field of View for robot navigation, obstacle avoidance, and SLAM applications.
  • Integrated IMU improves motion tracking and depth awareness for moving platforms.
  • 750nm IR Pass Filter reduces depth noise and false detections caused by reflections.
  • Global Shutter Stereo Sensors enable accurate depth capture for fast-moving scenes.
  • Intel RealSense SDK 2.0 Support with cross-platform compatibility and easy integration.
Intel RealSense D435if Stereo Depth Camera with IMU & IR Pass Filter
▤ PARAMETER ⌃
Use Environment
Indoor / Outdoor
Image Sensor Technology
Global Shutter
Ideal Range
0.3 m to 3 m
Depth Technology
Stereoscopic
Minimum Depth Distance
~28 cm
Depth Accuracy
<2% at 2 m
Depth Field of View (FOV)
87° × 58°
Depth Output Resolution
Up to 1280 × 720
Depth Frame Rate
Up to 90 fps
Depth Filter
IR Pass
RGB Filter
IR Cut
RGB Frame Rate
30 fps
RGB Frame Resolution
Up to 1920 × 1080
RGB Sensor Technology
Rolling Shutter
RGB Resolution and Frame Rate
1920 × 1080 at 30 fps
RGB Sensor FOV (H × V)
69° × 42°
RGB Sensor Resolution
2 MP
Camera Module
RealSense Module D430 + RGB Camera
Vision Processor Board
RealSense Vision Processor D4
Form Factor
Camera Peripheral
Dimensions
90 mm × 25.8 mm × 25 mm
Connectors
USB-C 3.1 Gen 1
Mounting Mechanism
One 1/4-20 UNC thread mounting point; Two M3 thread mounting points
