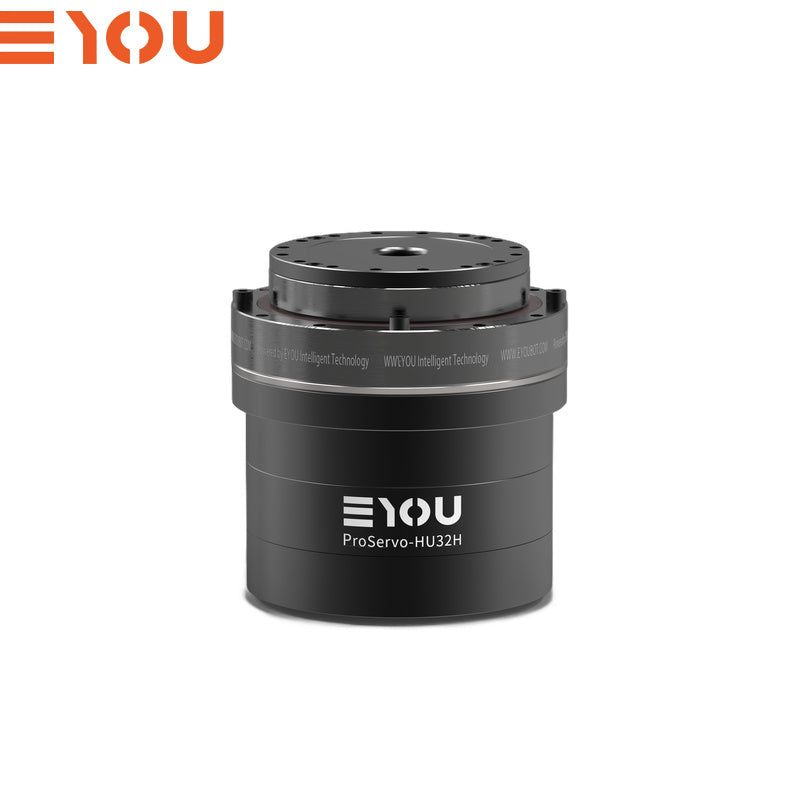

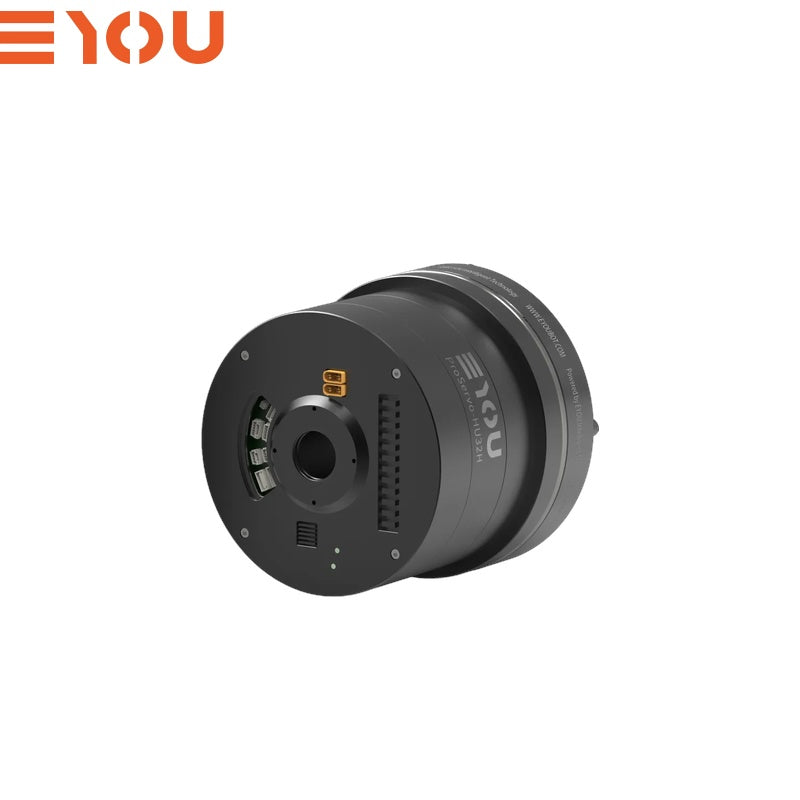

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$860
Version
Brake
Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU PHU32H-142 Motor CAD model for mechanical integration.stp ▶ EYOU PHU32H-142 Motor dimension drawing for installation reference.pdf ▶ EYOU PHU32H-142 Motor user manual for setup and integration.pdf ▶ EYOU PHU32H-142 Motor product documentation for robotics integration.pdf ▶ EYOU PHU32H-142 Motor user manual for setup and integration.pdf ▶

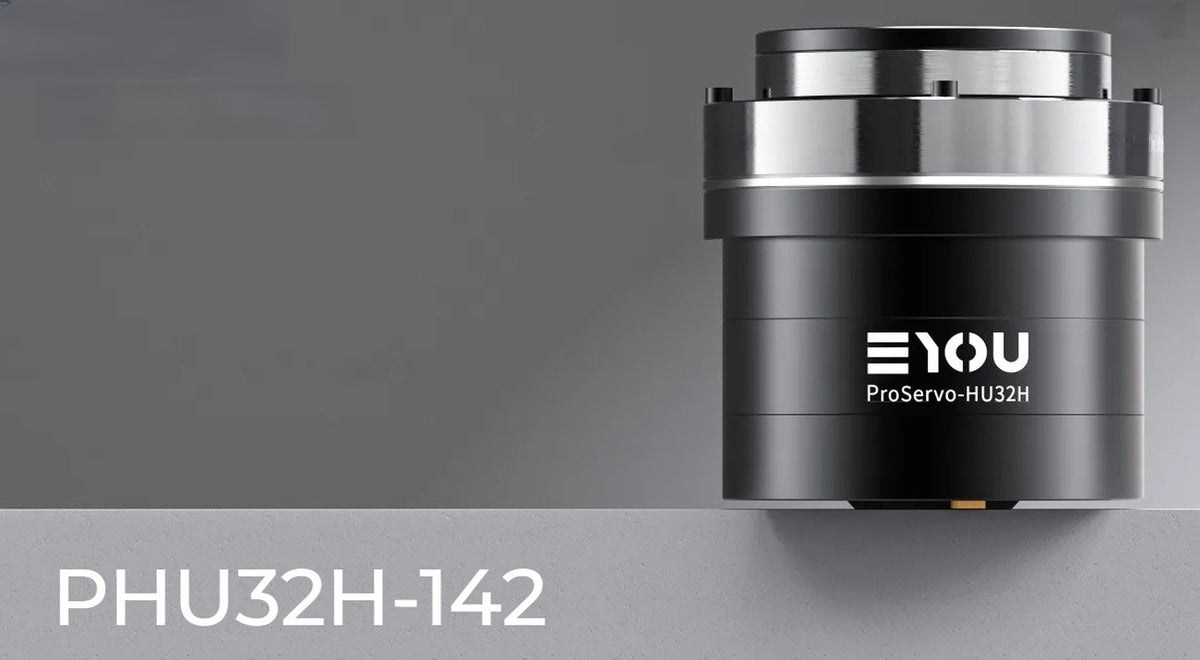

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 1

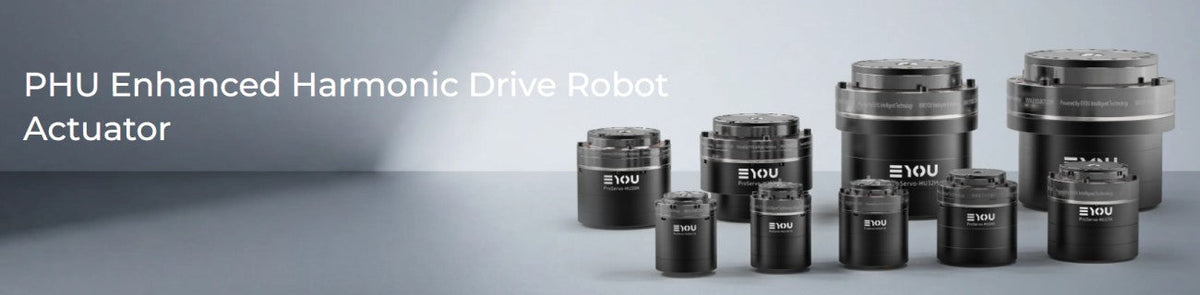

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 2
EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 3

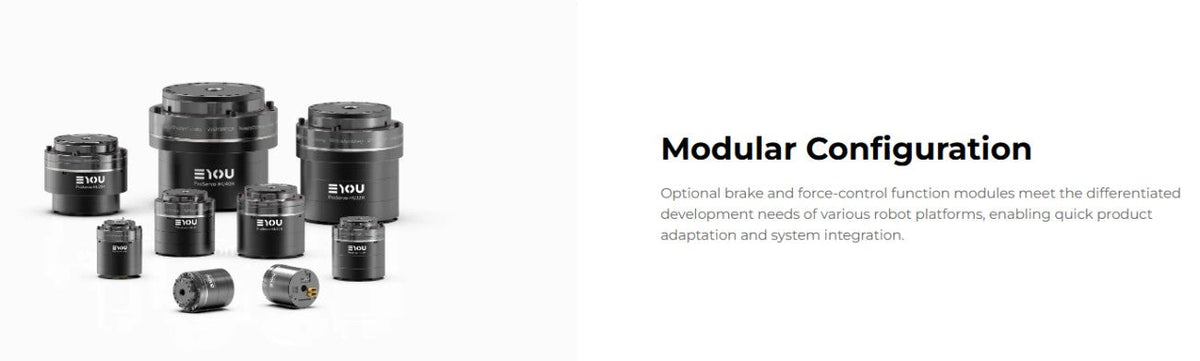

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 4

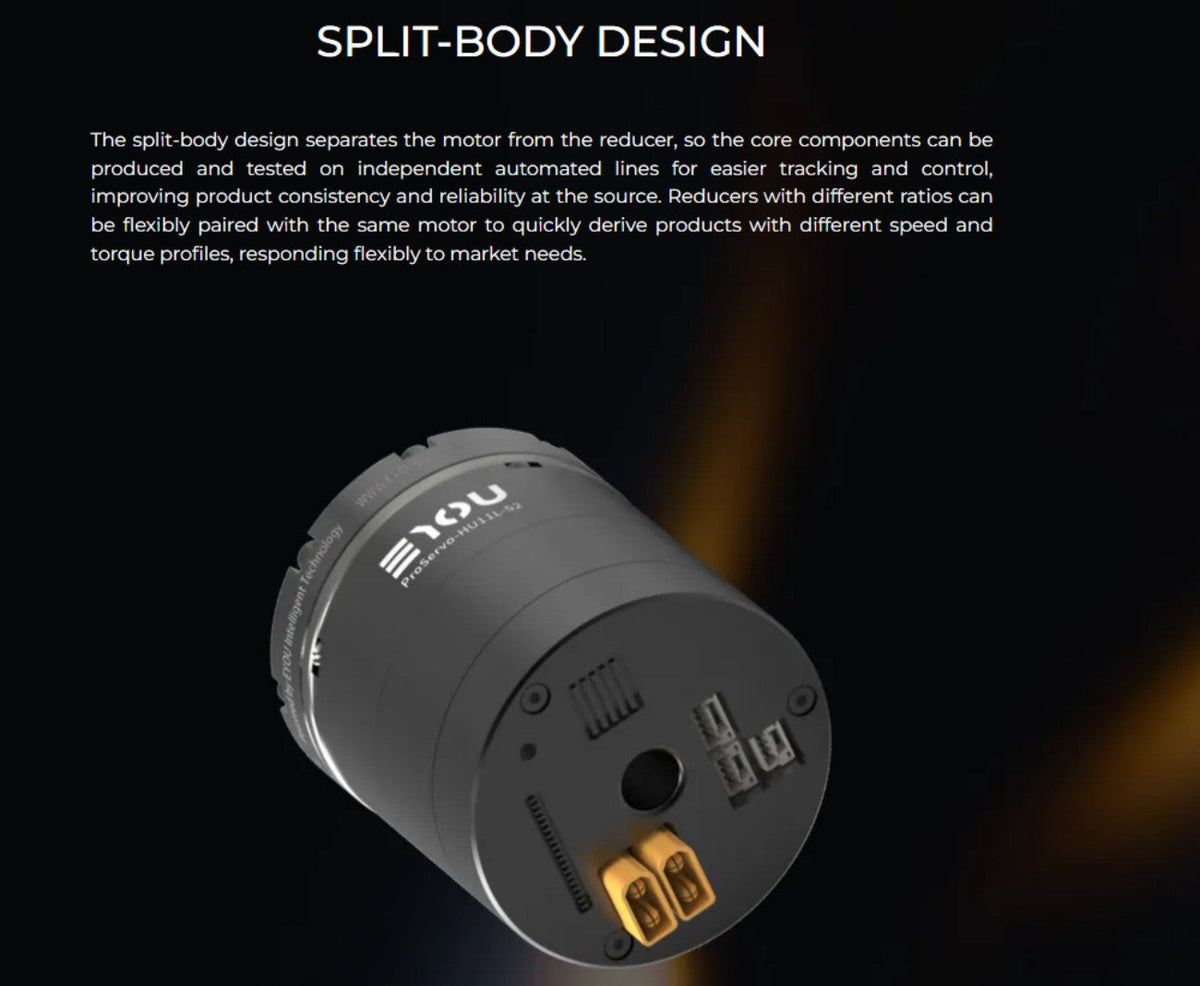

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 5
EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 6

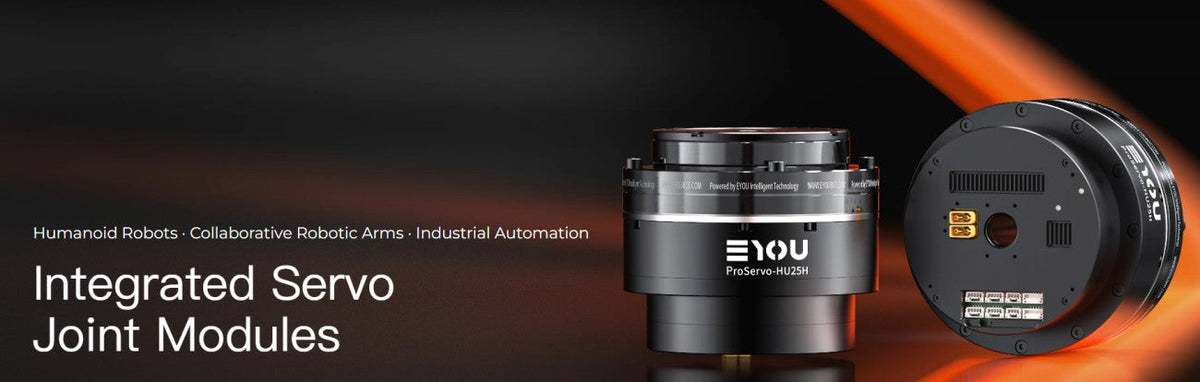

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 7
EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 8

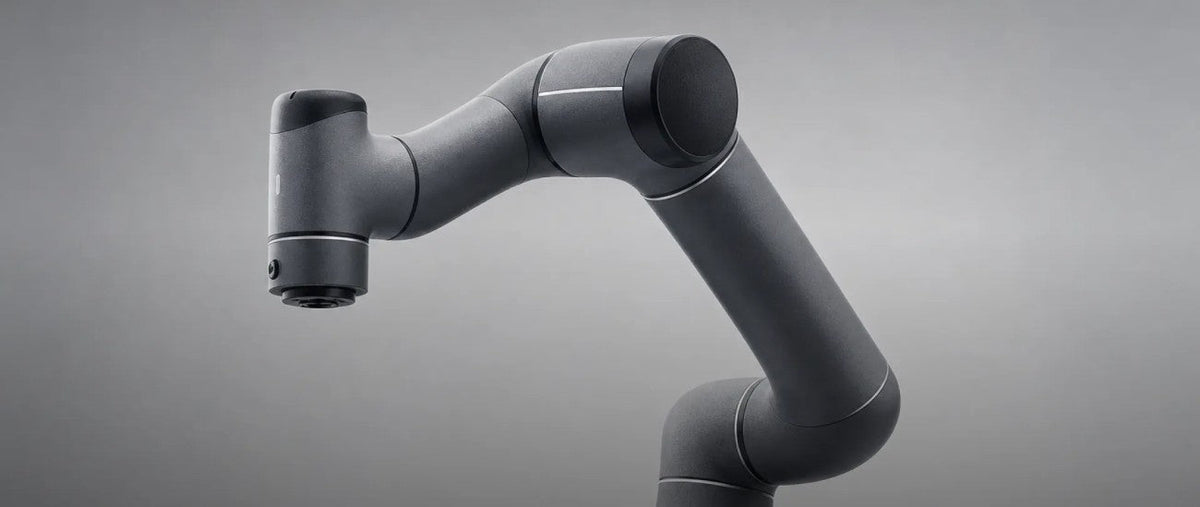

EYOU PHU32H-142 Motor | Robot Servo Motor for Robotics Development detail image 9
▤ PARAMETER ⌃
Module Model
PHU-32H-142
Reducer Type
Harmonic
Motor Rated Power (W)
603
Motor Rated Torque (N·m)
2.4
Motor Peak Torque (N·m)
9.6
Reduction Ratio
81 / 101 / 121 / 161
Joint Rated Power (W) - Life Constraint
377 / 350 / 293 / 220
Rated Torque at 2000rpm Input (N·m)
146 / 169 / 169 / 169
Average Load Torque at Output (N·m)
206 / 267 / 267 / 267
Peak Torque at Output (N·m)
376 / 411 / 436 / 459
Max Allowable External Torque at Output (Instantaneous) (N·m)
702 / 800 / 848 / 848
Backlash (Arcsec)
≤20 / ≤20 / ≤20 / ≤20
Rated Speed at Output (rpm) - Life Constraint
25 / 20 / 17 / 12
Peak Speed at Output (rpm)
30 / 24 / 20 / 15
Brake (B/N)
B/N
Dimensions (Outer Diameter × Axial) (mm)
Φ142 × 144
Weight (kg) (B/N)
6.31 / 5.83
Hollow Diameter (mm)
22
Housing Appearance (Process Color)
Black Anodized
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output (N)
1350
Axial (dynamic/static) Allowable Load at Output (N)
1350
Output Bending Moment (N·m)
460
Reducer Torsional Stiffness (N·m/rad)
99000 / 99000 / 99000 / 99000
Reducer Input Inertia (kg·mm²) (B)
1171.326 / 1171.326 / 1171.326 / 1171.526
Equivalent Joint Output Inertia (kg·mm²) (B)
7685070 / 11948697 / 17149384 / 30361941
Rated Operating Voltage (VDC)
48
Operating Voltage Range (VDC)
24~48
Driver
Built-in
Encoder/Bit (bit)
Dual Absolute / Motor side 17Bit & Reducer side 19Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CAN FD (In,Out), EtherCAT (In,Out), STO (1,2)

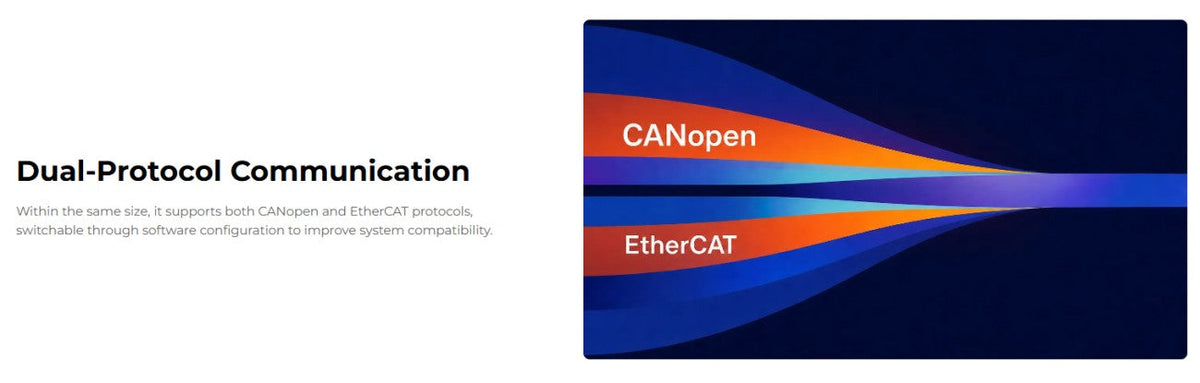

Communication Protocol (see communication description)
EtherCAT / CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature (°C)
-20~60
Housing Temperature Rise (°C)
≤60
Noise (dB)
≤60
Life (h)
>10000
