Intel RealSense D405 Short Range Depth Camera
The Intel RealSense D405 is a compact short-range stereo depth camera designed for precision robotic applications requiring highly accurate close-range perception. With sub-millimeter depth accuracy, the D405 is widely used in robotic hands, robotic grippers, robot arms, and precision manipulation systems where accurate object detection and grasping are essential.
Optimized for a working range of 7 cm to 50 cm, the D405 provides exceptional depth performance for close-up robotic tasks, including robotic picking, assembly, object handling, and industrial inspection. Its global shutter depth sensor and advanced image processing deliver reliable RGB and depth alignment for accurate vision-based automation.

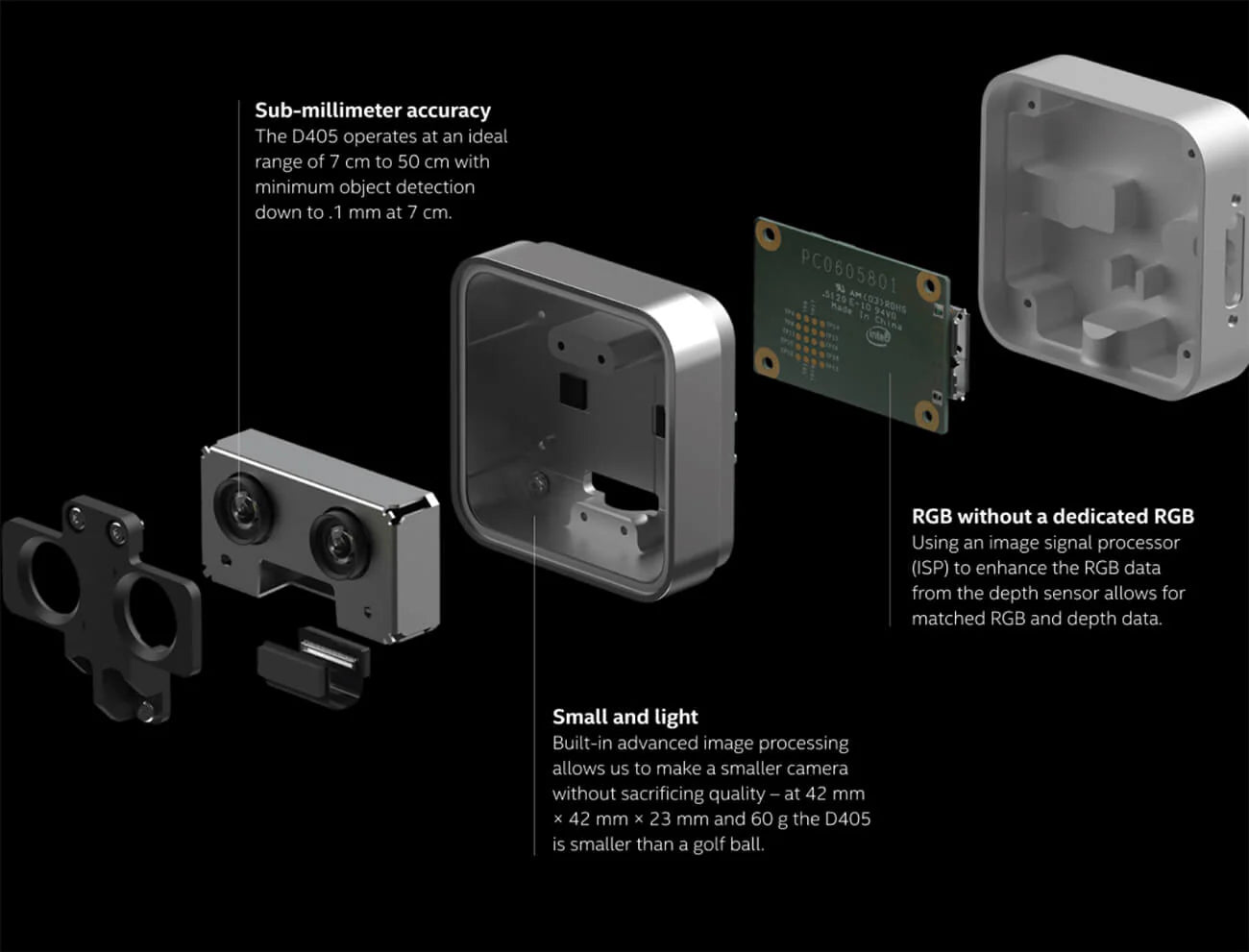

Measuring only 42 × 42 × 23 mm and weighing just 60 g, the D405 offers a lightweight and compact design that can be easily integrated into robotic end effectors, compact robotic platforms, and embedded vision systems.
With defect detection accuracy down to 0.1 mm, the Intel RealSense D405 enables high-precision applications in modern manufacturing, quality inspection, and intelligent robotics.
Features
- Optimized for robotic hands, grippers, robot arms, and close-range manipulation.
- Sub-millimeter depth accuracy with ideal range from 7 cm to 50 cm.
- Global shutter stereo depth sensor with RGB and depth alignment.
- Ultra-compact design at 42 × 42 × 23 mm and only 60 g.
- Ideal for precision picking, assembly, inspection, and automation.
