Benewake

Benewake TF-Luna LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Operating range: 0.2m ~ 8m@90% reflectivity (indoor 0klux) ; 0.2m ~ 2.5m@10% reflectivity (indoor 0klux) ; 0.2m ~ 8m@90% reflectivity (outdoor 90klux) ; 0.2m ~ 2.5m@10% reflectivity (outdoor 90klux)
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$40
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF-Luna LiDAR datasheet with technical specifications.pdf ▶ Benewake TF-Luna LiDAR user manual for setup and integration.pdf ▶ Benewake TF-Luna LiDAR dimension drawing for installation reference.pdf ▶

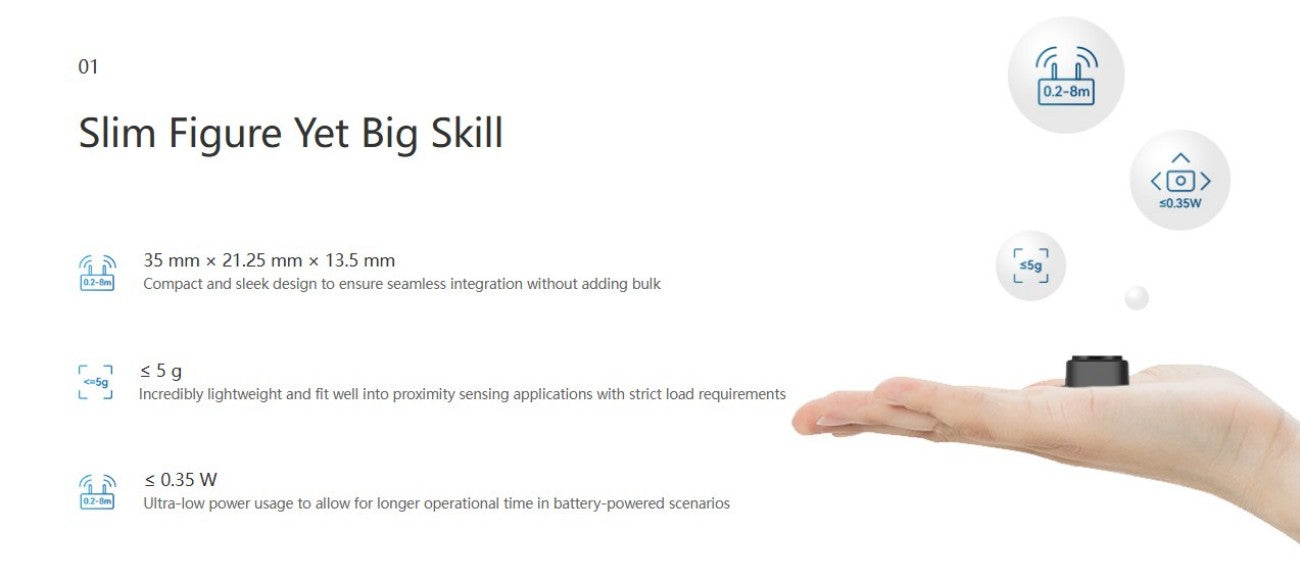

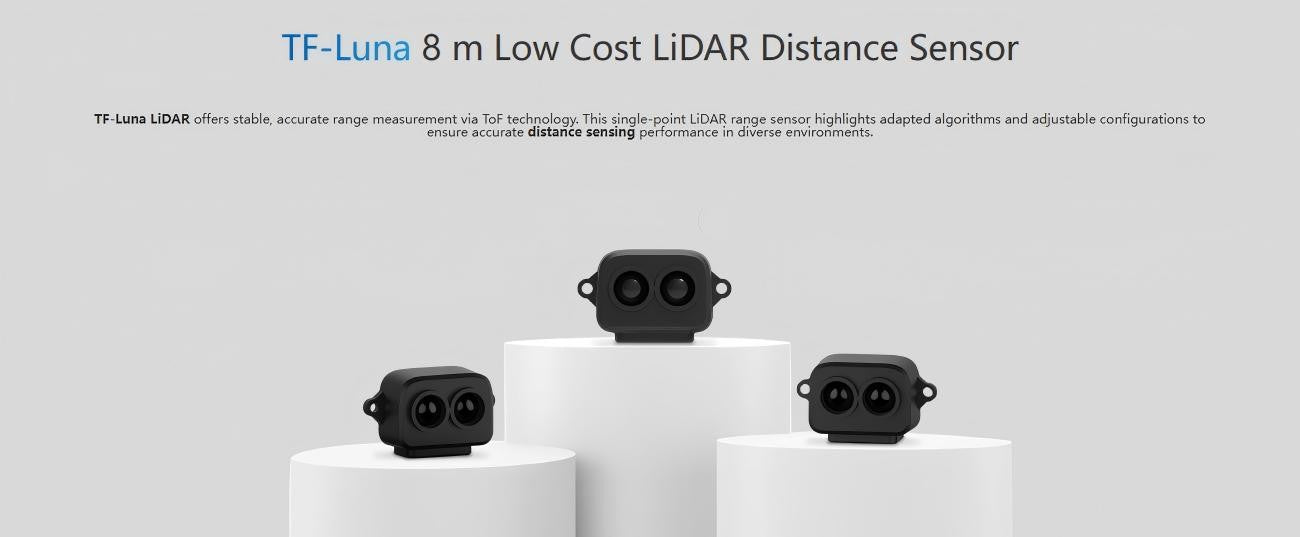

Benewake TF-Luna LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

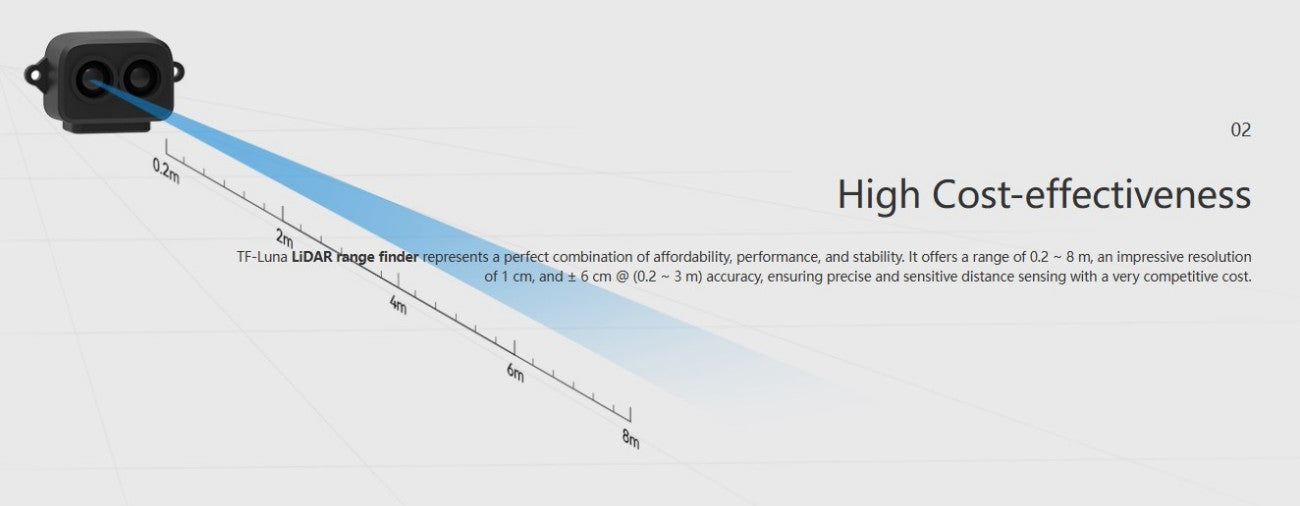

Benewake TF-Luna LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

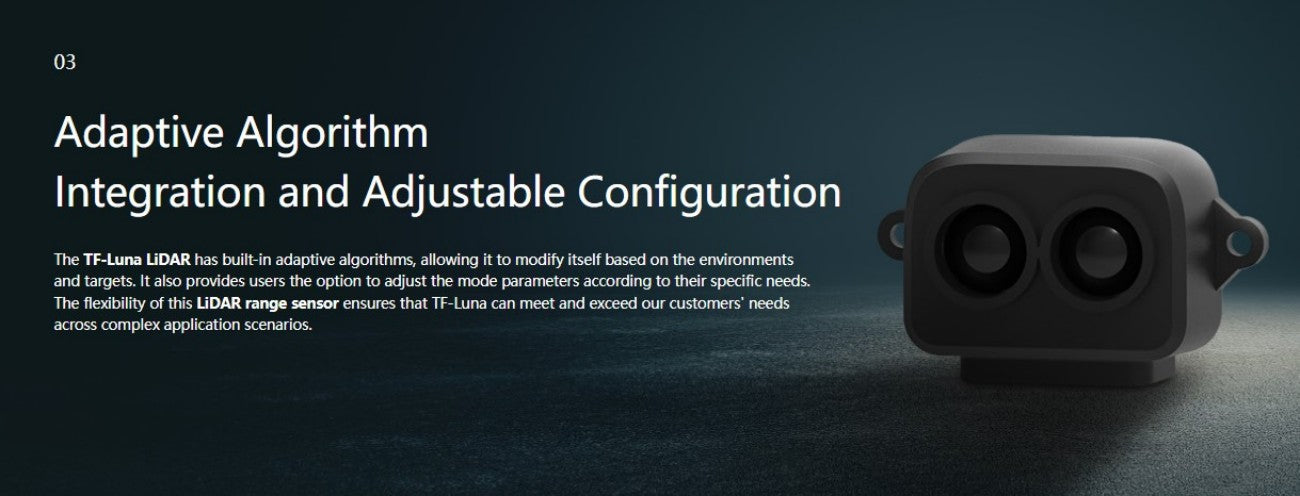

Benewake TF-Luna LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Benewake TF-Luna LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ PARAMETER ⌃
Operating range
0.2m ~ 8m@90% reflectivity (indoor 0klux) ; 0.2m ~ 2.5m@10% reflectivity (indoor 0klux) ; 0.2m ~ 8m@90% reflectivity (outdoor 90klux) ; 0.2m ~ 2.5m@10% reflectivity (outdoor 90klux)
Accuracy
±6cm @(0.2m-3m), ±2% @(3m-8m)
Distance resolution
1cm
Frame rate
1-250Hz
Ambient light immunity
70Klux
Operation temperature
-10℃ ~ 60℃
Enclosure rating
/
Light source
VCSEL
Central wavelength
850nm
Photobiological safety
Class 1 (IEC60825)
Field of View (FOV)
2^5°
Supply voltage
3.7V - 5.2V
Average current
≤70mA
Power consumption
≤0.35W
Peak current
150mA
Communication level
LVTTL (3.3V)
Communication interface
UART, I²C, I/O
Dimension (L×W×H)
35mm × 21.25mm × 12.5mm
Housing
ABS+PC
Storage temperature
-20℃ ~ 75℃
Weight
<5g
UART default baud rate
115200 (adjustable)
UART max transmission rate
400kbps
UART data bit
8
UART stop bit
1
UART parity
None
I²C master/slave mode
Slave
I²C default address
0x10
I²C address range
0x08 ~ 0x77
