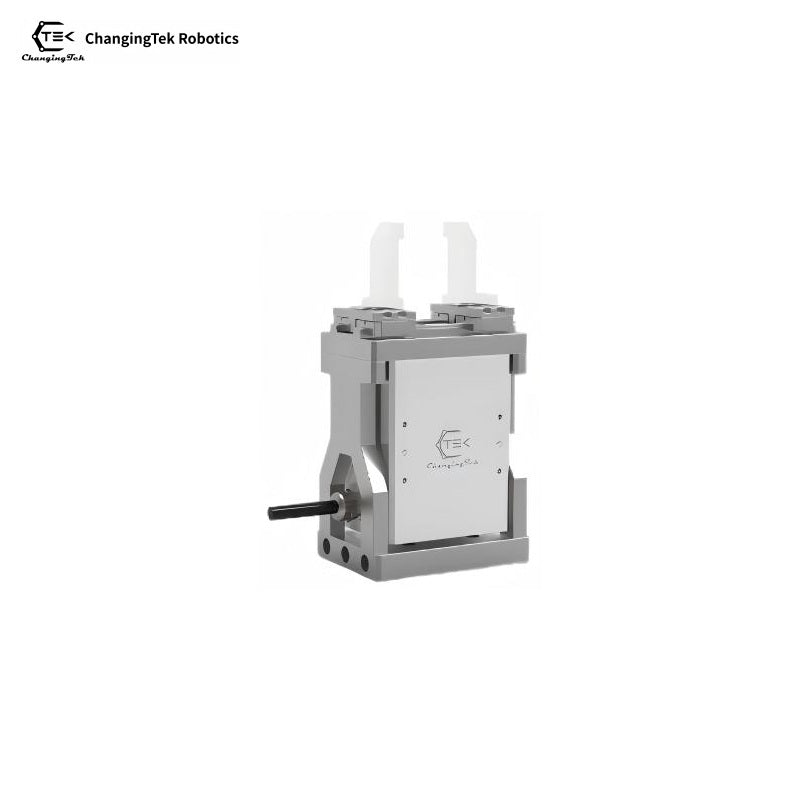

ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation

  • Servo robot gripper with 30 mm maximum stroke
  • Up to 35 N maximum gripping force for automation handling
  • +/-0.02 mm repeat positioning accuracy for precision robot gripping
  • Supports Modbus RTU (RS485), Digital I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.) communication for robot arm and automation integration
$1,200
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

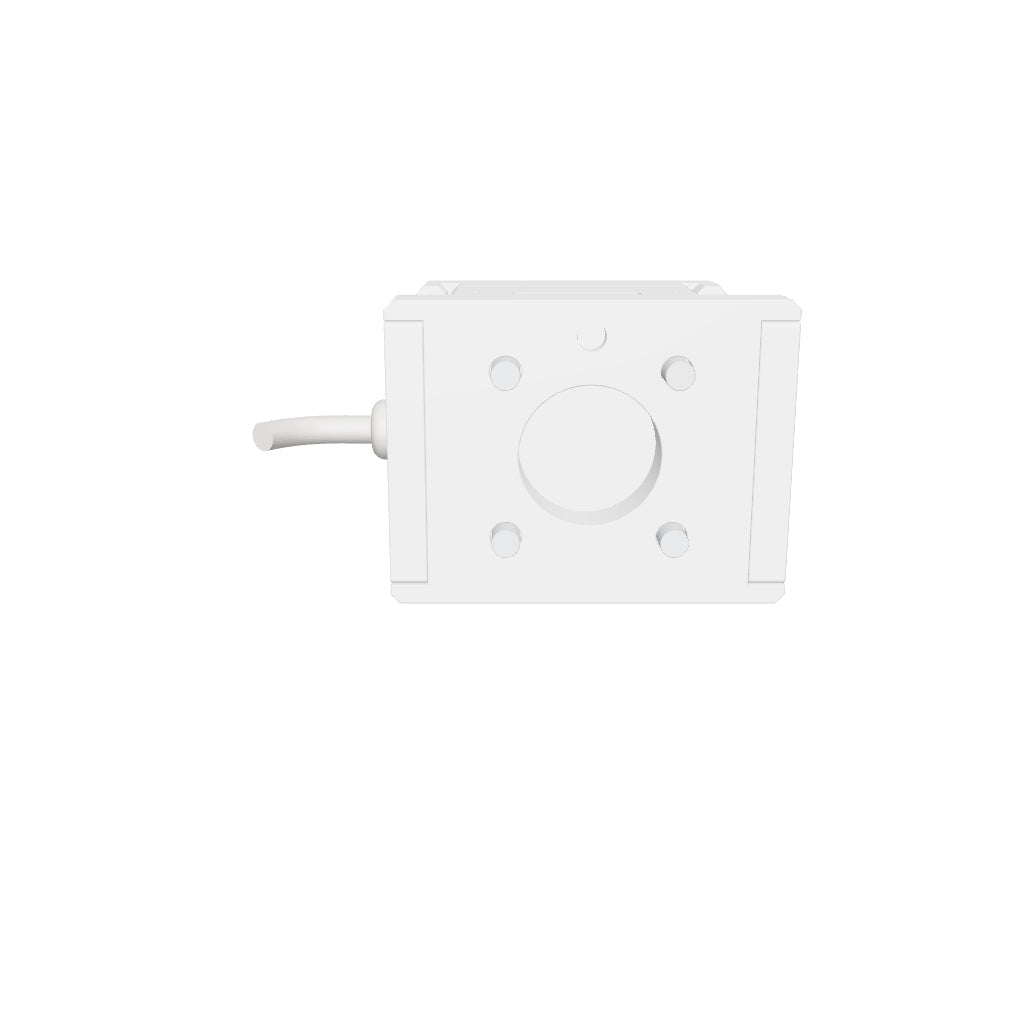

ChangingTek CTPM2F30 dimensional drawing with mounting dimensions and mechanical views ▶ ChangingTek CTPM2F30 3D CAD model for mechanical integration and end-effector design ▶
ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation ChangingTek Robotics CTPM2F30 Gripper | Servo Robot Gripper for Automation
▤ PARAMETER ⌃
Parameter
Value
Product Name
ChangingTek Robotics CTPM2F30 Gripper
Drive Mode
Servo Drive
Maximum Stroke
30 mm
Maximum Gripping Force
35 N
Maximum Grasping Speed
100 mm/s
Repeat Positioning Accuracy
+/-0.02 mm
Maximum Recommended Payload
0.7 kg
Allowable Load Torque
MR: 11.8 N.m, MP: 7.4 N.m, MY: 7.4 N.m
Net Weight
1.2 kg
Peak Current
2 A
Operating Voltage
24 V

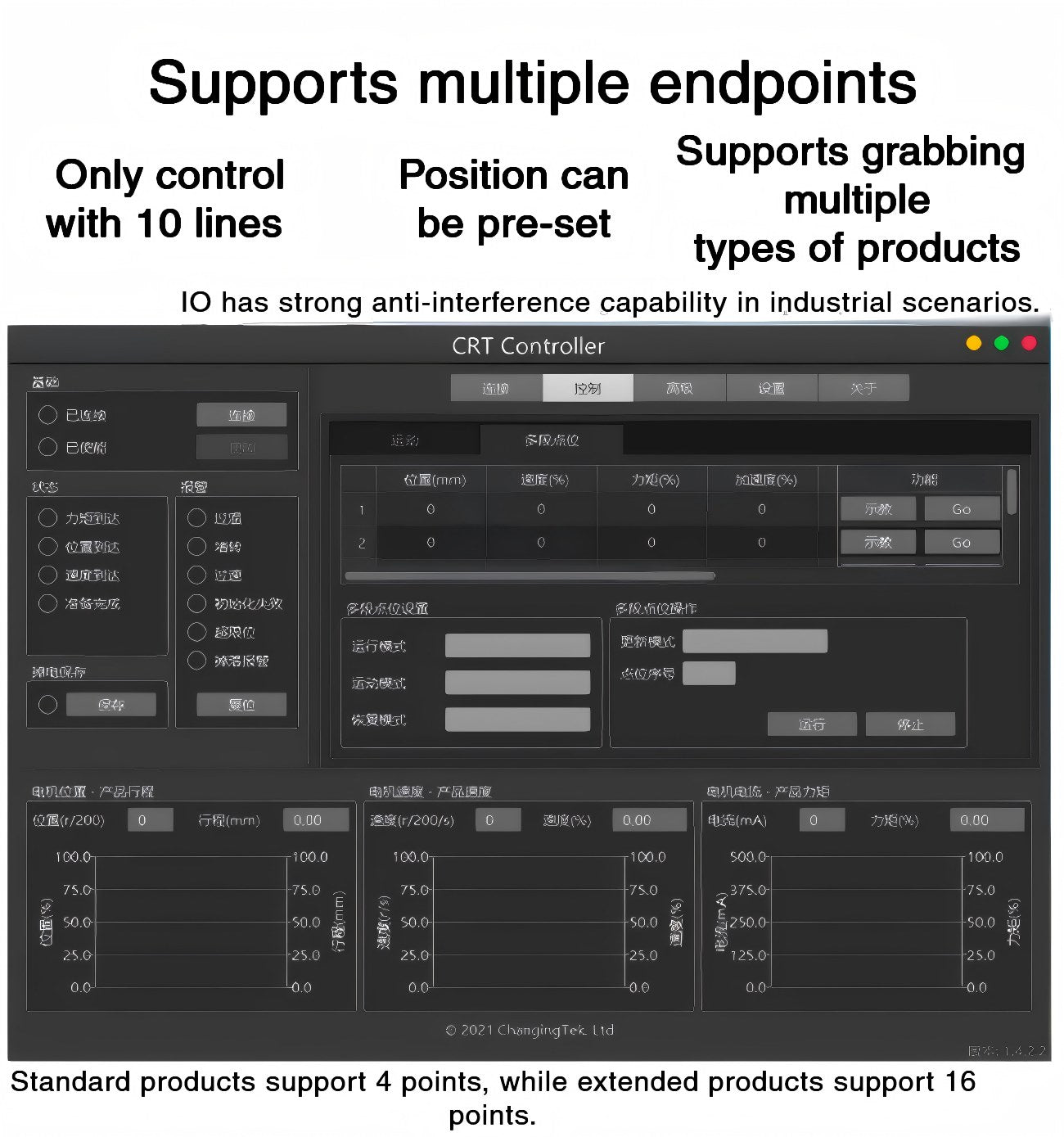

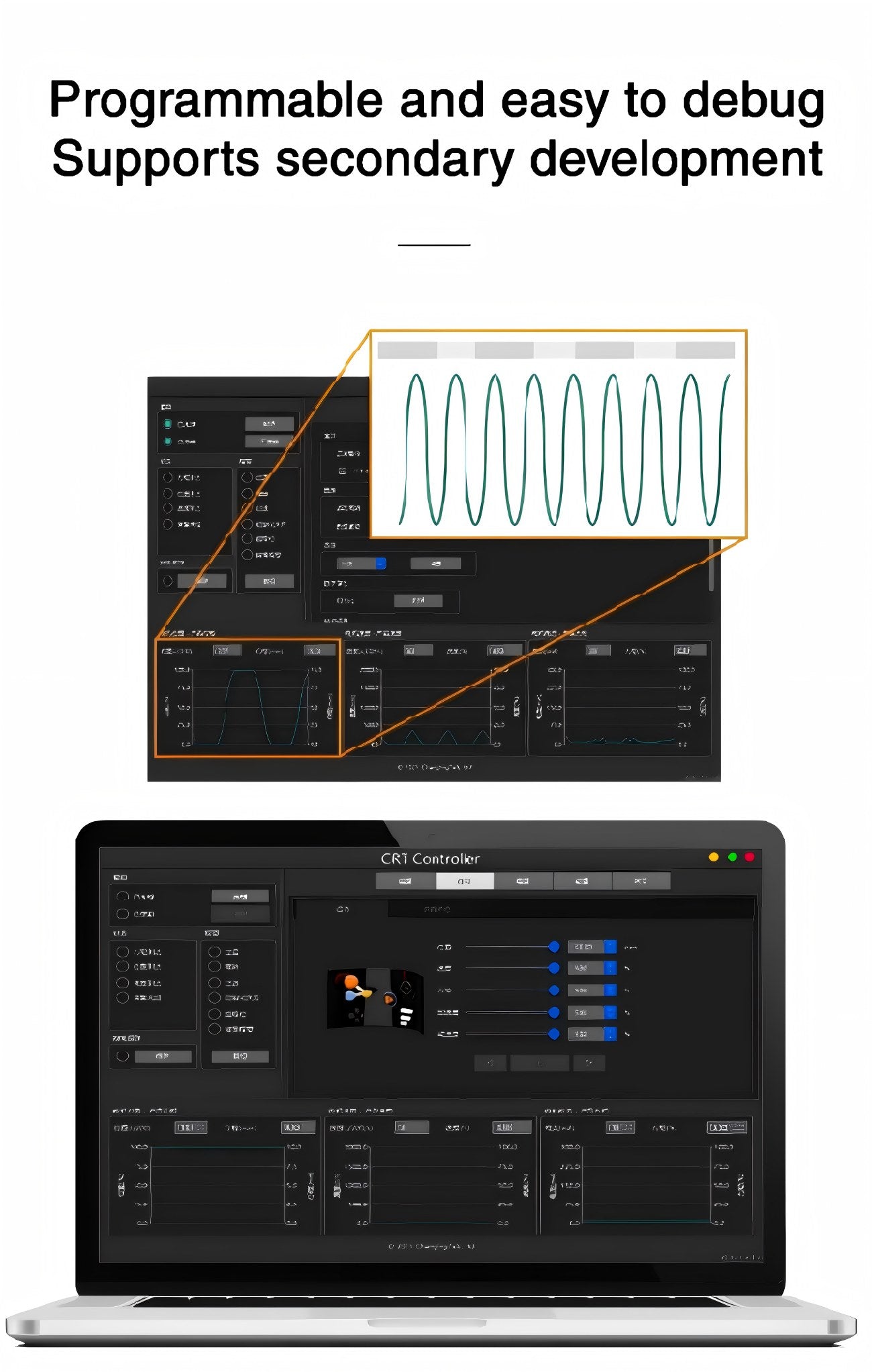

Programmable Parameters
Position, Speed, Force
Feedback Parameters
Position, Dimension, Speed, Force
Communication Protocols
Modbus RTU (RS485), Digital I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.)
Recommended Operating Environment (Temperature & Humidity)
0~40 deg C , < =85%RH (Non-condensing)
