DOBOT

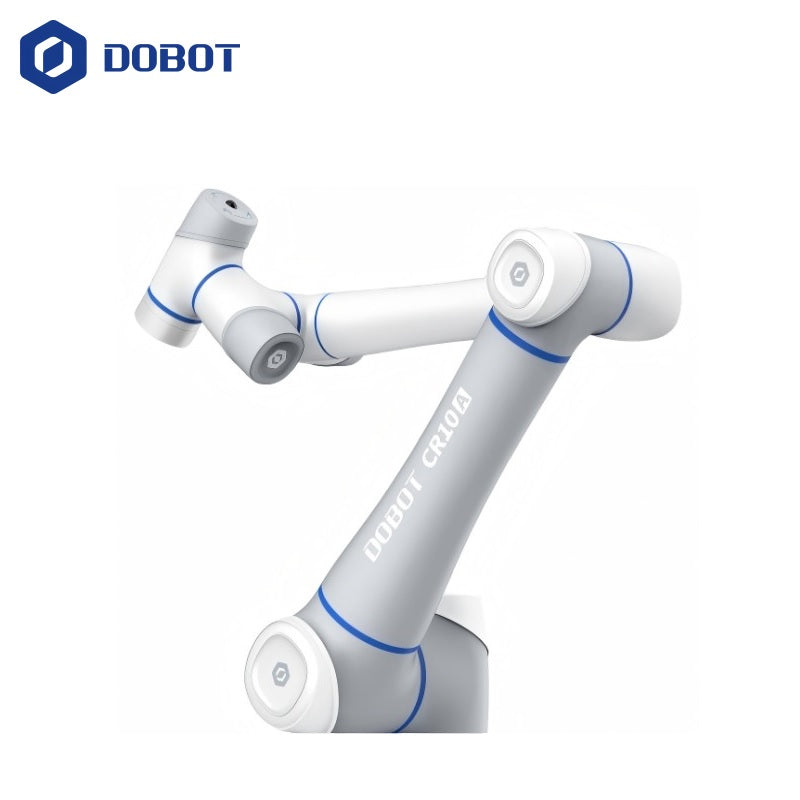

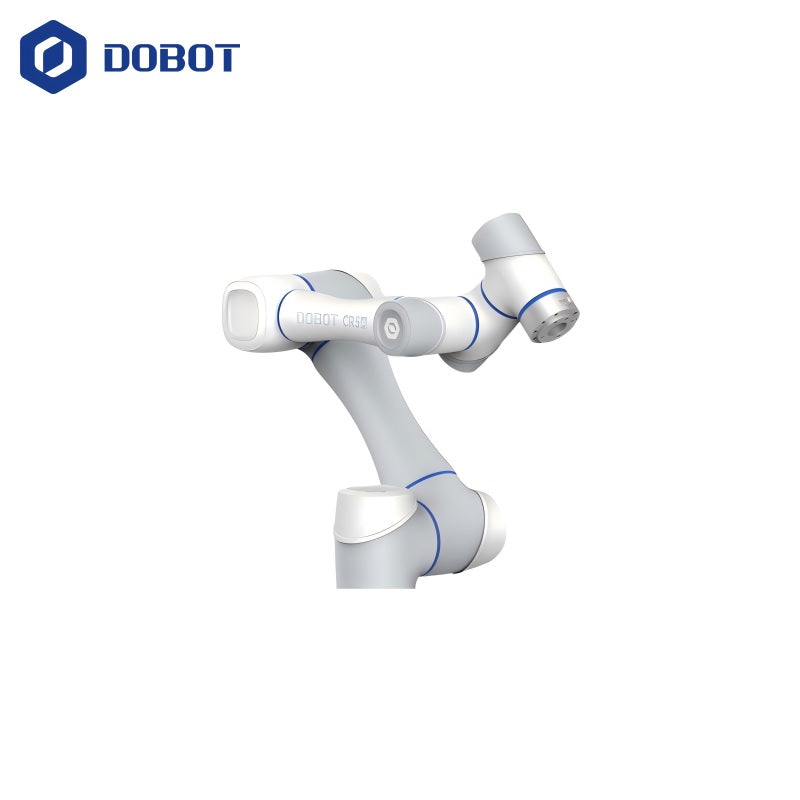

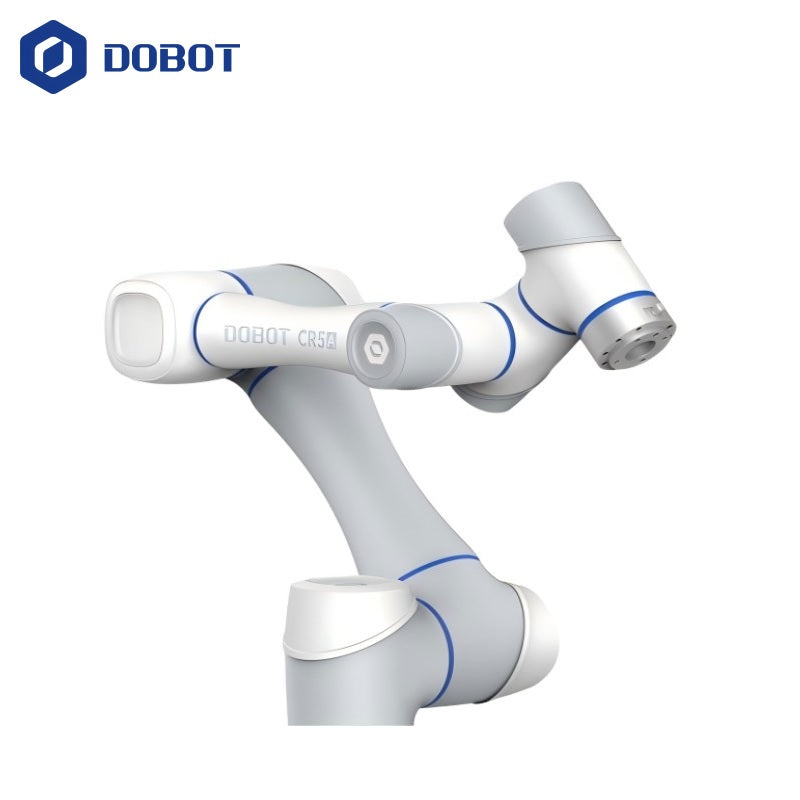

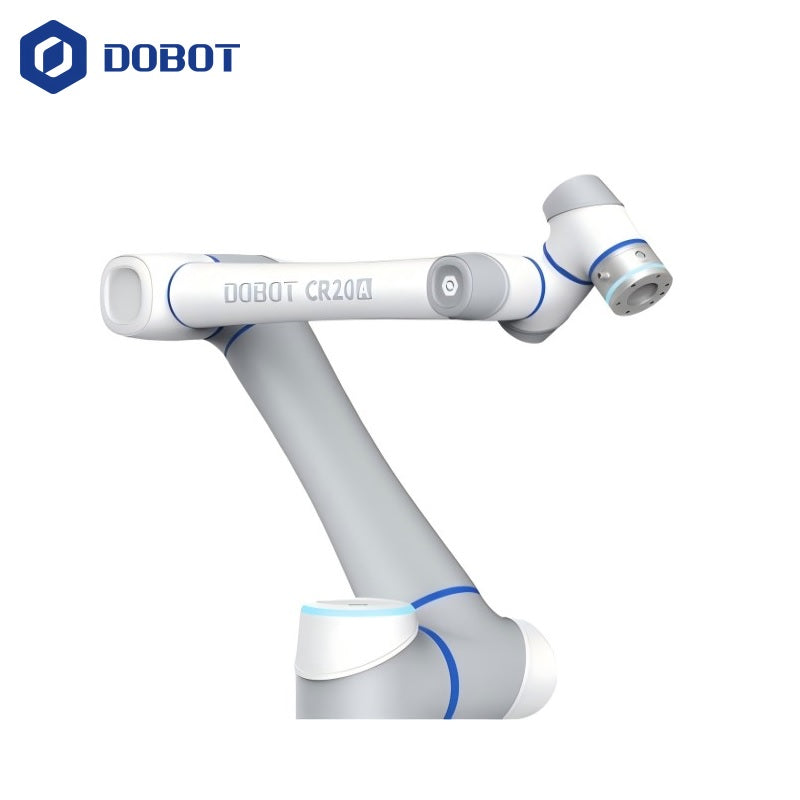

DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation

  • Collaborative robotic arm with 5kg 10kg 20kg payload for automation and research
  • Precision motion control with ±0.02mm ±0.03mm ±0.05mm repeatability
  • Practical robot arm workspace with 900mm 1300mm 1700mm reach
  • Supports robotics integration workflows for labs and automation cells
  • DOBOT CRA-IP68 Series Collaborative Robot for education labs, robotics research, and automation development
$28,000
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

DOBOT CRA-IP68 Series Collaborative Robot product overview, specifications, and support information ▶
DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation DOBOT CRA-IP68 Series Collaborative Robot | Robotic Arm for Research & Automation
▤ PARAMETER ⌃
Parameter
Value

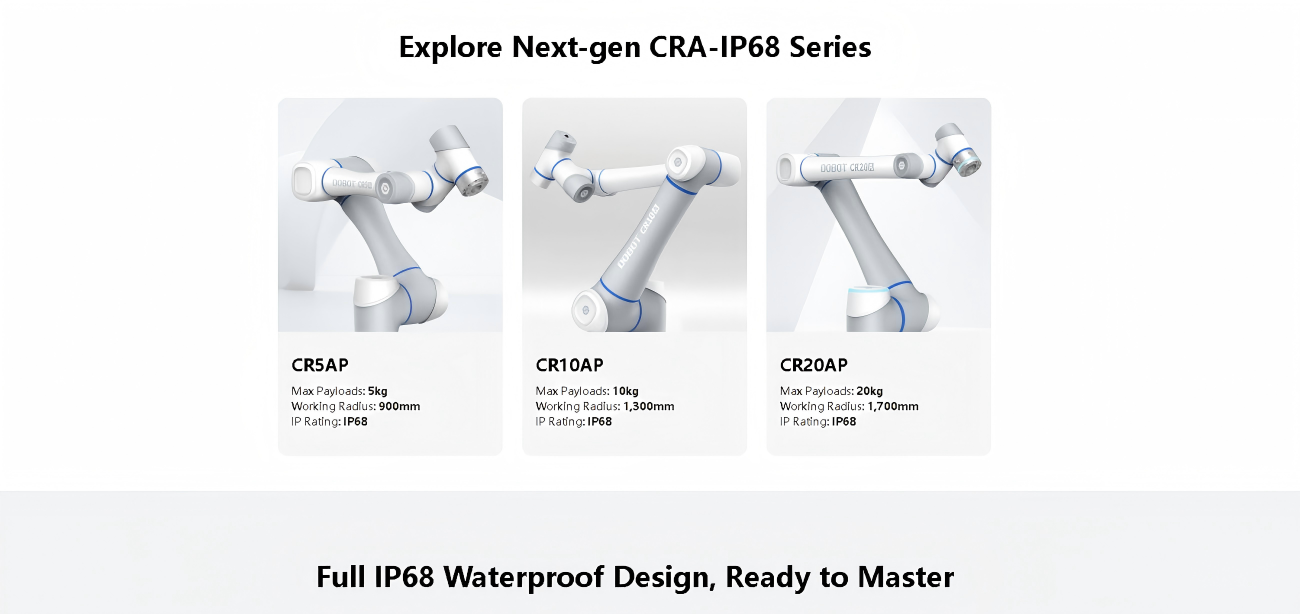

Model

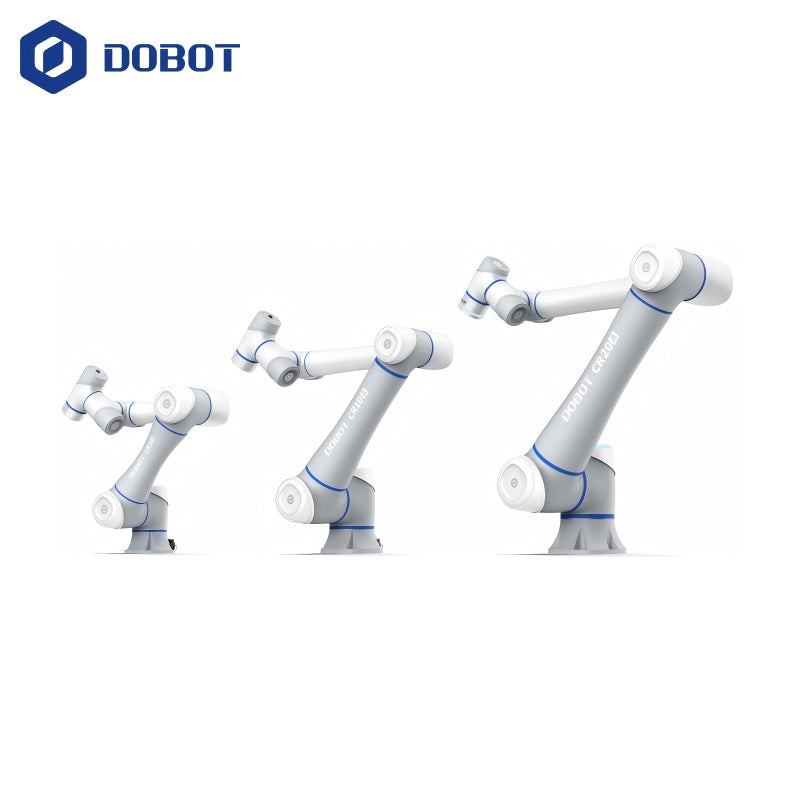

CR5AP CR10AP CR20AP
Weight
25kg 40kg 73kg
Max Payload
5kg 10kg 20kg
Working Radius
900mm 1300mm 1700mm

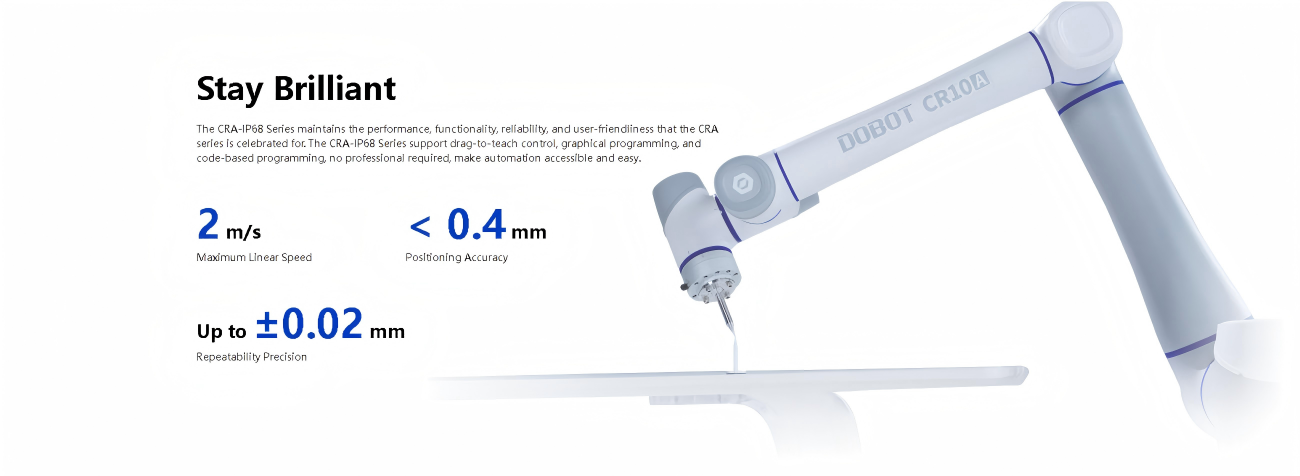

Maximum Linear Speed
2m/s 2m/s 2m/s
Range of Motion
J1: ±360° J2: ±360° J3: ±160° J4: ±360° J5: ±360° J6: ±360° J1: ±360° J2: ±360° J3: ±160° J4: ±360° J5: ±360° J6: ±360° J1: ±360° J2: ±360° J3: ±165° J4: ±360° J5: ±360° J6: ±360°
Maximum Joint Speed
J1: 180°/s J2: 180°/s J3: 180°/s J4: 223°/s J5: 223°/s J6: 223°/s J1: 150°/s J2: 150°/s J3: 180°/s J4: 223°/s J5: 223°/s J6: 223°/s J1: 120°/s J2: 120°/s J3: 150°/s J4: 180°/s J5: 180°/s J6: 180°/s
I/O Interface (DI)
2 2 4
I/O Interface (DO)
2 2 4
I/O Interface (AI)
2 (same as RS485) 2 (same as RS485) 4 (same as RS485)
I/O Interface (AO)
None None None
I/O Interface (RS485)
Supported Supported Supported
Repeatability
±0.02mm ±0.03mm ±0.05mm

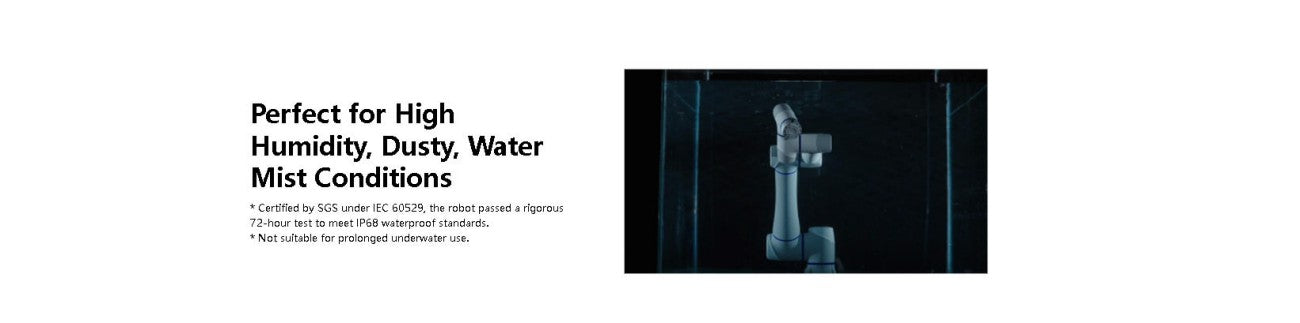

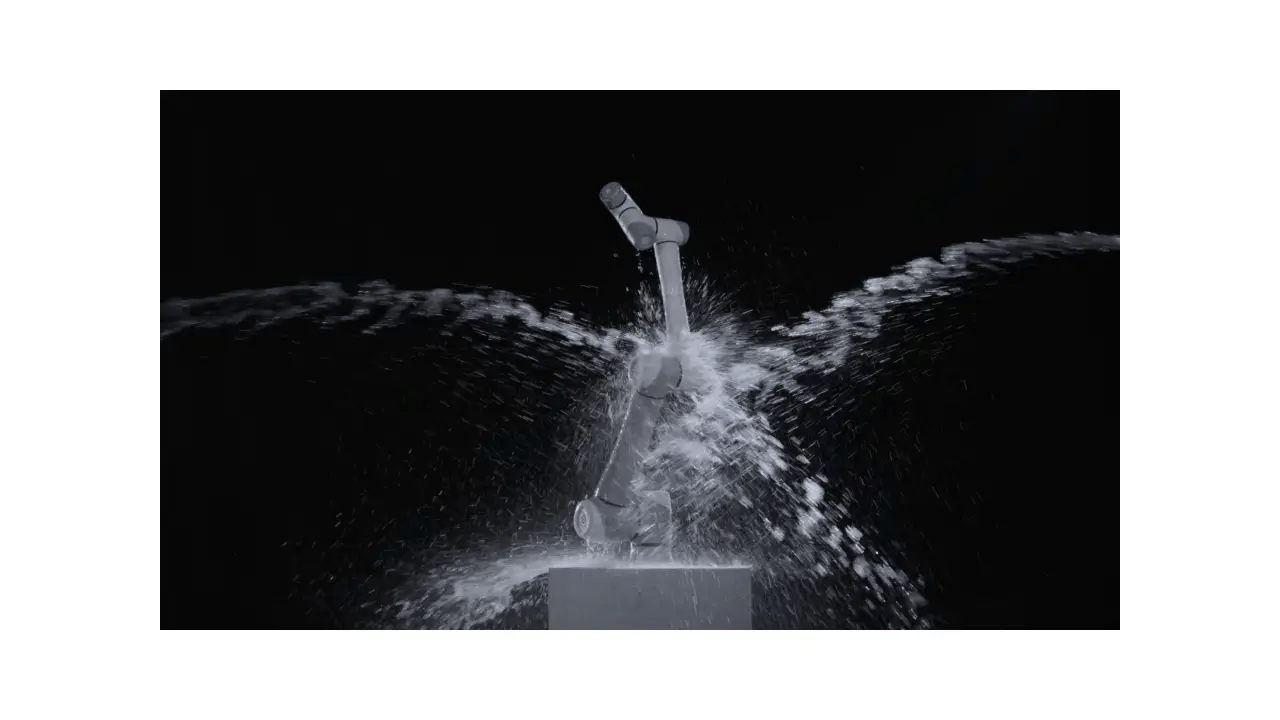

IP68
IP68 IP68 IP68
Noise
70dB(A) 70dB(A) 70dB(A)
Temperature Range
0~50℃ 0~50℃ 0~50℃
Power Consumption
150W 350W 500W
Installation Orientation
Desktop Desktop Desktop
Cable Length to Control Box
5m 5m 5m

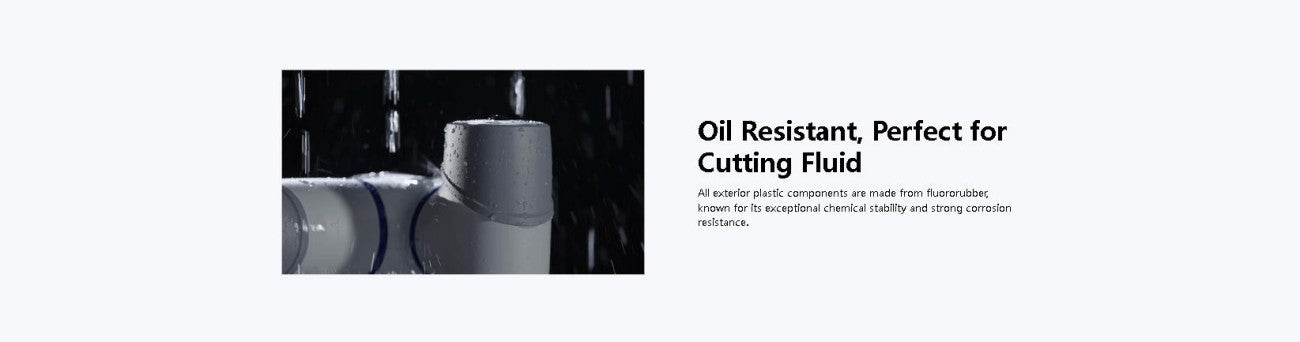

Materials
Aluminum alloy, ABS plastic Aluminum alloy, ABS plastic Aluminum alloy, ABS plastic
