OCServo

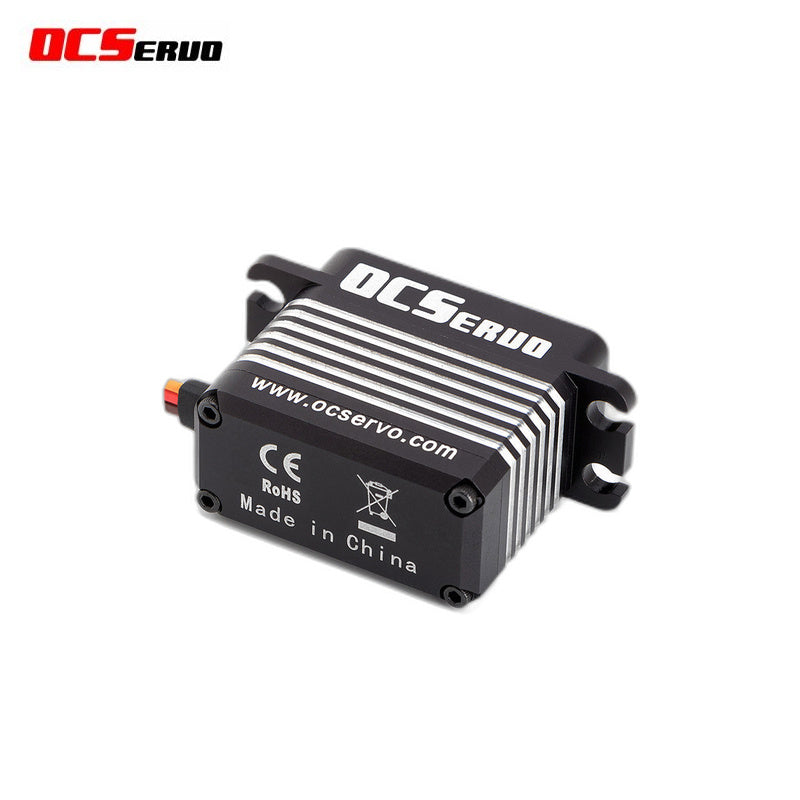

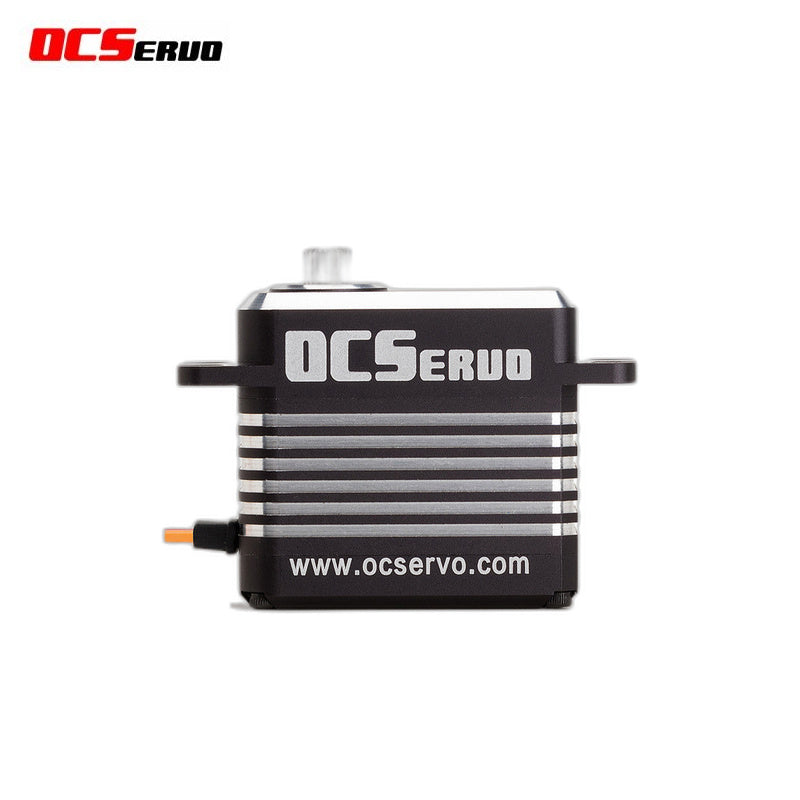

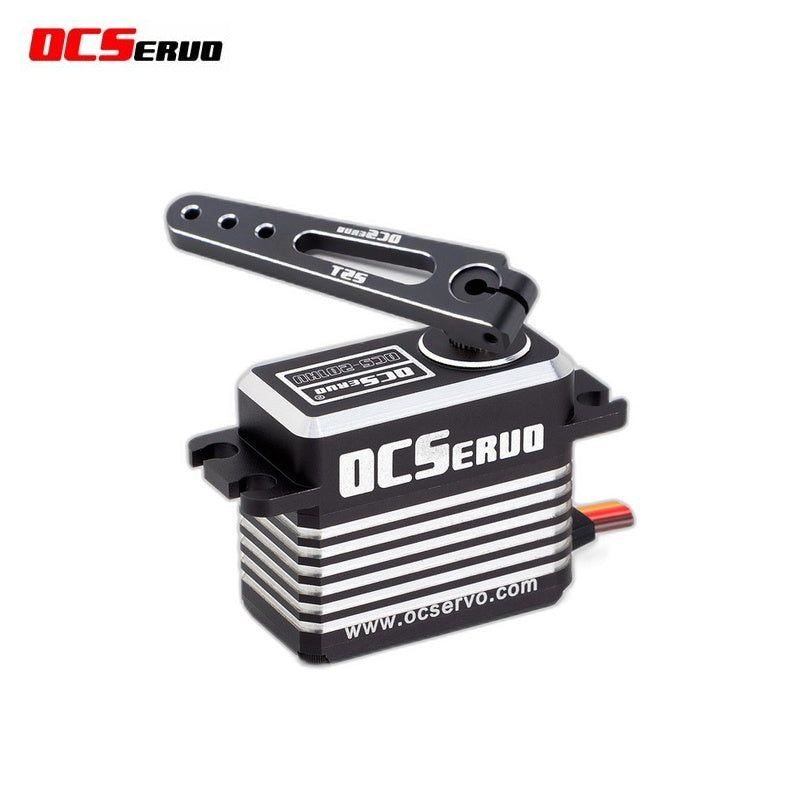

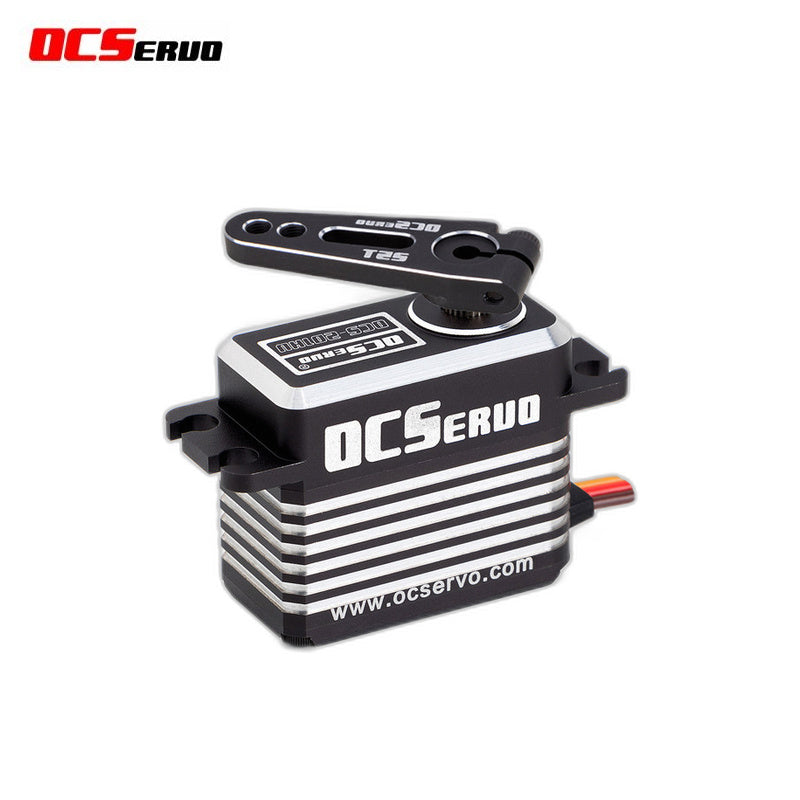

OCServo OCS-201HV Servo Motor

  • Peak stall torque (kg·cm): 6V: 18; 7.4V: 22; 8.4V: 25
  • Operating Voltage: 6V / 7.4V / 8.4V
  • No load speed (sec/60°): 6V: 0.142; 7.4V: 0.124; 8.4V: 0.104
  • Motor Type: Coreless motor
  • Gear Type: Stainless Steel
$55
Version
Type

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-201HV dimensional drawing.pdf ▶ OCServo OCS-201HV technical specifications.pdf ▶
OCServo OCS-201HV Servo Motor detail image
OCServo OCS-201HV Servo Motor detail image
▤ Technical Specifications ⌃
Parameter Value Value Value
Product Name 8.4V 20kg-cm High Voltage Digital Servo
Item No. OCS-201HV
Storage Temperature Range -20°C ~ 70°C
Operating Temperature Range -15°C ~ 65°C
Test Temperature 25°C ± 5°C
Test Humidity 65% ± 10%
Size (mm) 20 × 40 × 34
Weight (g) 65 (excluding accessory)
Gear Type Stainless Steel
Limit Angle 210°
Bearings 2 Ball bearings
Output Spline 25T - Φ5.94mm
Horn Type Plastic POM
Case Material Aluminium CNC
Connector Wire Length 300 mm
Motor Type Coreless motor
Waterproof Performance Yes
Operating Voltage 6V 7.4V 8.4V
No load speed (sec/60°) 0.142 0.124 0.104
Running current (at no load) (mA) 300 350 420
Peak stall torque (kg·cm) 18 22 25
Stall current (A) 2.8 3.0 3.5
Command Signal PWM 50~333Hz
Amplifier Type Digital Controller
Pulse Width Range 800 ~ 2200 μsec
Neutral Position 1500 μsec
Running Degree 96° (when 1000~2000 μsec)
Dead Band Width 1 μsec
Rotating Direction CCW (when 1000~2000 μsec)
