OCServo

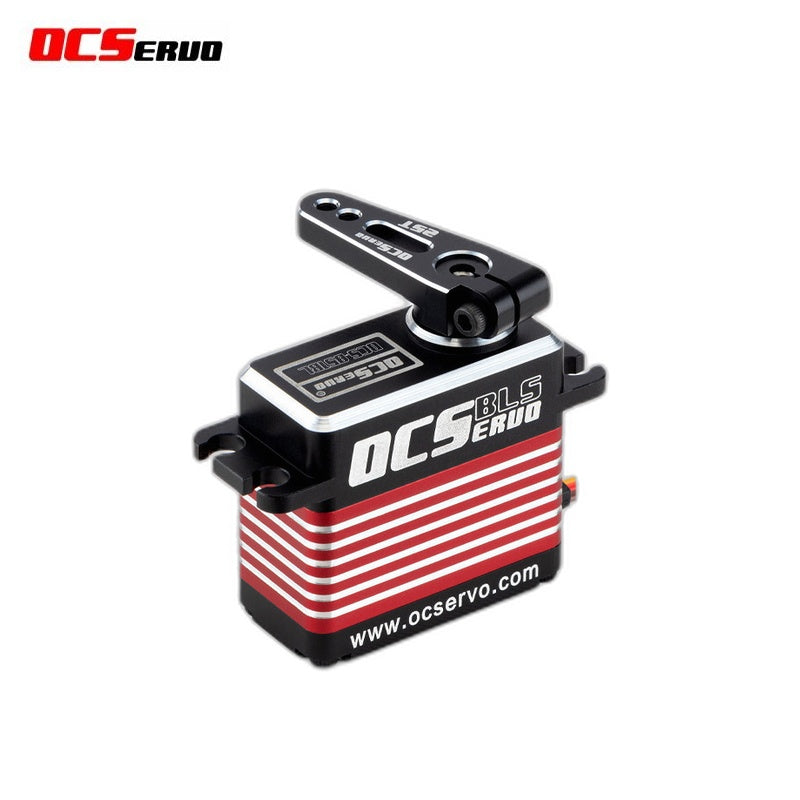

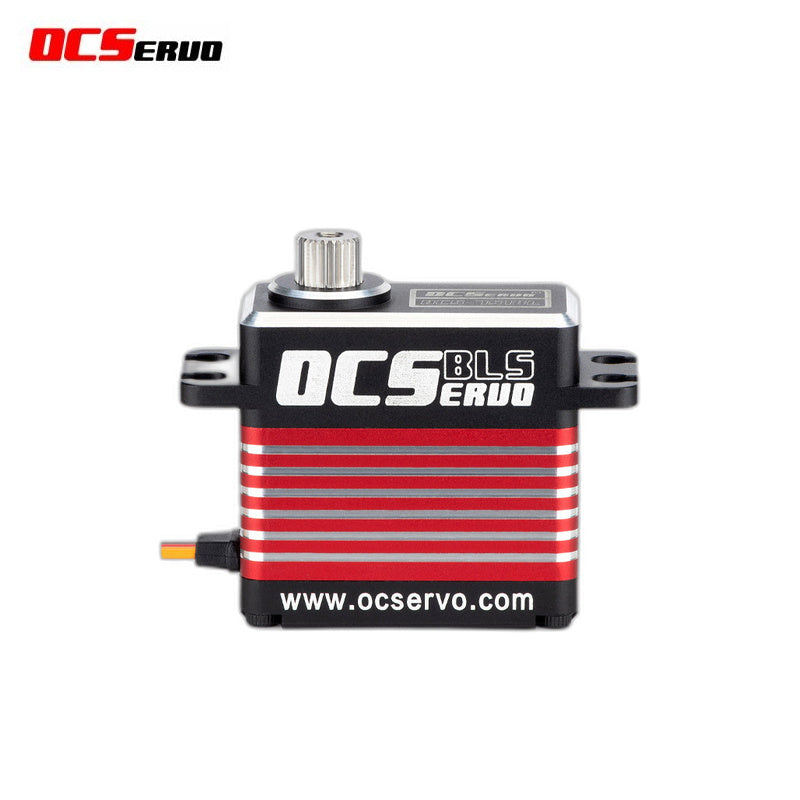

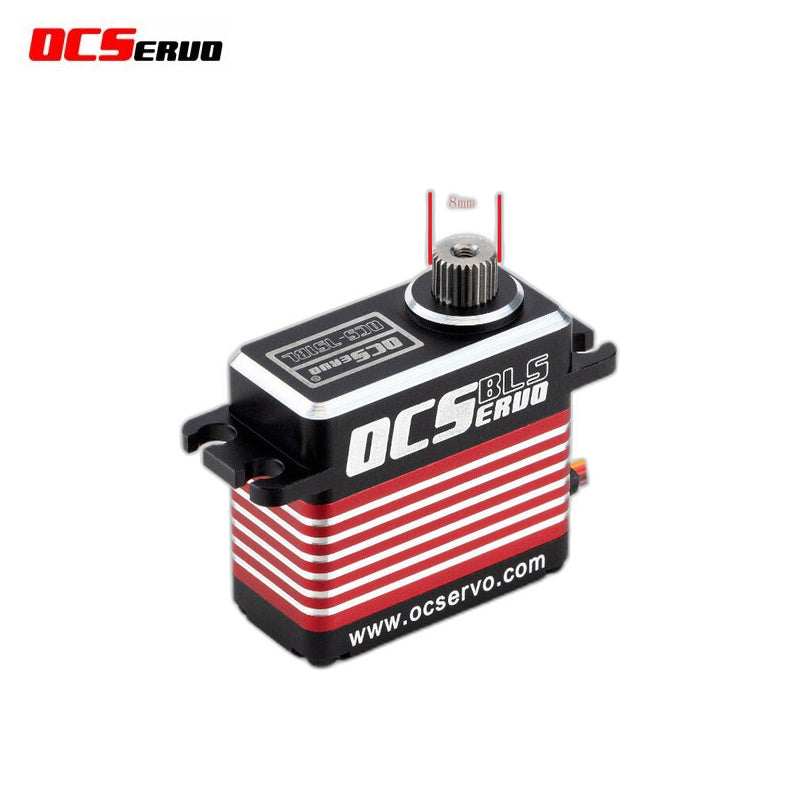

OCServo OCS-851BL Servo Motor

  • Peak stall torque (kg·cm): 8.4V: 42; 12.0V: 60; 16.8V: 85
  • Rated torque (kg·cm): 8.4V: 15; 12.0V: 21; 16.8V: 30
  • Operating Voltage: 8.4V / 12.0V / 16.8V
  • No load speed (sec/60°): 8.4V: 0.17; 12.0V: 0.14; 16.8V: 0.11
  • Motor Type: Brushless motor
$145
Version
Type

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-851BL dimensional drawing.pdf ▶
OCServo OCS-851BL Servo Motor detail image
OCServo OCS-851BL Servo Motor detail image
▤ PARAMETER ⌃
Product Name
16.8V85kg-cm High Voltage BLS Digital Servo
Item No.
OCS-851BL
Storage Temperature Range
-20°C ~ 70°C
Operating Temperature Range
-15°C ~ 65°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
20 × 40 × 42.6
Weight (g)
92 (excluding accessory)
Gear Type
Stainless Steel
Limit Angle
No
Bearings
2 Ball bearings
Output Spline
25T - φ7.96mm
Horn Type
7075 Aluminium CNC
Case Material
Aluminium CNC
Connector Wire
300 mm
Motor Type
Brushless motor
Waterproof Performance
Yes
Operating Voltage
8.4V / 12.0V / 16.8V
No load speed (sec/60°)
8.4V: 0.17; 12.0V: 0.14; 16.8V: 0.11
Running current (at no load) (mA)
8.4V: 320; 12.0V: 370; 16.8V: 440
Peak stall torque (kg·cm)
8.4V: 42; 12.0V: 60; 16.8V: 85
Stall current (A)
8.4V: 4.0; 12.0V: 5.0; 16.8V: 6.0
Rated torque (kg·cm)
8.4V: 15; 12.0V: 21; 16.8V: 30
Rated current (A)
8.4V: 1.0; 12.0V: 1.2; 16.8V: 1.6
Command Signal
PWM OR 485 OR CAN
Amplifier Type
Digital Controller
Pulse Width Range
800~2200 μsec (customizable)
Neutral Position
1500 μsec
Running Degree
90° (when 1000~2000 μsec) customizable
Dead Band Width
2 μsec
Rotating Direction
CCW (when 1000~2000 μsec) customizable
