DAMIAO

DAMIAO DM-J3507-2EC Servo Motor for Robot Joints | Bulk Supply

Model: DM-J3507-2EC
$120
Version

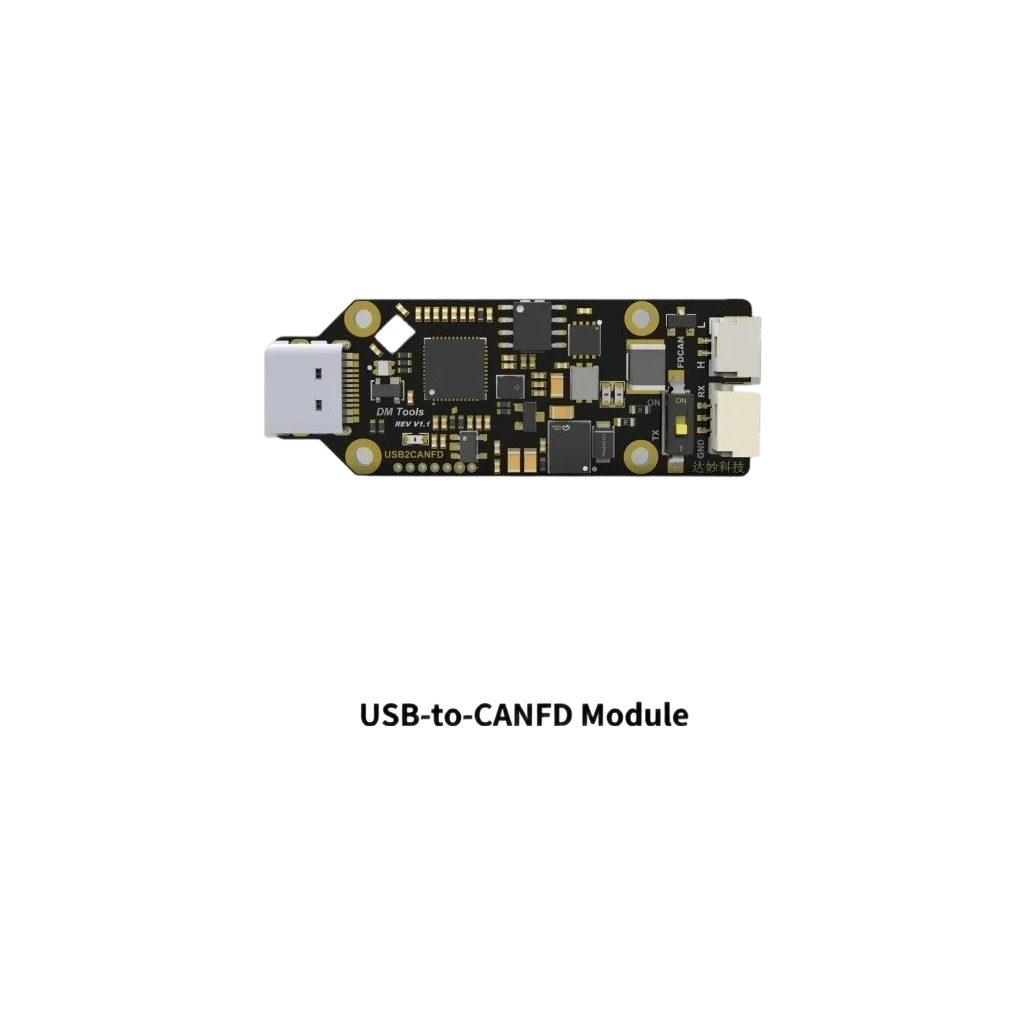

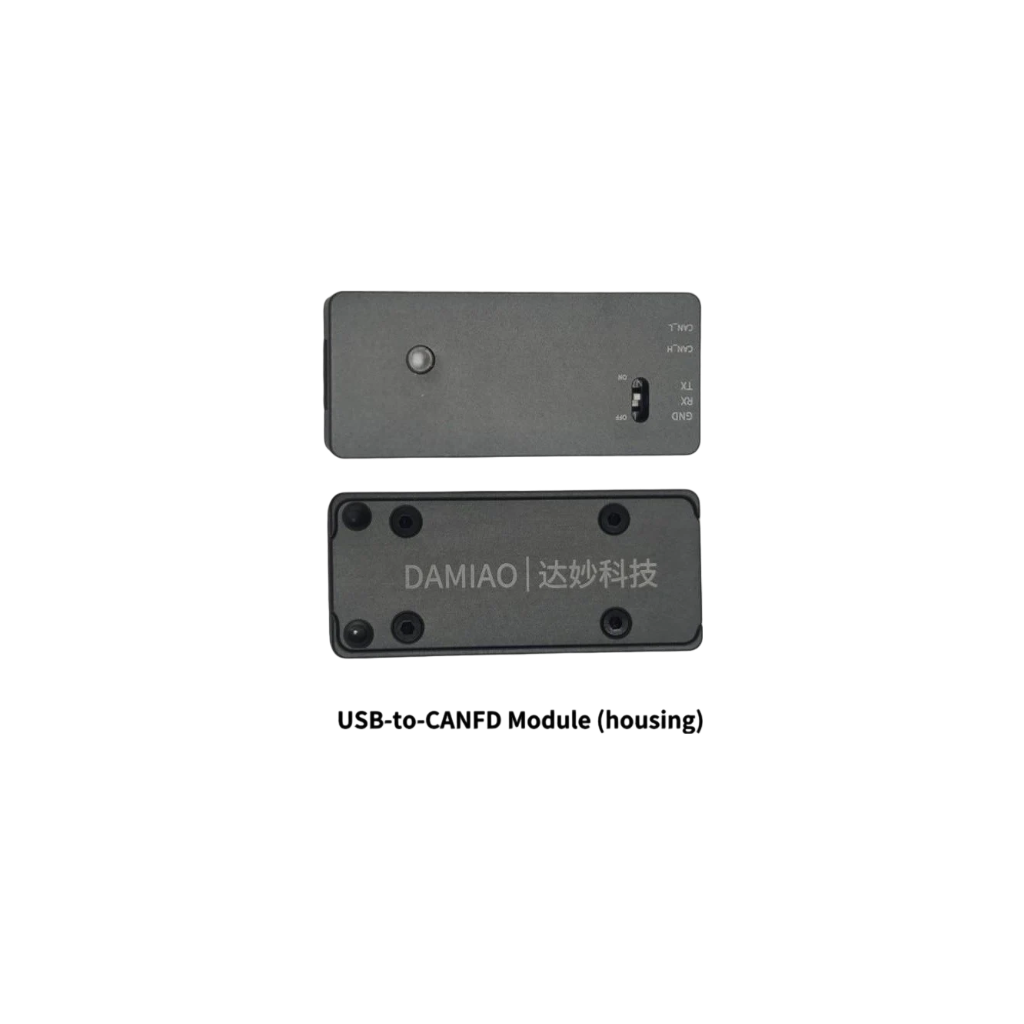

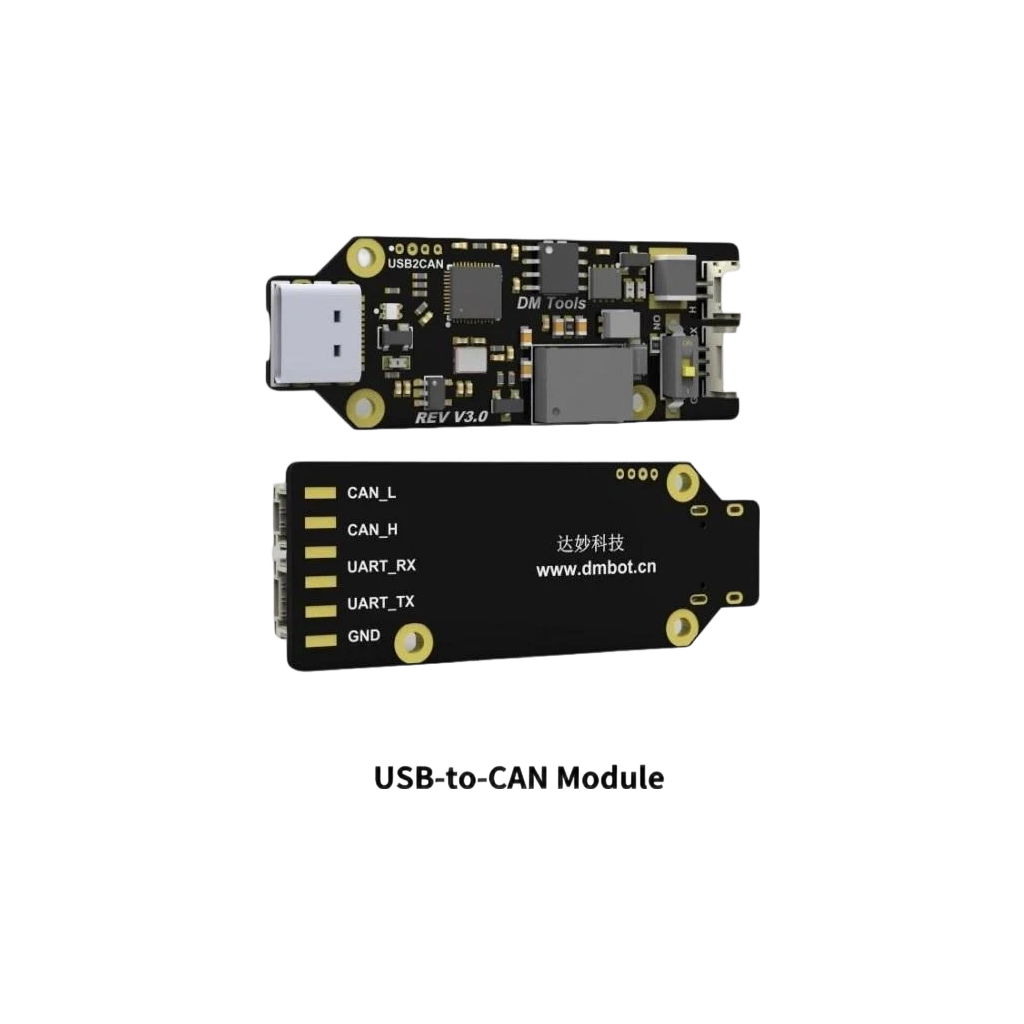

Communication Module
Accessory Kit

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model DM-J3507-2EC
Nominal Voltage 24 V DC
Nominal Current 3.0 A (1.2 A)
Peak Current 8.3 A (4 A)
Nominal Torque 0.8 N·m
Peak Torque 3 N·m
Nominal Speed 150 rpm
Maximum No-Load Speed 460 rpm
Reduction Ratio 7:1
Pole Pairs 14
Phase Inductance 235 µH
Phase Resistance 0.8 Ω
Outer Diameter 46 mm
Height 37.9 mm
Motor Weight 150 g
Encoder Resolution 14-bit
Encoder Quantity 2
Encoder Type Magnetic (Single-Turn)
Control Interface CAN (1 Mbps)
Configuration Interface UART (921600 bps)
Control Modes MIT Mode | Speed Mode | Position Mode
Protection Features Drive Over-Temperature Protection (120 °C shutdown); Motor Over-Temperature Protection (Recommended ≤100 °C); Overvoltage Protection (Recommended ≤30 V); Communication Loss Protection (CAN timeout exit enable mode); Motor Overcurrent Protection (Recommended ≤9.8 A); Under-Voltage Protection (Minimum supply ≥15 V)

Technical Documentation

PDF
DM-J3507-2EC-V1.0_User_Manual.pdf
STP
dm_3507_3d.STEP
PDF
DM_3507-Motor_Installation_Dimension_Drawing.pdf
