SLAMTEC

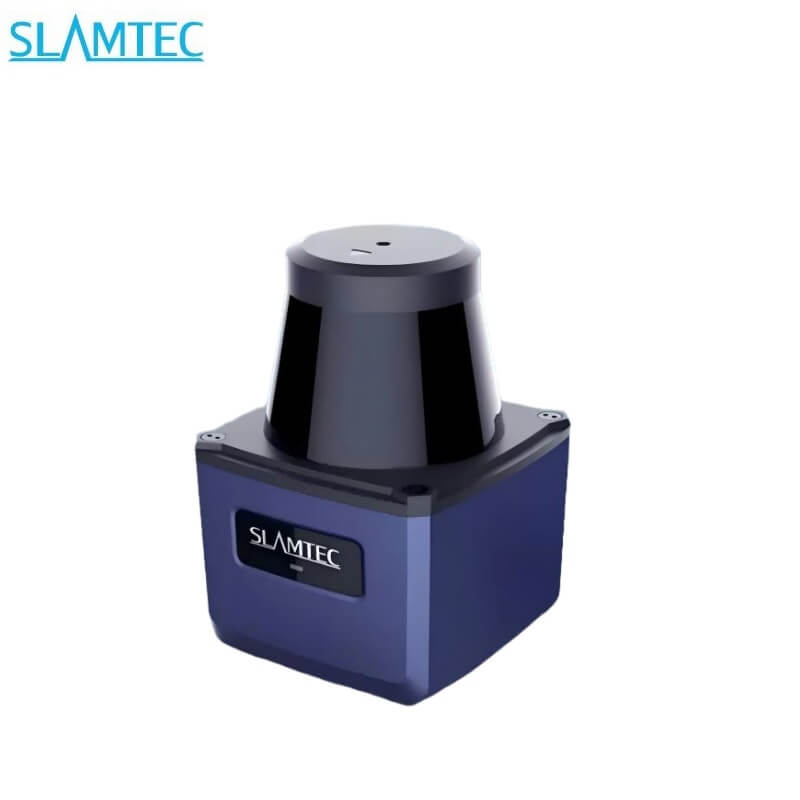

SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: SLAMTEC LPX-T1
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and mapping systems.
  • Designed for robot perception workflows that need reliable ranging, localization, and environmental sensing.
  • Useful for developers building SLAM, obstacle detection, navigation, and robotics automation applications.
$475
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SLAMTEC LPX-T1 LiDAR CAD model for mechanical integration.stp ▶ SLAMTEC LPX-T1 LiDAR user manual for setup and integration.pdf ▶ SLAMTEC LPX-T1 LiDAR datasheet with technical specifications.pdf ▶

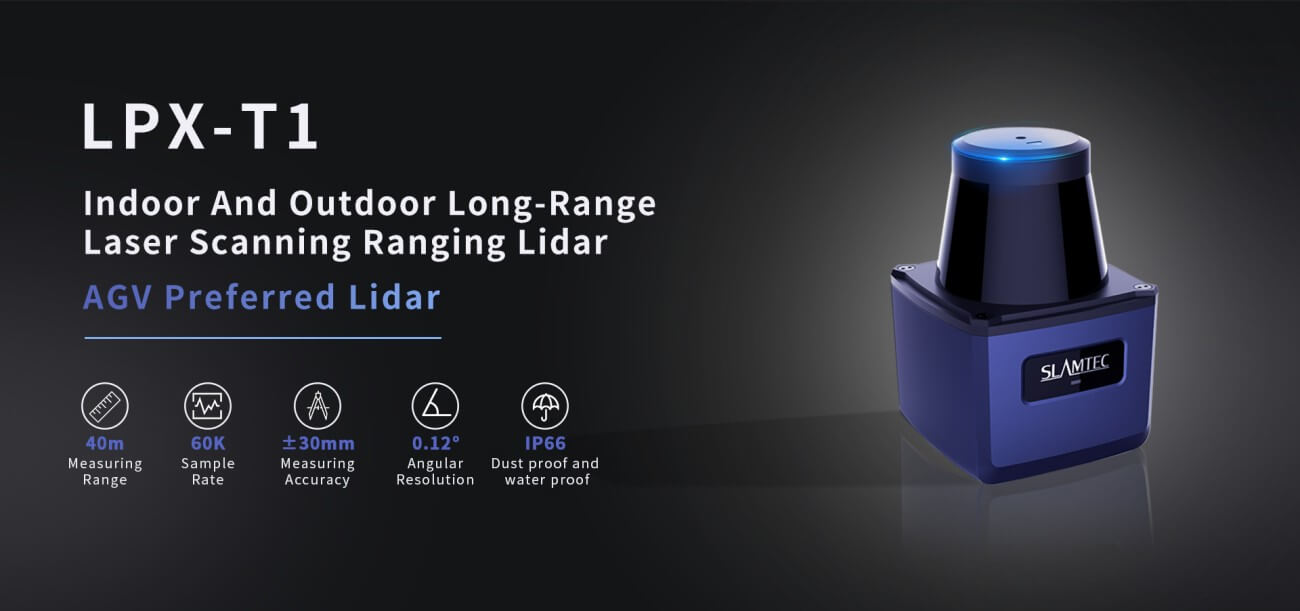

SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

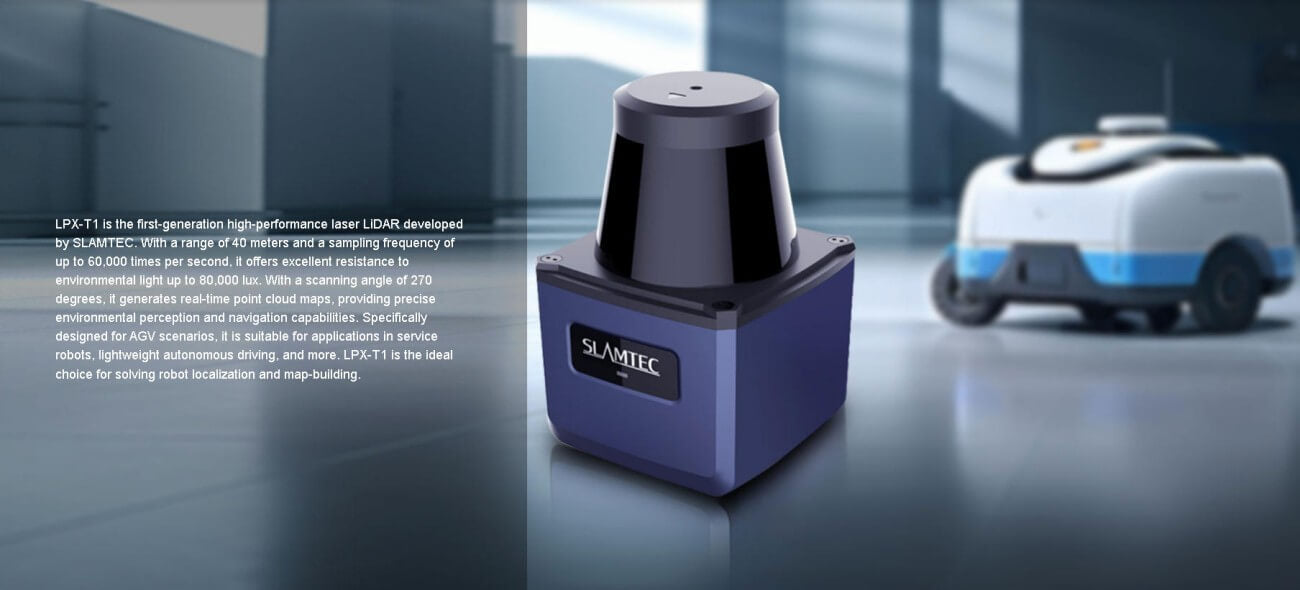

SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

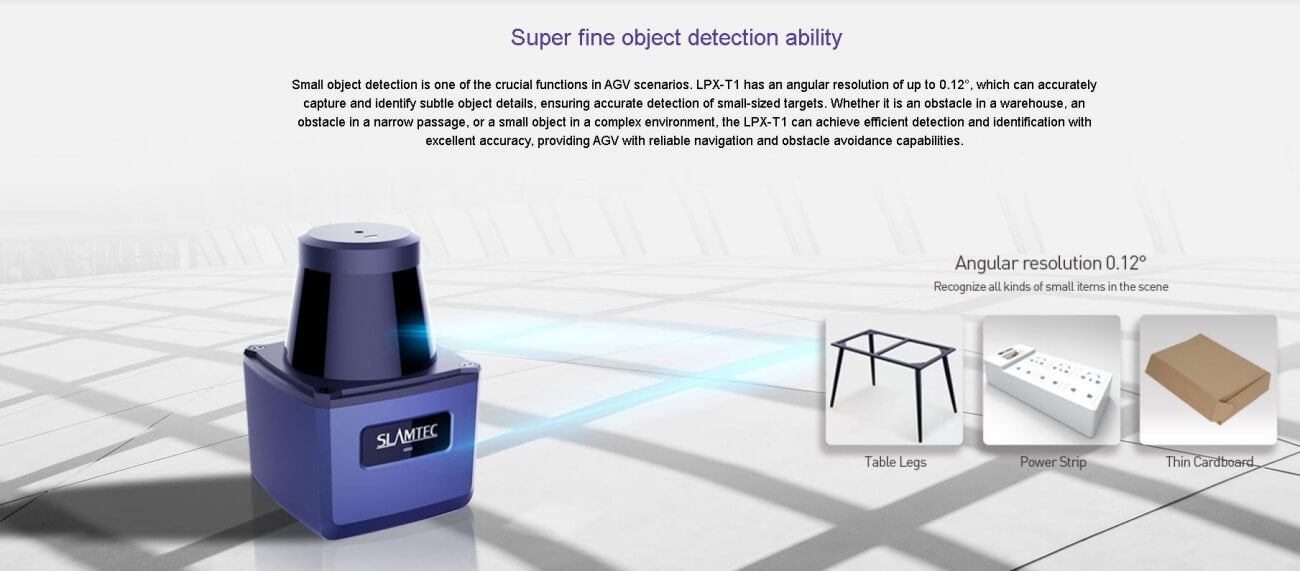

SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

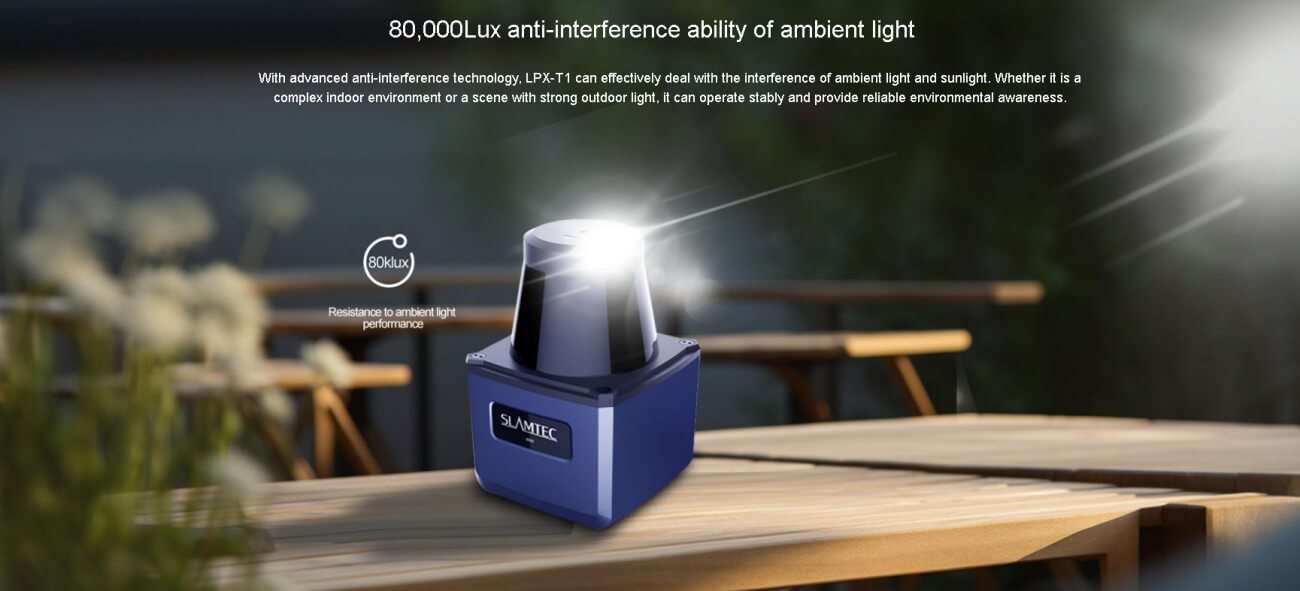

SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
SLAMTEC LPX-T1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9
▤ PARAMETER ⌃
Model
SLAMTEC LPX-T1
Application Field
Indoor/Outdoor
Light Source
infrared laser(905nm)
Laser Safety Level
IEC 60825-1:2014 Class 1
Angular Range
270°
Scan Rate
20~40Hz
Angular Resolution
0.12°( 20Hz scan rate)
Distance Range
0.05~40m(Under 70% reflectivity)
Distance Resolution
8mm(All distance range)
Sample Frequency
60,000Hz
Anti-Ambient Light Ability
80,000 lx(Outdoor Mode)
Electrical Connection
1X Ethernet Interface 1X Power Input Interface
Supply Voltage
9~28 VDC
Power Dissipation
Typ. 4 W
Cover Color
Mountain Lake Blue
Cover IP Grade
IP66
IP Grade
III (IEC 61000-4-2:2009)
Weight
264 g
Dimension(length*width*height)
60 mmx73mmx85mm
Recognizable Shape
Almost any shape
Statistical Error
20 mm
Integrated Application
Ranging data output
Object Reflection Rate
4 %... > 1,000 % (Reflector)
EMC
EN 55032:2015/ EN 55035:2017
Anti-vibration Ability
IEC 60068-2-
Impact Resistance
IEC 60068-2-27
Operation Temperature
–20 °C ... +50 °C
Storage Temperature
–40 °C ... +75 °C
