Seyond

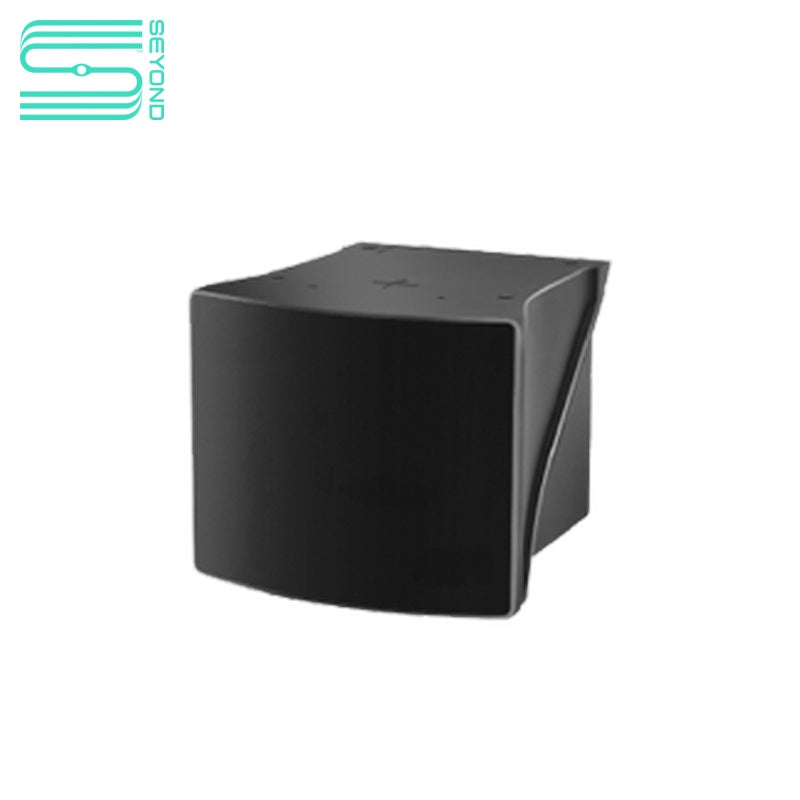

Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Laser Wavelength: 905nm
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$2,900
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Seyond Robin W LiDAR product documentation for robotics integration.pdf ▶ Seyond Robin W LiDAR dimension drawing for installation reference.pdf ▶
Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
Seyond Robin W LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
▤ PARAMETER ⌃
Laser Wavelength
905nm
Detection Range
0.1 ~ 150m
Detection Distance
70m, POD>90% (10% reflectivity @10Hz)
Range Precision
Up to 1cm @ 1σ
Range Accuracy
±2cm
Field of View (H×V)
120° × 70°
Angular Resolution (H×V)
0.15° × 0.36°
Frame Rate
10 ~ 20 FPS
Rated Voltage
12VDC (Operating: 9~28VDC)
Operating Current
0.6A @12V (typical, 20°C)
Rated Power
7.2W (typical, 20°C)
Operating Temperature
-40°C ~ +85°C
Ingress Protection
IP67 (body), IP69K (window)
Certification
IEC60825-1:2014 Class 1
Dimensions (H×W×D)
85mm × 104.8mm × 106.7mm
Weight
800g
Connector
Proprietary pluggable connector (Power + Automotive Ethernet)
Data Interface
1000Base-T1 Automotive Ethernet (UDP, TCP)
Data Output
Radial distance, horizontal & vertical angles, reflectivity, timestamp
Point Frequency
1,280,000 pts/s (single return @10Hz)
Point Cloud Data Rate
60Mbps, single return
Time Synchronization
gPTP / PTP / NTP
Return Mode
Single return / Dual return
