DSSERVO

DSSERVO DS4125 Servo Motor

  • DSSERVO servo motor for robot hardware, motion control, automation, and education lab projects.
  • Suitable for robotics developers, makers, classroom builds, test platforms, and compact automation systems.
  • Available configurations support servo selection for robot joints, mechanisms, and motion-control prototypes.
  • Designed for practical integration where compact servo performance and reliable control matter.
$15
Version
Angle Range

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

DSSERVO DS4125 Servo Motor dimension drawing for installation reference.pdf ▶ DSSERVO DS4125 Servo Motor CAD model for mechanical integration.stp ▶

DSSERVO DS4125 Servo Motor

The DSSERVO DS4125 Servo Motor is a DSSERVO servo motor for robotics development, compact automation hardware, education labs, and motion-control prototypes.

Features

  • **Servo integration:** Suitable for robot joints, mechanisms, actuator builds, and test platforms.
  • **Robotics development:** Useful for engineering teams, makers, labs, and automation projects.
  • **Model selection:** Supports practical servo selection across DSSERVO configurations.
  • **Component-focused design:** Built for compact robot hardware and motion-control applications.

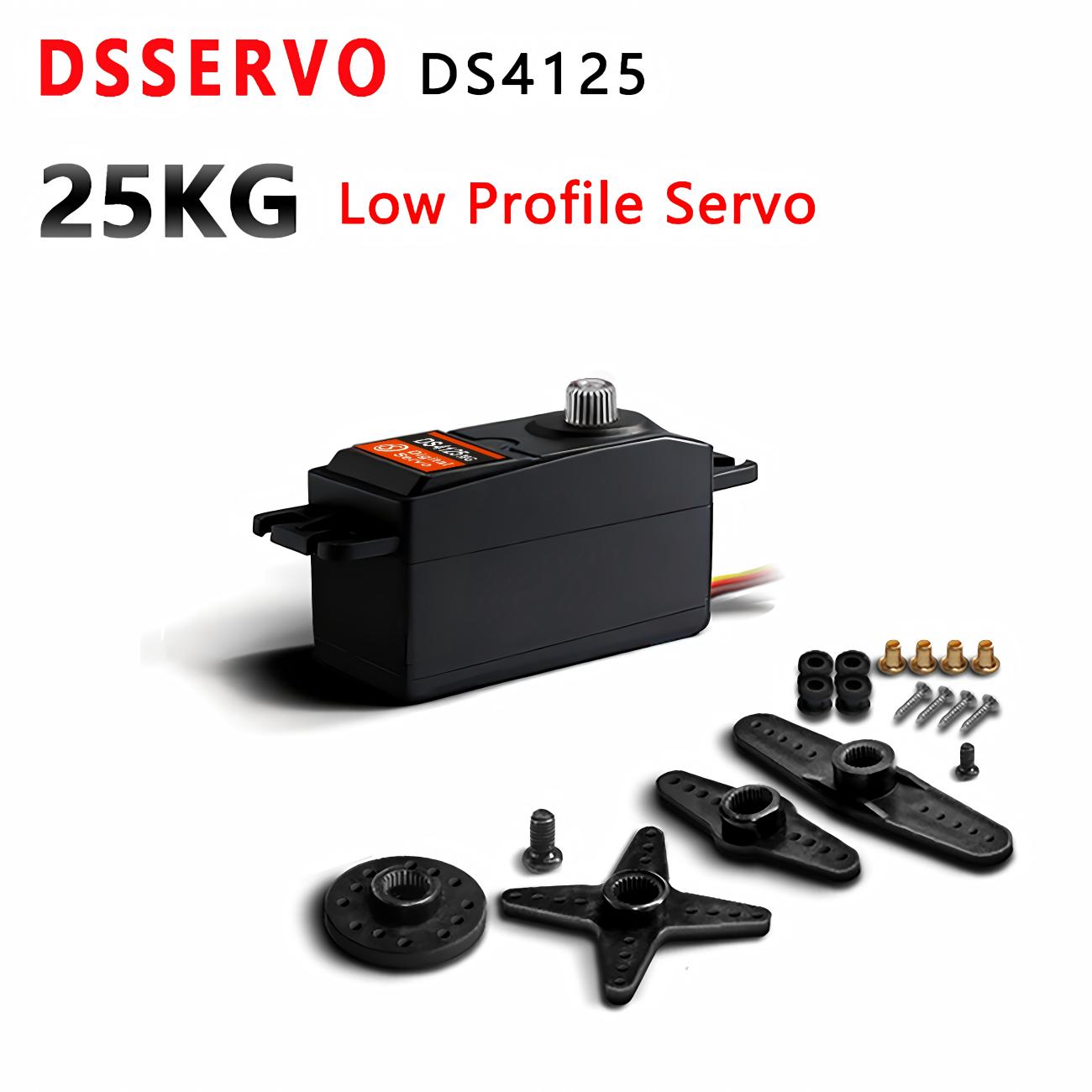

DSSERVO DS4125 Servo Motor detail image 1

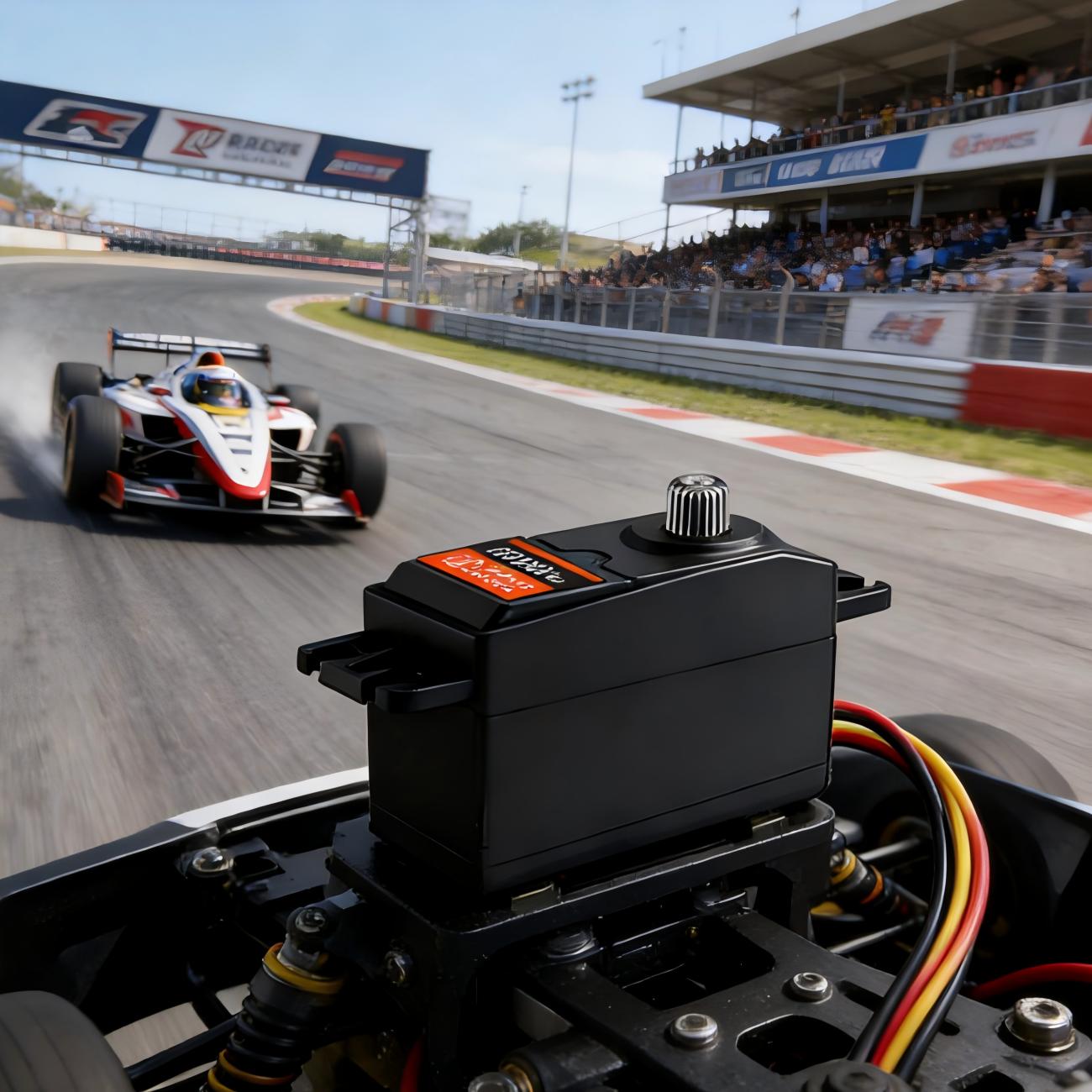

DSSERVO DS4125 Servo Motor detail image 2

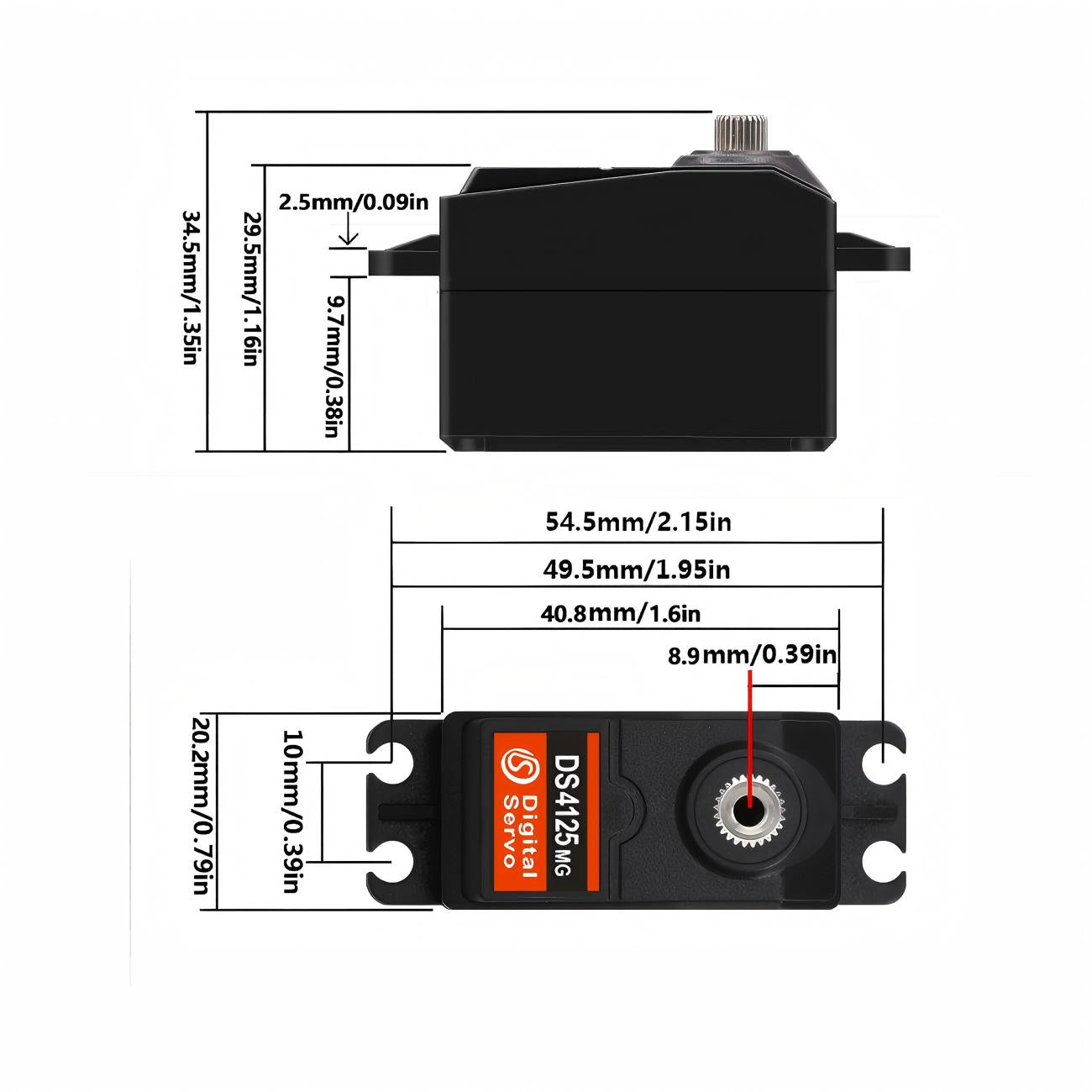

DSSERVO DS4125 Servo Motor detail image 3

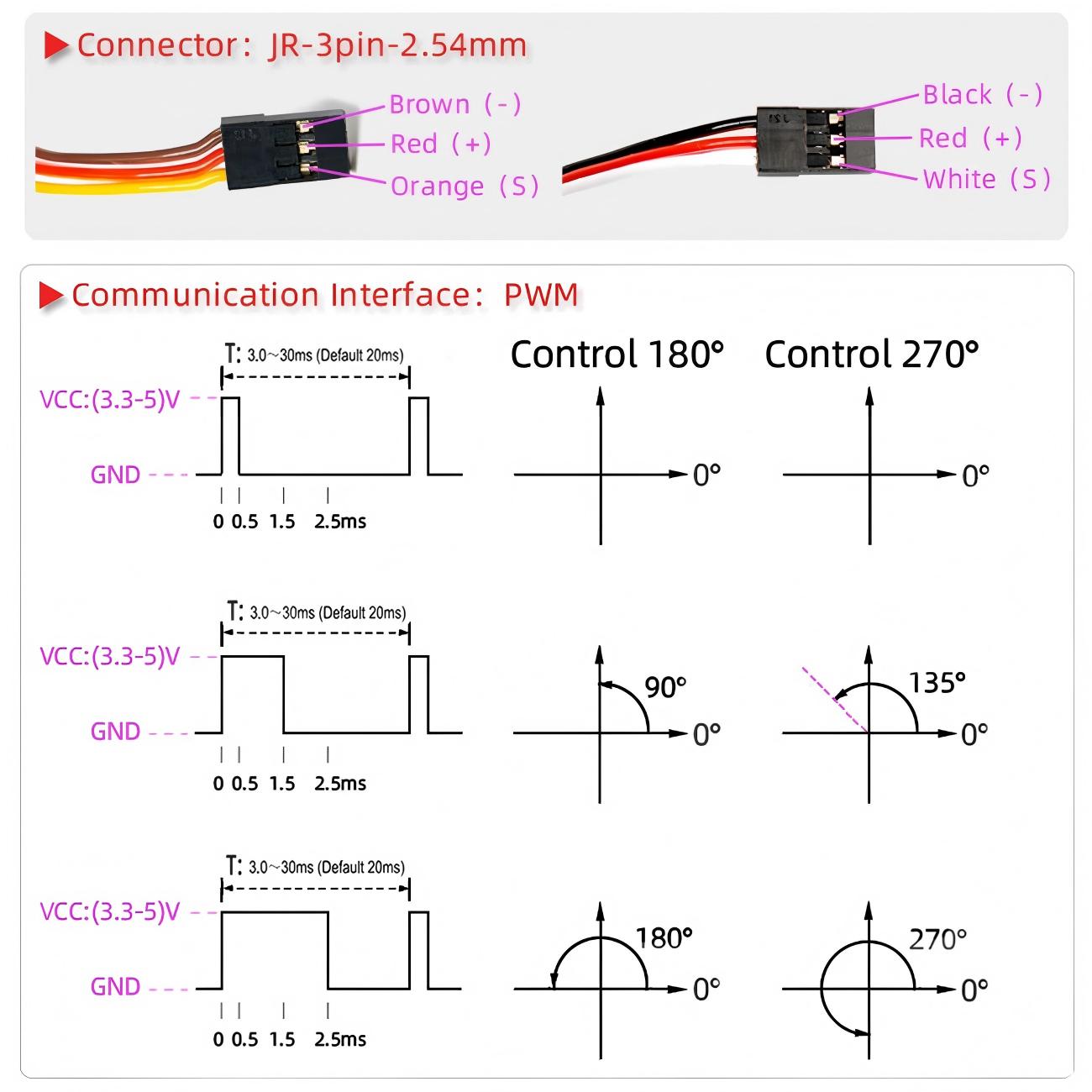

DSSERVO DS4125 Servo Motor detail image 4
DSSERVO DS4125 Servo Motor detail image 5
DSSERVO DS4125 Servo Motor detail image 6
DSSERVO DS4125 Servo Motor detail image 7
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Storage Temperature Range
-30°C ~ +80°C
Operating Temperature Range
-15°C ~ +70°C
Operating Voltage Range
4.8 ~ 7.4V
Size
40 × 20 × 29.5 mm
Weight
55g
Gear Ratio
365
Bearing
Double bearing
Connector Wire Length
300 ± 5 mm
Motor
Core motor
Waterproof Performance
IP66
Idle Current (at stopped)
5mA (typical, 5V/6V)
Operating Speed (at no load)
0.14 sec/60° (typical) / 0.11 sec/60° @ 5V / 0.09 sec/60° @ 6V
Stall Torque (at locked)
17 kg·cm (typical) / 21 kg·cm @ 5V / 25 kg·cm @ 6V
Stall Current (at locked)
1.0A (typical) / 1.4A @ 5V / 2.1A @ 6V
Control System
PWM (Pulse Width Modulation)
Pulse Width Range
500 ~ 2500 µsec
Neutral Position
1500 µsec
Running Degree
180° or 270° (500~2500 µsec)
Dead Band Width
2 µsec
Operating Frequency
50 ~ 330Hz
Rotating Direction
Counterclockwise (500~2500 µsec)
