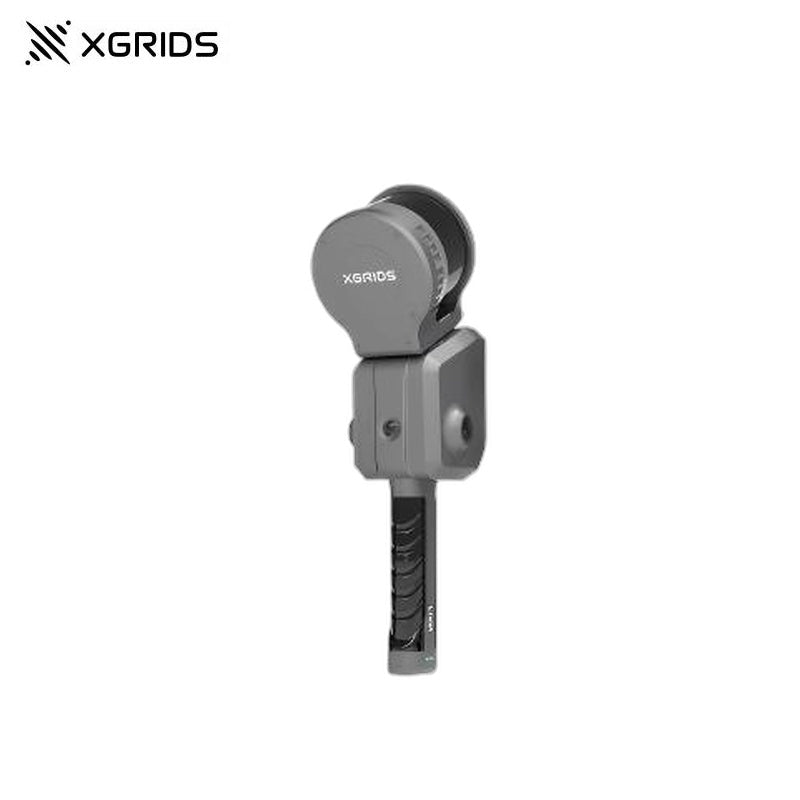

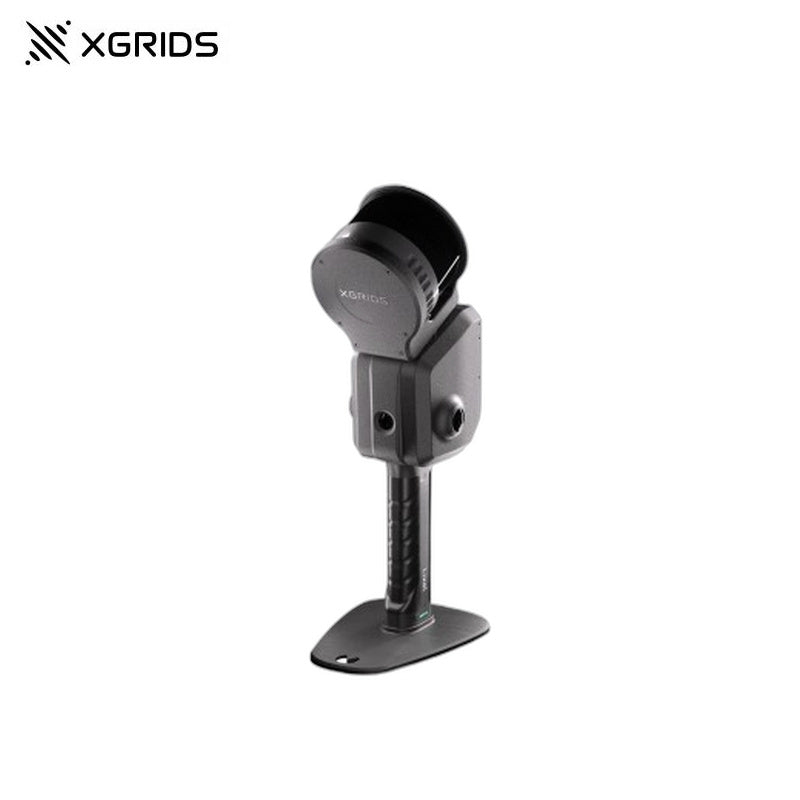

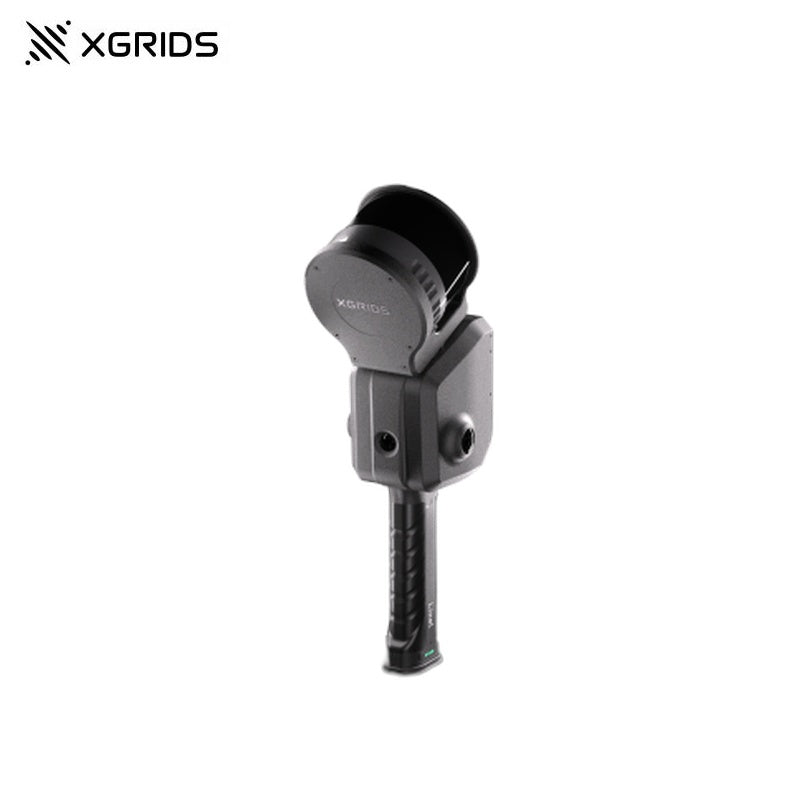

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Handheld Unit Weight: 1.7kg (without battery)
  • Suitable for mobile robots, autonomous platforms, robotics research, field mapping, and automation systems.
  • Designed for robot sensing workflows that require perception, localization, and environmental awareness.
  • Useful for developers building SLAM, spatial mapping, robot vision, and autonomous robotics applications.
$35,000
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

XGRIDS Lixel L2 Pro LiDAR product documentation for robotics integration.pdf ▶ XGRIDS Lixel L2 Pro LiDAR user manual for setup and operation.pdf ▶

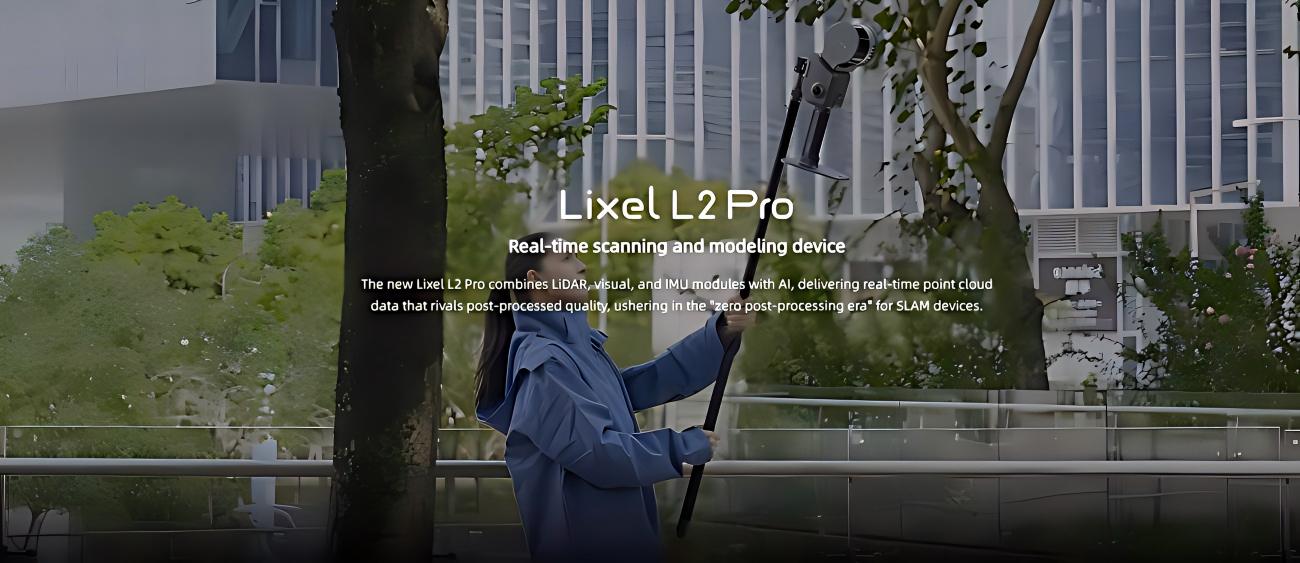

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

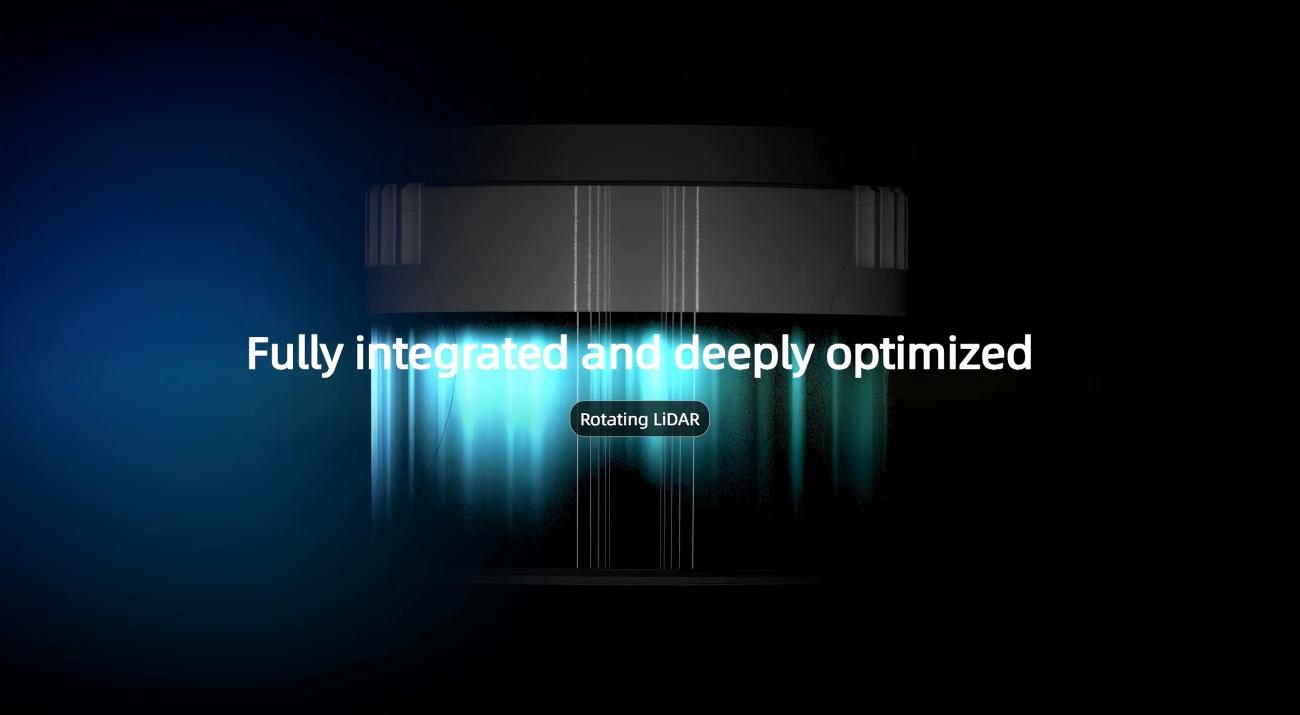

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

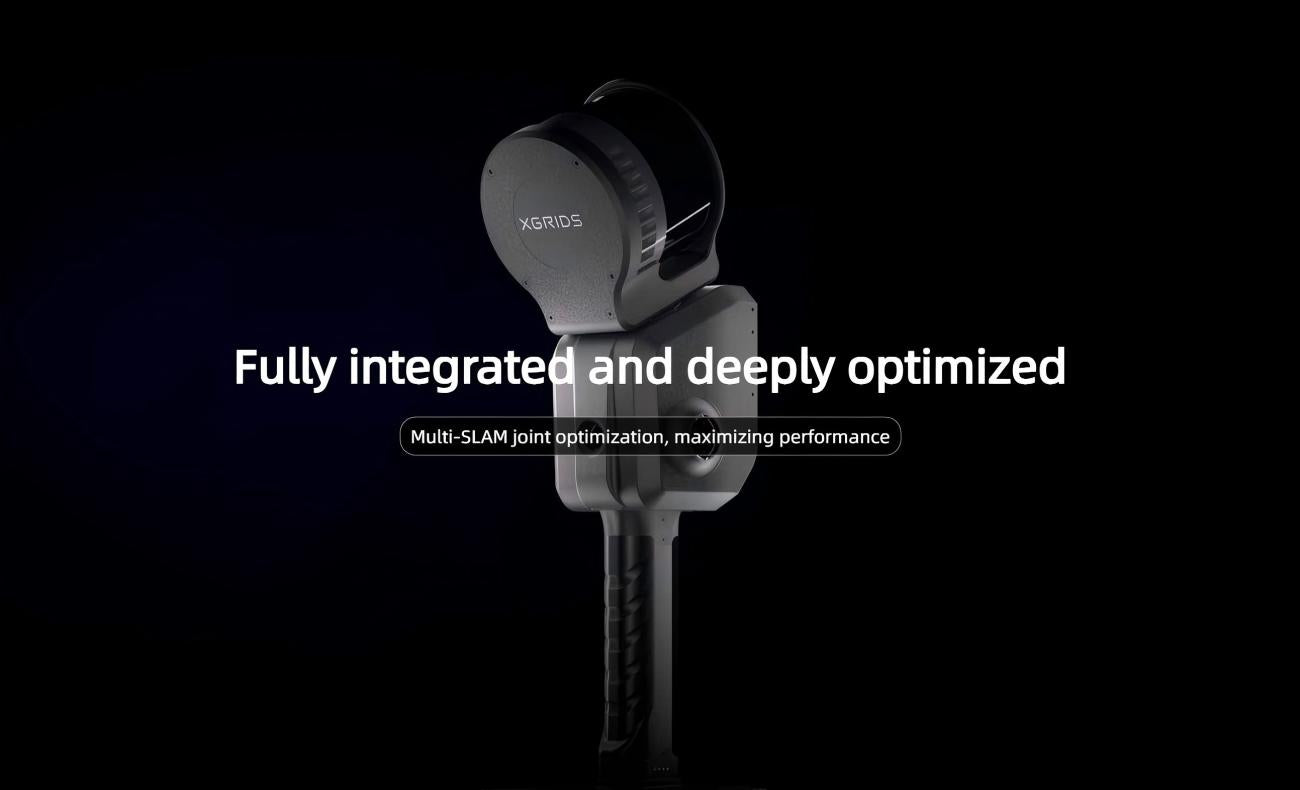

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

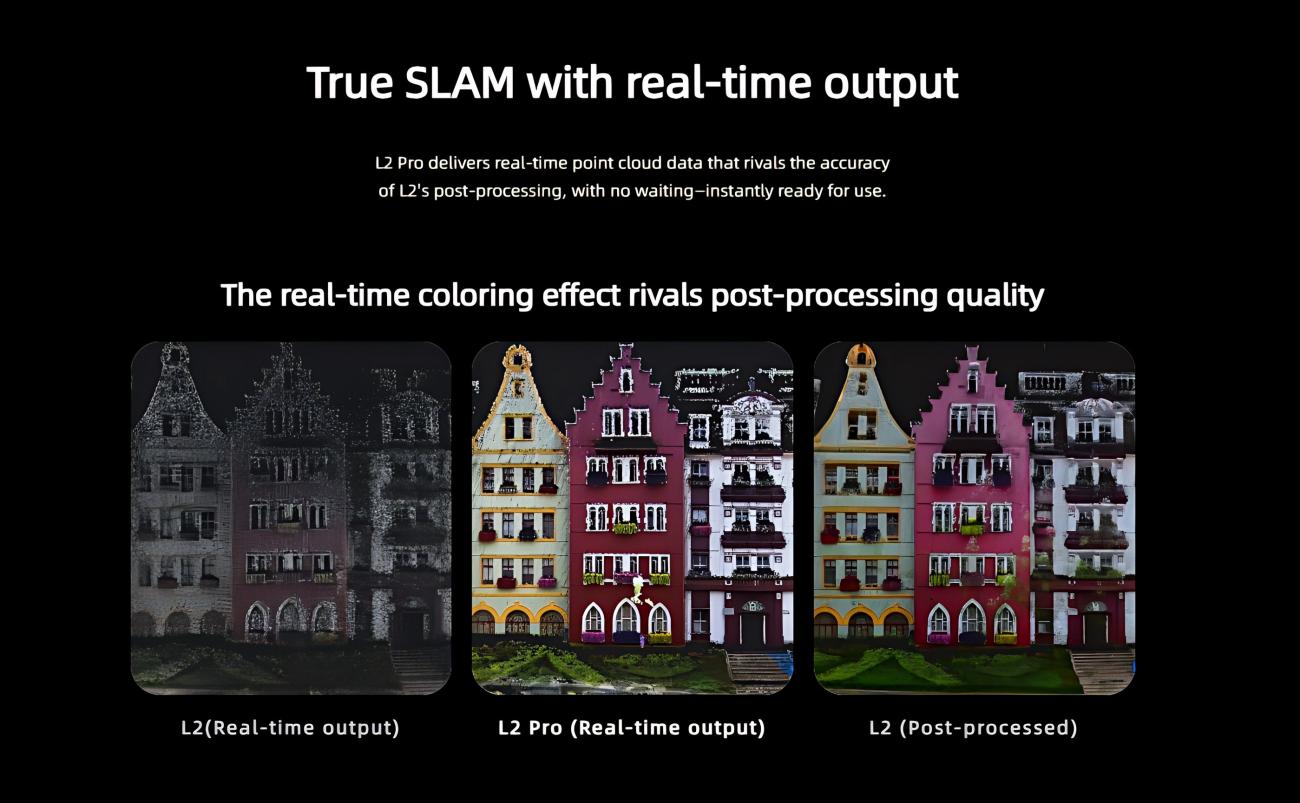

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

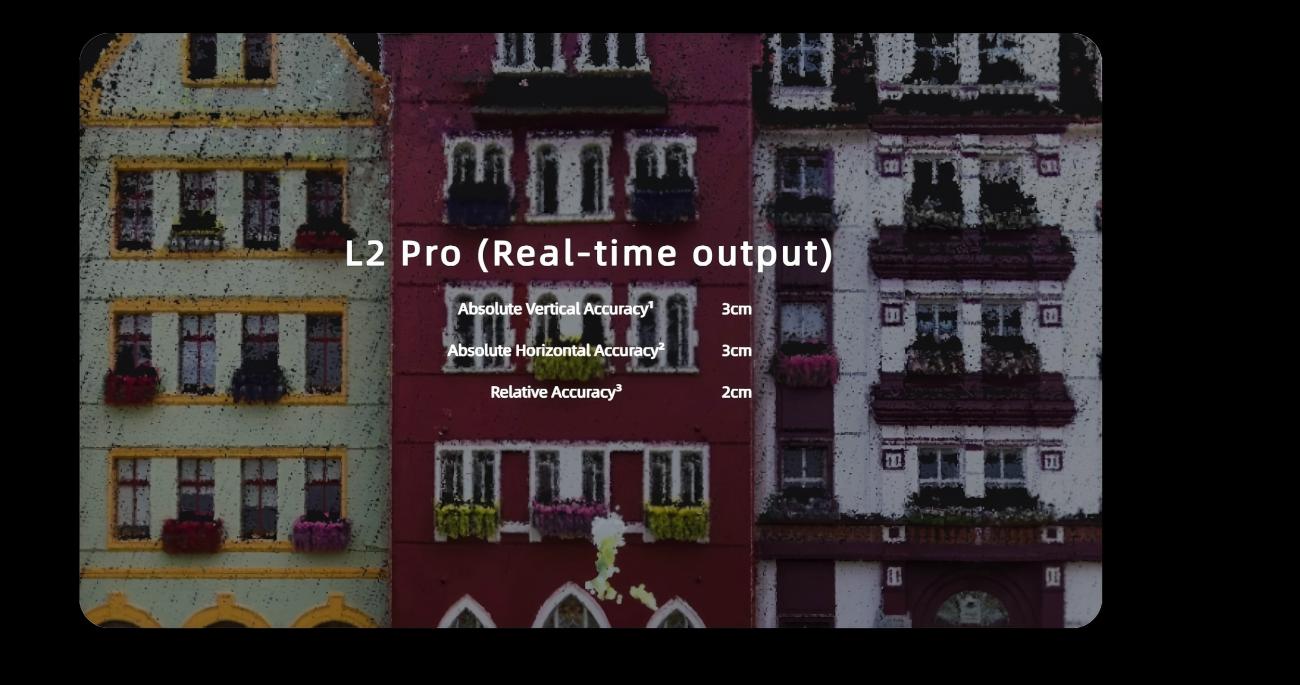

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9

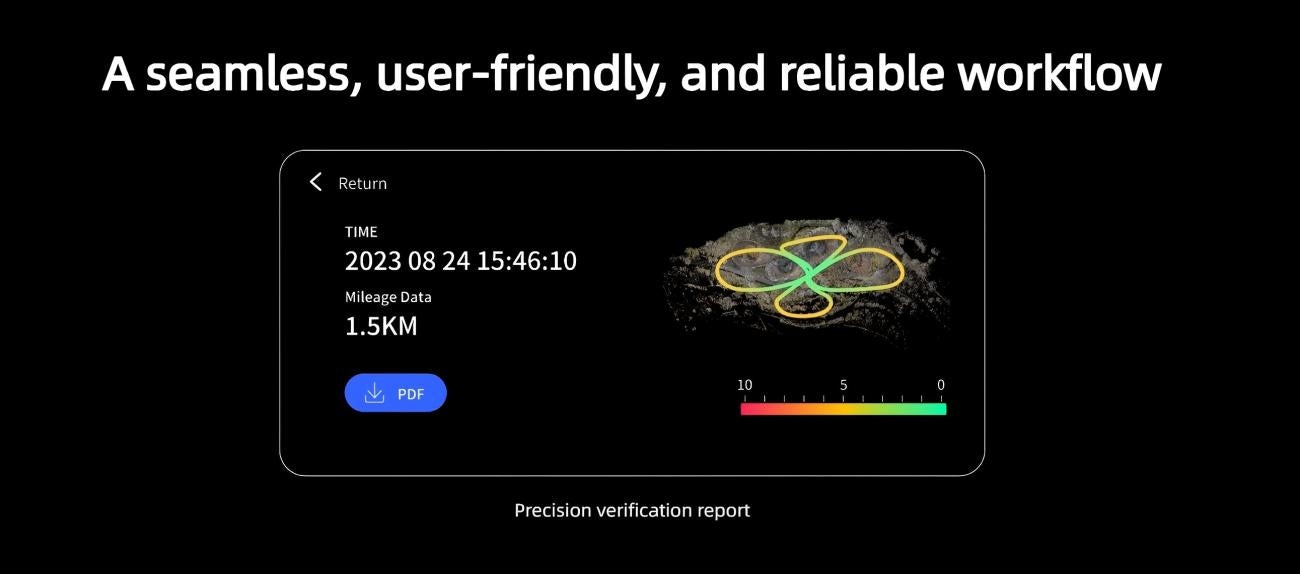

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10

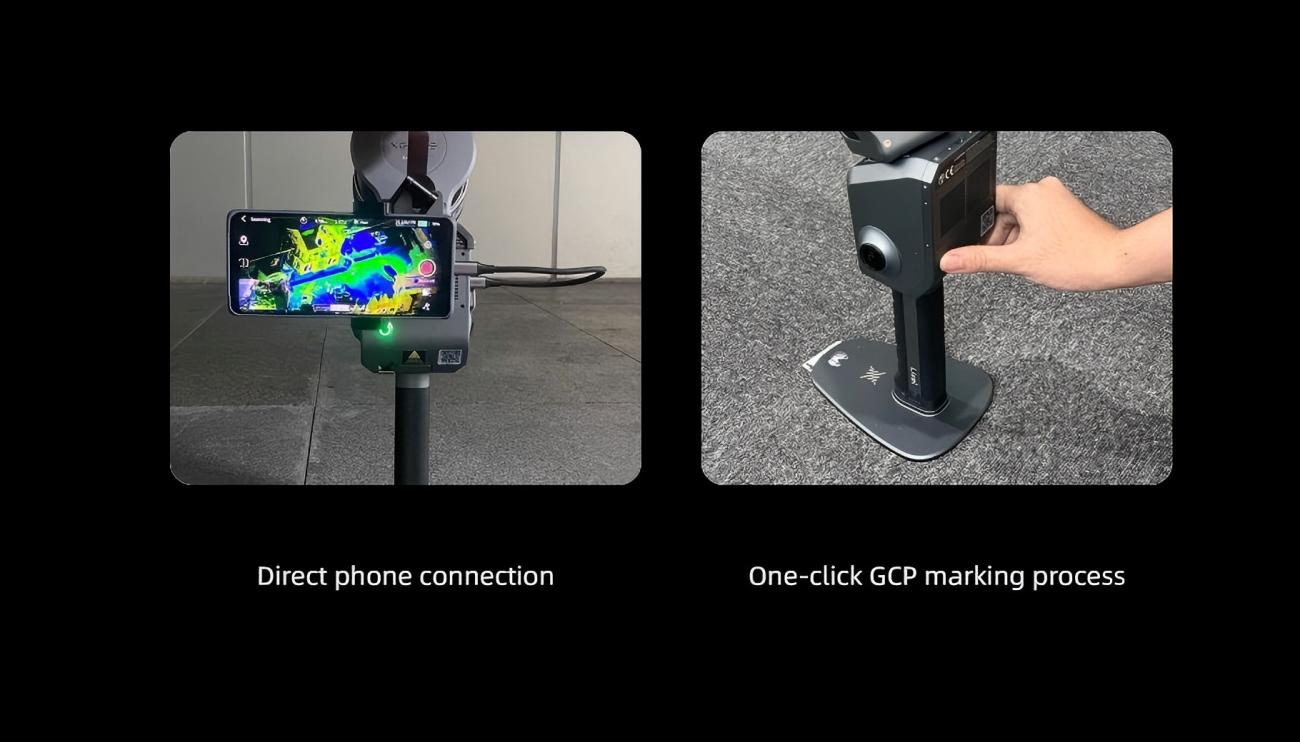

XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 11
XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 12
XGRIDS Lixel L2 Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 13
▤ PARAMETER ⌃
Handheld Unit Weight
1.7kg (without battery)
Dimensions
180mm × 130mm × 400mm
Outer Casing
Industrial-grade Aluminium
Power Consumption
<30W
Data Interface
USB 3.1 Gen2
Storage
1T SSD
Operating Time
1.5h
Wireless Module
Supports WiFi, Bluetooth: 802.11a/b/g/n/ac, 2.4G (2412-2472MHz), 5G2 (5180-5240MHz), 5G8 (5745-5825MHz)
Operating Temperature
-20℃ ~ 50℃
IP Rating
IP54
Visual SLAM Positioning
Supported
Real-time Colored Point Cloud
Supported
Real-time RTK fusion
Supported
Point Cloud Format
.las
Image Formats
jpg
Absolute Accuracy - Elevation (RMSE)
3cm
Absolute Accuracy - Horizontal (RMSE)
3cm
Relative Accuracy (RMSE)
1cm
Repeatability (max)
2cm
Point Cloud Thickness
0.5cm
Horizontal Accuracy (RTK/Controlpoint Fusion)
0.015°
LixelUpSample
Supported
Scanning Range
0.5m ~ 120m / 0.5m ~ 300m
Laser Class
Class 1 / 905nm
Field of View (FOV) - LiDAR
360° × 270°
Scan Rate
320,000 points/s / 640,000 points/s
Camera Resolution
2 × 48MP
Panoramic Image Resolution
Max 56MP
Focal Length (Panoramic)
2mm
Aperture
F/2.0
CMOS Sensor Size
1/2"
Shutter Type (Panoramic)
Rolling shutter
Field of View(FOV)
190° × 190°
Resolution (Camera for Visual Positioning)
1 × 1MP
Shutter (Camera for Visual Positioning)
Global shutter
FOV (Camera for Visual Positioning)
190° × 119°
Voltage
14.4V
Battery Capacity
46.8Wh
Input
100V~240V, 50~60Hz, 1.5A, 80VA
Output
16.8V, 2.0A
Power
34W
Backpack (Scanning System)
Dimensions: 60cm×60cm×15cm, Weight: 2.5kg
Backpack
Dimensions: 55cm×35cm×25cm, Weight: 2.7kg
Standard RTK+ bracket - Supported channels
GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b/E6b
Standard RTK+ bracket - Accuracy
Horizontal: 0.8 cm + 1 ppm, Elevation: 1.5 cm + 1 ppm
Standard RTK+ bracket - Antenna
Impedance: 50Ω, Polarization: right-handed circular, Horizontal coverage: 360°, Output standing wave ≤2.0, Gain: 2.8dBi
Surveying RTK+ bracket - Supported channels
GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b/E6b
Surveying RTK+ bracket - Accuracy
Horizontal: 0.8 cm + 1 ppm, Elevation: 1.5 cm + 1 ppm
Surveying RTK+ bracket - Antenna
Impedance: 50Ω, Polarization: right-handed circular, Axial ratio: ≤3dB, Horizontal coverage: 360°, Output standing wave ≤2.0, Gain: 5.5dBi
2m Extension Pole
Supported
Phone Mount
Supported
GCP Collection Base
Supported
Shipping case
Dimension: 42cm×34cm×18cm, Weight with System: 6.6kg
