Hobber

Hobber HAT/HATF-50 Actuator | Robot Actuator for Robotics Development

  • Hobber robot actuator for robot joints, actuator builds, motion-control systems, and robotics development.
  • Suitable for engineering teams building automation hardware, research platforms, education projects, and prototypes.
  • Designed for practical integration in robot servo motor, actuator, gearbox, and compact motion applications.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$4,500
Version
Brake
Gear Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hobber HAT/HATF-50 Actuator dimension drawing for installation reference.pdf ▶ Hobber HAT/HATF-50 Actuator user manual for setup and integration.pdf ▶

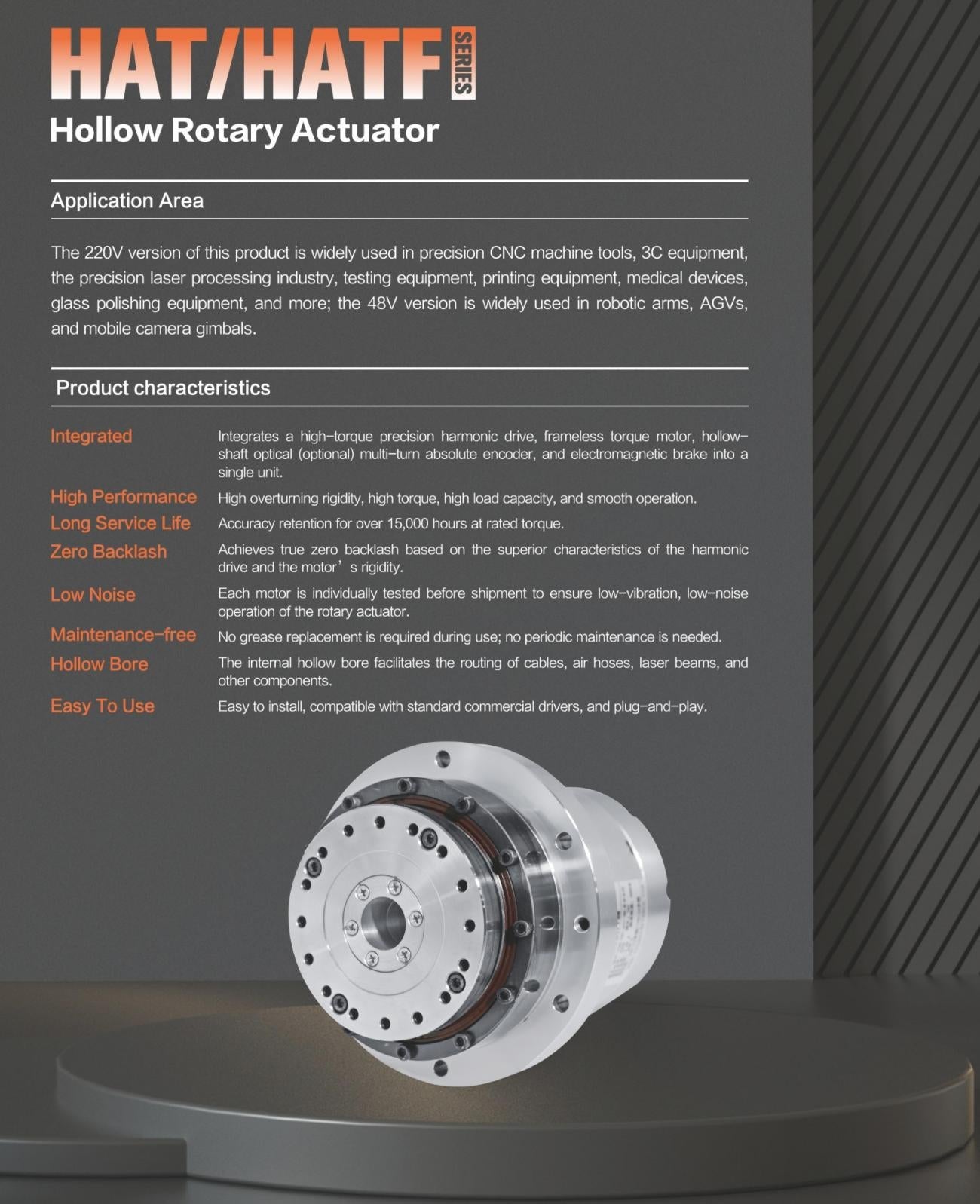

Hobber HAT/HATF-50 Actuator | Robot Actuator for Robotics Development detail image 1

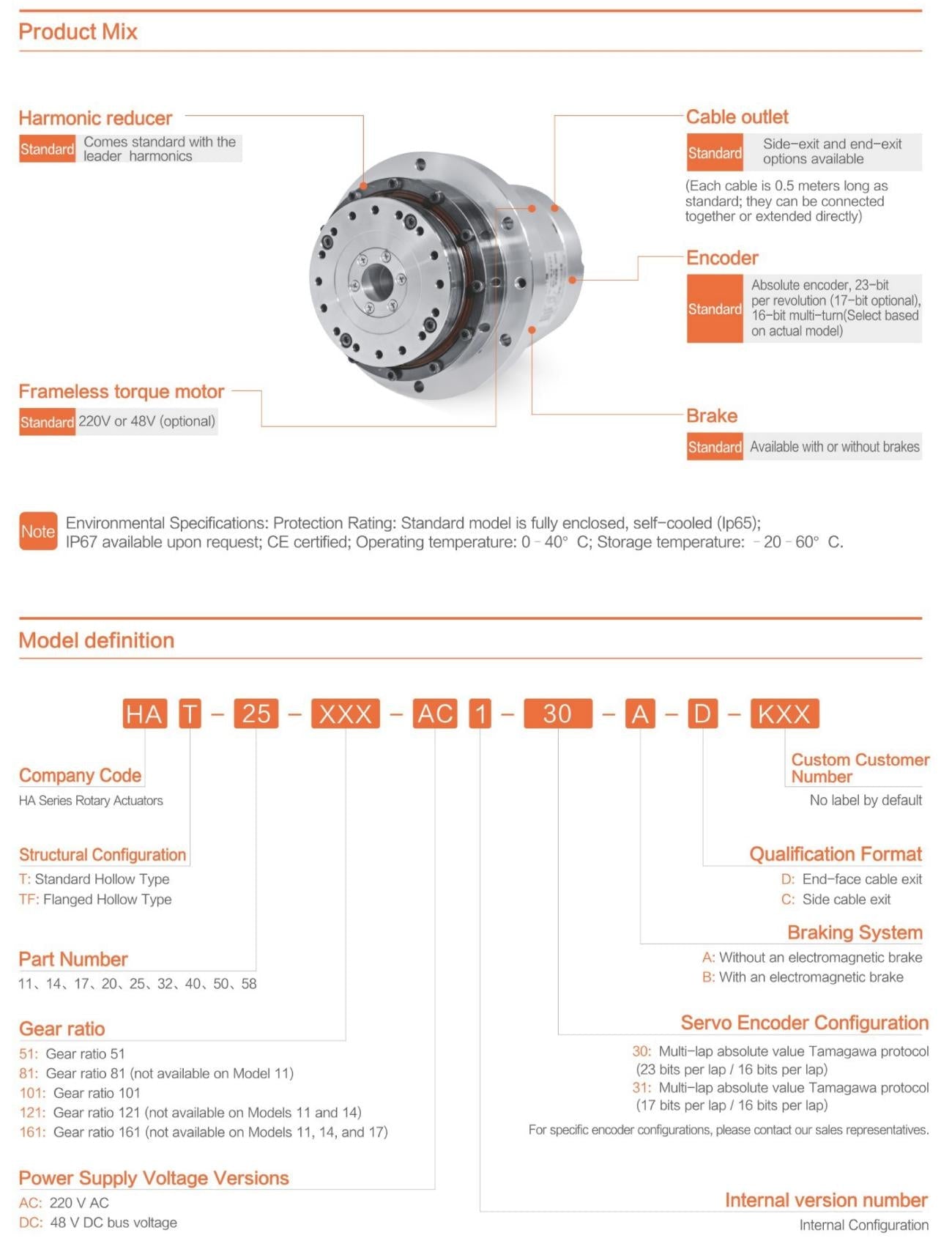

Hobber HAT/HATF-50 Actuator | Robot Actuator for Robotics Development detail image 2

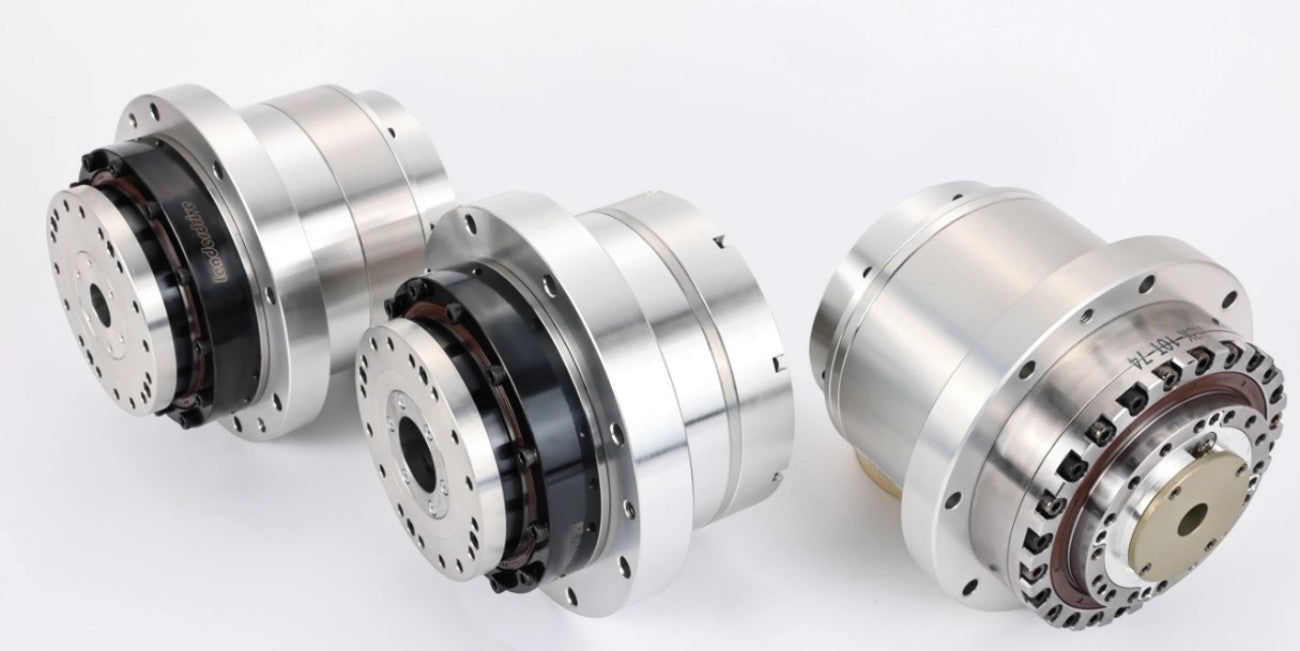

Hobber HAT/HATF-50 Actuator | Robot Actuator for Robotics Development detail image 3
▤ Technical Specifications ⌃
Parameter Value
Gear Ratio
Gear Ratio 81 / 101
AC 220V Ratings
Peak Torque (AC) 1163 N.m (81) / 1211 N.m (101)
Rated Torque (AC) 642 N.m (81) / 823 N.m (101)
Maximum Speed (AC) 37 rpm (81) / 30 rpm (101)
Rated Speed (AC) 27 rpm (81) / 22 rpm (101)
Maximum Current (AC) 21.62 Amms (81) / 18.06 Amms (101)
Rated Current (AC) 11.94 Amms (81) / 12.27 Amms (101)
Torque Constant (AC) 53.78 N.m/Amms (81) / 67.06 N.m/Amms (101)
Motor Phase‑to‑Phase Resistance (AC) 0.126 Ohms (20°C)
Motor Phase‑to‑Phase Inductance (AC) 0.65 mH
Motor Back‑EMF Constant (AC) 52 Vms/krpm
Encoder & Positioning
Encoder Type Absolute Encoder
Encoder Resolution (Per Revolution) 2^23 (8,388,608) or 2^17 (131,072) bit
Encoder Multi-Revolution Counter 2^16 (65,536) bit
Unidirectional Positioning Accuracy ≤30 Arcsec (81) / ≤30 Arcsec (101) (Default values, customizable to ≤15 Arcsec upon request)
Repeat Positioning Accuracy ≤10 Arcsec (all ratios)
Load Ratings
Rated Radial Load 2750 N
Rated Axial Load 2750 N
Rated Tilting Moment 1950 N.m
Mechanical Properties
Rotor Moment of Inertia (Without Brake) 8.6 × 10⁻³ kg·m²
Rotor Moment of Inertia (With Brake) 8.83 × 10⁻³ kg·m²
Mass (Without Brake) 25 Kg
Mass (With Brake) 28.3 Kg
Number of Motor Poles 20
Ambient Conditions
Ambient Conditions Operating temp: 0~40°C / Storage: ‑20~60°C / Humidity: 20~80% RH (non‑condensing) / Vibration: 24.5 m/s² (10~400 Hz) / Free from dust, metal particles, corrosive/flammable gases, oil mist / Indoor use, avoid direct sunlight / Altitude below 1000 m
Safety & Insulation
Safety Certification CE certified
Insulation Resistance 100 MΩ or higher (DC 500 V)
Dielectric Strength AC 1500 V / 1 min
Insulation Class Class F
Protection Rating
Protection Rating Fully enclosed type (IP65)
