HITBOT

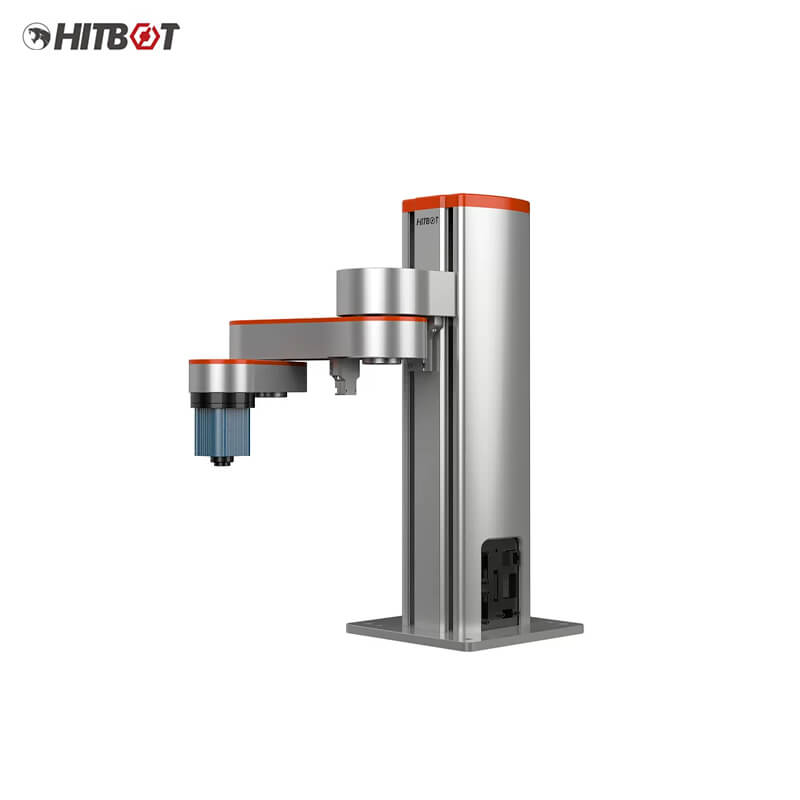

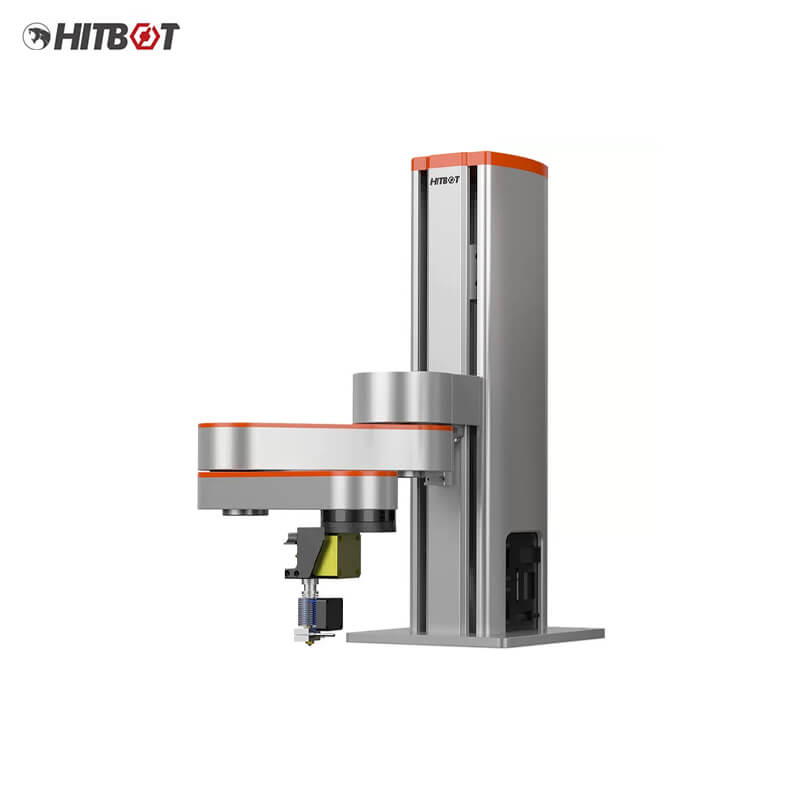

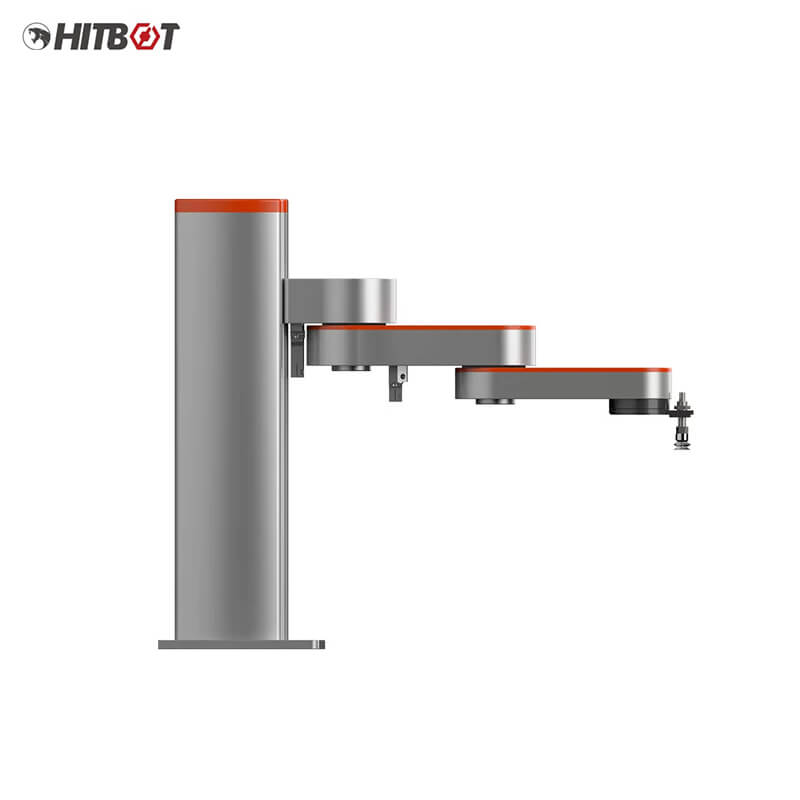

HITBOT Z-Arm 1832 Robotic Arm

  • HITBOT Z-Arm 1832 Robotic Arm for robot arm development, automation, and research applications.
  • Suitable for education labs, engineering teams, robotics developers, and compact automation projects.
  • Supports practical use in manipulation, testing, training, and robot hardware integration workflows.
  • Designed as a component-focused robotic arm platform for prototyping and applied robotics systems.
$4,000
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

HITBOT Z-Arm 1832 Robotic Arm product documentation for robotics integration.pdf ▶ HITBOT Z-Arm 1832 Robotic Arm CAD model for mechanical integration.stp ▶

HITBOT Z-Arm 1832 Robotic Arm

The HITBOT Z-Arm 1832 Robotic Arm is a HITBOT robotic arm for robotics research, education labs, compact automation, and robot development projects.

Features

  • **Robotic arm integration:** Suitable for manipulation, automation testing, and applied robotics workflows.
  • **Research and education:** Useful for labs, universities, developers, and engineering teams.
  • **Compact automation:** Designed for practical robot arm deployment in space-conscious workcells.
  • **Component-focused design:** Built for teams selecting reliable robotic arm hardware for development.
HITBOT Z-Arm 1832 Robotic Arm
▤ PARAMETER ⌃
1-axis arm length
160mm
1-axis rotation angle
±90°
2-axis arm length
160mm
2-axis rotation angle
±143°
Z-axis stroke
Height customizable
R-axis rotation range
±1080°
Linear speed
1017 mm/s (0.5kg load)
Repeatability
±0.03mm
Standard payload
0.5kg
Max payload
1kg
Degrees of freedom (DOF)
4
Power supply
220V/110V 50-60Hz adapted to 24VDC, peak power 320W
Communication
Ethernet
Customizable Z-axis height
0.1m - 0.5m
Z-axis motion indicator
/
Electrical interface (reserved)
/
Compatible HTBOT electric grippers
Z-BF8-SS / Z-BF6-12 / Z-BF20 / Z-BF8-20? (as listed)
Indicator light (breathing light)
/
Second arm body motion range
Standard: ±143°
Optional accessories
/
Operating environment
Temperature: 0~45°C, Relative humidity: 20~80% (non-condensing)
I/O, digital input (isolated)
9+3
I/O, digital output (isolated)
9+3
I/O, analog input (4-20mA)
/
I/O, analog output (4-20mA)
/
Overall height
500mm
Host weight
1800g; stroke module weight approx. 11kg
Base dimensions
200mm × 200mm × 10mm
Base mounting hole spacing
160mm × 160mm, with four M5×12 screws
Collision detection
/
Vibration indicator
/
Hard stop
/
