ENCOS

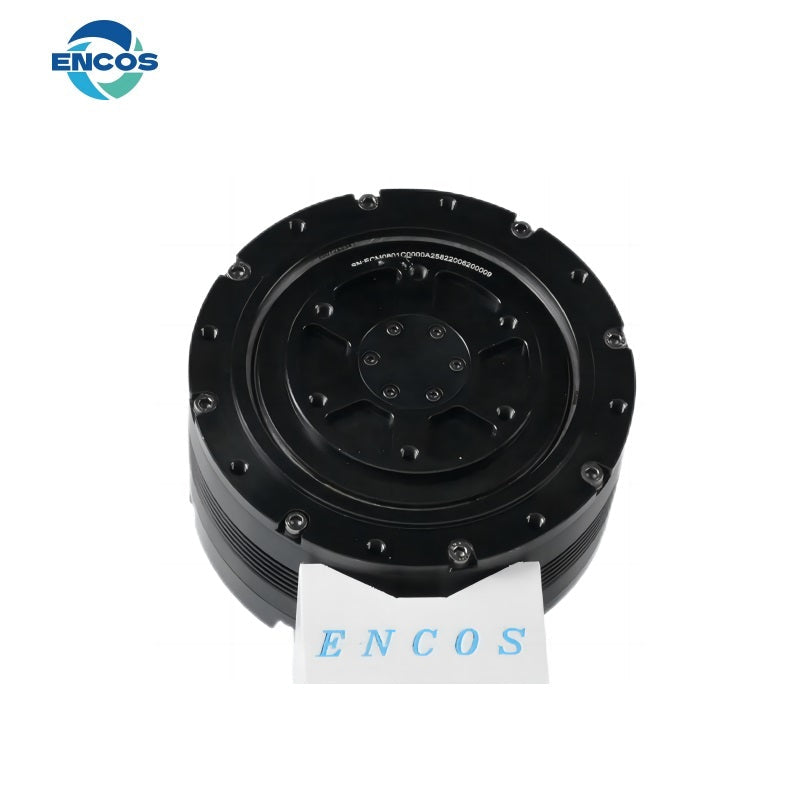

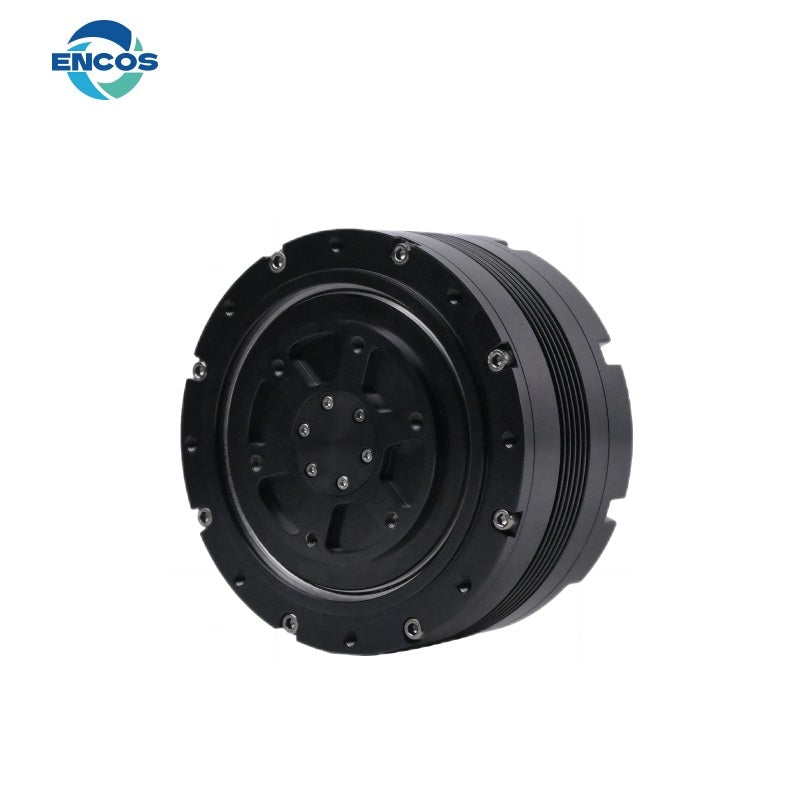

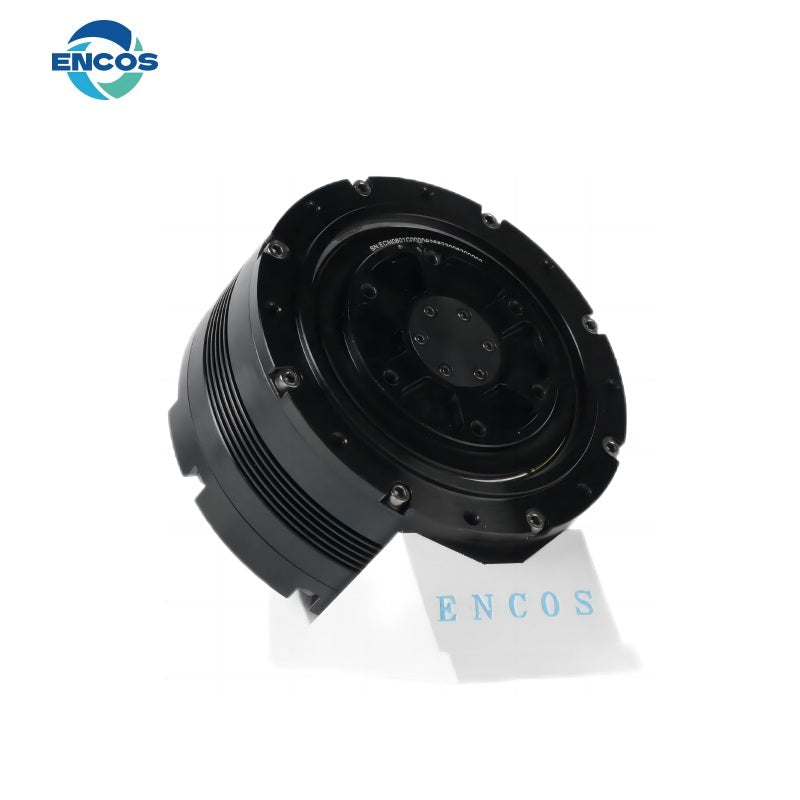

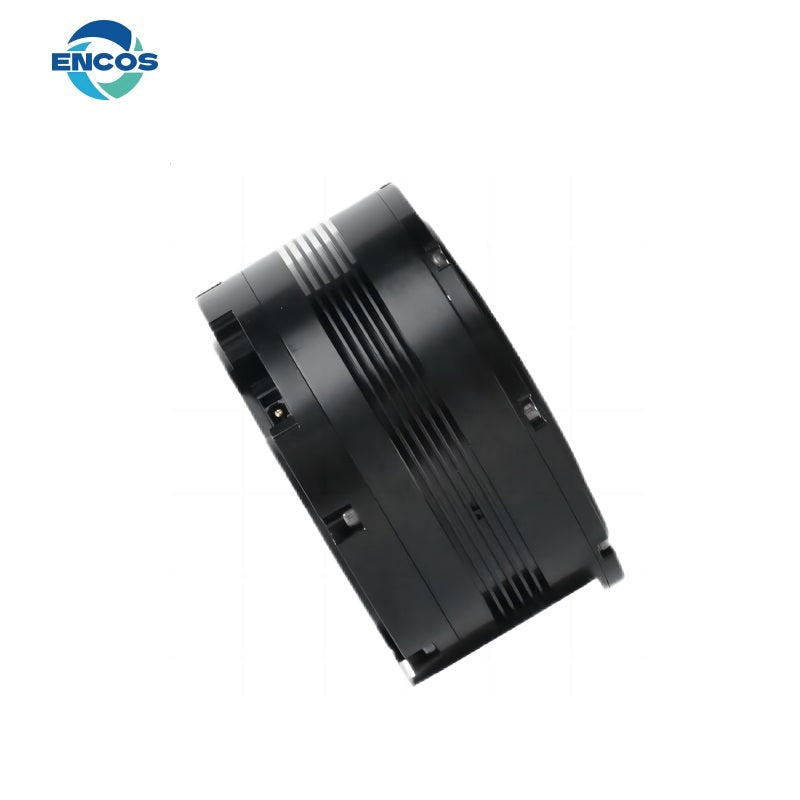

ENCOS EC-A8116-P1-18 Motor | Robot Servo Motor for Robotics Development

  • ENCOS robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$1,125
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ENCOS EC-A8116-P1-18 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A8116-P1-18 Motor dimension drawing for installation reference.pdf ▶ ENCOS EC-A8116-P1-18 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A8116-P1-18 Motor dimension drawing for installation reference.pdf ▶

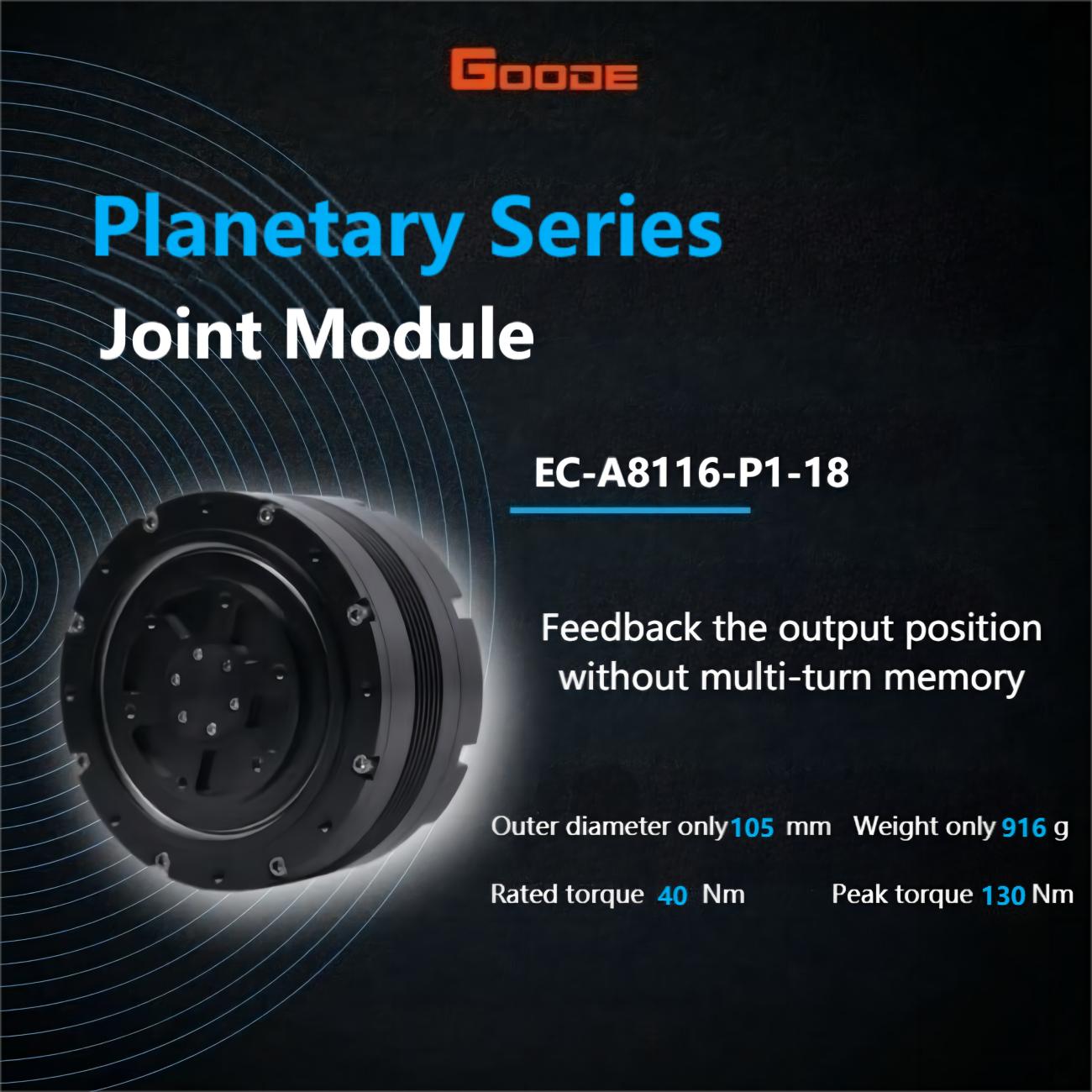

ENCOS EC-A8116-P1-18 Motor | Robot Servo Motor for Robotics Development detail image 1
▤ Technical Specifications ⌃
Parameter EC-A8116-P1-18 EC-A8116-P1-18H
Reduction Ratio 18 18
Rated Voltage 48 V 48 V
Rated Bus Current 19.4 A 19.4 A
Rated Phase Current 21 A 21 A
Rated Power 931.2 W 931.2 W
Rated Speed 132 RPM 132 RPM
Rated Torque 40 Nm 40 Nm
Peak Speed 140 RPM 140 RPM
Peak Phase Current 70 A 70 A
Peak Torque 130 Nm 130 Nm
Efficiency 76% 76%
Torque Constant 2.35 Nm/A 2.35 Nm/A
Weight 961 g 968 g
Backlash 12 Arcmin 12 Arcmin
Motor Size 105x57 mm 105x57 mm
Hole Diameter - 5 mm
Communication Mode CAN CAN
Communication Baud Rate 1M 1M
Double Encoder Yes Yes
Axial And Radial Loads 2.81 KN 2.81 KN
Bending Moment Resistance 98 Nm 98 Nm
Cross Roller Bearing Type 7005 7005
The Rotor Inertia Of The Motor 189 kgmm² 197 kgmm²
Torque Density 135.28 Nm/kg 134.3 Nm/kg
