TTBOT

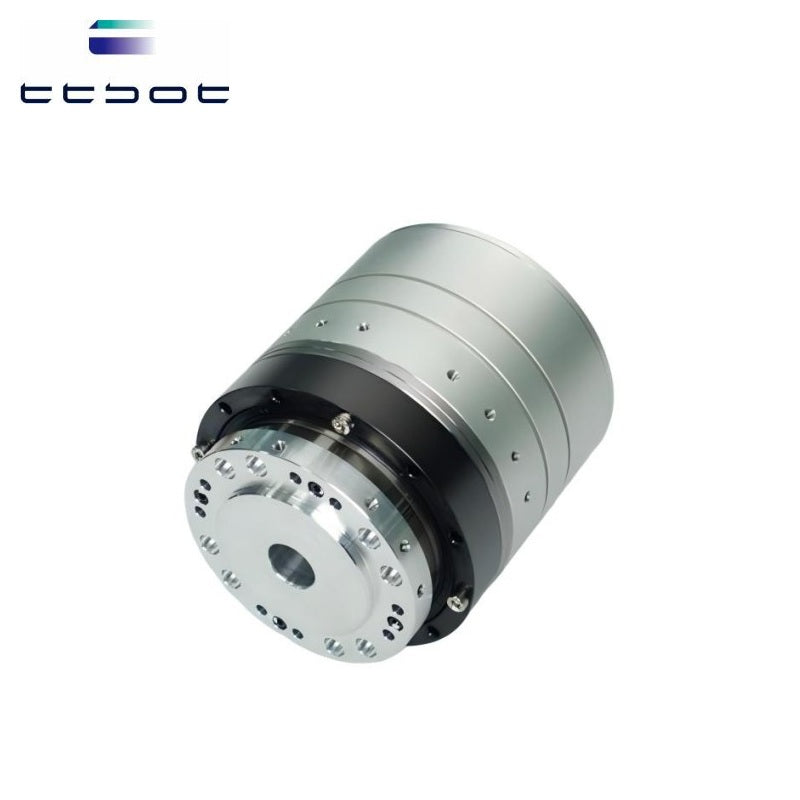

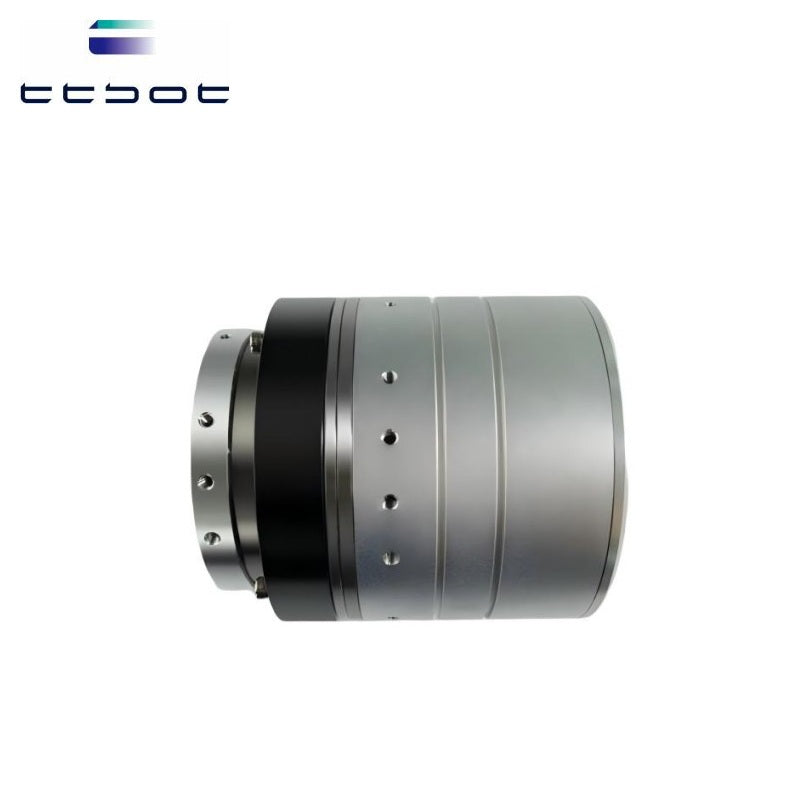

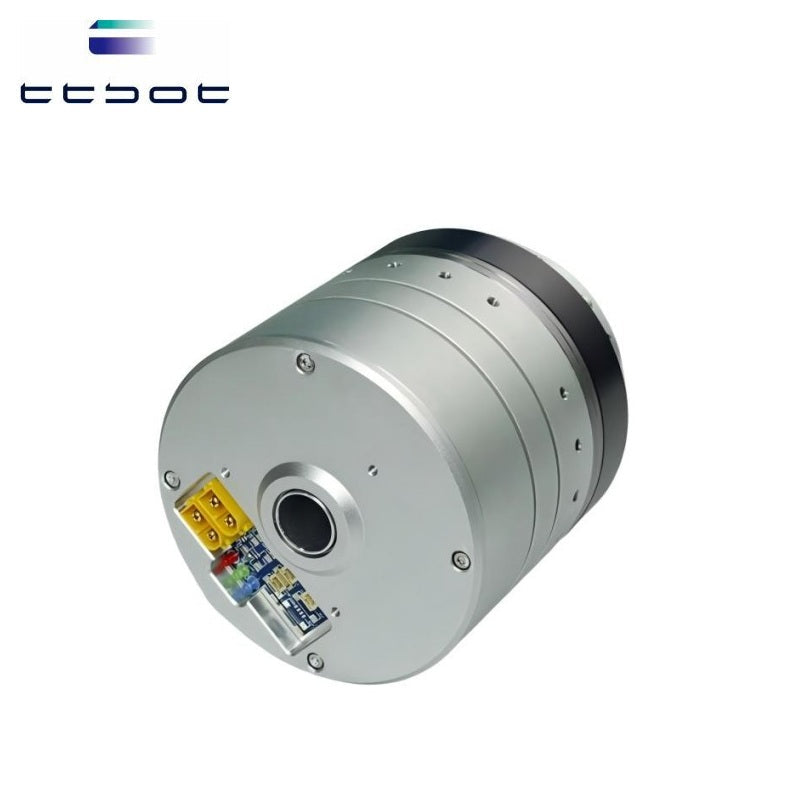

TTBOT HJ25 Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$1,310
Version
Communication
Gear ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT HJ25 Motor dimension drawing for installation reference.pdf ▶ TTBOT HJ25 Motor CAD model for mechanical integration.stp ▶

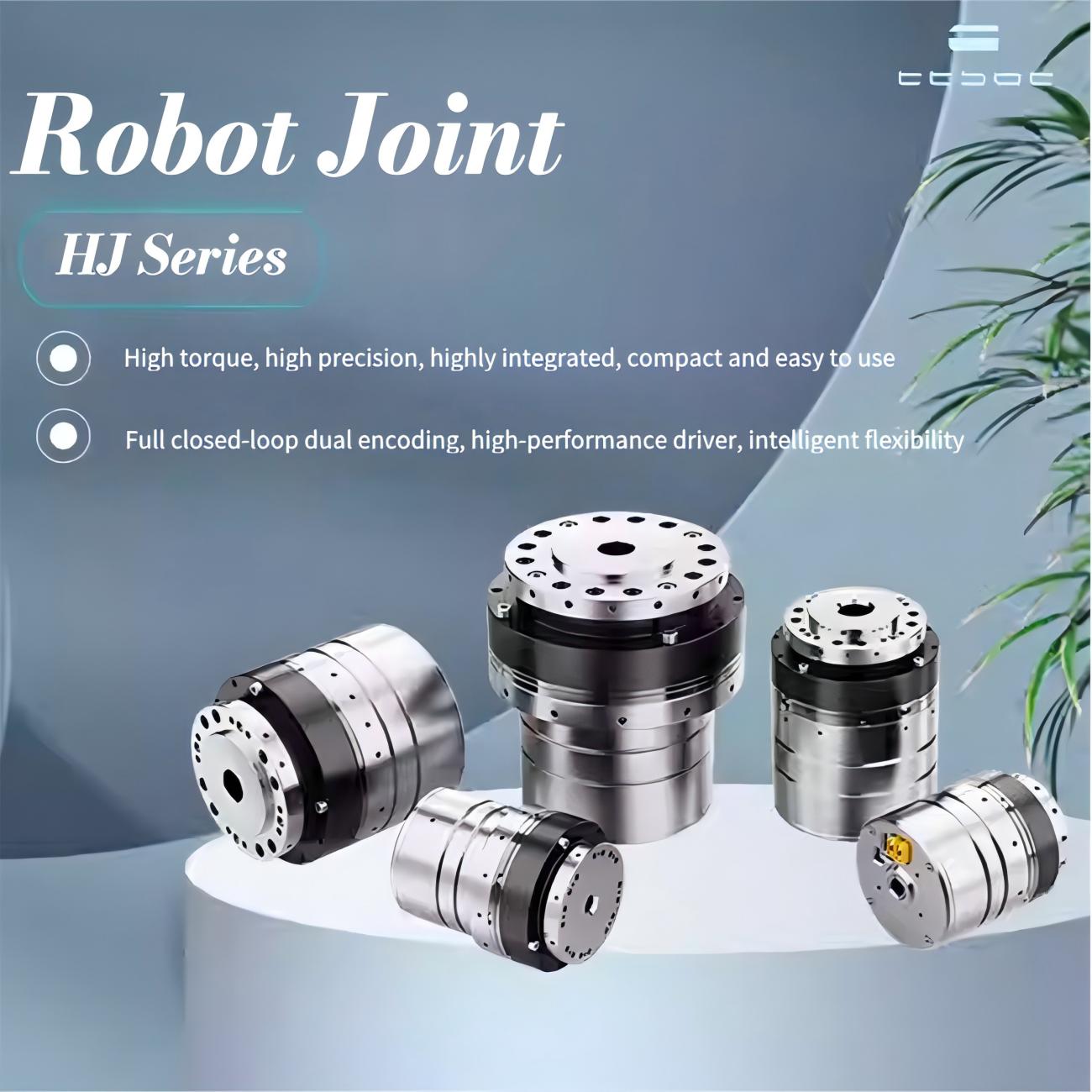

TTBOT HJ25 Motor | Robot Servo Motor for Robotics Development detail image 1

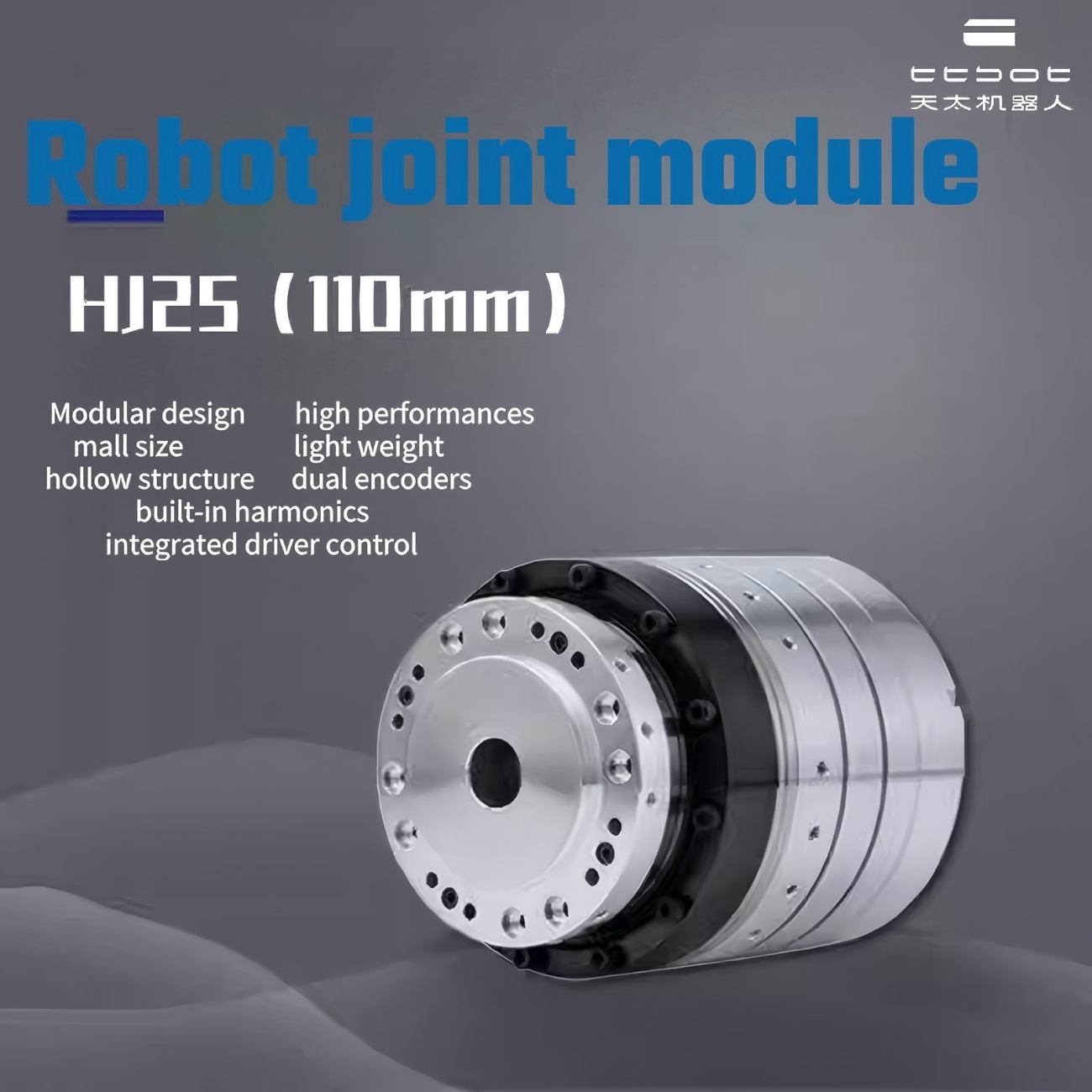

TTBOT HJ25 Motor | Robot Servo Motor for Robotics Development detail image 2

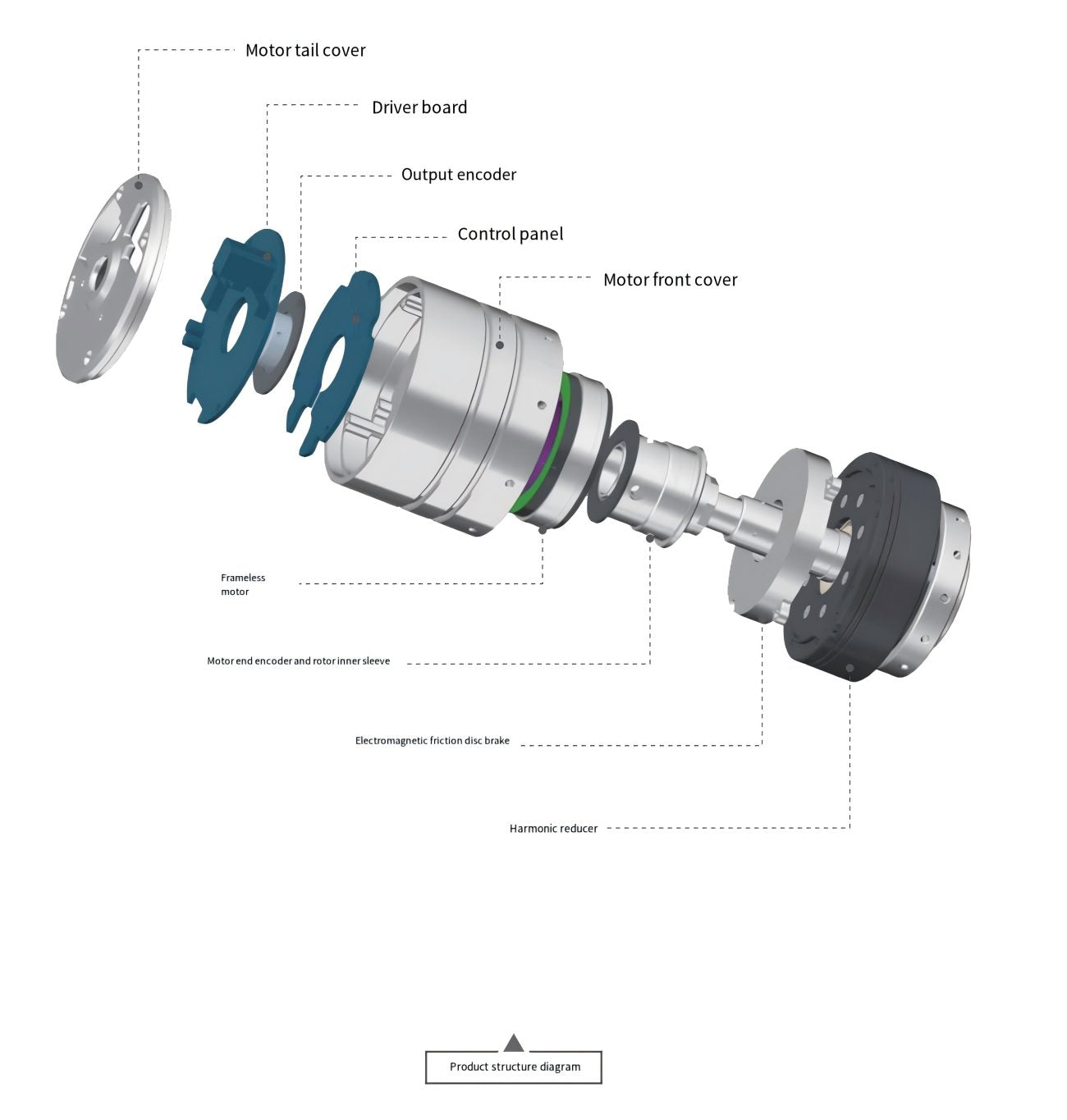

TTBOT HJ25 Motor | Robot Servo Motor for Robotics Development detail image 3

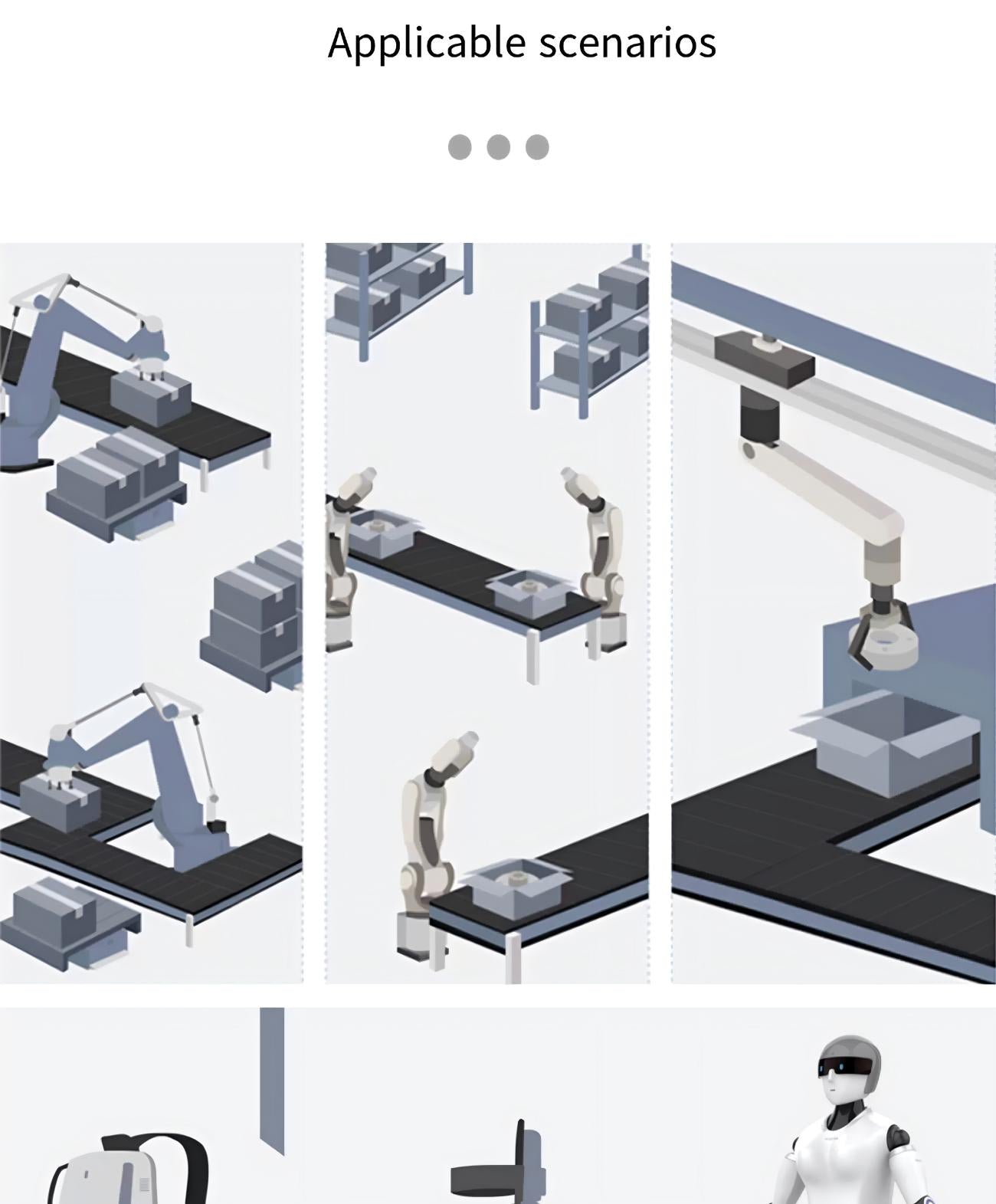

TTBOT HJ25 Motor | Robot Servo Motor for Robotics Development detail image 4
TTBOT HJ25 Motor | Robot Servo Motor for Robotics Development detail image 5
▤ Technical Specifications ⌃
Parameter Value 1 Value 2
Supply Voltage 48V DC 48V DC
Motor Power 250W 250W
Motor Rated Current 10.2A 10.2A
Motor Peak Current 30A 30A
Back EMF Constant 9.06Vrms/KRPM 9.06Vrms/KRPM
Module Rated Motor Speed 2500rpm 2500rpm
Module Peak Motor Speed 3000rpm 3000rpm
Reduction Ratio 101 121
Rated Torque 91N.m 110N.m
Peak Torque 228N.m 275N.m
Starting Torque 188N.m 250N.m
Rated Speed 25rpm 20rpm
Peak Speed 29rpm 25rpm
Allowable/Instantaneous Bending Moment 243/480N.m 243/480N.m
Allowable/Instantaneous Radial Force 900/1600N 900/1600N
Allowable/Instantaneous Axial Force 900/1600N 900/1600N
Outer Diameter × Length 110×127.2mm 110×127.2mm
Through Hole Diameter 18mm 18mm
Weight 3.6kg 3.6kg
Reducer Backlash 20arcsec 20arcsec
Transmission Accuracy 1arcmin 1arcmin

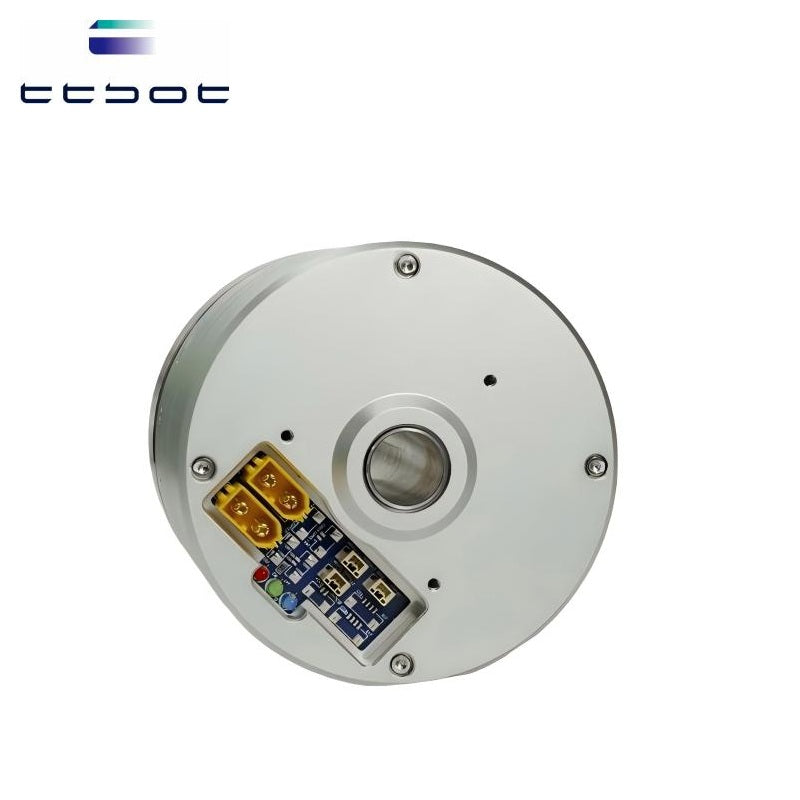

Power Supply Interface XT-60 XT-60
Communication Method & Protocol CAN / EtherCAT CAN / EtherCAT
Communication Interface CAN: GH1.25-2P EtherCAT: GH1.25-4P CAN: GH1.25-2P EtherCAT: GH1.25-4P
Noise ≤70dBA ≤70dBA
Encoder Type 15-bit Absolute Dual Encoder 15-bit Absolute Dual Encoder
Brake Type (Optional) Electromagnetic Decoupling Plate Type Electromagnetic Decoupling Plate Type
Protection Class IP6X IP6X
Insulation Class B B
Operating Ambient Temperature 0~40°C 0~40°C
