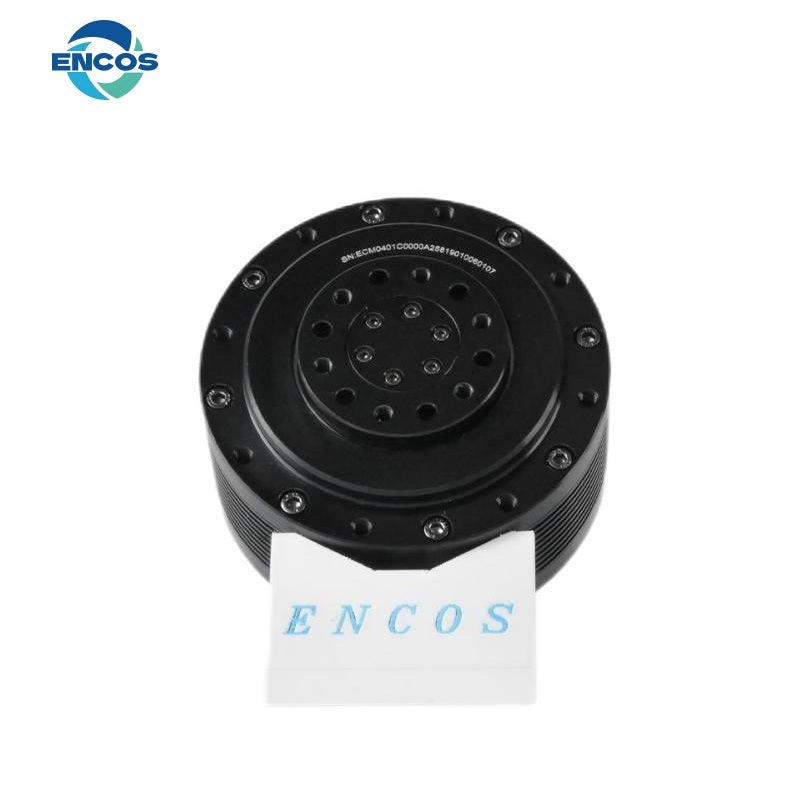

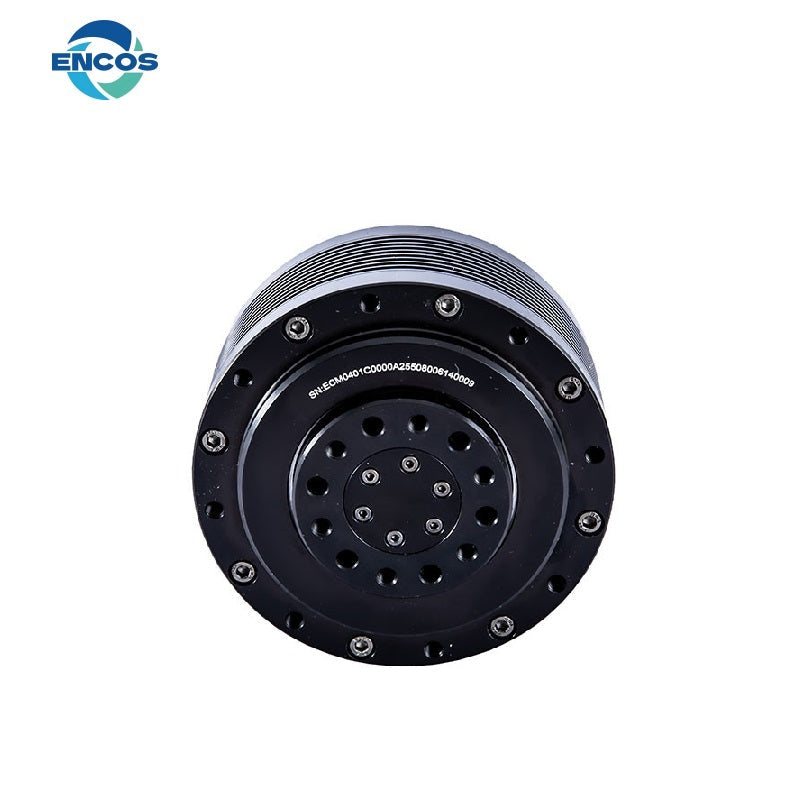

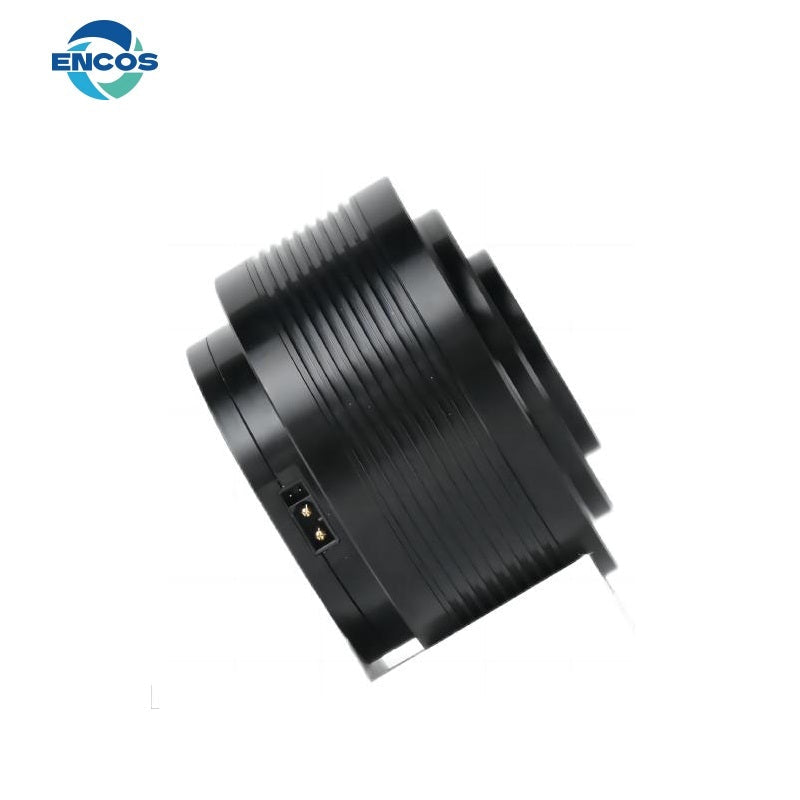

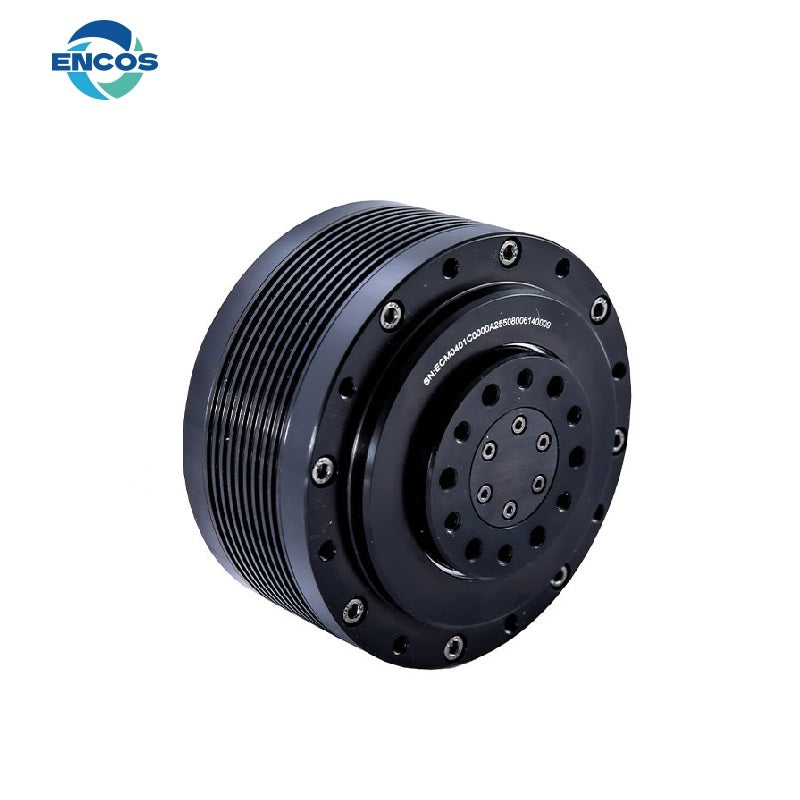

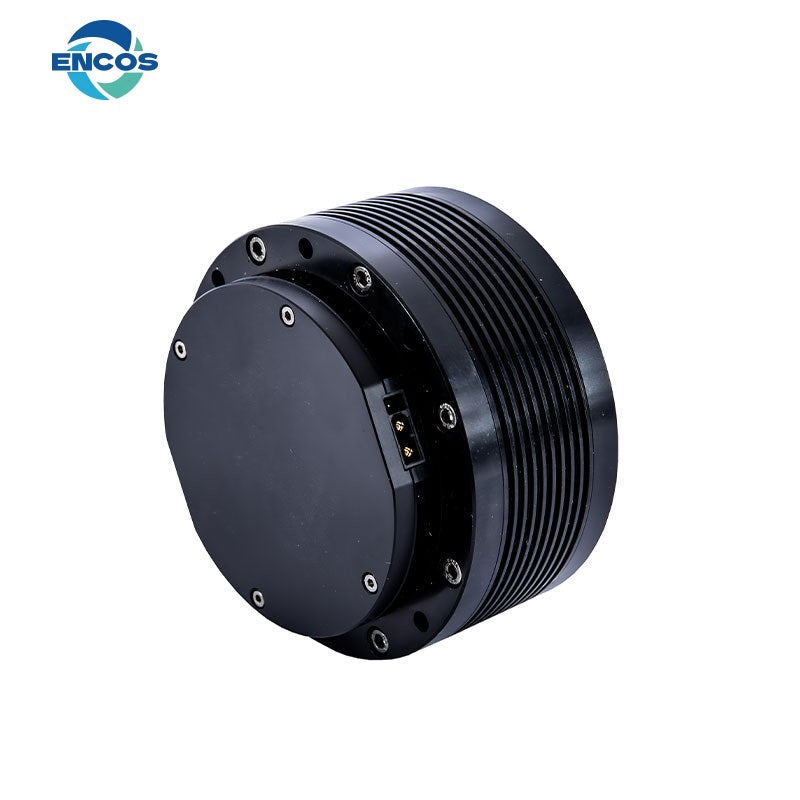

ENCOS EC-A6408-P2-25 Motor | Robot Servo Motor for Robotics Development

  • ENCOS robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$875
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ENCOS EC-A6408-P2-25 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A6408-P2-25 Motor dimension drawing for installation reference.pdf ▶ ENCOS EC-A6408-P2-25 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A6408-P2-25 Motor dimension drawing for installation reference.pdf ▶

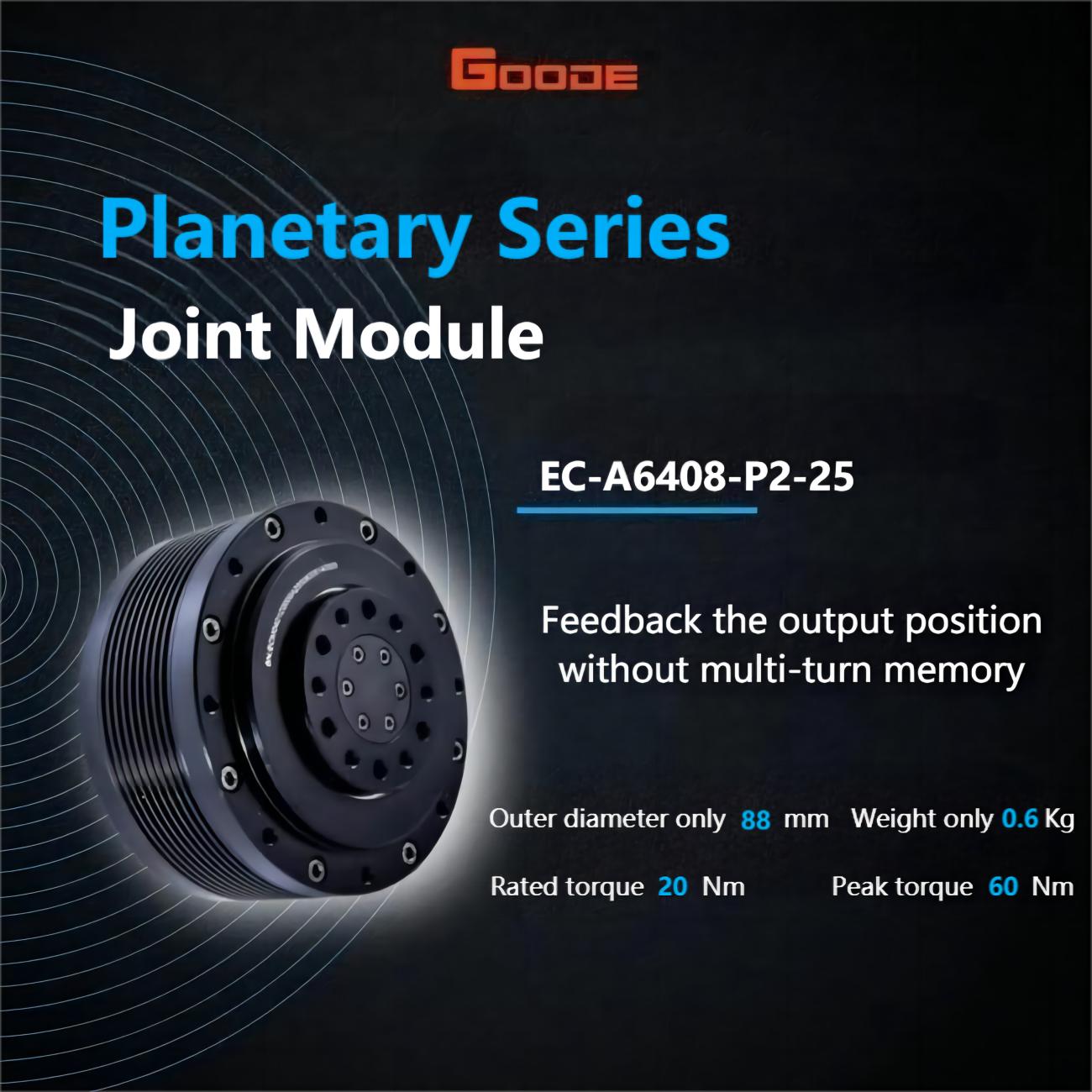

ENCOS EC-A6408-P2-25 Motor | Robot Servo Motor for Robotics Development detail image 1
▤ Technical Specifications ⌃
Parameter EC-A6408-P2-25 EC-A6408-P2-16H EC-A6408-P2-30.25H
Reduction Ratio 25 16 30.25
Rated Voltage 48 V 48 V 48 V
Rated Bus Current 6.92 A 4.81 A 8.17 A
Rated Phase Current 11.83 A 6.51 A 10.3 A
Rated Power 332 W 230.88 W 392.16 W
Rated Speed 133 RPM 105 RPM 122.8 RPM
Rated Torque 20 Nm 14 Nm 20 Nm
Peak Speed 149 RPM 130 RPM 128 RPM
Peak Phase Current 60 A 30 A 30 A
Peak Torque 60 Nm 45 Nm 70 Nm
Efficiency 72% 51% 69%
Torque Constant 2.35 Nm/A 2.15 Nm/A 2.45 Nm/A
Weight 625 g 800 g 846 g
Backlash 10 Arcmin 18 Arcmin 15 Arcmin
Motor Size 88×59.5 mm 88×60 mm 88×65 mm
Hole Diameter - 14 mm 7 mm
Communication Mode CAN CAN CAN
Communication Baud Rate 1M 1M 1M
Double Encoder Yes Yes Yes
Axial And Radial Loads 2.14 KN 2.63 KN 2.63 KN
Bending Moment Resistance 40 Nm 78 Nm 78 Nm
Cross Roller Bearing Type 4005 6005 6005
The Rotor Inertia Of The Motor 62 kgmm² 61.059 kgmm² 63 kgmm²
Torque Density 96 Nm/kg 56.25 Nm/kg 82.8 Nm/kg
Pole Pair - 14 -
