OCServo

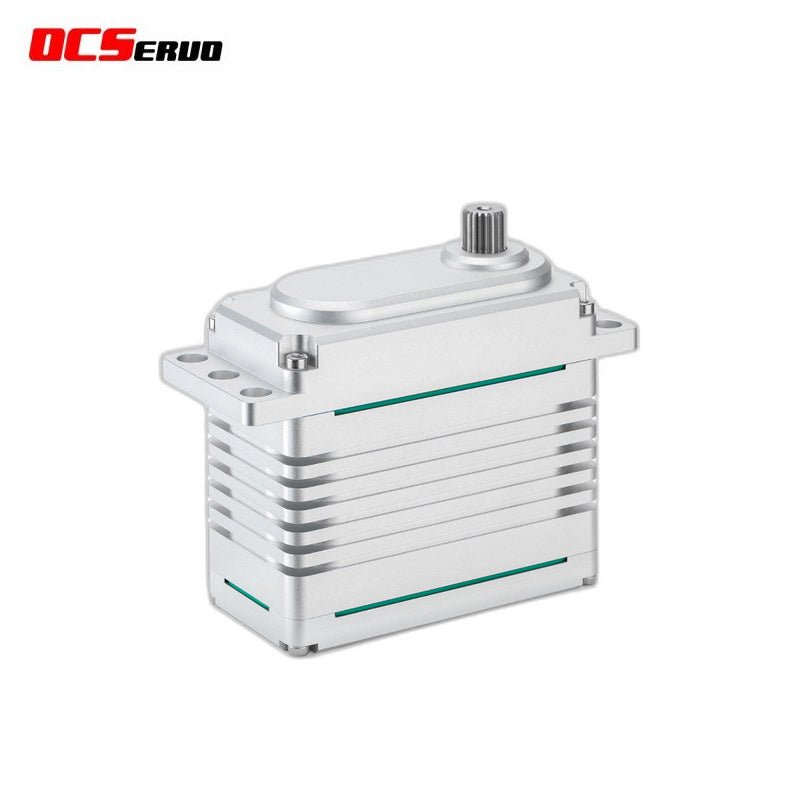

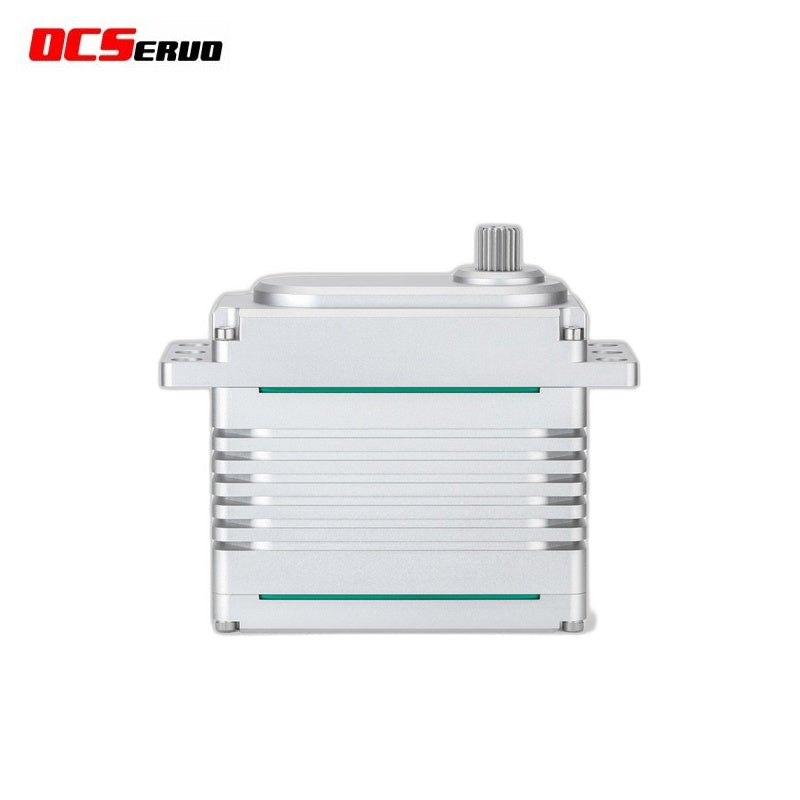

OCServo OCS-D9501 Servo Motor

  • Stall torque (kg·cm): 24V: 850; 28V: 920; 30V: 950
  • Rated torque (kg·cm): 24V: 280; 28V: 320; 30V: 350
  • Operating Voltage: 24V / 28V / 30V
  • No load speed (sec/60°): 24V: 0.35; 28V: 0.28; 30V: 0.25
  • Command Type: PWM or CAN or 485
$2,150
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D9501 dimensional drawing.pdf ▶ OCServo OCS-D9501 technical specifications.pdf ▶

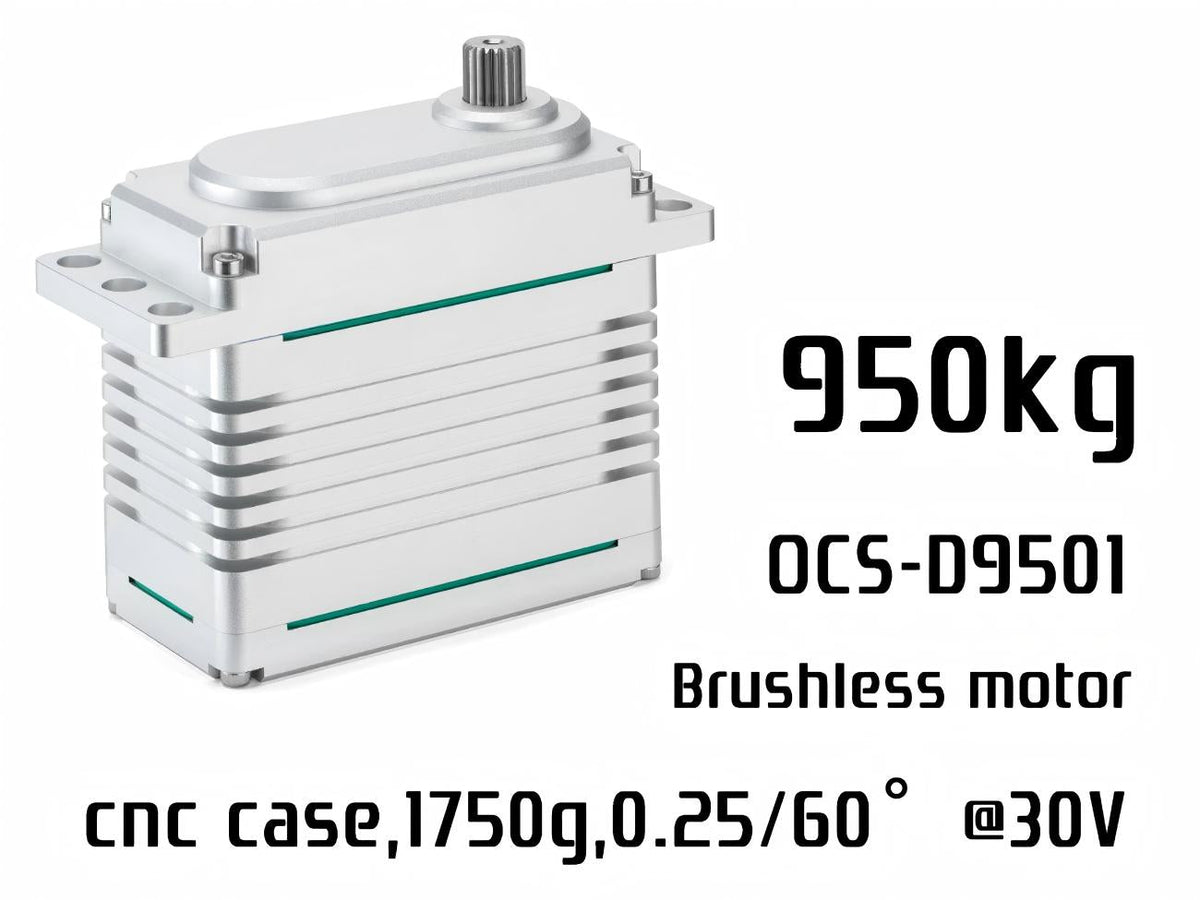

OCServo OCS-D9501 Servo Motor detail image
OCServo OCS-D9501 Servo Motor detail image
OCServo OCS-D9501 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
28.0V900kg-cm BLS Servo
Item No.
OCS-D9501
Storage Temperature Range
-30°C ~ 70°C
Operating Temperature Range
-20°C ~ 60°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
120.0 × 60.0 × 111.5
Weight (g)
1750
Gear Type
Steel Gear
Limit Angle
-
Bearings
10 Ball bearings
Output Spline
25T - Φ14.98mm
Horn Type
Metal
Case Material
Aluminium CNC

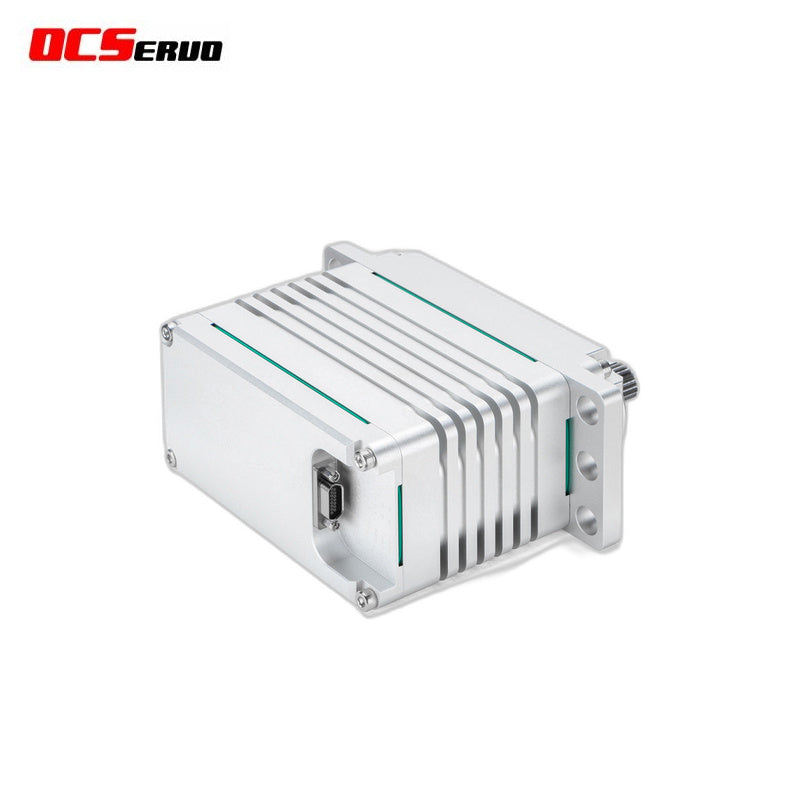

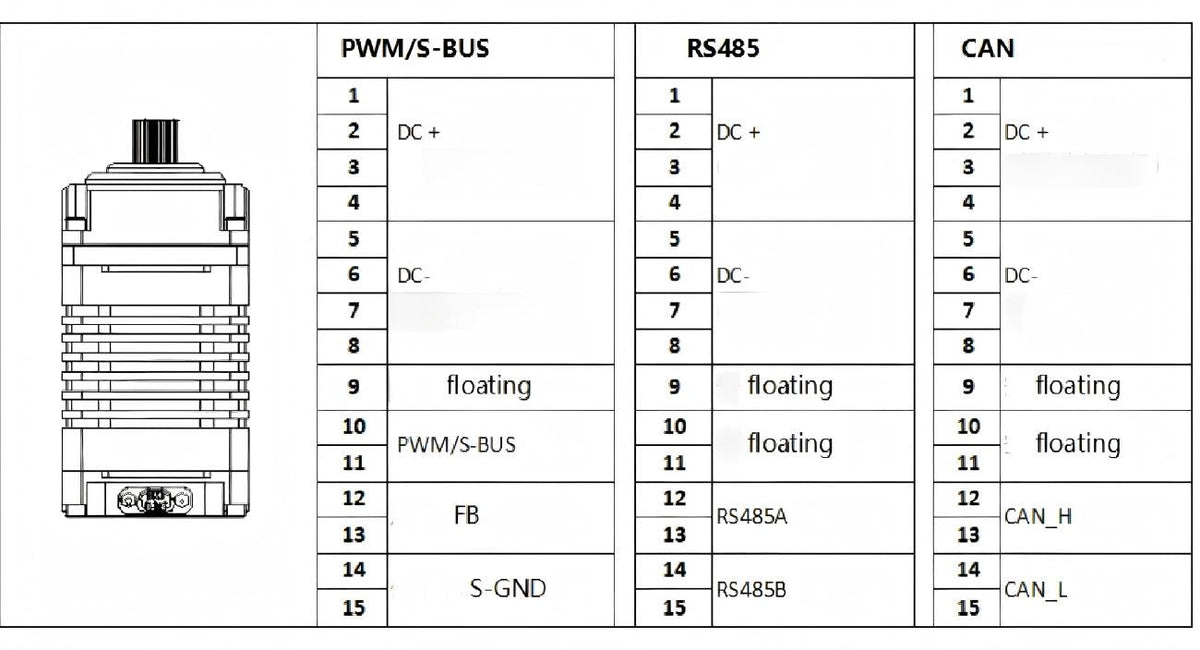

Connector Wire
J30J-15TJL (Need to purchase separately)
Motor Type
BLS motor
Waterproof Performance
Yes
Operating Voltage
24V / 28V / 30V
No load speed (sec/60°)
24V: 0.35; 28V: 0.28; 30V: 0.25
Running current (at no load) (mA)
24V: <400; 28V: <460; 30V: <500
Stall torque (kg·cm)
24V: 850; 28V: 920; 30V: 950
Stall current (A)
24V: <21; 28V: <25; 30V: <26.5
Rated torque (kg·cm)
24V: 280; 28V: 320; 30V: 350
Rated current (A)
24V: ≤3.5; 28V: ≤4; 30V: ≤4.3
Idle current (mA)
60 (all voltages)
Command Type
PWM or CAN or 485
Amplifier Type
Digital Controller
Pulse Width Range
500~2500 μsec (customizable)
Neutral Position
1500 μsec (customizable)
Running Degree
90° (when 1000~2000 μsec) customizable
Dead Band Width
3 μsec
Rotating Direction
CCW (when 1000~2000 μsec) customizable
