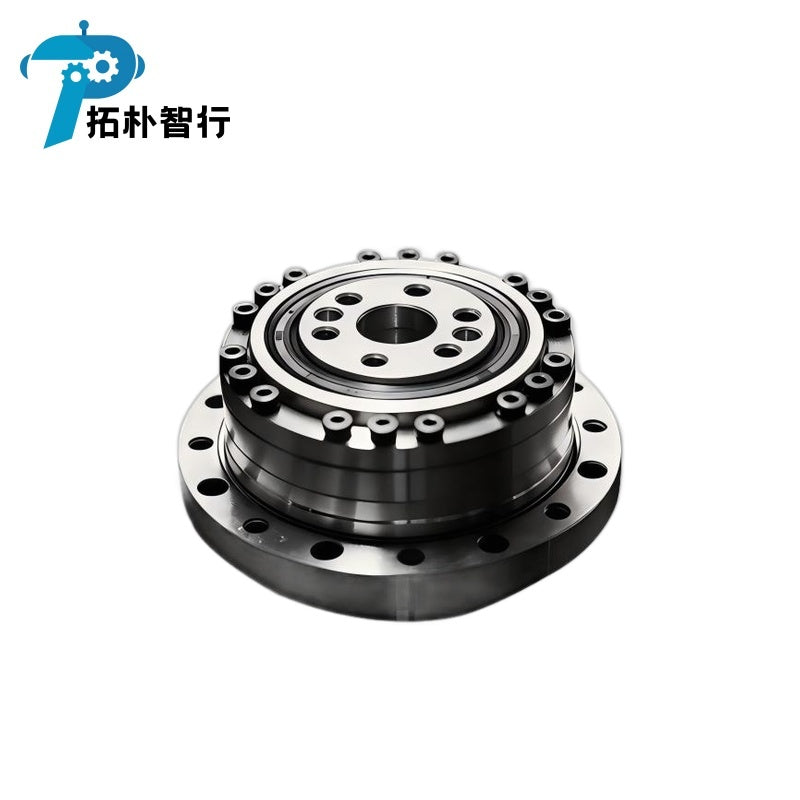

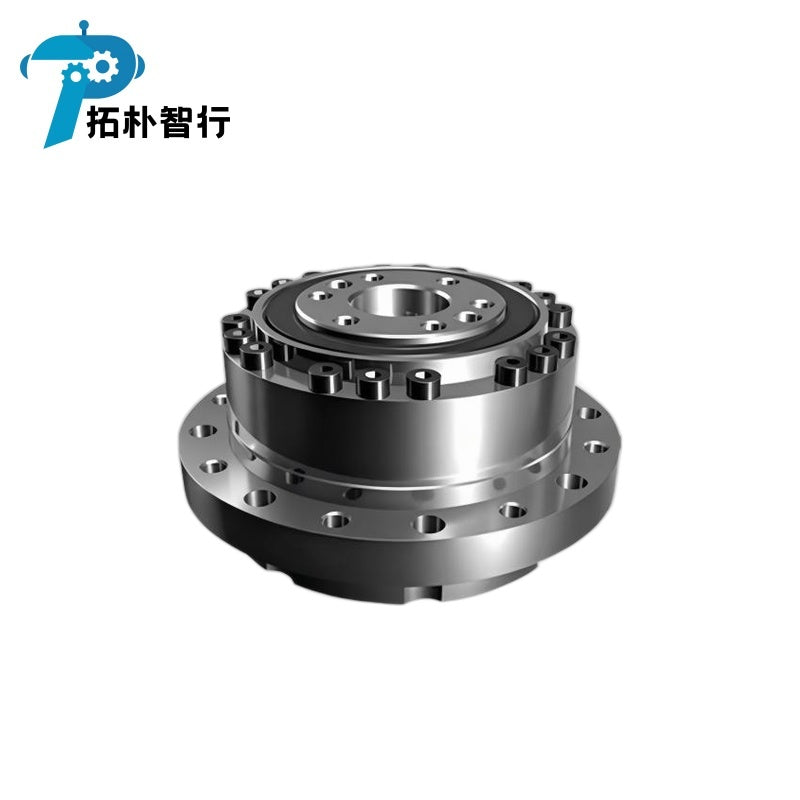

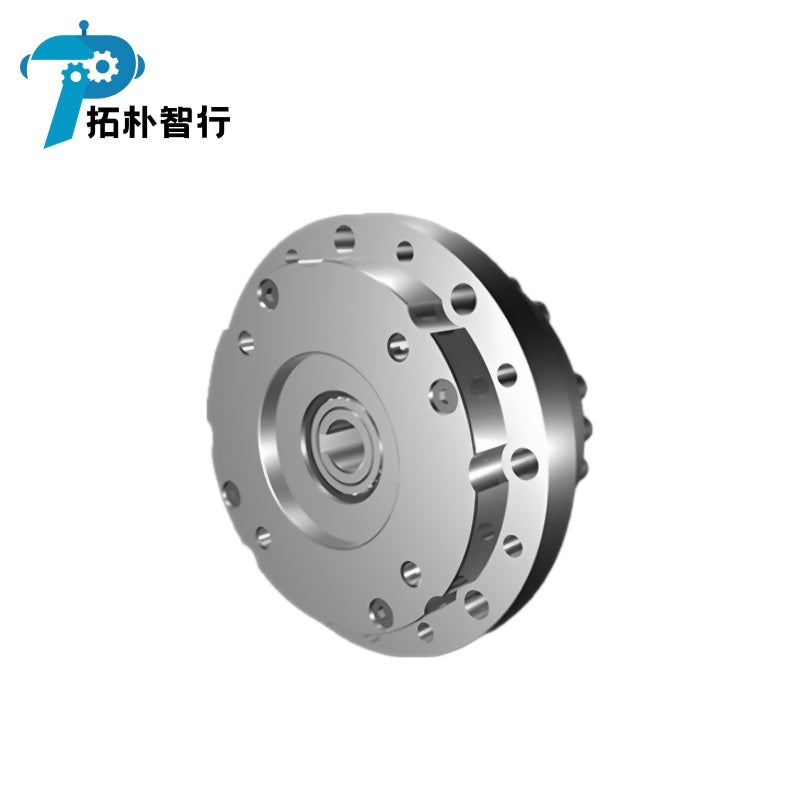

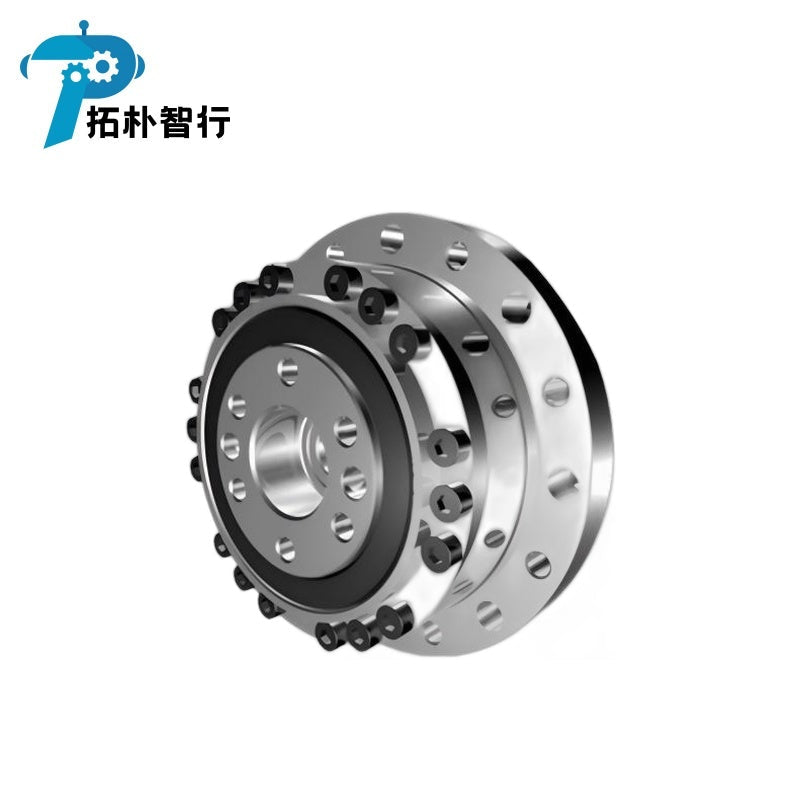

SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications

  • SINOTUP precision reducer for robot joints, compact mechanisms, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, actuator assemblies, research platforms, and test rigs.
  • Designed for reducer and gearbox integration in robot hardware, automation projects, and motion-control systems.
  • Useful for component selection in robotics labs, education programs, prototype builds, and industrial development.
$630
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SINOTUP TF55 Reducer dimension drawing for installation reference.pdf ▶ SINOTUP TF55 Reducer CAD model for mechanical integration.stp ▶
SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 1

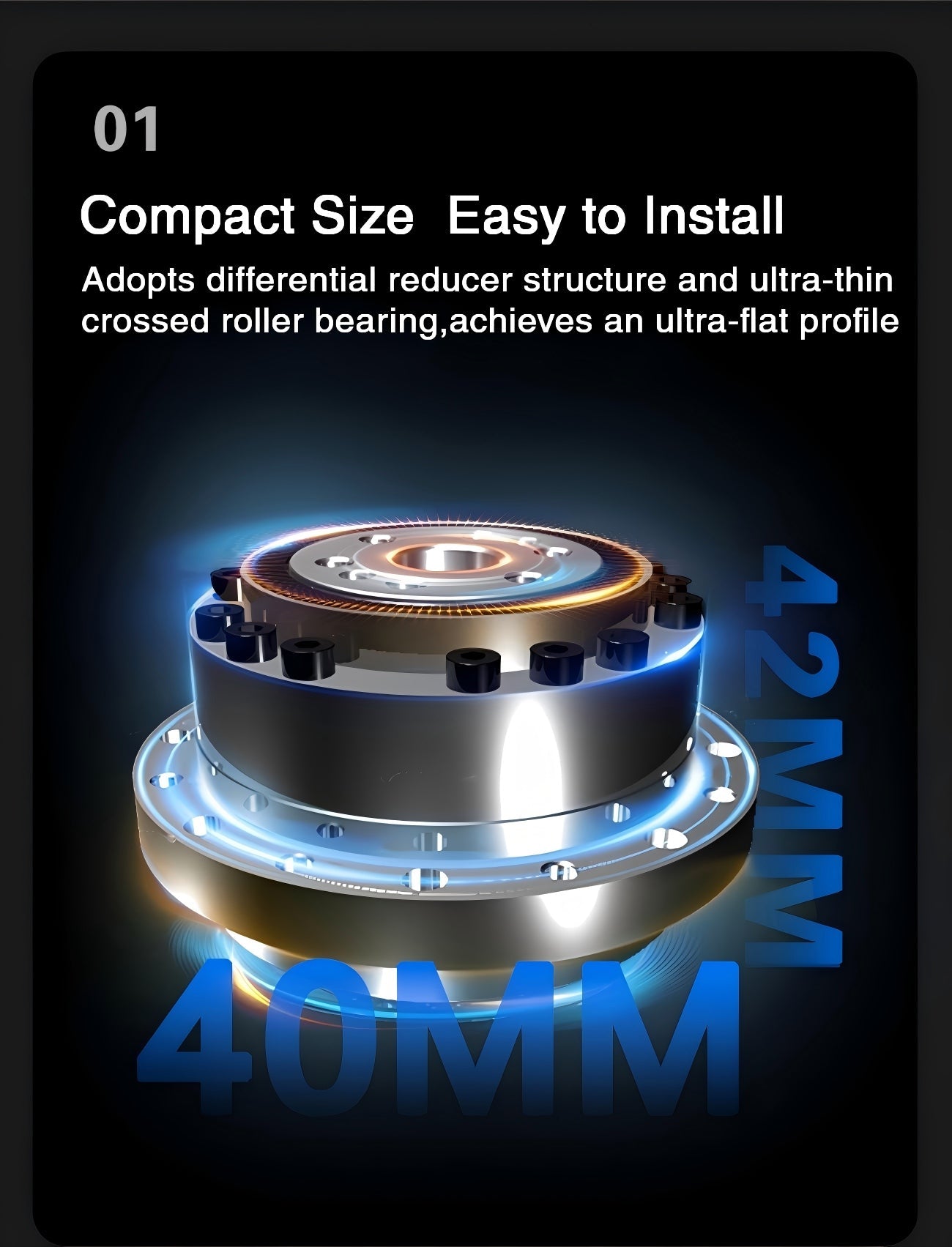

SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 2
SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 3
SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 4

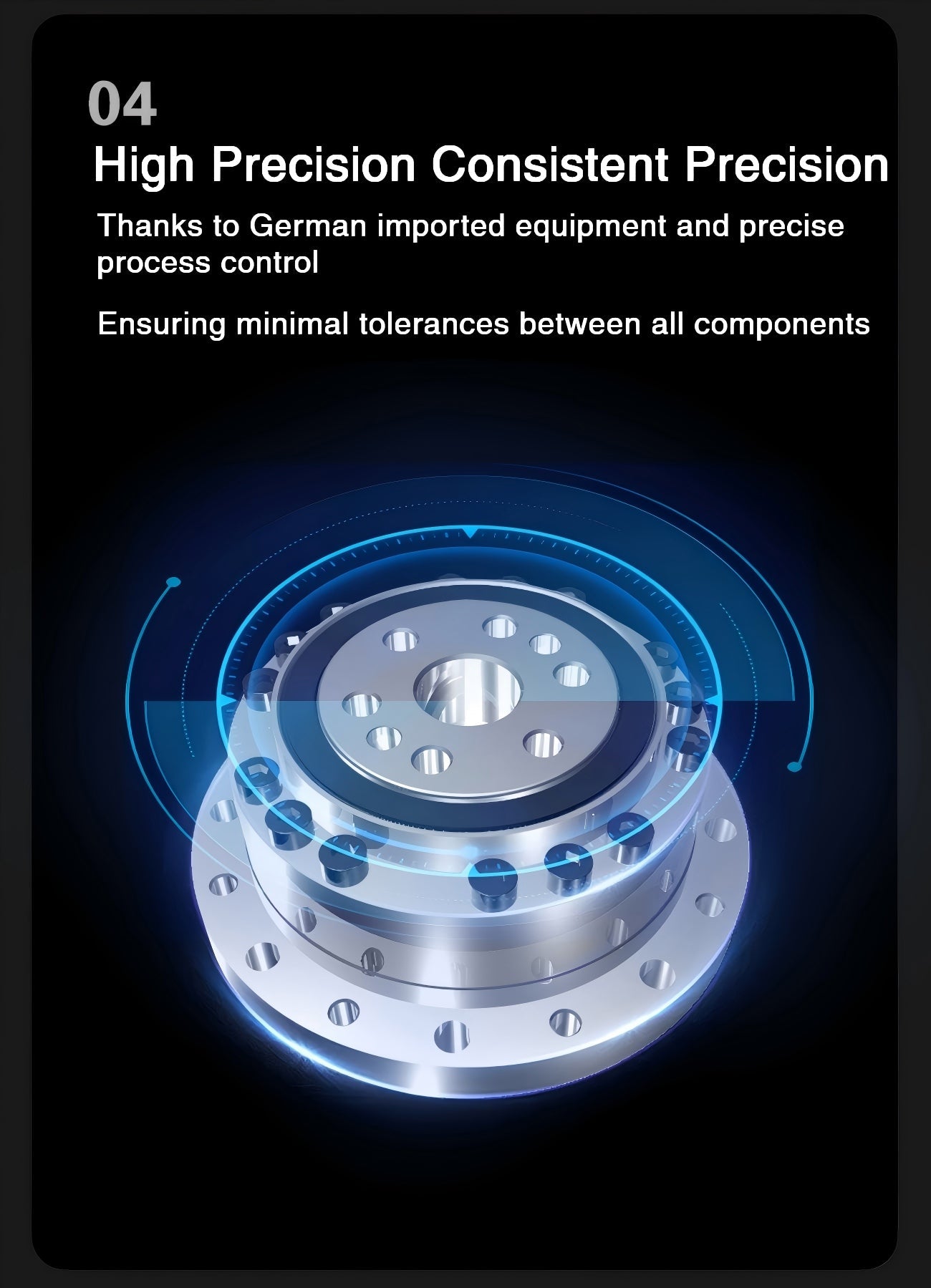

SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 5

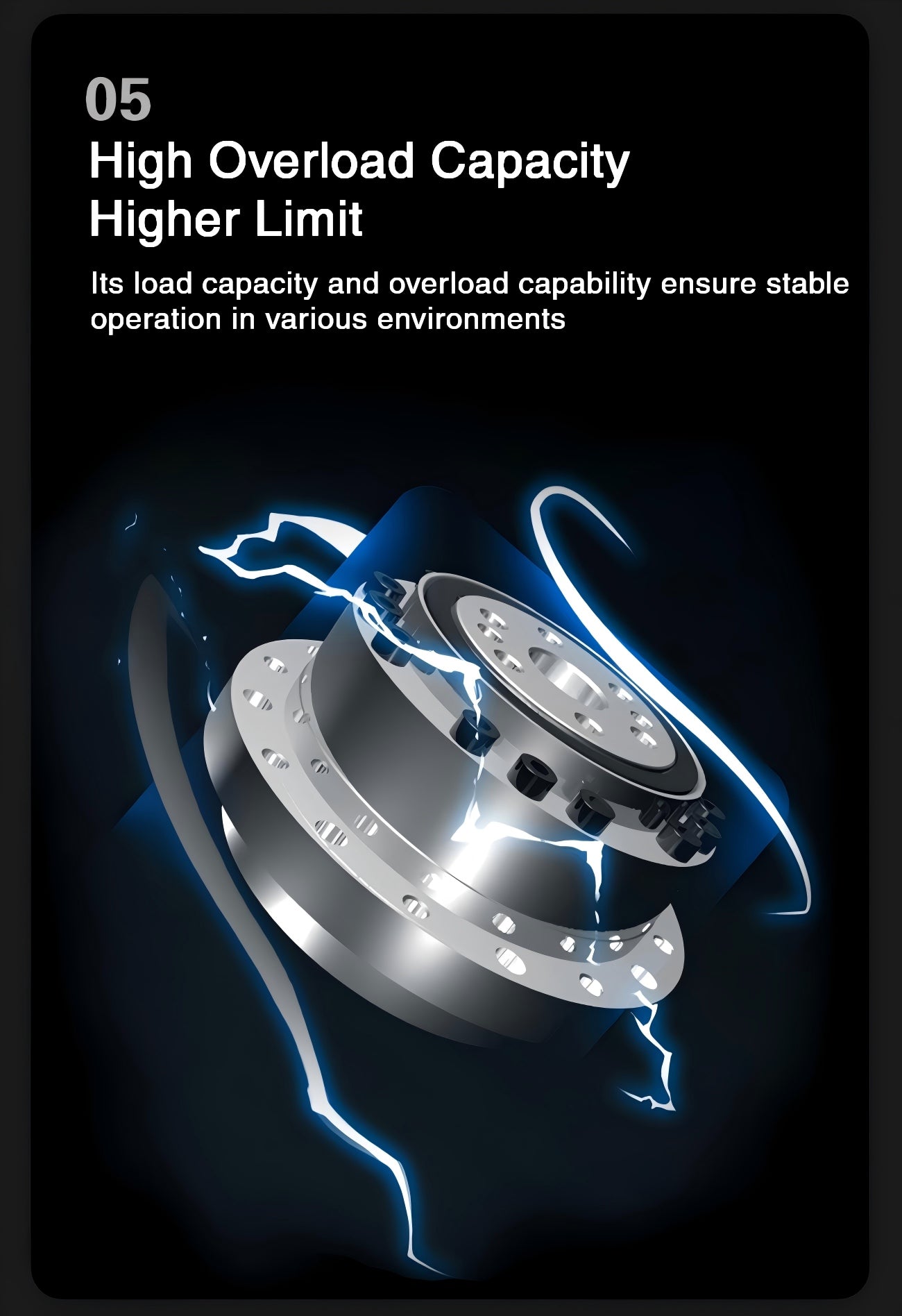

SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 6

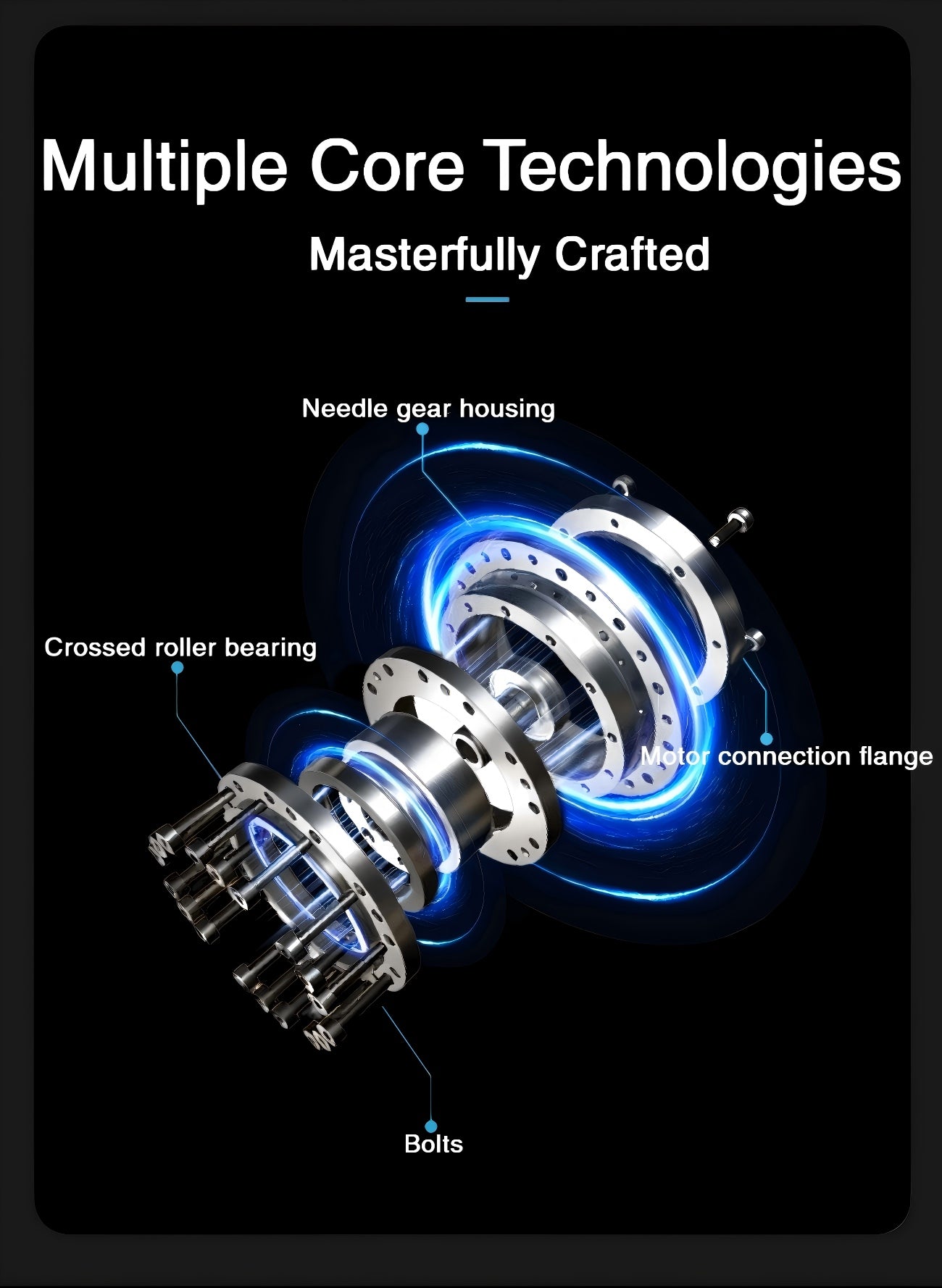

SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 7
SINOTUP TF55 Reducer | Precision Reducer for Robot Joint Applications detail image 8
▤ PARAMETER ⌃
Model
TF55
Reduction ratio
Axis rotation: 21–81 Shell rotation: 22–82
Rated output torque
82 Nm
Max. acceleration/deceleration torque
162 Nm
Permissible torque at emergency stop
240 Nm
Rated input speed
1500 rpm
Max. input speed
3000 rpm
Tilting stiffness
60 Nm
Torsional stiffness
8 Nm
Max. radial force
2.5 kN
Max. axial force
3.3 kN
Max. no-load starting torque
0.19 Nm 、0.19 Nm、0.18 Nm 、0.18 Nm
Average angular transmission error
±20 arcsec
Backlash accuracy
P0–P2 arcmin
Moment of inertia
3.5 × 10⁻⁶ kg·m²
Weight
0.8 kg
