DAMIAO

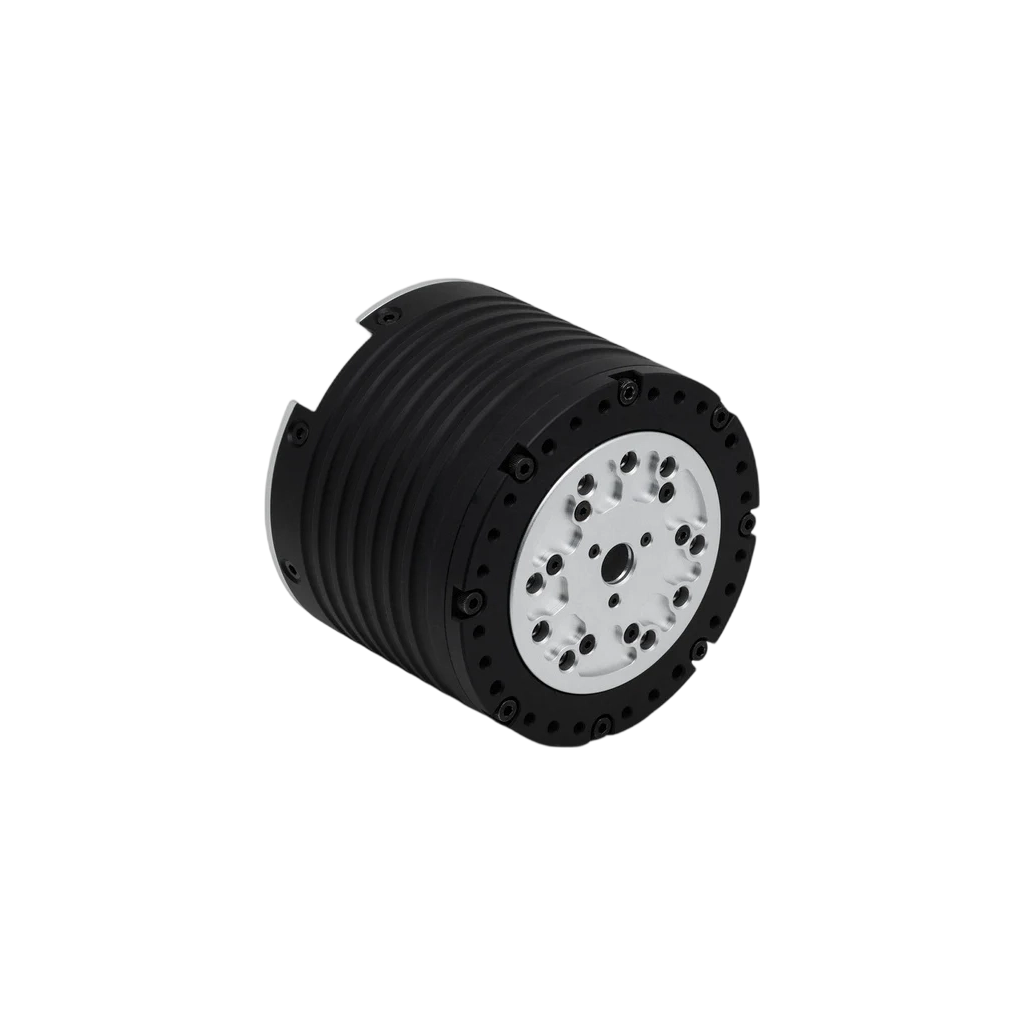

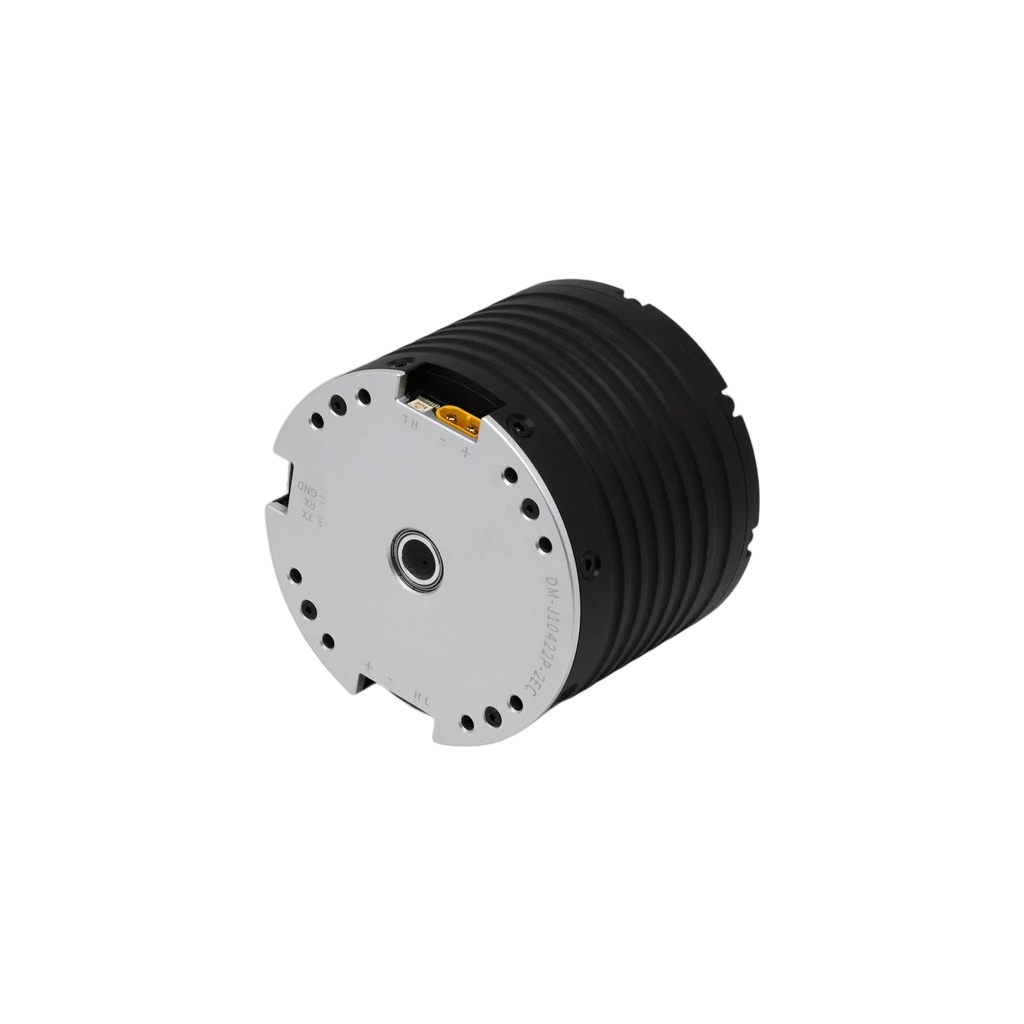

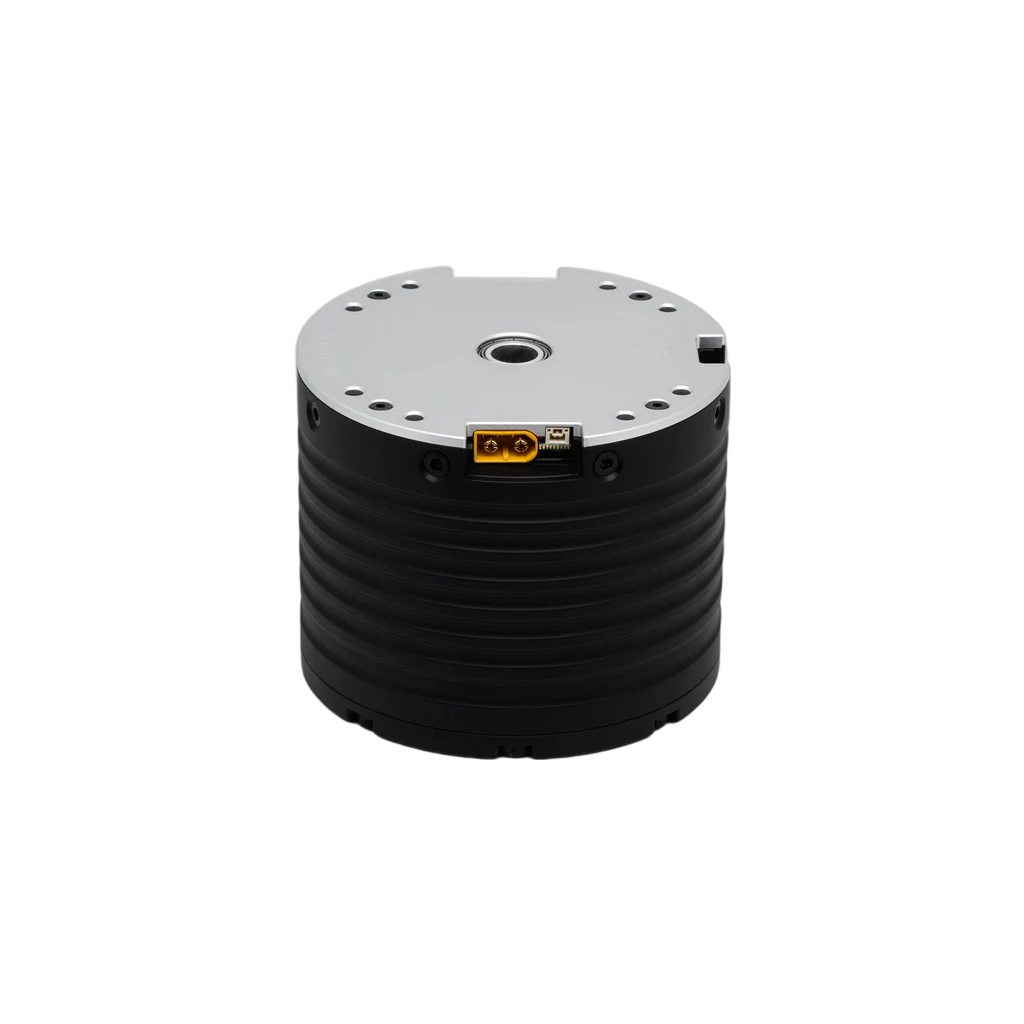

DAMIAO DM-J10422P-2EC Servo Motor for Robotics

Model: DM-J10422P-2EC
$480
Version

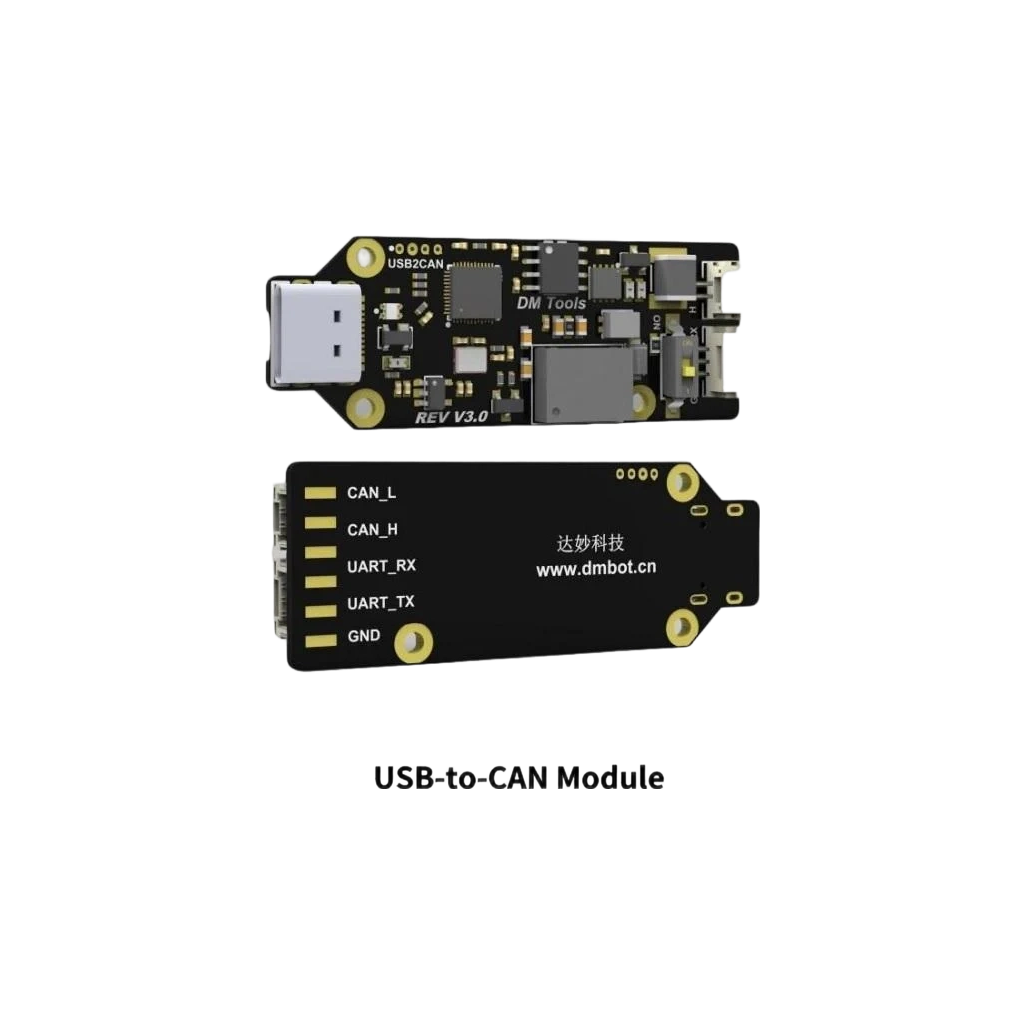

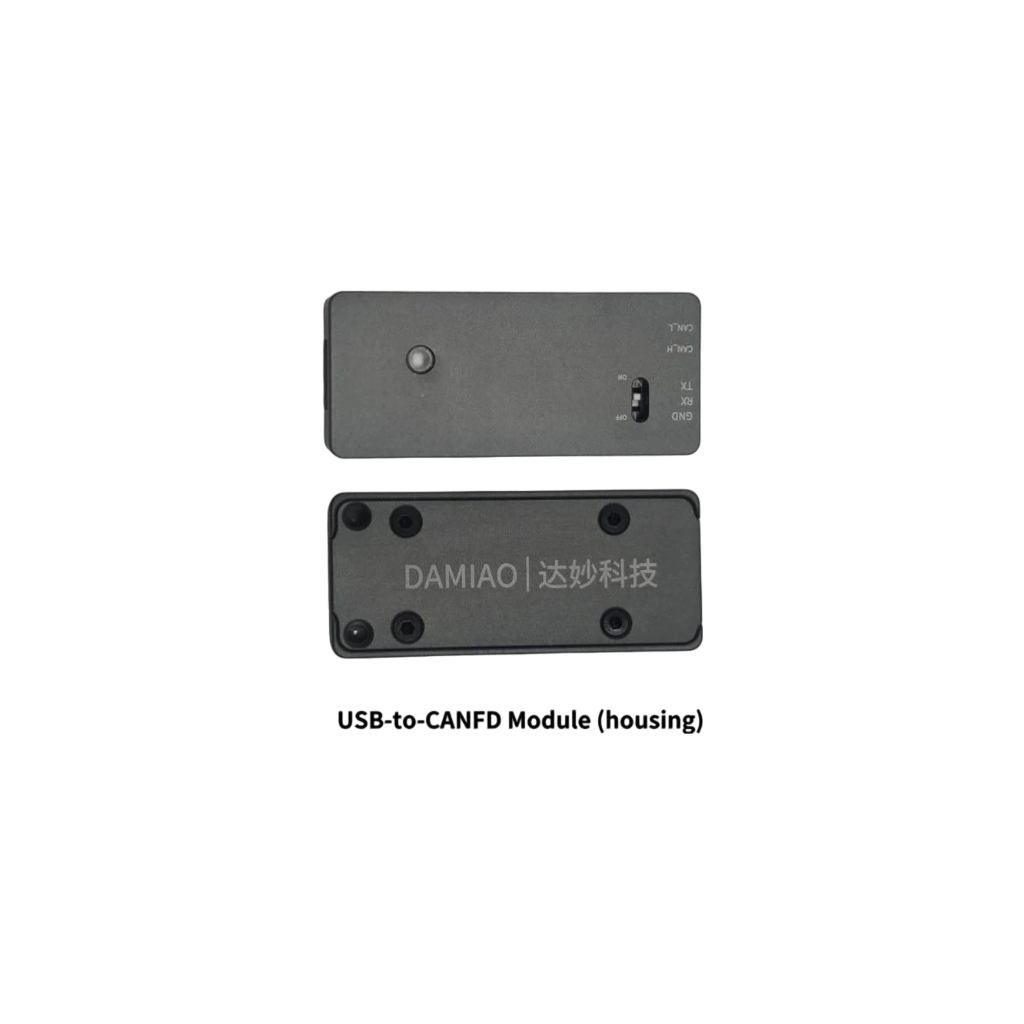

Communication Module

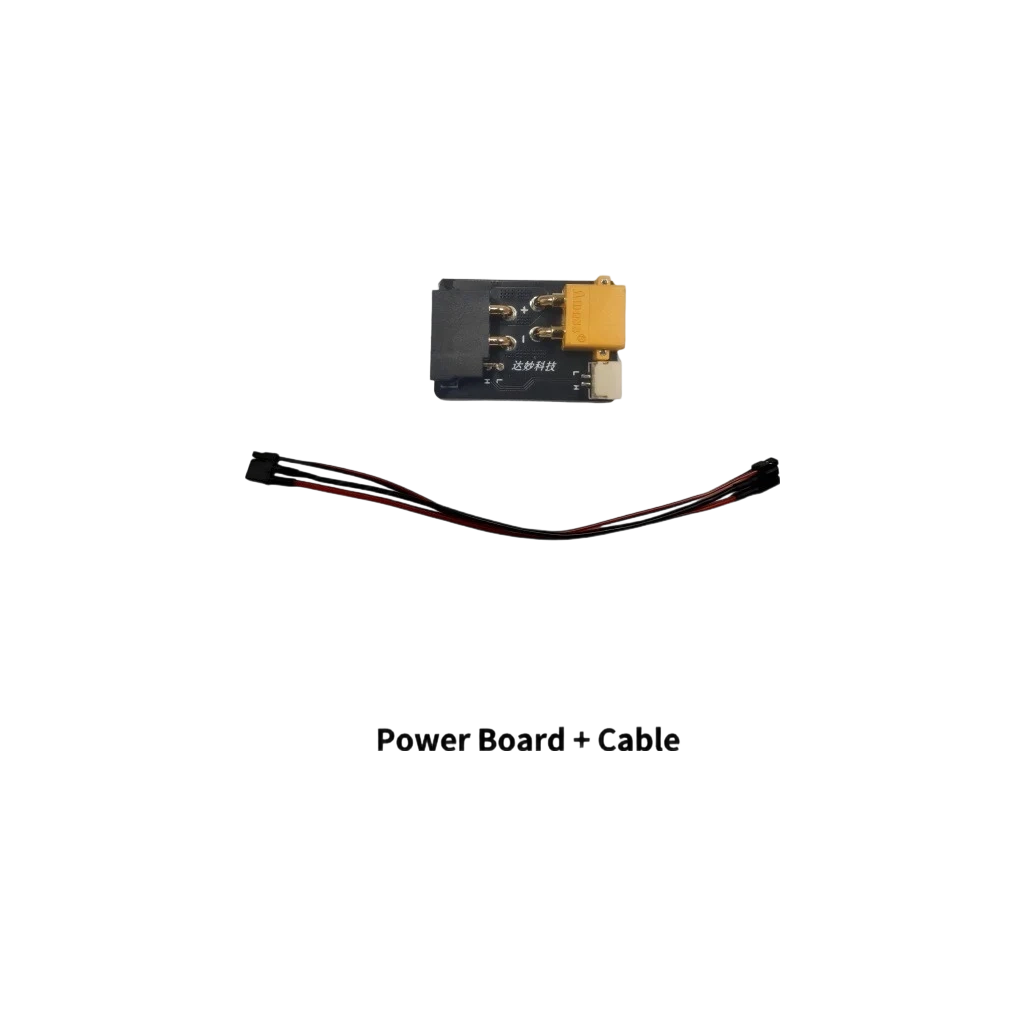

Accessory Kit

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DM-J10422P-2EC
Nominal Voltage
48 V
Rated Phase / Source Current
44.5 A / 27.5 A
Peak Phase / Source Current
165.0 A / 48.9 A
Rated Torque
100 N·m
Peak Torque
400 N·m
Rated Speed
100 RPM
Max No-Load Speed
120 RPM
Slot Number
36
Pole Pairs
16
Reduction Ratio
1:22
Phase Inductance
38 μH (@25°C)
Phase Resistance
81 mΩ (@25°C)
Bore Size
12 mm
Outer Diameter
110 mm
Height
89.9 mm
Motor Weight
2700 g
Encoder Resolution
17 Bit
Encoder Accuracy
±0.03°
Number of Encoders
2
Control Interface
CAN @5 Mbps (Max)
Tuning Interface
UART @921600 bps
Control Modes
MIT Mode | Velocity Mode | Position Mode | Torque Control Mode
Protection
Driver over-temperature protection (120°C). Motor over-temperature configurable (recommended ≤100°C). Over-voltage protection recommended ≤65 V. Under-voltage protection ≥20 V. Communication loss protection via CAN timeout. Over-current protection configurable.

Technical Documentation

PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
PDF
DAMIAO-J10422P-Product_instalation_drawing.pdf
STP
DM-J10422P-2EC.STEP
