Benewake

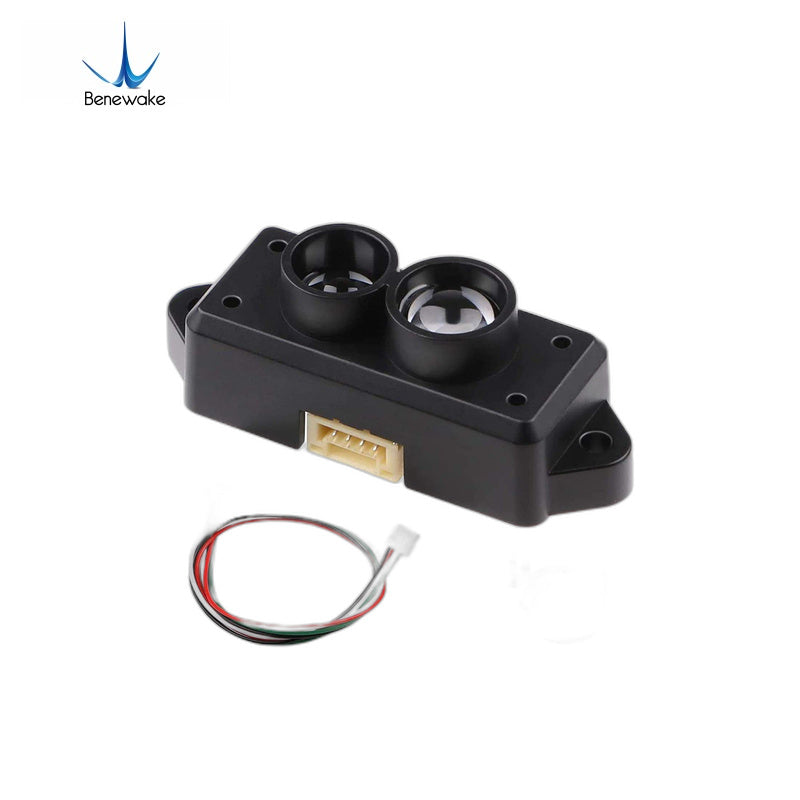

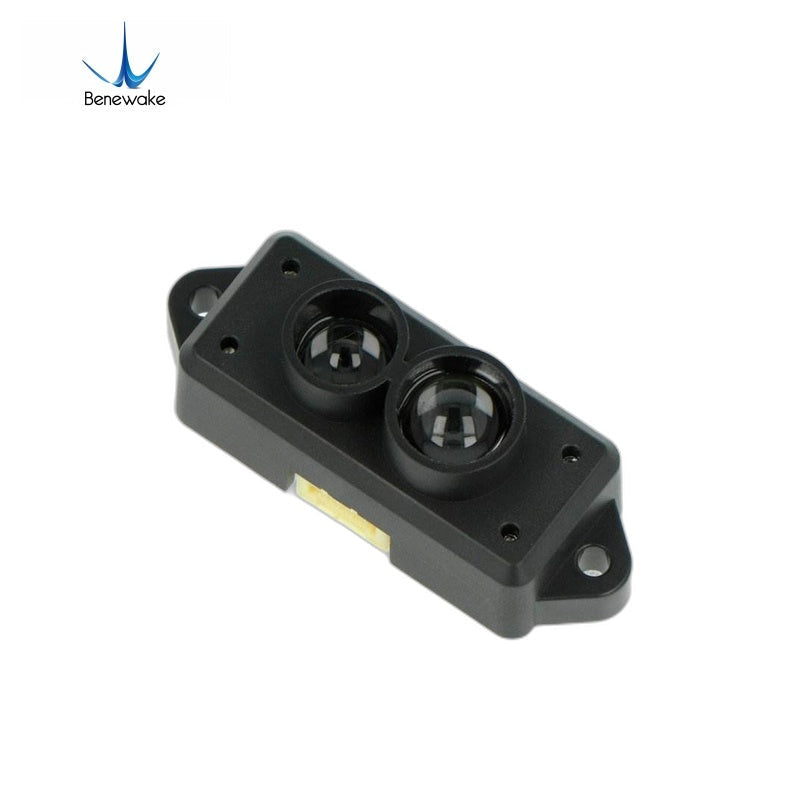

Benewake TFmini-S LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Operating Range: 0.1m~12m @90% reflectivity 0.1m~7m @10% reflectivity 0.1m~12m @90% reflectivity (70Klux) 0.1m~7m @10% reflectivity (70Klux)
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$60
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TFmini-S LiDAR datasheet with technical specifications.pdf ▶ Benewake TFmini-S LiDAR user manual for setup and integration.pdf ▶ Benewake TFmini-S LiDAR dimension drawing for installation reference.pdf ▶
Benewake TFmini-S LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Benewake TFmini-S LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake TFmini-S LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Benewake TFmini-S LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ PARAMETER ⌃
Operating Range
0.1m~12m @90% reflectivity 0.1m~7m @10% reflectivity 0.1m~12m @90% reflectivity (70Klux) 0.1m~7m @10% reflectivity (70Klux)
Accuracy
±6cm @ (0.1-6m), ±1% @ (6m-12m)
Distance resolution
1cm
Frame rate
1-1000Hz (default 100Hz)
Ambient light resistance
70Klux
Protection Level
/
Operation temperature
0°C ~ 60°C
Photobiological safety
Class 1 (EN60825)
Central wavelength
850nm
Light source
VCSEL
Field of View (FoV)
2°
Supply voltage
5V ± 0.1V
Average current
≤140mA
Power consumption
≤0.7W
Peak current
200mA
Communication level
LVTTL (3.3V)
Communication interface
UART, I²C, I/O
Dimension (L×W×H)
42mm × 15mm × 16mm
Housing
PC/ABS
Storage temperature
-20℃ ~ 75℃
Weight
5g ± 0.3g
Cable length
10cm
UART default baud rate
115200 (adjustable)
I²C max transmission rate
400kbps
UART data bit
8
UART stop bit
1
UART parity
None
I²C master/slave mode
Slave
I²C default address
0x10
I²C address range
0x01 ~ 0x7F
