Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Robot LiDAR sensor for mapping, navigation, and obstacle detection workflows.
  • Suitable for robotics research, automation projects, and mobile robot development.
  • Designed for integration into robot perception and sensing platforms.
  • Includes source product imagery and downloadable support resources when provided.
  • Prepared for engineering teams, education labs, and robotics developers.
$90
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Yunshis SK100 Series LiDAR

The Yunshis SK100 Series LiDAR is a LiDAR for robotics sensing, automation development, and research workflows. It is suitable for developers and engineering teams building robot perception, distance measurement, mapping, or navigation systems.

Features

  • **LiDAR platform:** Built for robot sensing and perception development.
  • **Robotics integration:** Suitable for automation prototypes, mobile robots, and research systems.
  • **Developer-focused:** Intended for robotics developers, education labs, and engineering teams.
  • **Source-backed details:** Product specifications and resources are based on the reference product page.

Developer Support

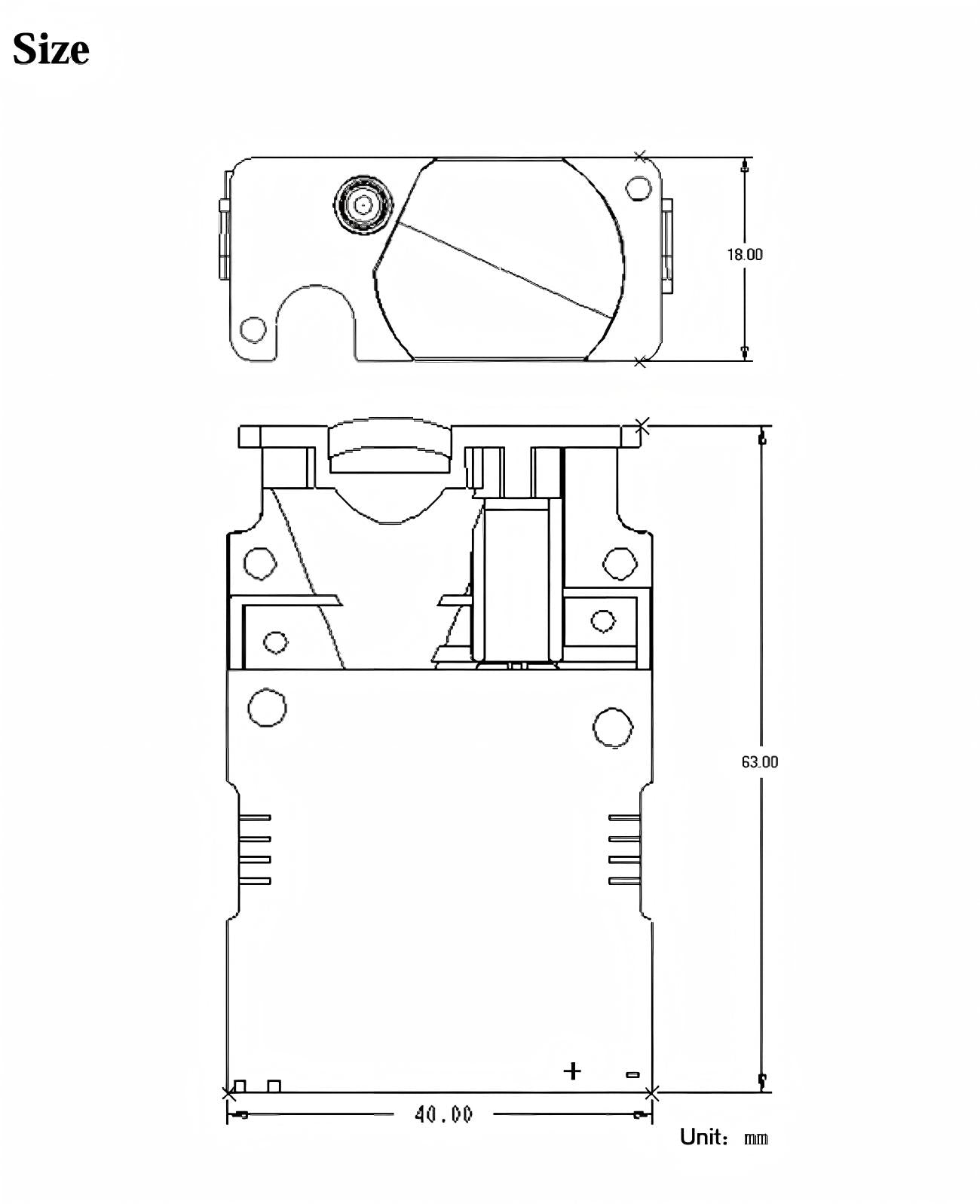

Yunshis SK100 LiDAR drawing document for mechanical reference and product dimensions. ▶
Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping Yunshis SK100 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping

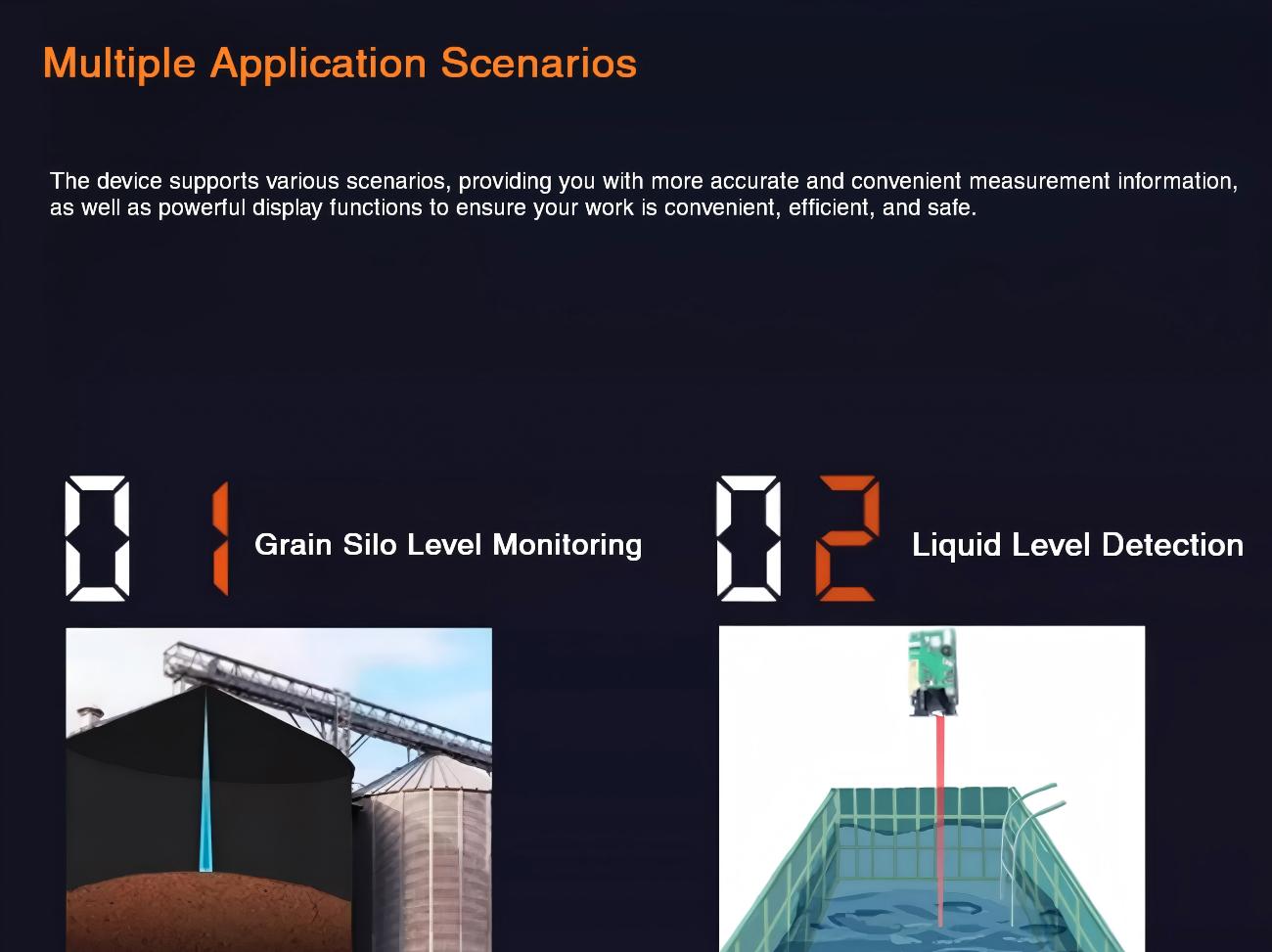

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ Technical Specifications ⌃
Parameter
SK100
SK100A
SK100B
SK100C
SK100D
Model
SK100
SK100A
SK100B
SK100C
SK100D
Variant Description
Standard Version
High Frequency
Enhanced Version (Optimized for Black Targets)
Long Range
Green Laser
Accuracy
±3 mm
Resolution
1 mm

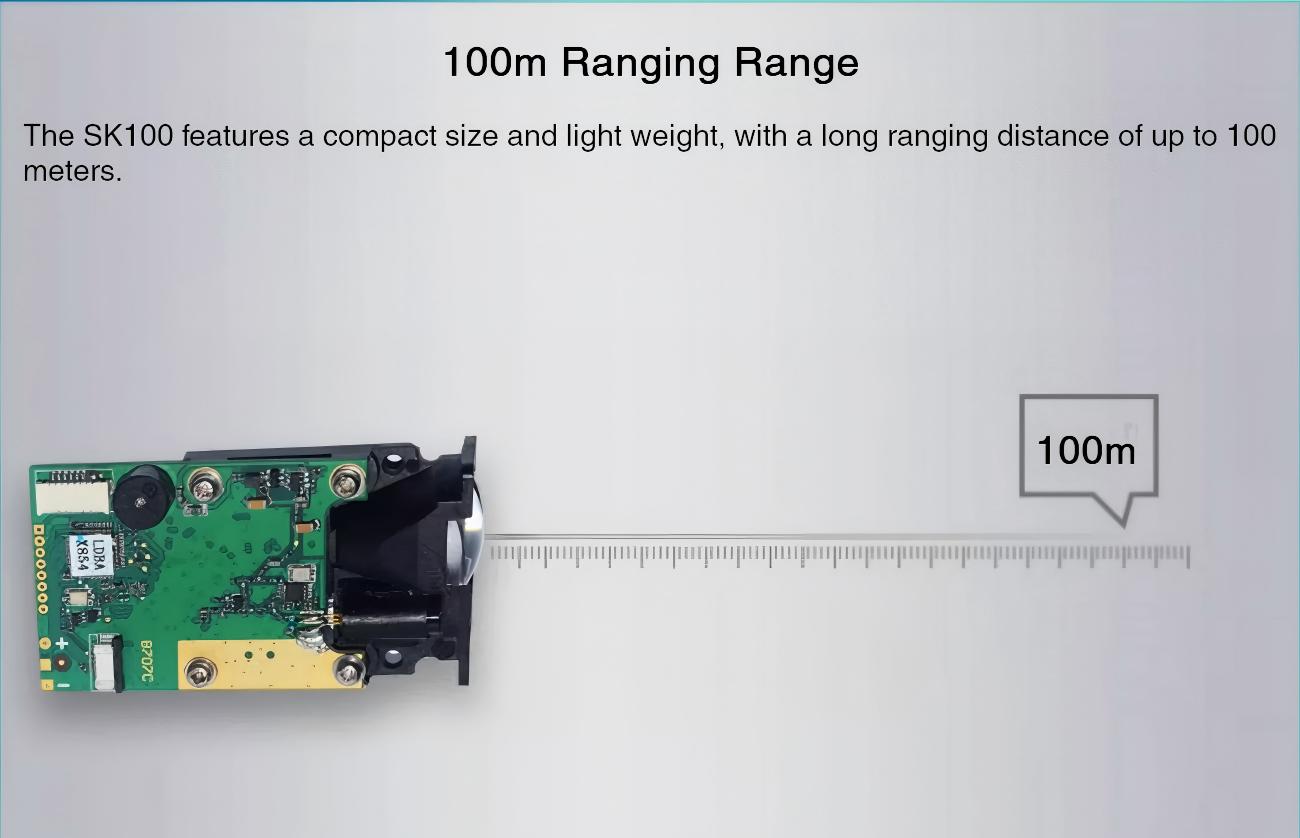

Indoor Measurement Range
100 m (90% Reflectivity) 59 m (20% Reflectivity)
100 m (90% Reflectivity) 59 m (20% Reflectivity)
100 m (90% Reflectivity) 77 m (20% Reflectivity)
150 m (90% Reflectivity) 53 m (20% Reflectivity)
100 m (90% Reflectivity) 24 m (20% Reflectivity)
Outdoor Measurement Range (with dedicated reflector, 90% reflectivity)
60 m
20 m
30 m
30 m
30 m
Blind Area
3 cm
Frequency
3 Hz
Max 20 Hz
3 Hz
3 Hz
3 Hz
Measurement Time
> 0.3 s
> 0.08 s
> 0.3 s
> 0.3 s
> 0.3 s
Output Interface
UART TTL
Laser Safety Class
Class II
Laser Type
Red Laser, 635 nm
Red Laser, 635 nm
Red Laser, 635 nm
Red Laser, 635 nm
Green Laser

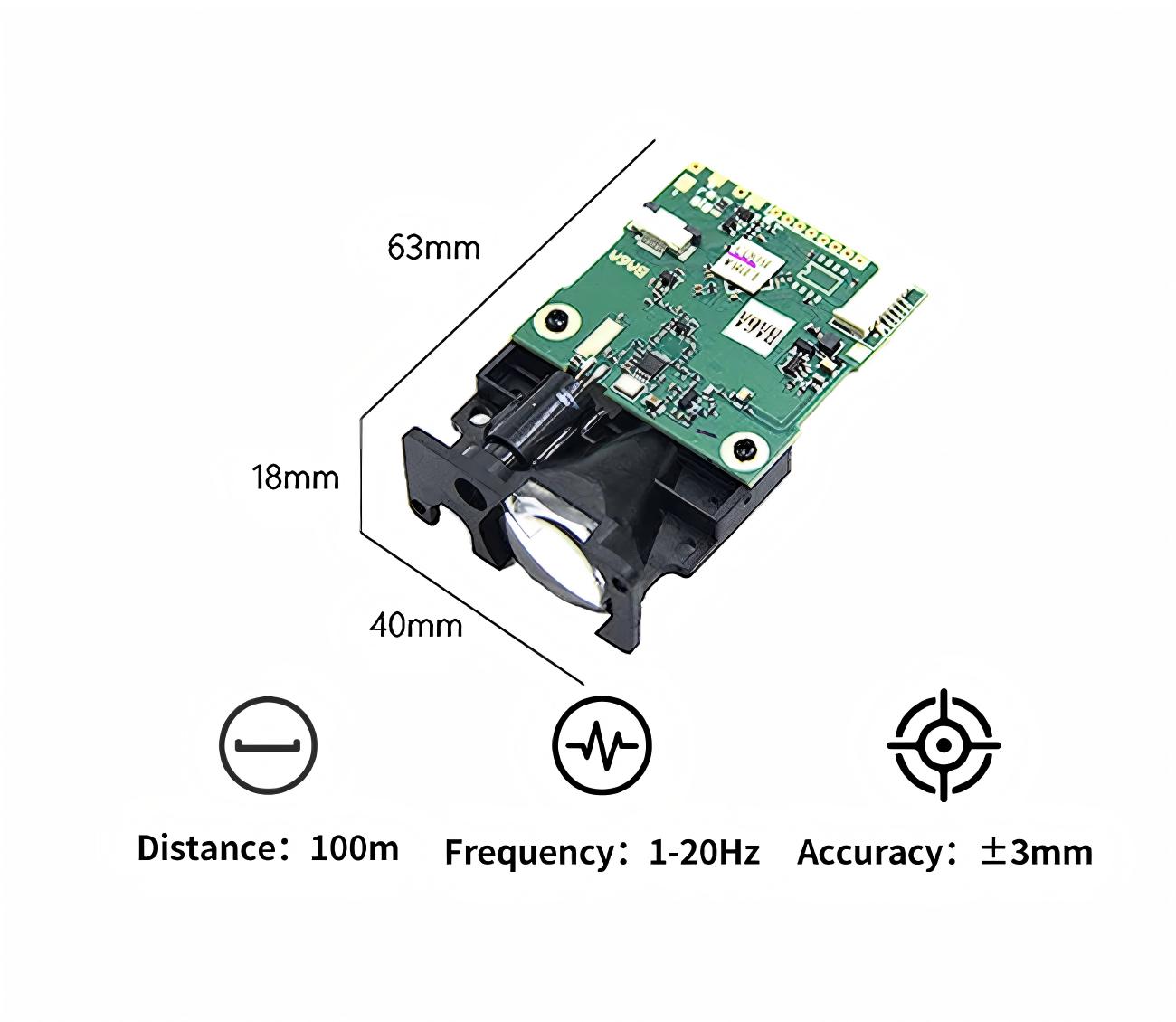

Size
63 × 40 × 18 mm
Weight
13 g
Voltage
DC 2.5 ~ 3.3 V
Working Temperature
-20 ~ 50 °C
