TTBOT

TTBOT LP6 Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$875
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT LP6 Motor dimension drawing for installation reference.pdf ▶ TTBOT LP6 Motor CAD model for mechanical integration.stp ▶
TTBOT LP6 Motor | Robot Servo Motor for Robotics Development detail image 1

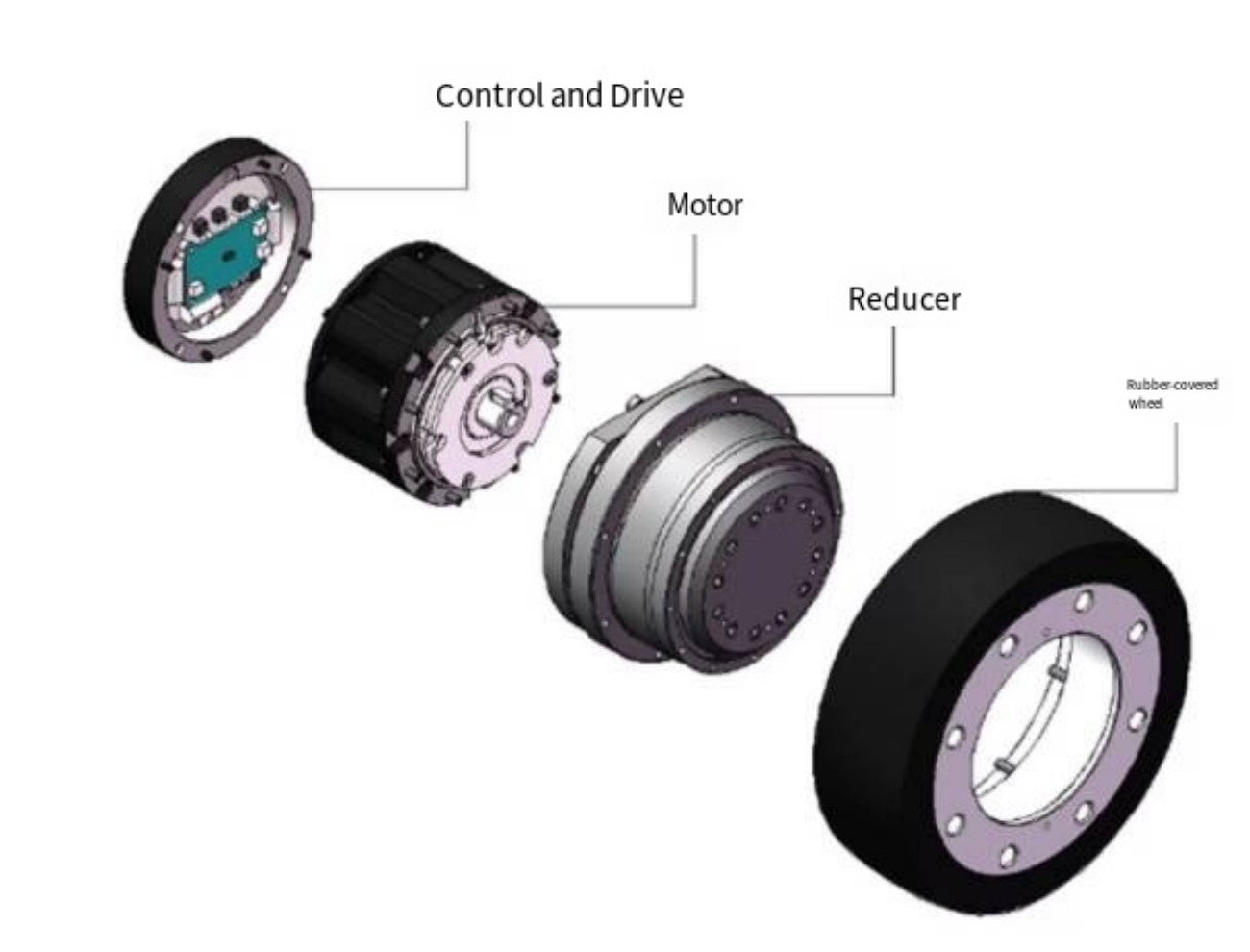

TTBOT LP6 Motor | Robot Servo Motor for Robotics Development detail image 2
▤ Technical Specifications ⌃
Parameter LP68 LP6
Module Model LP68 LP6
Supply Voltage 48VDC 48VDC
Rated Torque 23N.m 23N.m
Starting Torque 40N.m 40N.m
Peak Torque 50N.m 50N.m
Rated Speed (Linear Speed) 156rpm(1.2m/s) 156rpm(1.2m/s)
Peak Speed (Linear Speed) 218rpm(1.7m/s) 218rpm(1.7m/s)
Communication CAN CAN
Encoder 15-bit single-turn absolute 15-bit single-turn absolute
Protection Grade IP6X IP6X
Operating Noise ≤65dBA(@1m 156rpm) ≤65dBA(@1m 156rpm)
Weight 8.6kg 8.3kg
Operating Temperature 0~40°C 0~40°C
Motor Rated Current 10.2Arms 10.2Arms
Motor Peak Current 30Arms 30Arms
Motor Rated Speed 2500rpm 2500rpm
Motor Rated Torque 1.4N.m 1.4N.m
Back EMF Constant 9.06Vrms/Krpm 9.06Vrms/Krpm
Torque Coefficient 0.15N.m/Arms 0.15N.m/Arms
Motor Rotor Inertia 1.23×10^-4kg.m² 1.23×10^-4kg.m²
Insulation Class B B
Reduction Ratio 1:16 1:16
Allowable Radial Load 8000N 8000N
Allowable Axial Load 2500N 2500N
Backlash ≤20arcmin ≤20arcmin
Brake Type Electromagnetic friction disc Electromagnetic friction disc
Brake Holding Torque ≥3.6N.m ≥3.6N.m
External Brake Release Voltage 48VDC(Max.5min) 48VDC(Max.5min)
Material Polyurethane (Black) Polyurethane (Black)
Wheel Diameter 152mm 152mm
Wheel Width 50mm 50mm
Antistatic Resistance 10^7-10^9 Ω 10^7-10^9 Ω
Cover Rubber Hardness Shore A 85±3 Shore A 85±3
