Leaderdrive

Leaderdrive LHSG-I Strain Wave Gear | Precision Gearbox for Robot Joint Applications

  • Precision strain wave gear for robotic joints and compact actuator modules.
  • Designed for robot arms, automation equipment, and high-precision motion systems.
  • Leaderdrive gearbox platform for robotics developers, labs, and industrial builders.
$950
Version
Model No
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Leaderdrive LHSG-I Strain Wave Gear product overview, specifications, and application reference manual ▶ Leaderdrive LHSG-I Strain Wave Gear installation dimension drawing for mechanical integration ▶ Leaderdrive LHSG-I Strain Wave Gear 3D CAD model for mechanical design and integration ▶

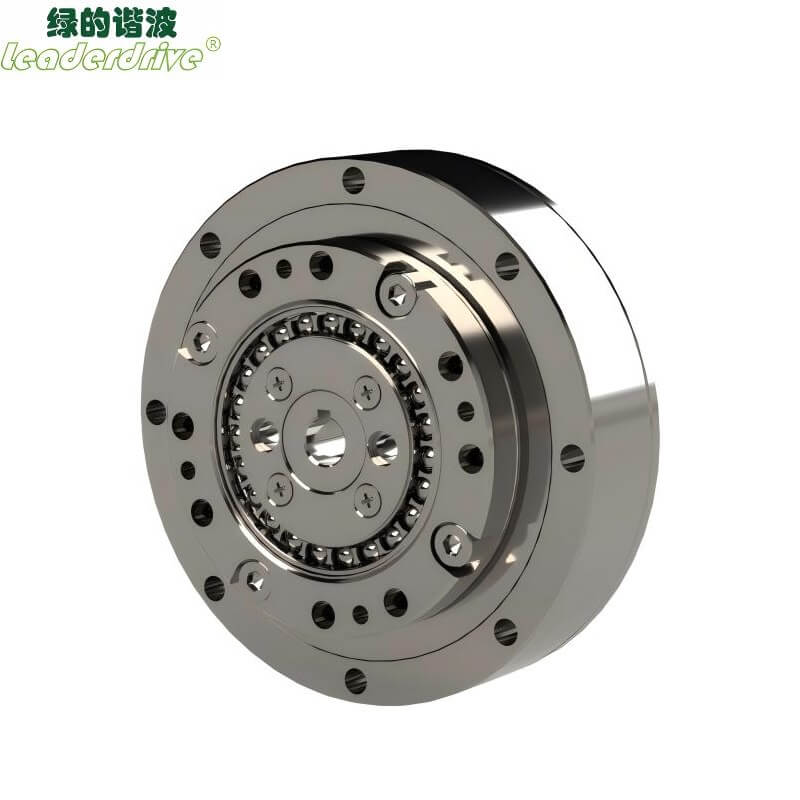

Leaderdrive LHSG-I Strain Wave Gear

The Leaderdrive LHSG-I Strain Wave Gear is a precision strain wave gear for robotic joints, compact gearboxes, robot actuators, and automation equipment. It is suitable for robotics developers, research labs, and engineering teams building high-precision motion systems.

Features

  • **Precision gearbox platform:** Designed for compact robotic joint and actuator applications.
  • **Robotics integration:** Suitable for robot arms, automation equipment, and motion modules.
  • **Engineering-focused:** Built for research, prototyping, and industrial automation builders.
  • **Source-backed listing:** Product data is extracted from the reference product page.
▤ Technical Specifications ⌃
Item Model No Reduction Ratio Rated Torque at 2000 r/min (N.m) Allowable Peak Torque at Start and Stop (N.m) Allowable Average Torque (N.m) Allowable Maximun Mementary Torque (N.m) Maximun Input Speed (r/min) Allowable Average Input Speed (r/min) Back Lash (Arcsc) Weight (Kg) Design Life (Hour)
14 50 80 100 6.6 9.6 9.6 23 29 34 8.6 13.5 13.5 43 57 66 8000 3500 ≤10 ≤10 ≤10 0.38 10000 15000 15000
17 50 80 100 120 19.8 27.5 30 30 42 53 66 66 32 33 49 49 86 108 134 107 7000 3500 ≤10 ≤10 ≤10 ≤10 0.56 10000 15000 15000 15000
20 50 80 100 120 160 32 42 50 50 50 69 91 102 108 113 42 58 61 61 61 121 158 182 182 182 6000 3500 ≤10 ≤10 ≤10 ≤10 ≤10 0.76 10000 15000 15000 15000 15000
25 50 80 100 120 160 48 78 84 84 84 121 169 194 207 217 68.5 107 133 133 133 230 315 351 376 388 5500 3500 ≤10 ≤10 ≤10 ≤10 ≤10 1.24 10000 15000 15000 15000 15000
32 50 80 100 120 160 94 146 169 169 169 267 376 411 436 459 133 206 267 267 267 472 702 800 848 848 4500 3500 ≤10 ≤10 ≤10 ≤10 ≤10 2.6 10000 15000 15000 15000 15000
40 50 80 100 120 160 169 255 328 363 363 497 641 702 762 800 242 351 460 557 557 847 1210 1334 1458 1458 4000 3000 ≤10 ≤10 ≤10 ≤10 ≤10 5.0 10000 15000 15000 15000 15000
50 80 100 120 160 459 580 654 654 1163 1211 1334 1458 642 823 1005 1042 2297 2545 2545 3025 3000 2500 ≤10 ≤10 ≤10 ≤10 9.5 15000 15000 15000 15000
58 80 100 120 160 678 860 921 921 1828 1964 2124 2722 951 1309 1470 1494 3026 3927 4113 4236 3000 2200 ≤10 ≤10 ≤10 ≤10 13.6 15000 15000 15000 15000
