Fashion Star

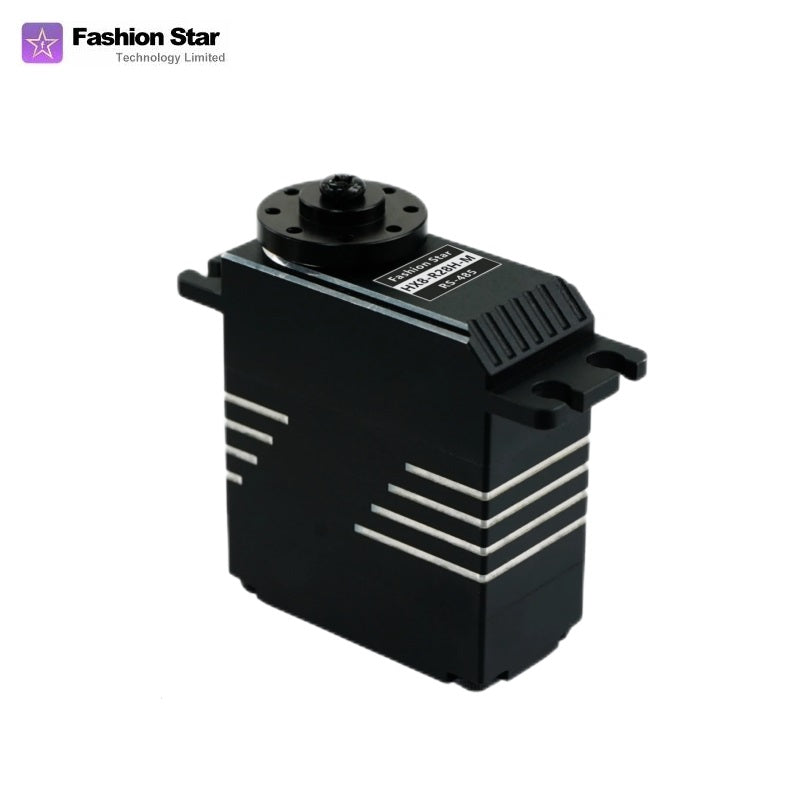

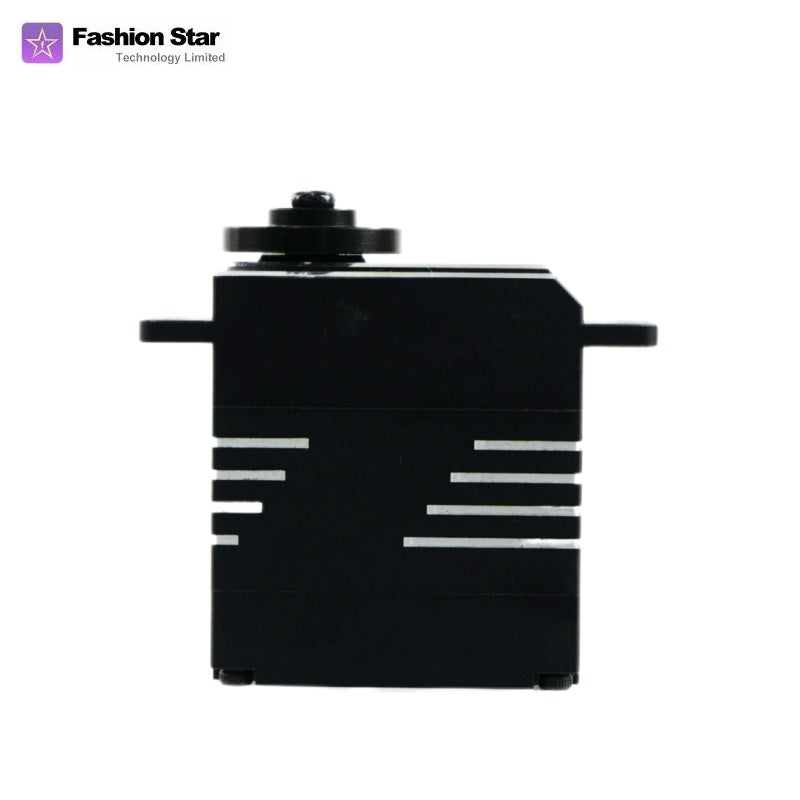

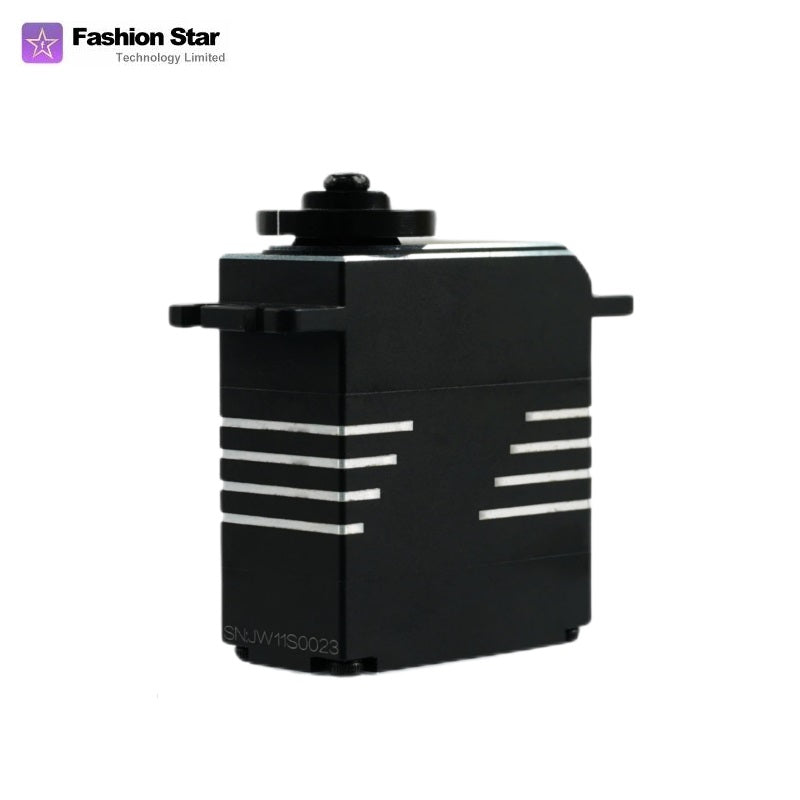

Fashion Star HX8-R28H-M RS485 Bus Servo

  • Fashion Star servo for robot joints, compact mechanisms, and motion-control development.
  • Suitable for robotics developers, education labs, automation prototypes, and embedded hardware projects.
  • Designed for practical integration in robot actuators, pan-tilt units, grippers, and test platforms.
  • Supports servo selection for robotics builds where compact control and reliable motion matter.
$165
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Fashion Star HX8-R28H-M RS485 Bus Servo CAD model for mechanical integration.stp ▶ Fashion Star HX8-R28H-M RS485 Bus Servo dimension drawing for installation reference.pdf ▶

Fashion Star HX8-R28H-M RS485 Bus Servo

The Fashion Star HX8-R28H-M RS485 Bus Servo is a Fashion Star servo for robotics development, compact automation hardware, education labs, and motion-control prototypes.

Features

  • **Servo integration:** Suitable for robot joints, compact mechanisms, grippers, and pan-tilt hardware.
  • **Robotics development:** Useful for engineering teams, makers, labs, and automation projects.
  • **Motion-control component:** Supports practical servo selection across Fashion Star configurations.
  • **Component-focused design:** Built for compact robot hardware and embedded motion applications.

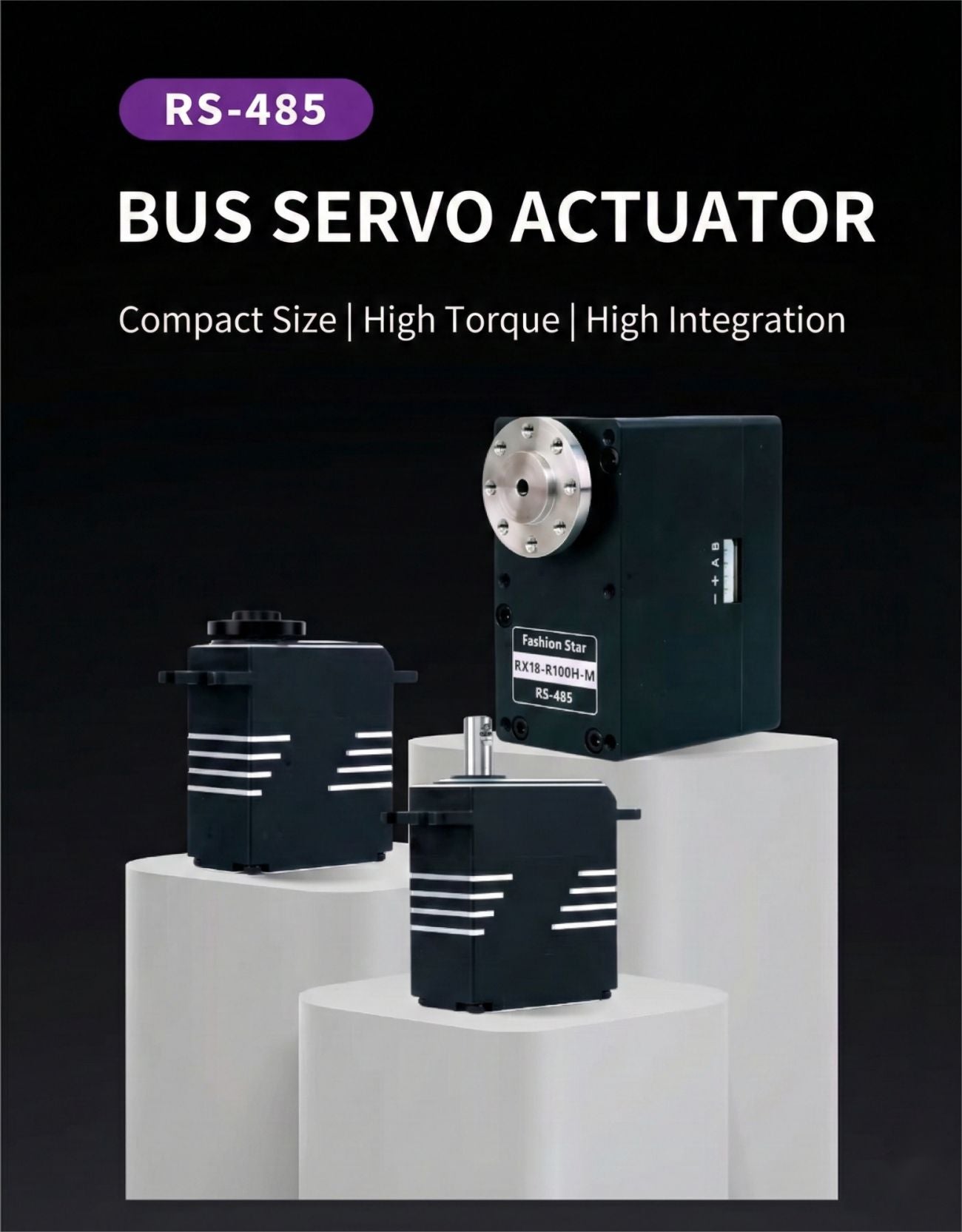

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 1

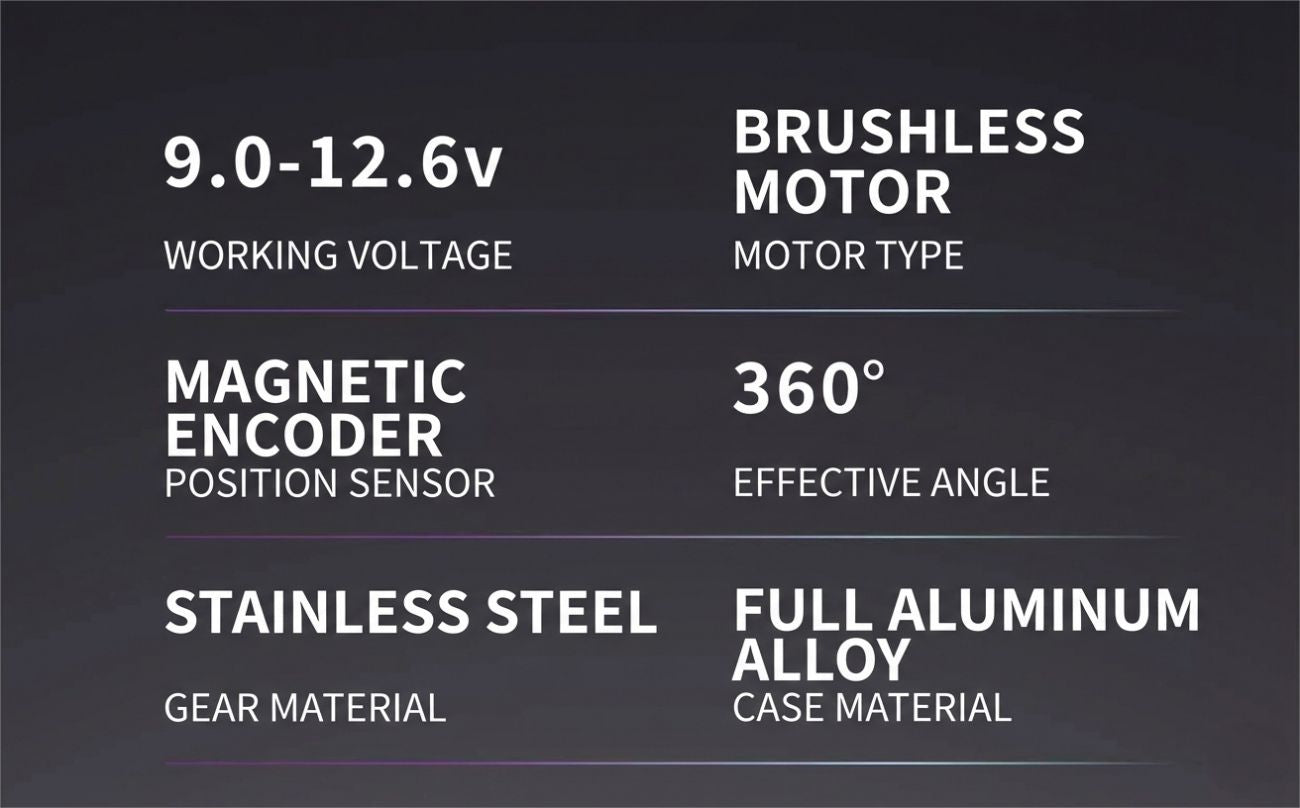

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 2

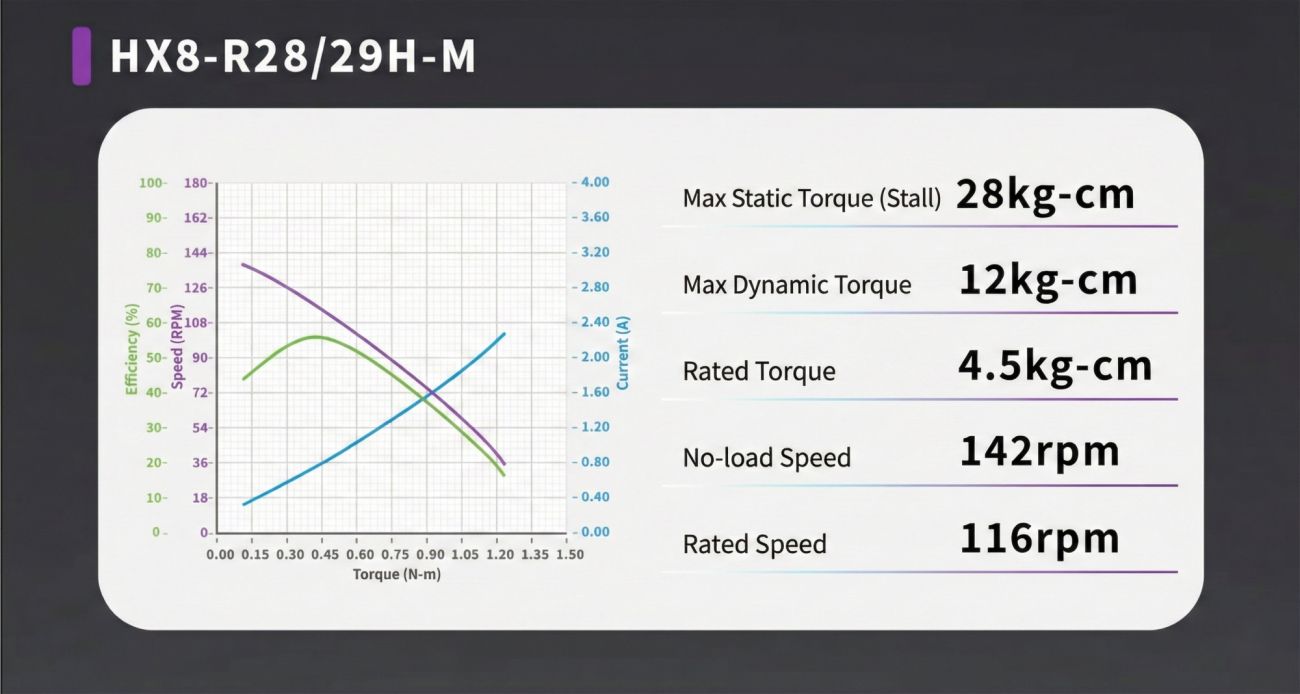

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 3
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 4

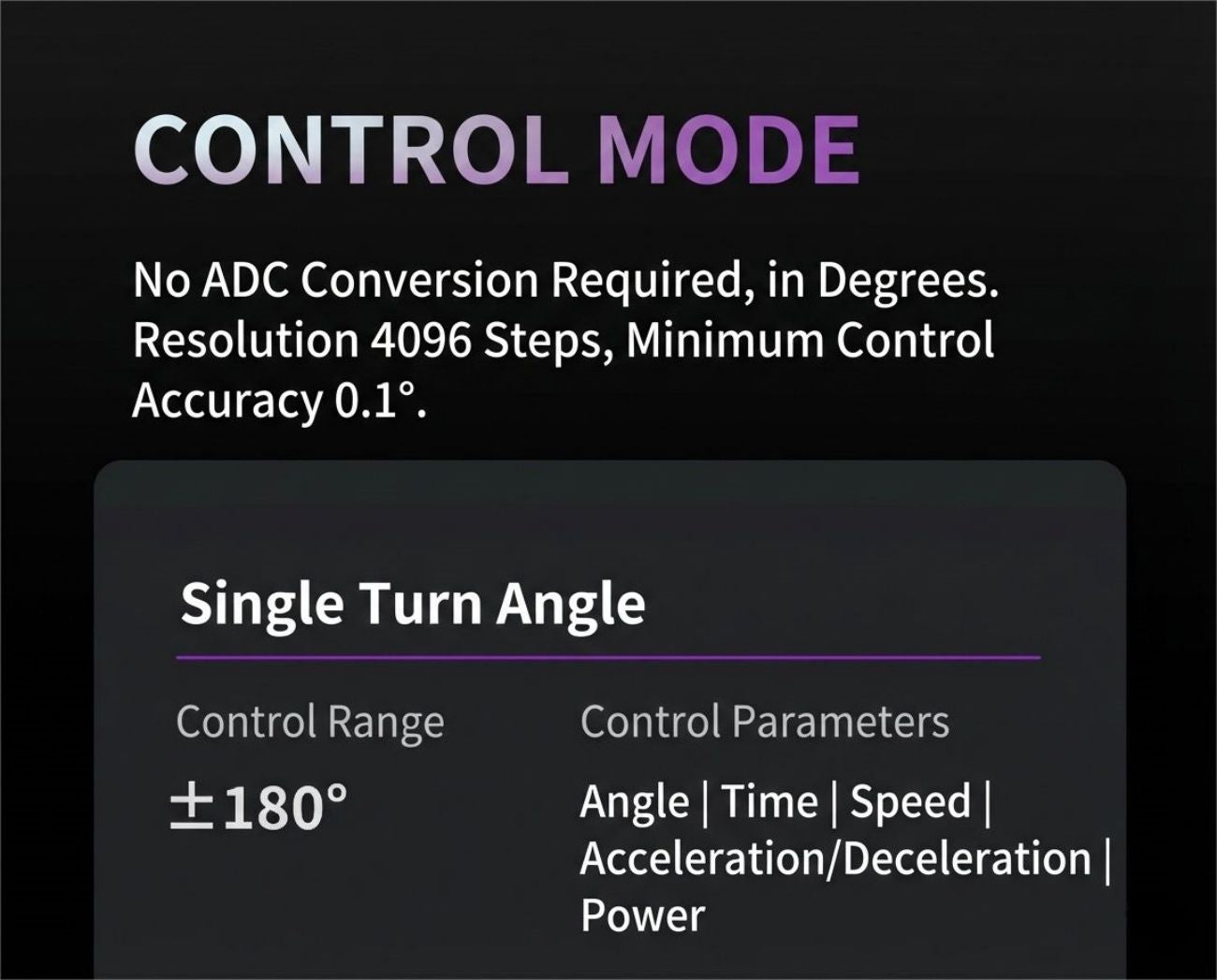

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 5
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 6
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 7

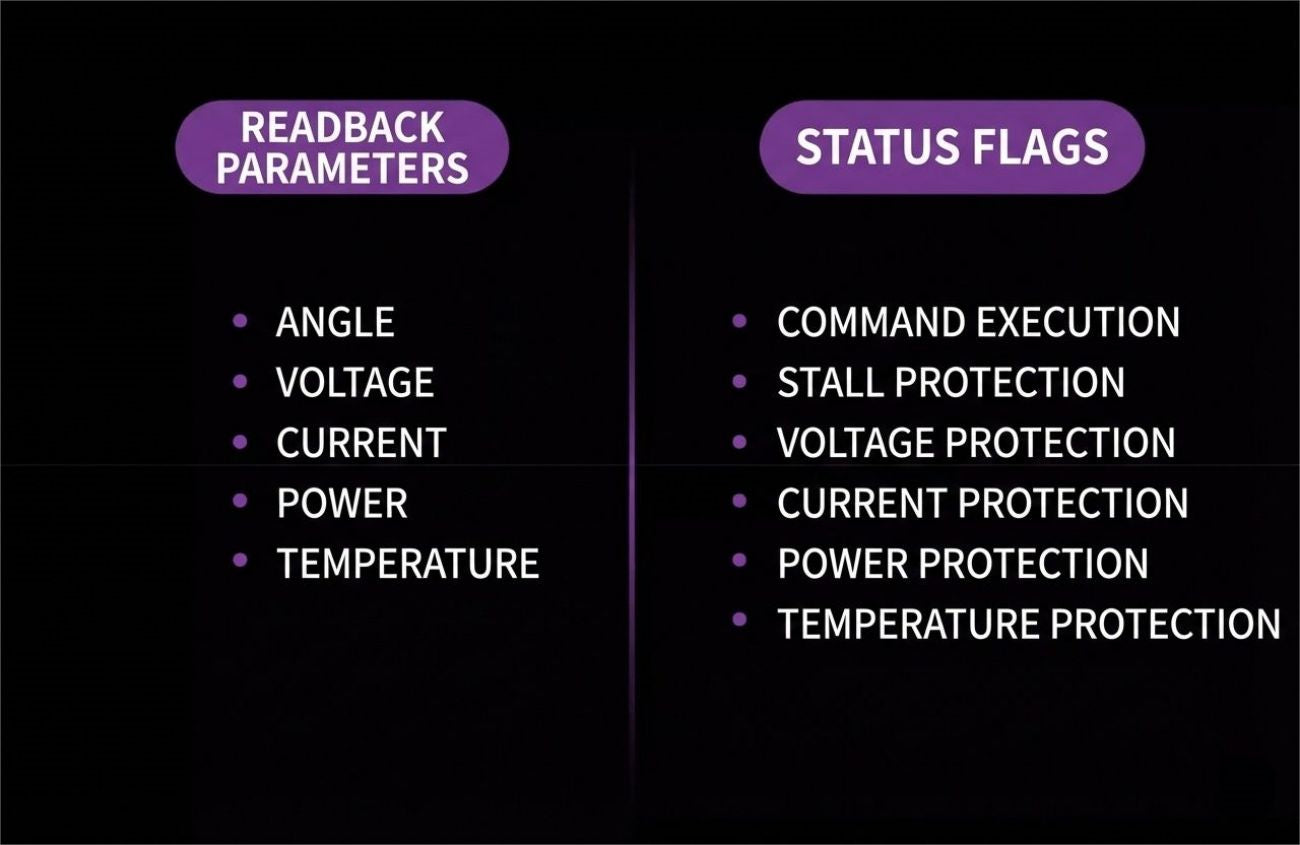

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 8

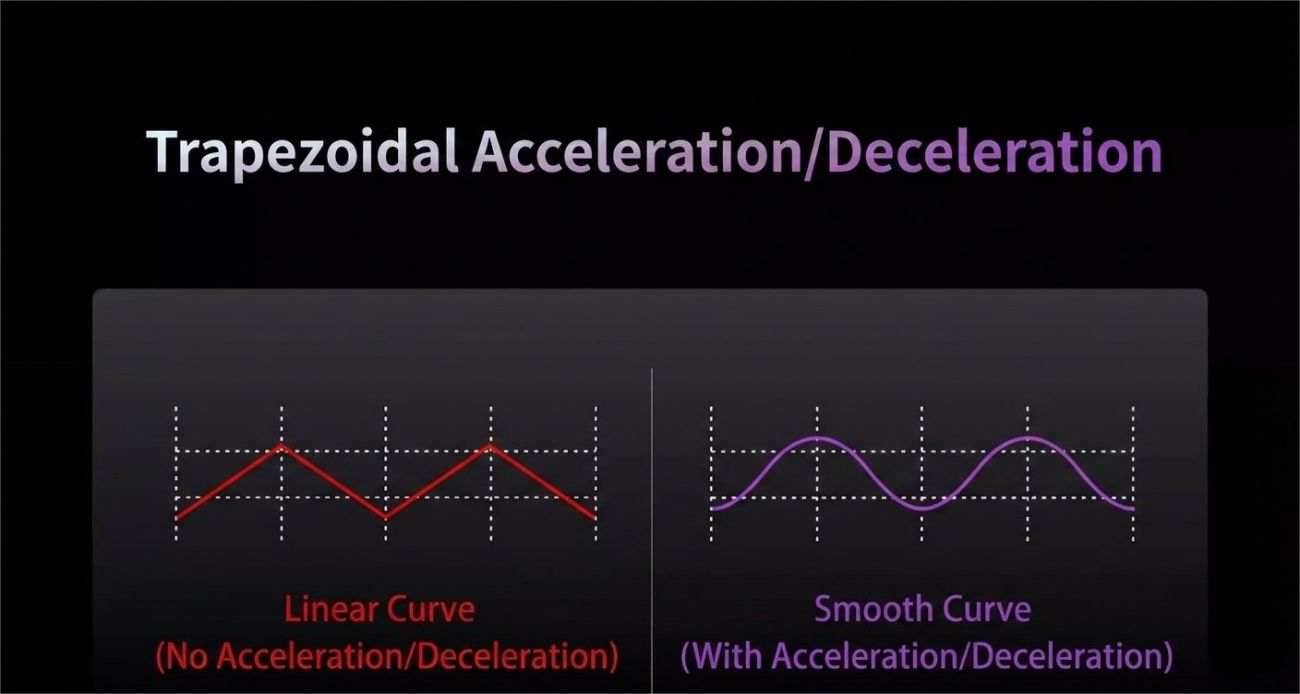

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 9

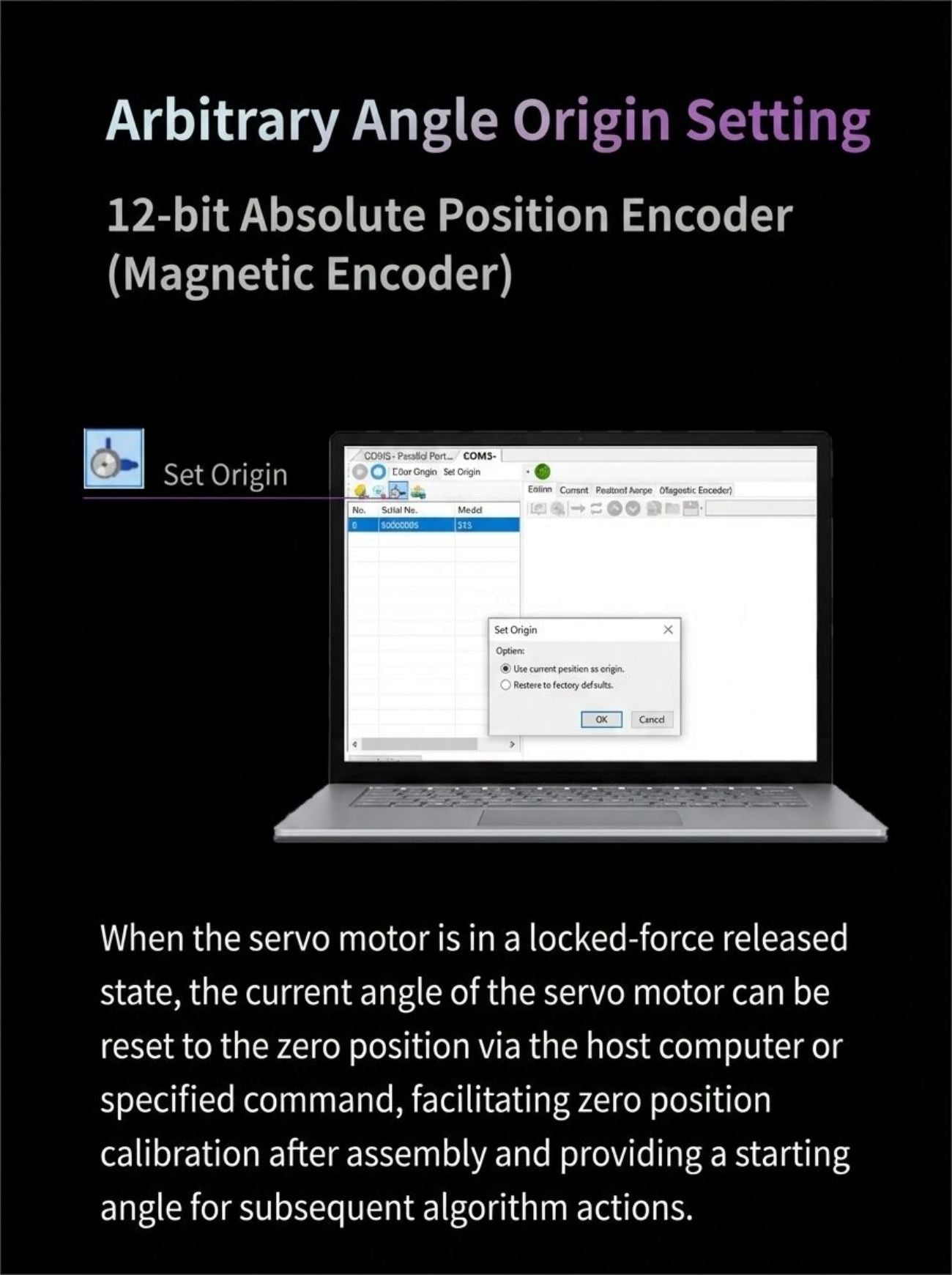

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 10

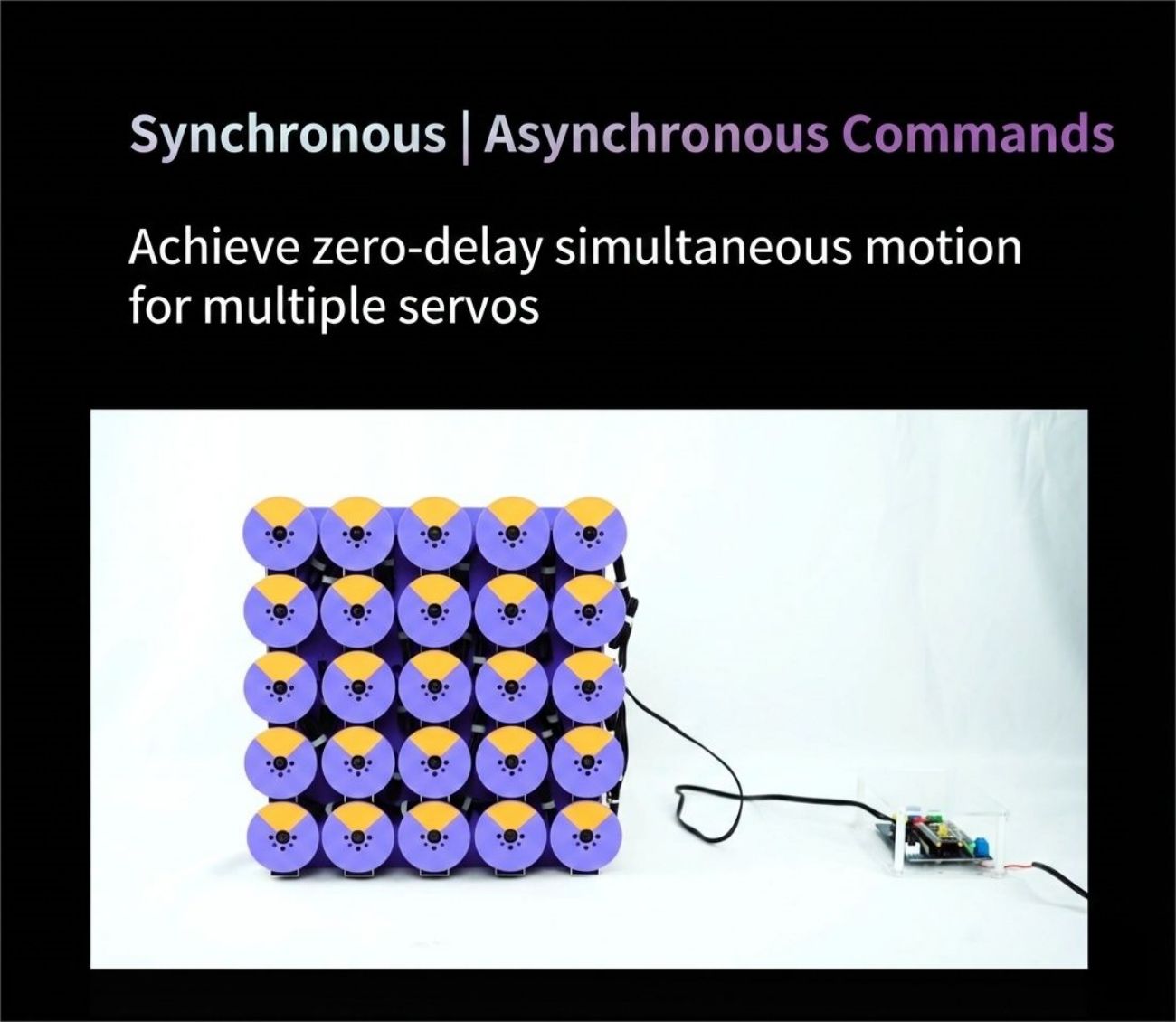

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 11
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 12
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 13
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 14
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 15

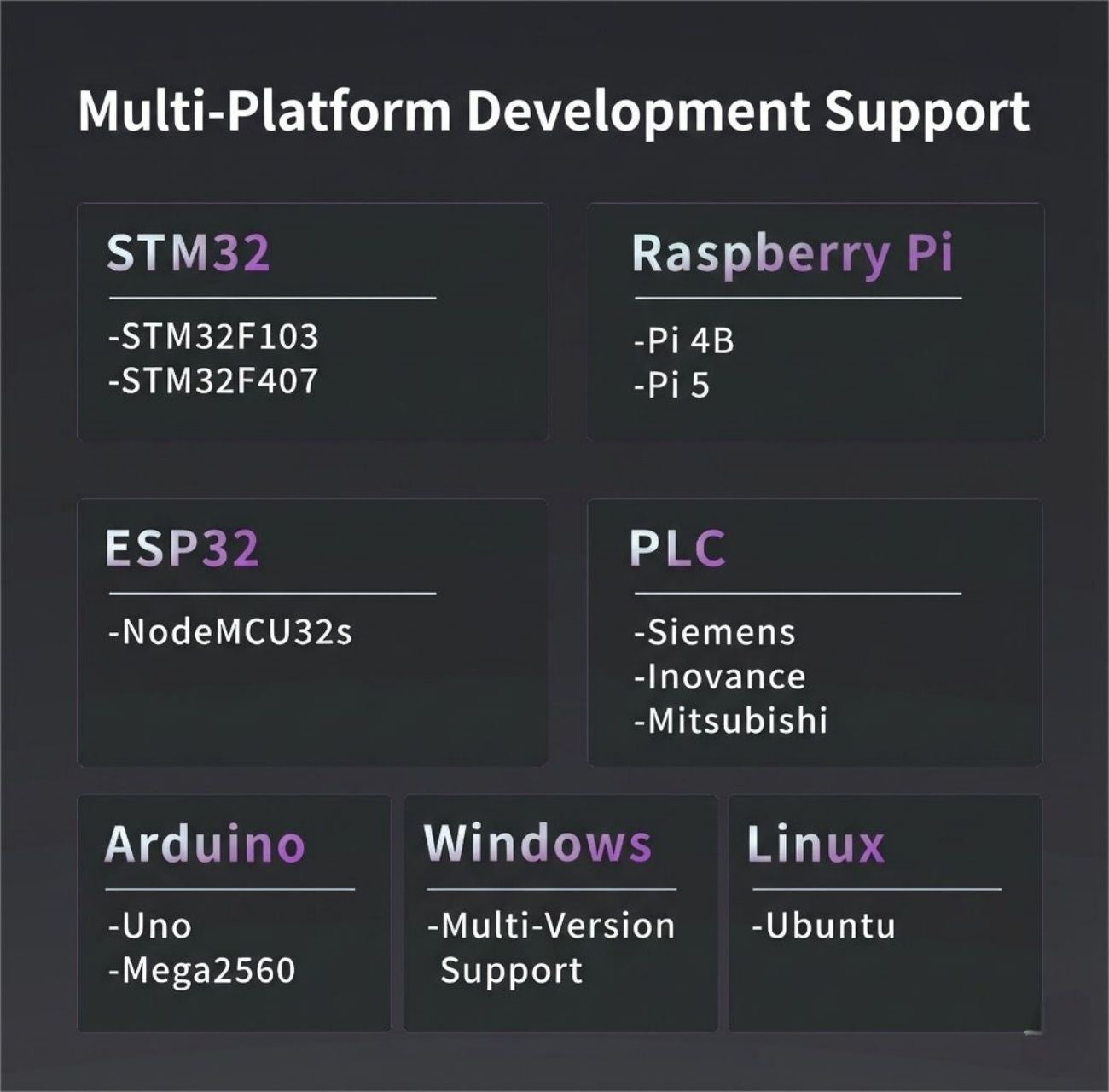

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 16
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 17

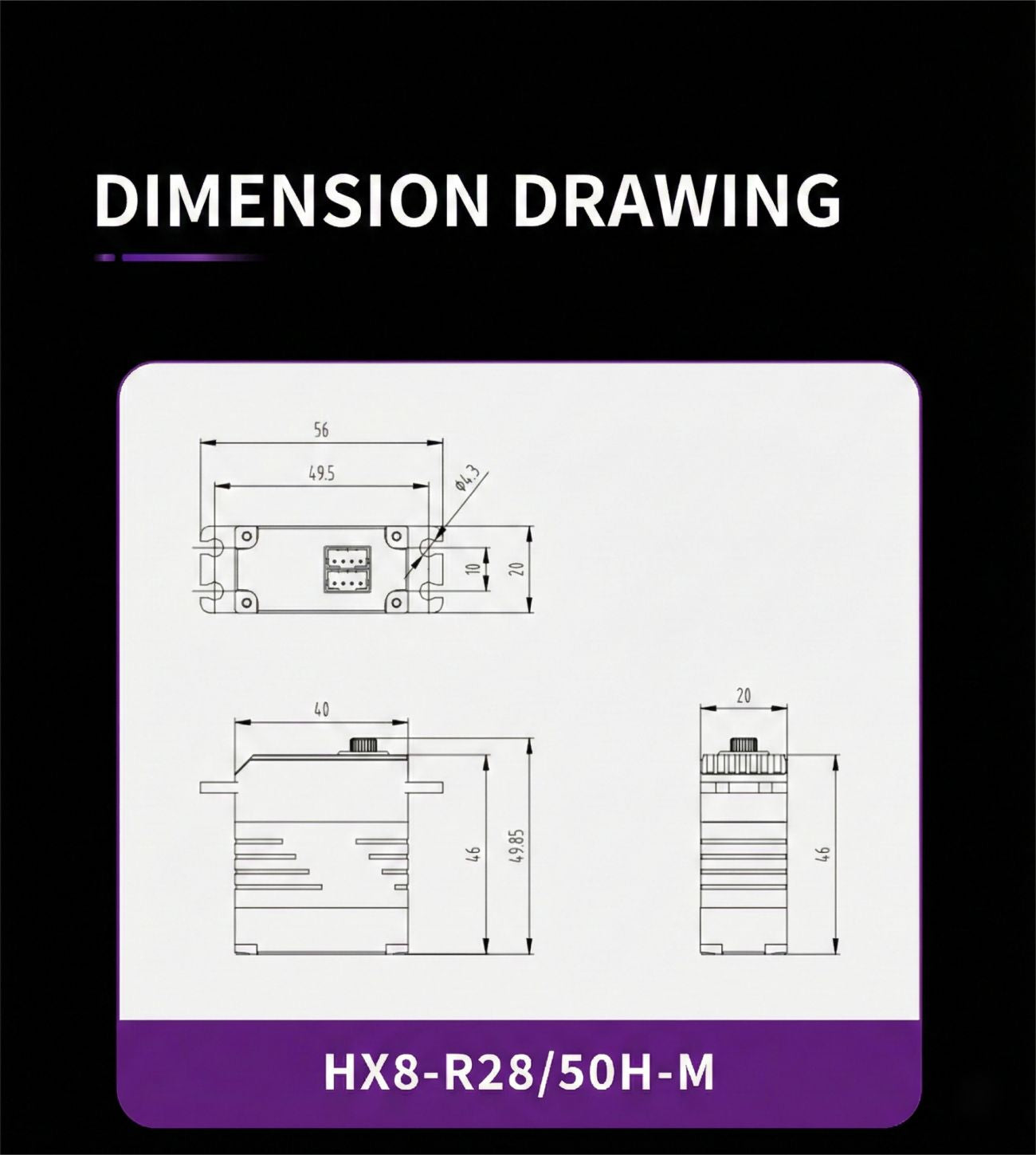

Fashion Star HX8-R28H-M RS485 Bus Servo detail image 18
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 19
Fashion Star HX8-R28H-M RS485 Bus Servo detail image 20
▤ Technical Specifications ⌃
Parameter Value Value 3
HX8-R28H-M HX8-R28W-M
Working Voltage 9.0-12.6V 24V
Motor Type Brushless Motor Brushless Motor
Stall Torque 28kg-cm (2.74N·m) 28kg-cm (2.74N·m)
No-load Speed 142.0rpm (0.070sec@60°) 142.0rpm (0.070sec@60°)
Working Mode Single-turn Angle Mode Multi-turn Angle Mode Wheel Mode Damping Mode Single-turn Angle Mode Multi-turn Angle Mode Wheel Mode Damping Mode
Protection Mode Voltage Protection Stall Protection Power Protection Temperature Protection Voltage Protection Stall Protection Power Protection Temperature Protection
Working Temperature -10 ~ 60°C -10 ~ 60°C
Stall Current 5.5A 3A
No-load Current 300mA 300mA
Standby Current 40mA 40mA
Position Sensor 12bit Non-contact Encoder (Magnetic Encoder) 12bit Non-contact Encoder (Magnetic Encoder)
Effective Angle 360° 360°
Resolution 4096 [steps/360°] 4096 [steps/360°]
Processor 32bit MCU 32bit MCU
Feedback Signal Voltage | Current | Temperature | Angle | Power Voltage | Current | Temperature | Angle | Power
Communication Protocol RS-485 RS-485
Baud Rate 9600~1Mbps 9600~1Mbps
ID Range 0~254 0~254
Gear Material Full Metal Stainless Steel Combination Full Metal Stainless Steel Combination
Gear Ratio 173:1 173:1
Output Gear Stainless Steel / Ø6mm / 25T Stainless Steel / Ø6mm / 25T
Shell Material Full Aluminum Alloy Body Full Aluminum Alloy Body

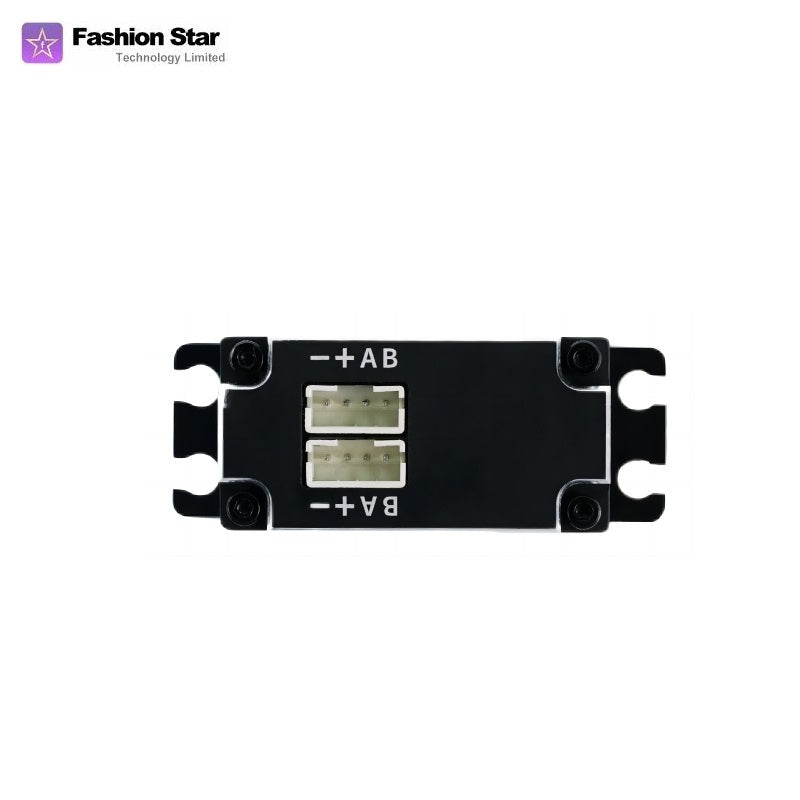

Interface Type PH2.0-4pin PH2.0-4pin
Appearance Single Shaft | Dual Shaft Single Shaft | Dual Shaft
Dimensions 40×20×46mm 40×20×46mm
Weight 95g 95g
