CmdRob

CmdRob M110 Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$770
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob M110 Motor dimension drawing for installation reference.pdf ▶ CmdRob M110 Motor dimension drawing for installation reference.pdf ▶ CmdRob M110 Motor CAD model for mechanical integration.stp ▶ CmdRob M110 Motor CAD model for mechanical integration.stp ▶

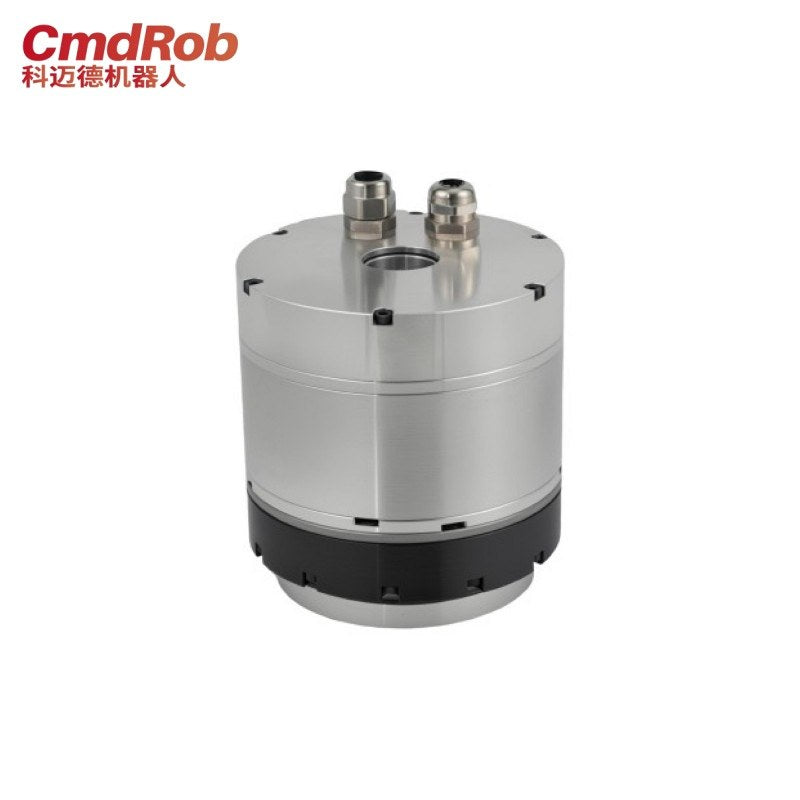

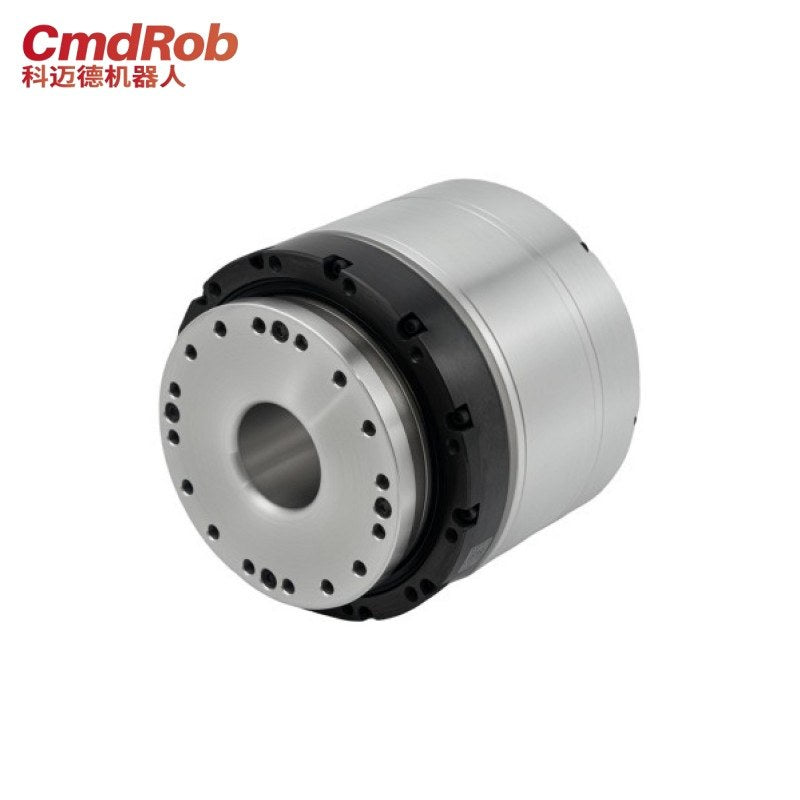

CmdRob M110 Motor

The CmdRob M110 Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

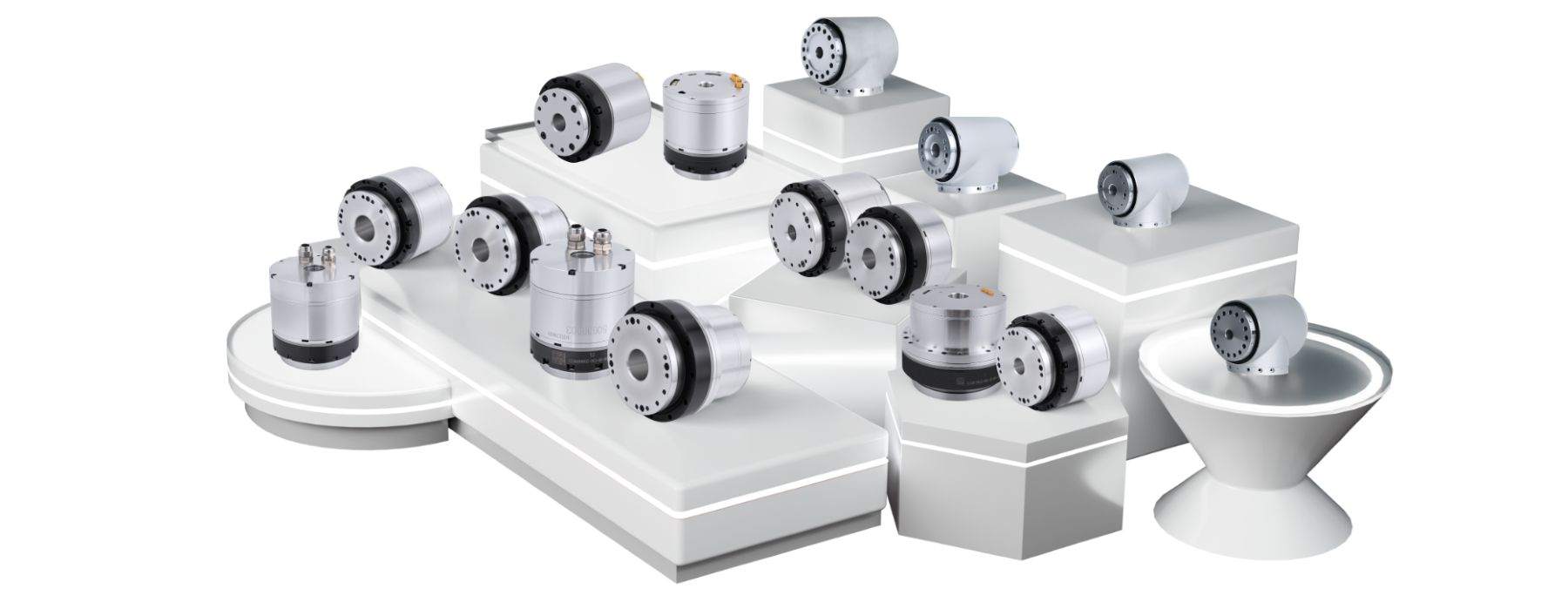

CmdRob M110 Motor detail image 1

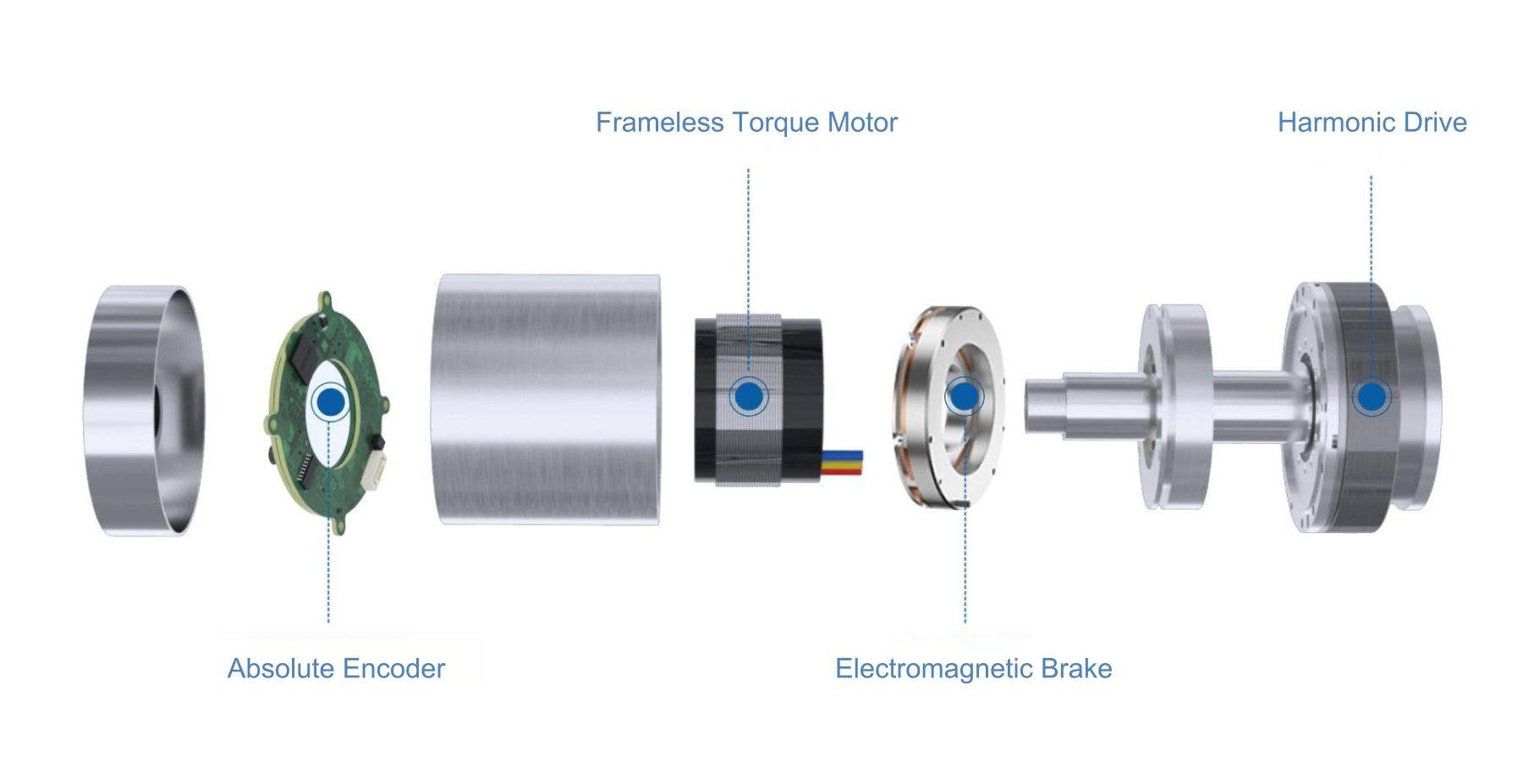

CmdRob M110 Motor detail image 2

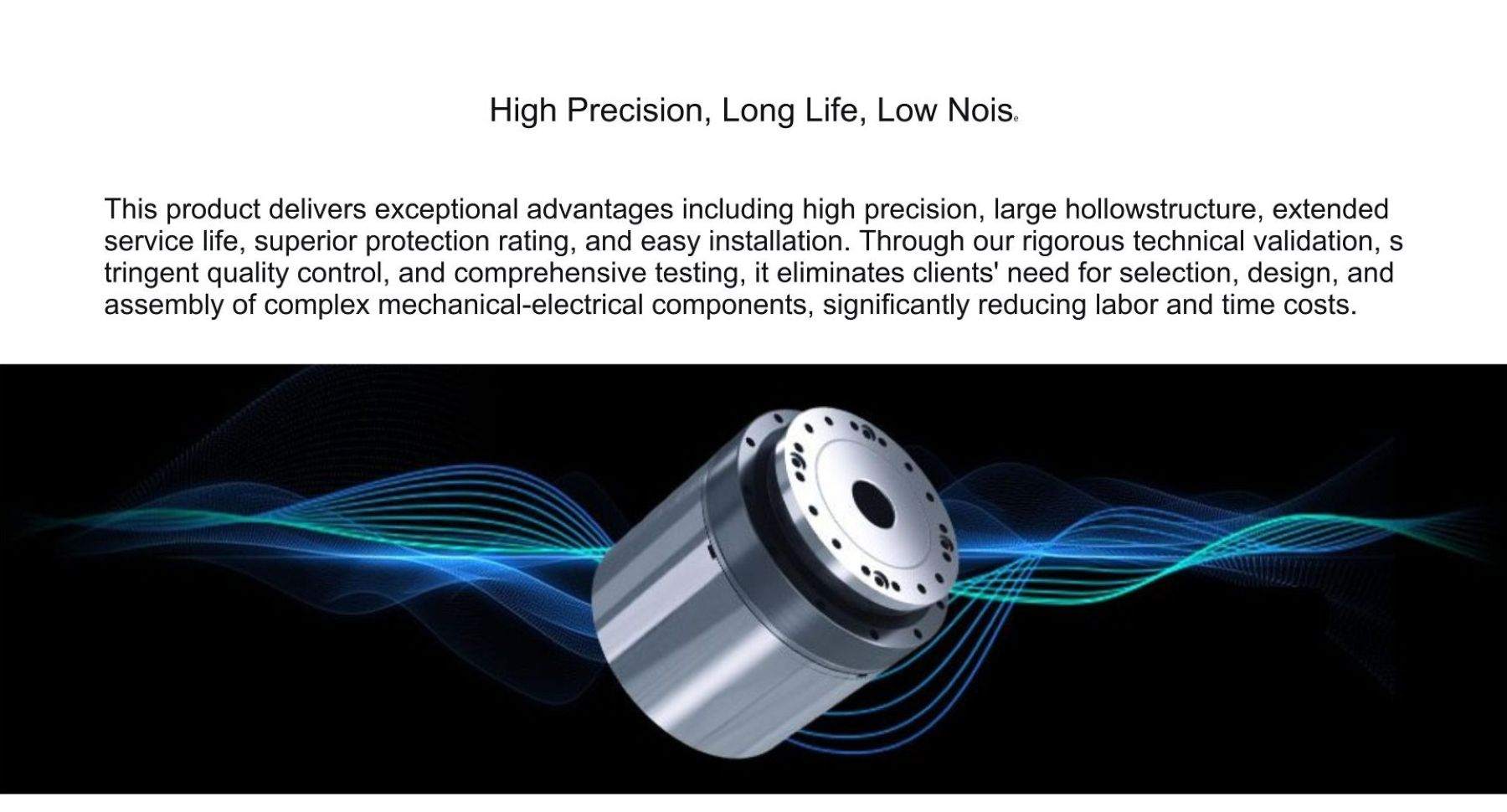

CmdRob M110 Motor detail image 3

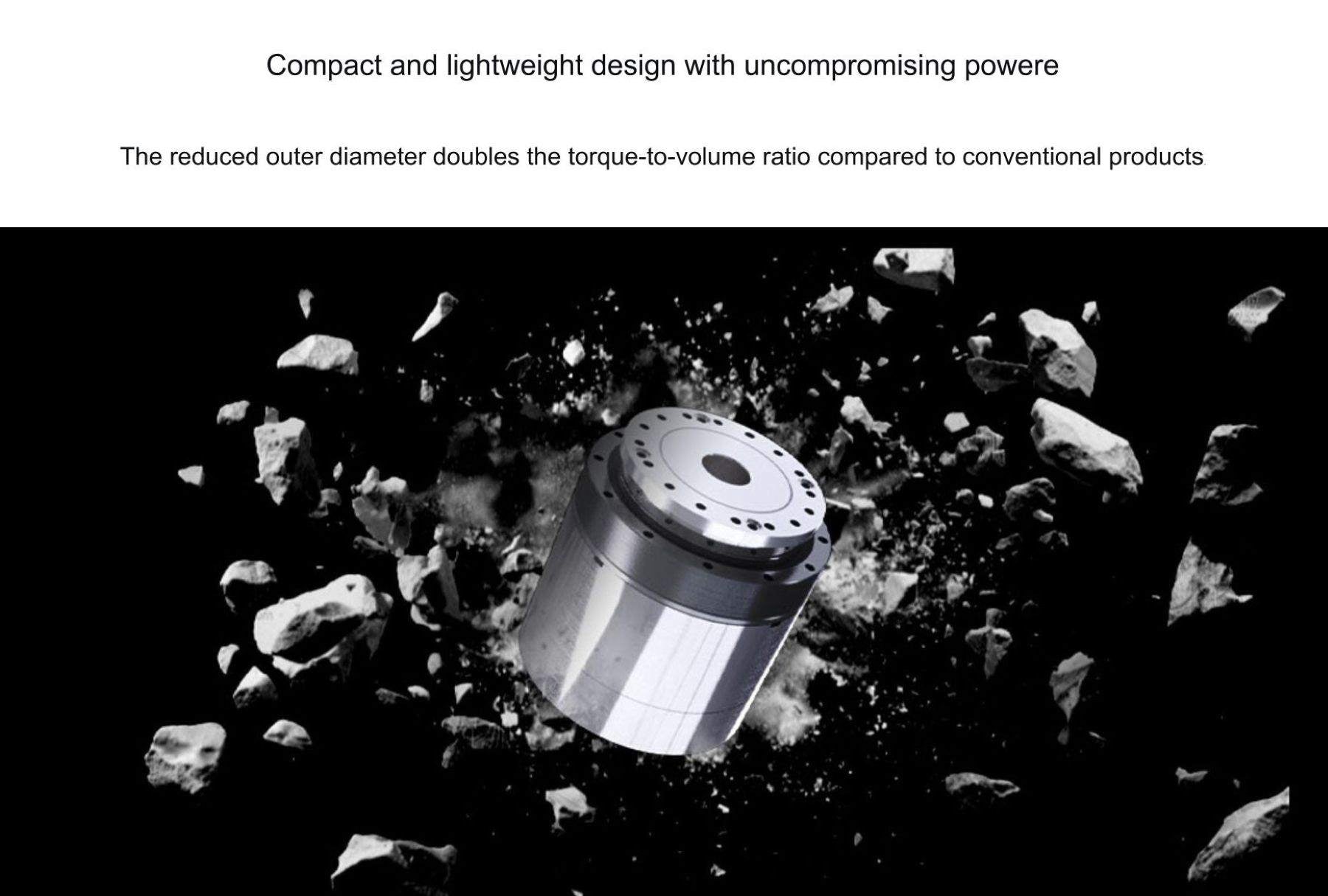

CmdRob M110 Motor detail image 4
CmdRob M110 Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
M110: 51 M110: 81 M110: 101 M110: 121
Input Voltage
M110: 220 (±10%)V M110: 220 (±10%)V M110: 220 (±10%)V M110: 220 (±10%)V
Ultimate Torque
M110: 242N.m M110: 332N.m M110: 369N.m M110: 395N.m
24.69kgf.m
M110: 33.88kgf.m M110: 37.65kgf.m M110: 40.30kgf.m
Average Load Torque
M110: 72N.m M110: 113N.m M110: 140N.m M110: 140N.m
7.34kgf.m
M110: 11.5kgf.m M110: 14.29kgf.m M110: 14.29kgf.m
Start-Stop Peak Torque
M110: 127N.m M110: 178N.m M110: 204N.m M110: 217N.m
12.95kgf.m
M110: 18.16kgf.m M110: 20.82kgf.m M110: 22.14kgf.m
Maximum Speed
M110: 110r/min M110: 70r/min M110: 56r/min M110: 47r/min
Rated Speed
M110: 60r/min M110: 37r/min M110: 30r/min M110: 25r/min
Motor Torque Constant
M110: 0.44N·m/A M110: 0.44N·m/A M110: 0.44N·m/A M110: 0.44N·m/A
0.045kgf·m/A
M110: 0.045kgf·m/A M110: 0.045kgf·m/A M110: 0.045kgf·m/A
Maximum Current
M110: 8.15A M110: 7.19A M110: 6.61A M110: 5.87A
Allowable Continuous Current
M110: 4.62A M110: 4.57A M110: 4.54A M110: 5.87A
Back EMF Constant
M110: 27.51V/krpm M110: 27.51V/krpm M110: 27.51V/krpm M110: 27.51V/krpm
Phase Resistance (20°C)
M110: 0.51Ω M110: 0.51Ω M110: 0.51Ω M110: 0.51Ω
Phase Inductance
M110: 1.75mH M110: 1.75mH M110: 1.75mH M110: 1.75mH
Moment of Inertia
M110: 280(kg·mm²) M110: 280(kg·mm²) M110: 280(kg·mm²) M110: 280(kg·mm²)
280*10^-4(kgf·cm·s²)
M110: 280*10^-4(kgf·cm·s²) M110: 280*10^-4(kgf·cm·s²) M110: 280*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
M110: 20arc-sec M110: 20arc-sec M110: 20arc-sec M110: 20arc-sec
Positioning Accuracy(2)
M110: 60arc-sec M110: 60arc-sec M110: 60arc-sec M110: 60arc-sec
Encoder Communication Protocol
M110: BISS / TAMAGAWA M110: BISS / TAMAGAWA M110: BISS / TAMAGAWA M110: BISS / TAMAGAWA
Encoder Communication Interface
M110: BISS-C / TAMAGAWA M110: BISS-C / TAMAGAWA M110: BISS-C / TAMAGAWA M110: BISS-C / TAMAGAWA
Encoder Resolution(Single-turn)
M110: 17-bit (131,072 pulses/rev) M110: 17-bit (131,072 pulses/rev) M110: 17-bit (131,072 pulses/rev) M110: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
M110: 16-bit (-32,768 to +32,767 revs) M110: 16-bit (-32,768 to +32,767 revs) M110: 16-bit (-32,768 to +32,767 revs) M110: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
M110: 6,684,672pulses/rev M110: 10,616,832pulses/rev M110: 13,238,272pulses/rev M110: 15,859,712pulses/rev
Mass
M110: 3.5 KG M110: 3.5 KG M110: 3.5 KG M110: 3.5 KG
Ambient Environmental Conditions
M110: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M110: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M110: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M110: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
M110: 10000 M110: 15000 M110: 15000 M110: 15000
Motor Insulation
M110: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M110: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M110: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M110: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
M110: Omnidirectional Mounting M110: Omnidirectional Mounting M110: Omnidirectional Mounting M110: Omnidirectional Mounting
Model
M110: M110 M110: M110 M110: M110 M110: M110
