HITBOT

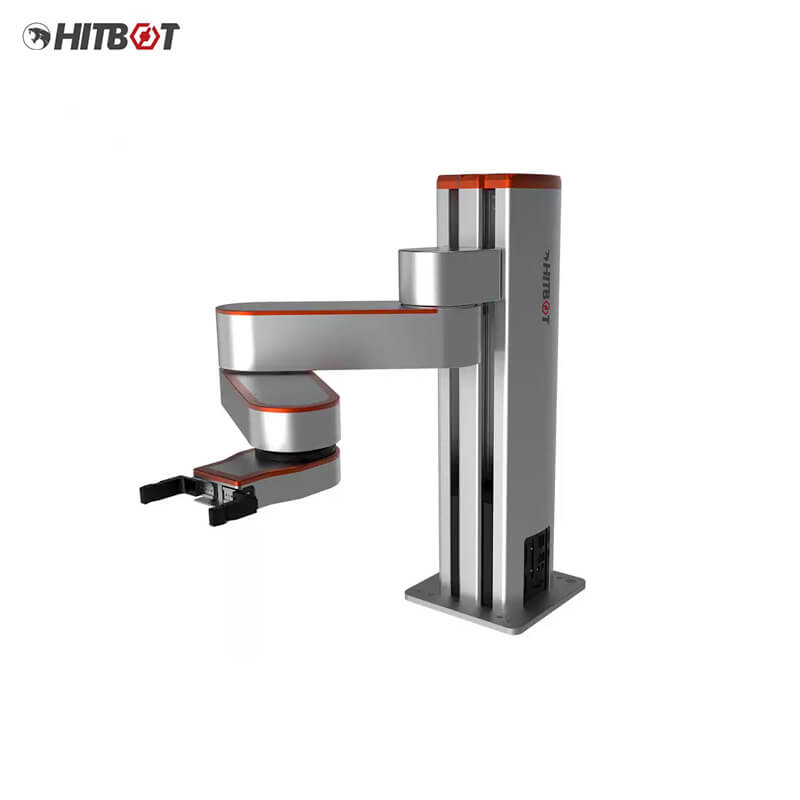

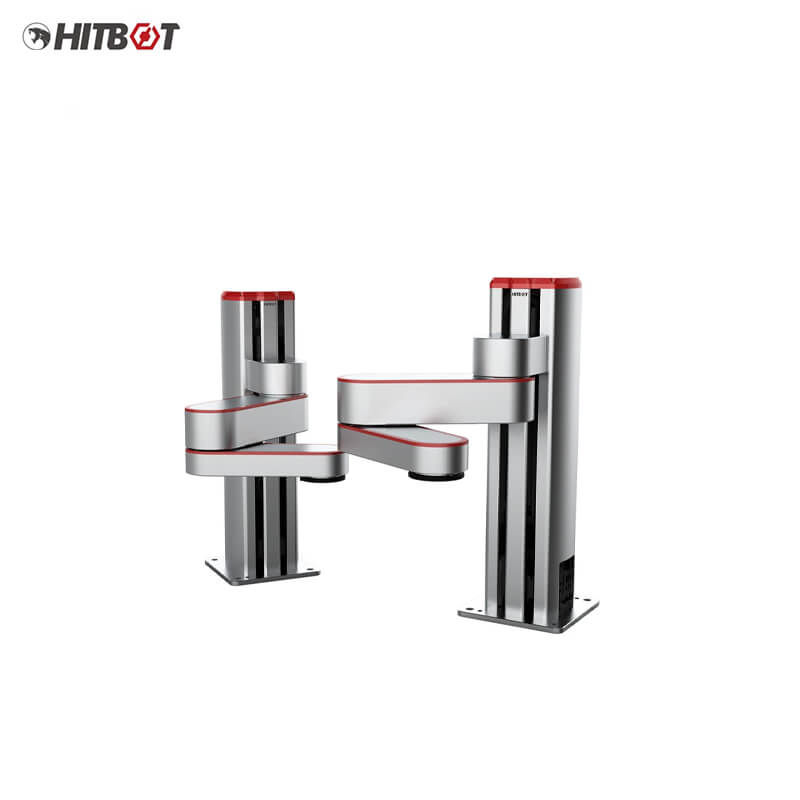

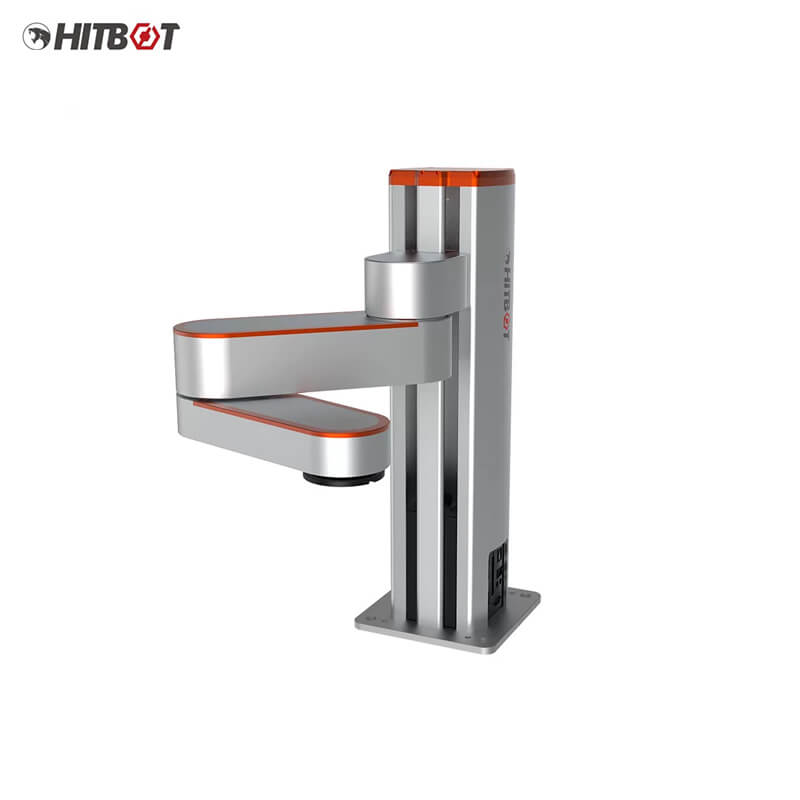

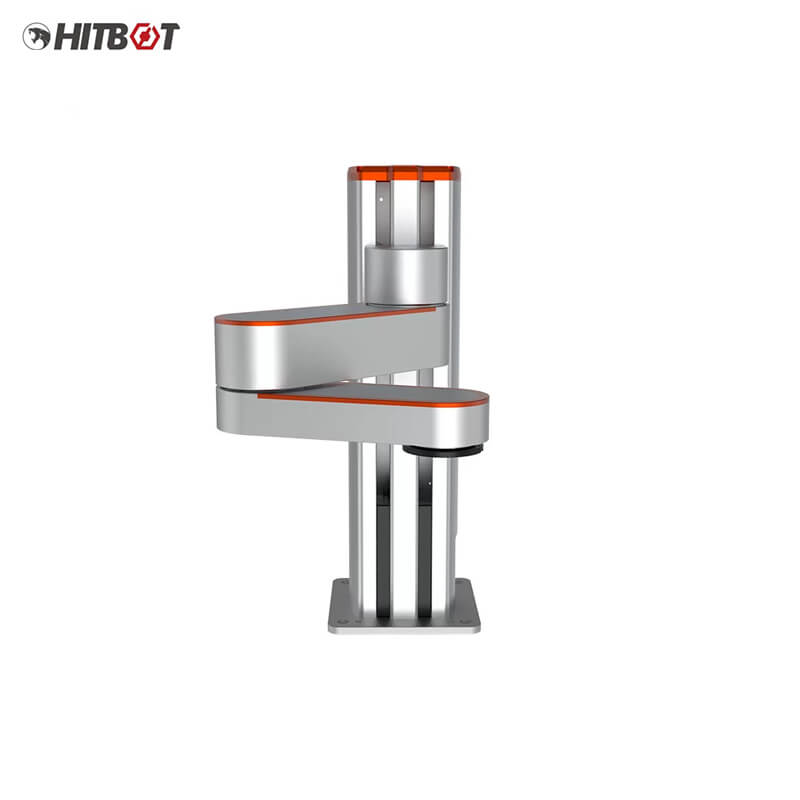

HITBOT Z-Arm 2442 Robotic Arm

  • HITBOT Z-Arm 2442 Robotic Arm for robot arm development, automation, and research applications.
  • Suitable for education labs, engineering teams, robotics developers, and compact automation projects.
  • Supports practical use in manipulation, testing, training, and robot hardware integration workflows.
  • Designed as a component-focused robotic arm platform for prototyping and applied robotics systems.
$5,700
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

HITBOT Z-Arm 2442 Robotic Arm product documentation for robotics integration.pdf ▶ HITBOT Z-Arm 2442 Robotic Arm CAD model for mechanical integration.stp ▶

HITBOT Z-Arm 2442 Robotic Arm

The HITBOT Z-Arm 2442 Robotic Arm is a HITBOT robotic arm for robotics research, education labs, compact automation, and robot development projects.

Features

  • **Robotic arm integration:** Suitable for manipulation, automation testing, and applied robotics workflows.
  • **Research and education:** Useful for labs, universities, developers, and engineering teams.
  • **Compact automation:** Designed for practical robot arm deployment in space-conscious workcells.
  • **Component-focused design:** Built for teams selecting reliable robotic arm hardware for development.
HITBOT Z-Arm 2442 Robotic Arm
▤ PARAMETER ⌃
1-axis arm length
220mm
1-axis rotation angle
/
2-axis arm length
200mm
2-axis rotation angle
164°
Z-axis stroke
240mm (height customizable)
R-axis rotation range
±1080°
Linear speed
1255.45mm/s (1.5kg load) / 1023.79mm/s (2kg load)
Repeatability
±0.03mm
Standard payload
2kg
Max payload
3kg
Degrees of freedom (DOF)
4
Power supply
220V/110V 50-60Hz adapted to 24VDC, peak power 500W
Communication
Ethernet
Customizable Z-axis height
0.1m - 1m
Z-axis lead-through teaching
/
Electrical reserved interface
Standard: temperature panel straight-through small tube lower cover plate, 2 x 23mng (unshielded) wire; Optional: socket panel straight-through flange, 2 x 4 air tubes
Compatible HITBOT electric grippers
Z-EFG-8S / Z-EFG-12 / Z-EFG-20 / Z-EFG-20S / Z-EFG-30 / Z-EFG-50, fifth axis, 3D printing
Indicator light (breathing light)
/
Second arm body motion range
Standard: ±164°; Optional: 15-345°
Optional accessories
/
Operating environment
Temperature: 0-45°C, Relative humidity: 20-80% RH (non-condensing)
I/O, digital input (isolated)
9+3 + forearm expansion (8 in / 8 out: gripper dedicated port: pulse)
I/O, digital output (isolated)
9+3 + forearm expansion (8 in / 8 out: gripper dedicated port: pulse)
I/O, analog input (4-20mA)
/
I/O, analog output (4-20mA)
/
Overall height
596mm
Host weight
240mm stroke module weight approx. 19kg
Base dimensions
200mm × 200mm × 10mm
Base mounting hole spacing
160mm × 160mm, with four M8×20 screws
Collision detection
/
Lead-through teaching
/
Emergency stop
/
