PY TECHNOLOGY

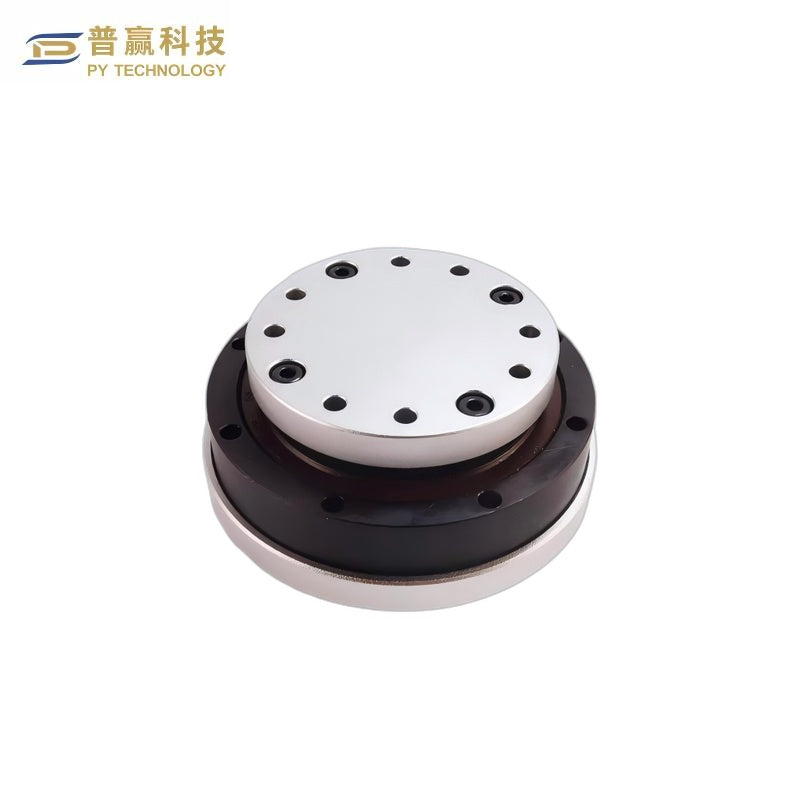

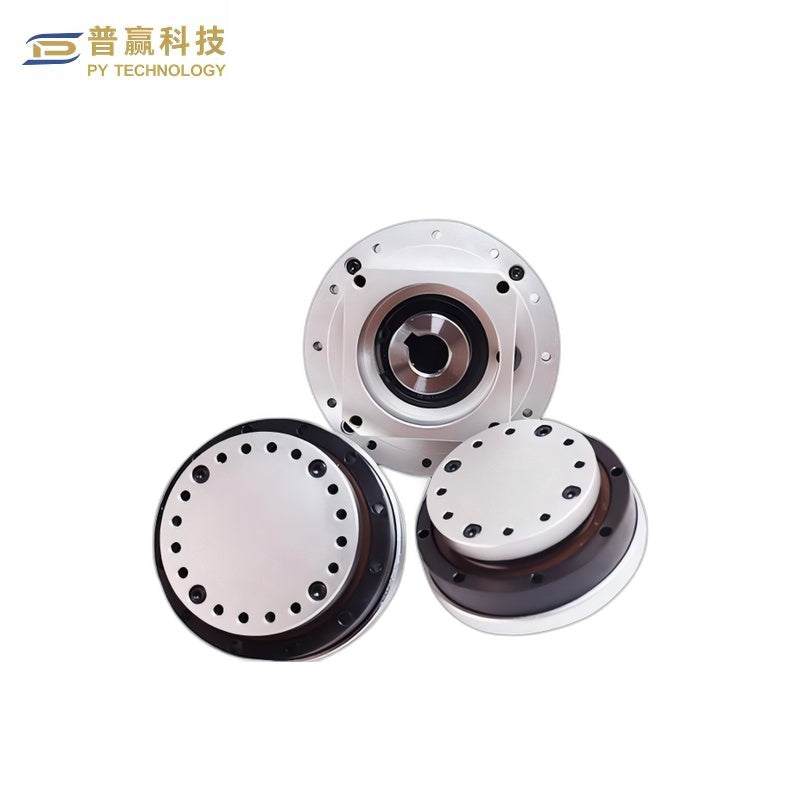

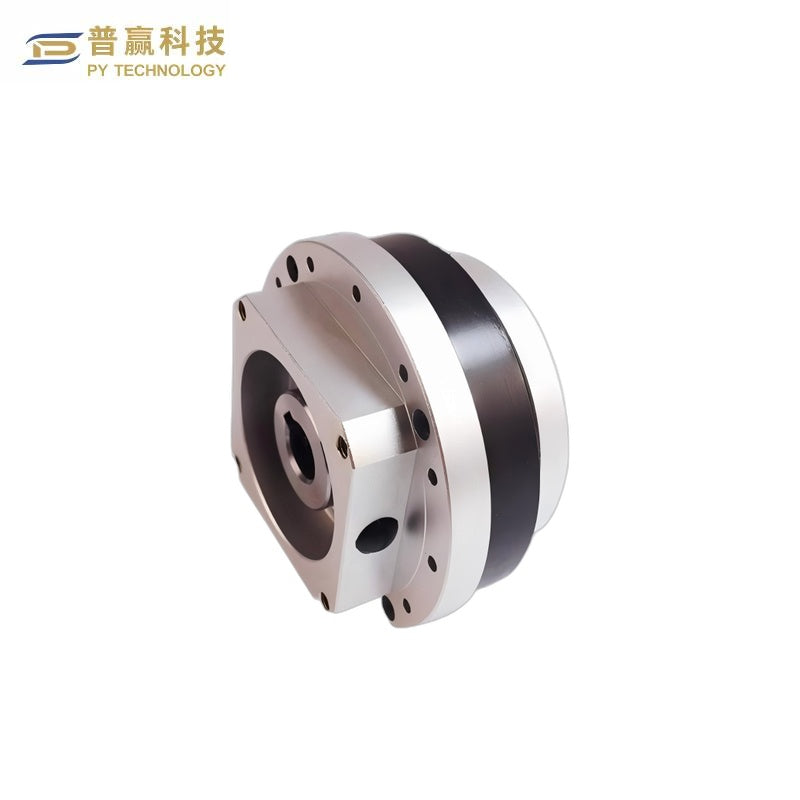

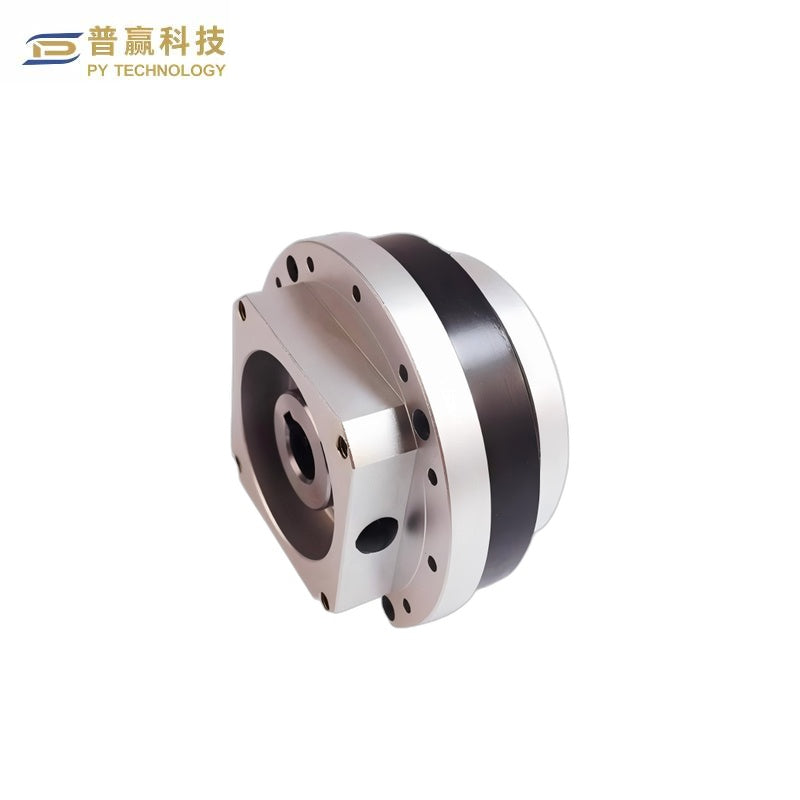

PY TECHNOLOGY FA Series Harmonic Gearbox | Precision Gearbox for Robot Joint Applications

  • PY TECHNOLOGY harmonic gearbox for robot joints, precision mechanisms, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, compact robot actuators, research platforms, and motion systems.
  • Designed for practical integration in reducers, gearboxes, robot servo assemblies, and mechanical transmission projects.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$100
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

PY TECHNOLOGY FA14 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY FA17 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY FA20-32 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY FA Series dimension drawing for installation reference.pdf ▶
PY TECHNOLOGY FA Series Harmonic Gearbox | Precision Gearbox for Robot Joint Applications detail image 1
PY TECHNOLOGY FA Series Harmonic Gearbox | Precision Gearbox for Robot Joint Applications detail image 2
PY TECHNOLOGY FA Series Harmonic Gearbox | Precision Gearbox for Robot Joint Applications detail image 3
PY TECHNOLOGY FA Series Harmonic Gearbox | Precision Gearbox for Robot Joint Applications detail image 4
▤ Technical Specifications ⌃
Parameter Value Value Value Value
Model FA14-30 FA14-50 FA14-80 FA14-100
Reduction Ratio 30 50 80 100
Rated Torque at 2000r/min (N·m) 4 7 10 10
Rated Torque at 2000r/min (kgf·m) 0.41 0.7 1 1
Permissible Peak Torque at Start/Stop (N·m) 9 23 30 36
Permissible Peak Torque at Start/Stop (kgf·m) 0.92 2.3 3.1 3.7
Allowable Average Load Torque (N·m) 6.8 9 14 14
Allowable Average Load Torque (kgf·m) 0.69 0.9 1.4 1.4
Instantaneous Max. Permissible Torque (N·m) 17 46 61 70
Instantaneous Max. Permissible Torque (kgf·m) 1.7 4.7 6.2 7.2
Permissible Max Input Speed (Oil) (r/min) 14000 14000 14000 14000
Permissible Max Input Speed (Grease) (r/min) 8500 8500 8500 8500
Permissible Average Input Speed (Oil) (r/min) 6500 6500 6500 6500
Permissible Average Input Speed (Grease) (r/min) 3500 3500 3500 3500
Moment of Inertia 1/4GD² (×10⁴ kg·cm²) 0.033 0.033 0.033 0.033
Moment of Inertia 1/4GD² (×10⁵ kgf·m·s²) 0.034 0.034 0.034 0.034
Backlash (arcmin) ≤20 ≤20 ≤20 ≤20
