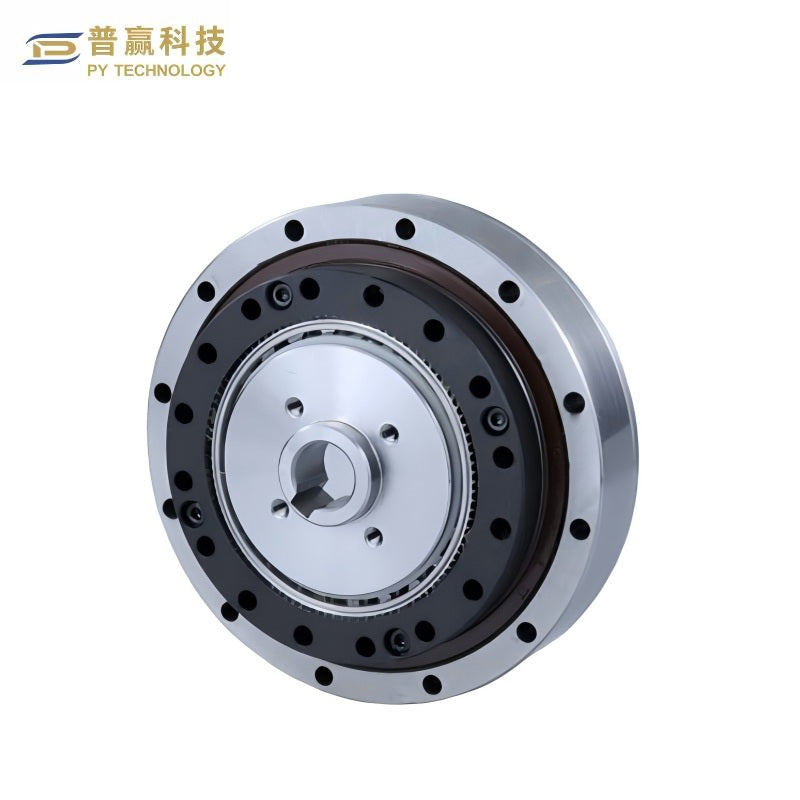

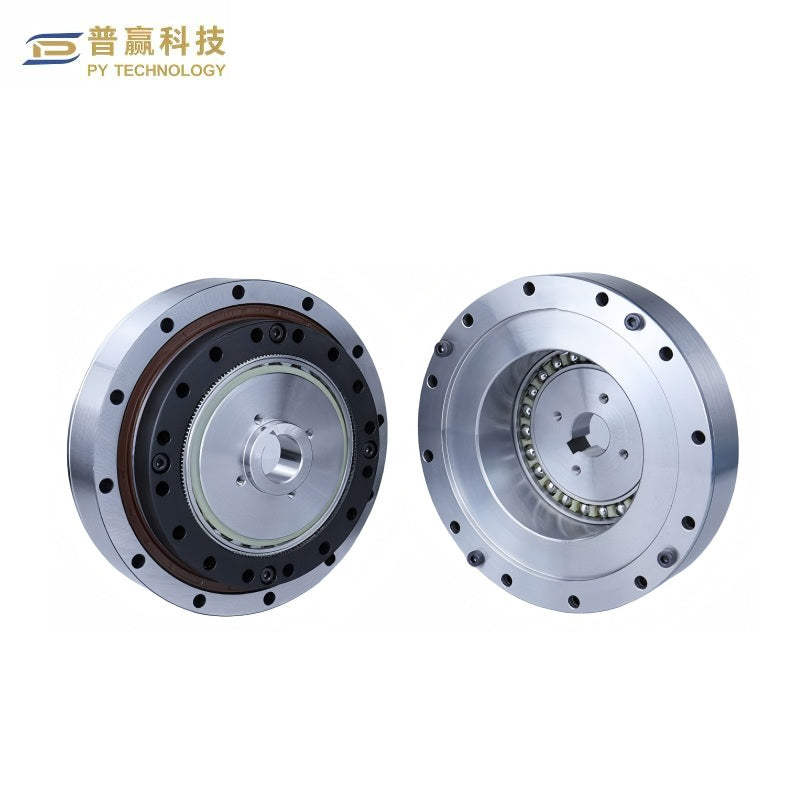

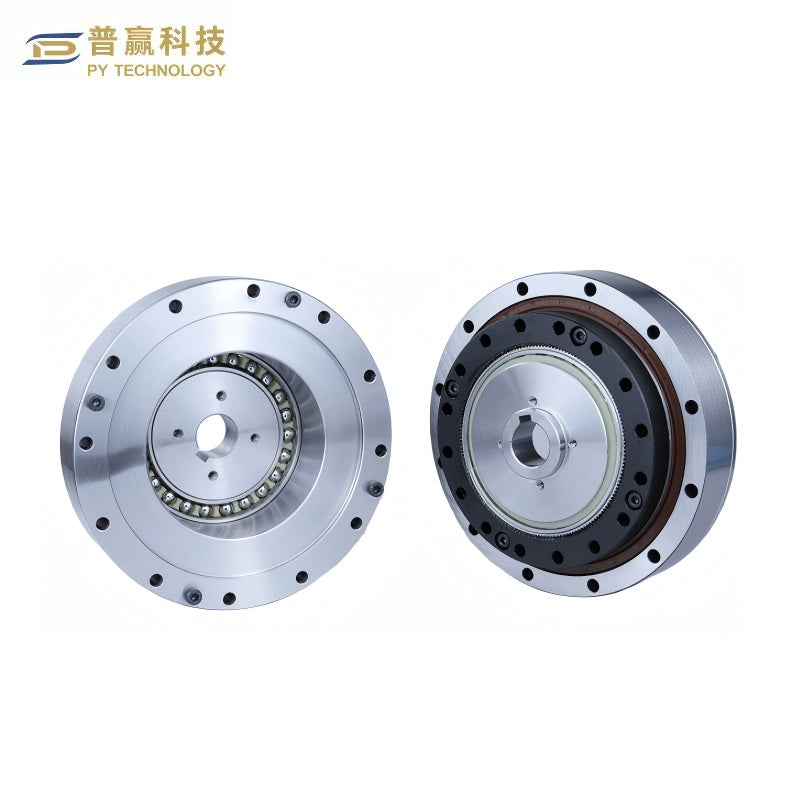

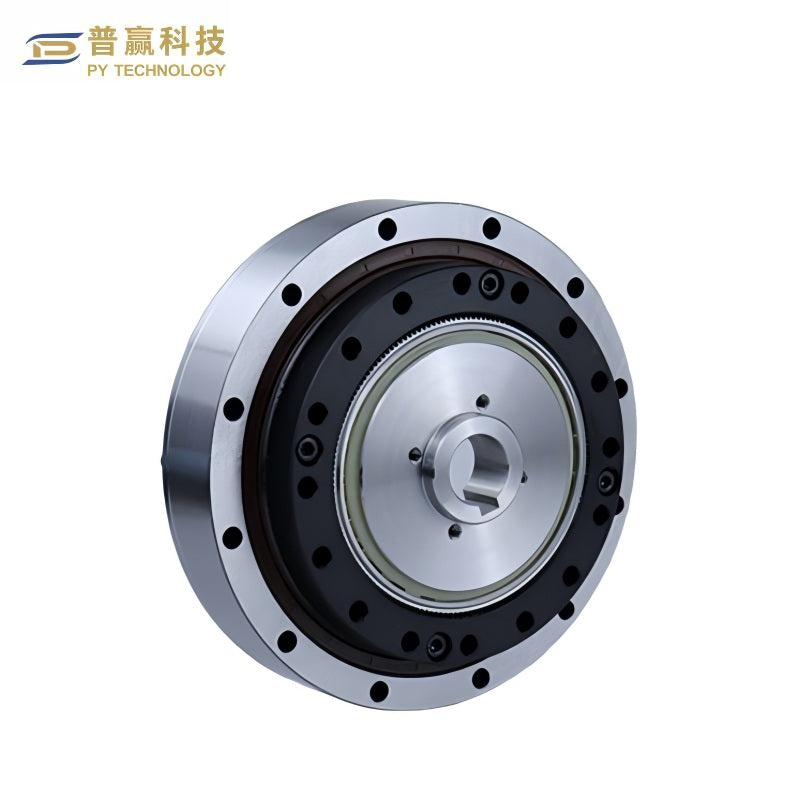

PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications

  • PY TECHNOLOGY harmonic reducer for robot joints, precision mechanisms, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, compact robot actuators, research platforms, and motion systems.
  • Designed for practical integration in reducers, gearboxes, robot servo assemblies, and mechanical transmission projects.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$75
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

PY TECHNOLOGY HBF14-32 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY HBF40-50 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY HBF-14-32 Series dimension drawing for installation reference.pdf ▶ PY TECHNOLOGY HBF-40-50 Series dimension drawing for installation reference.pdf ▶
PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 1
PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 2

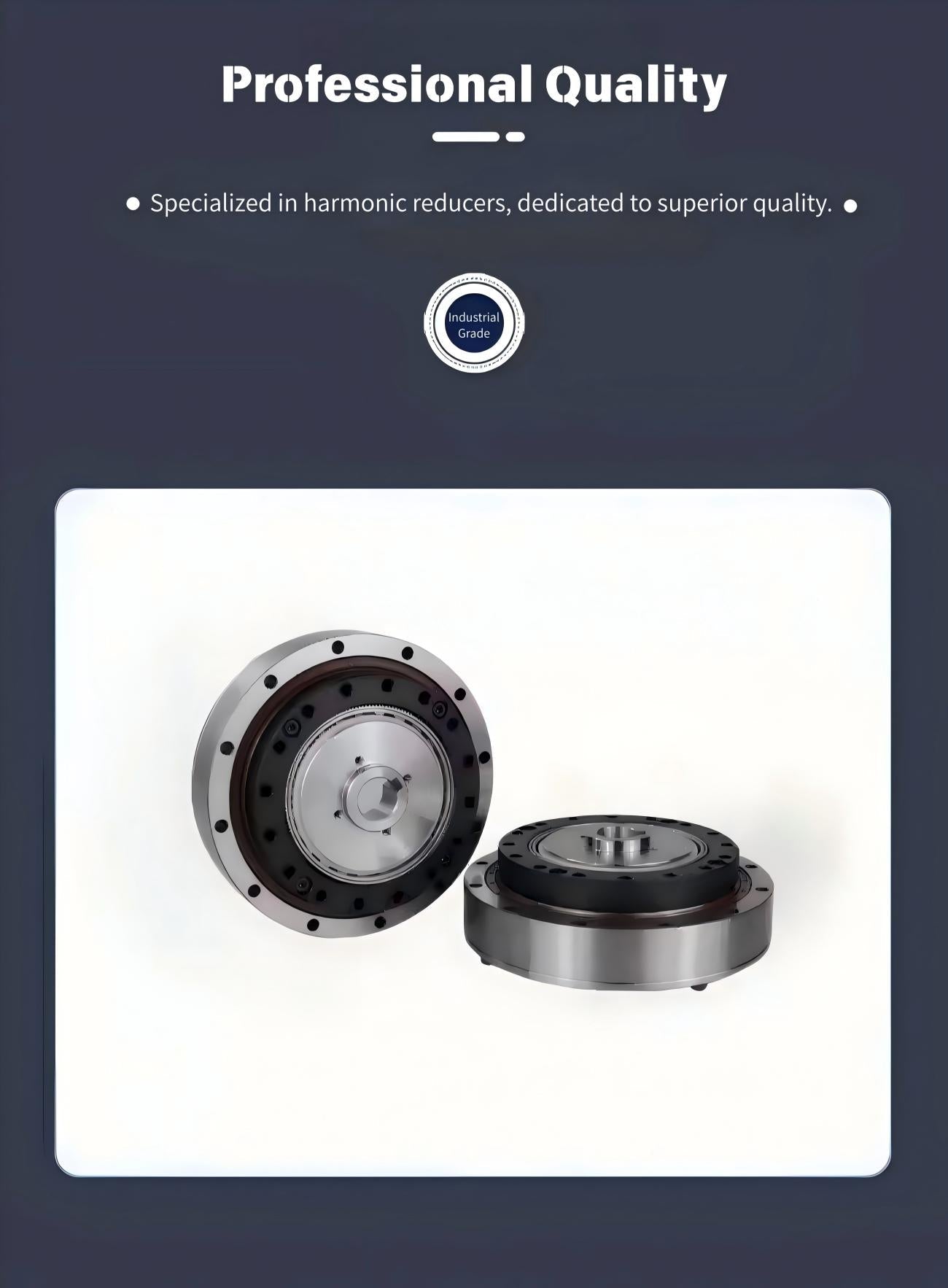

PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 3

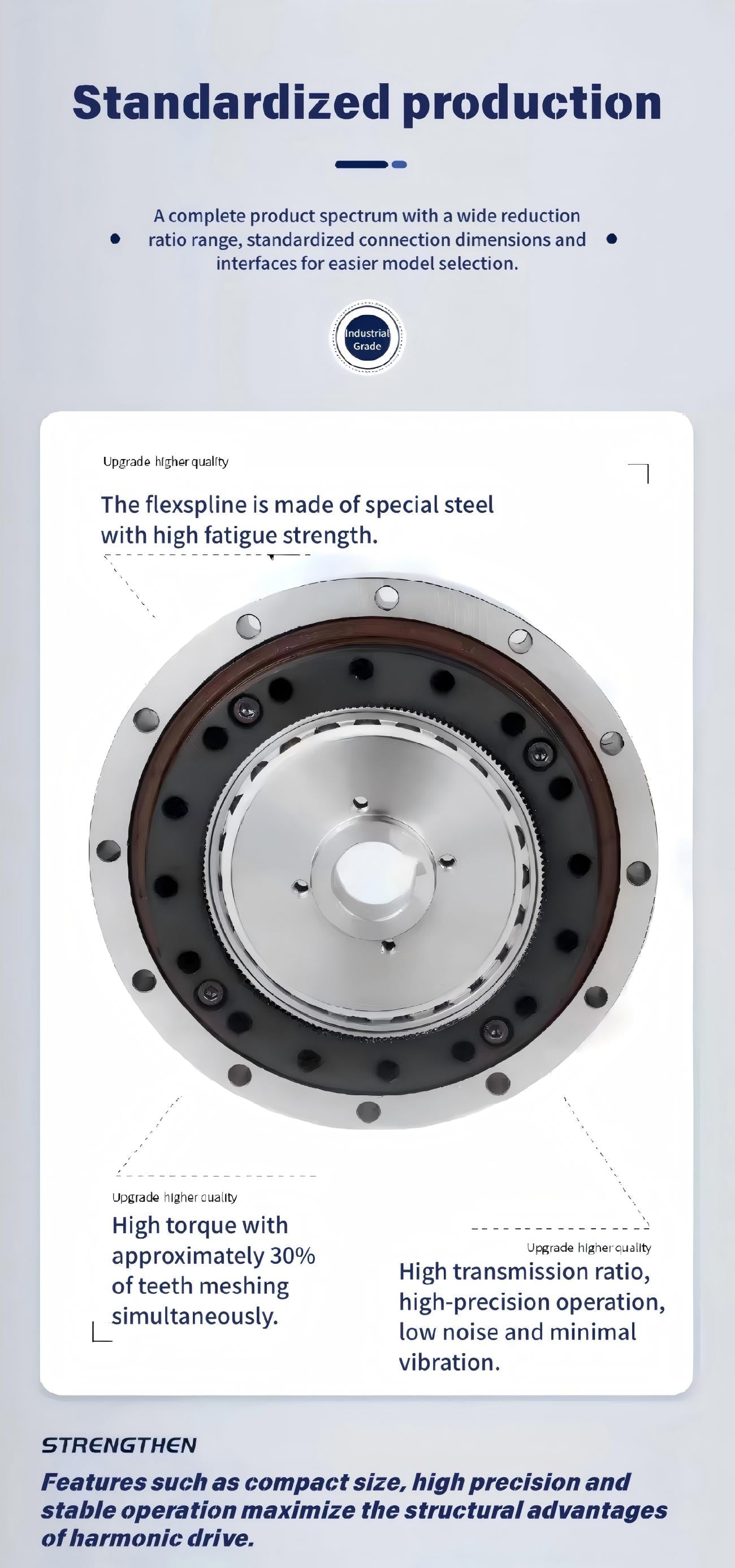

PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 4
PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 5

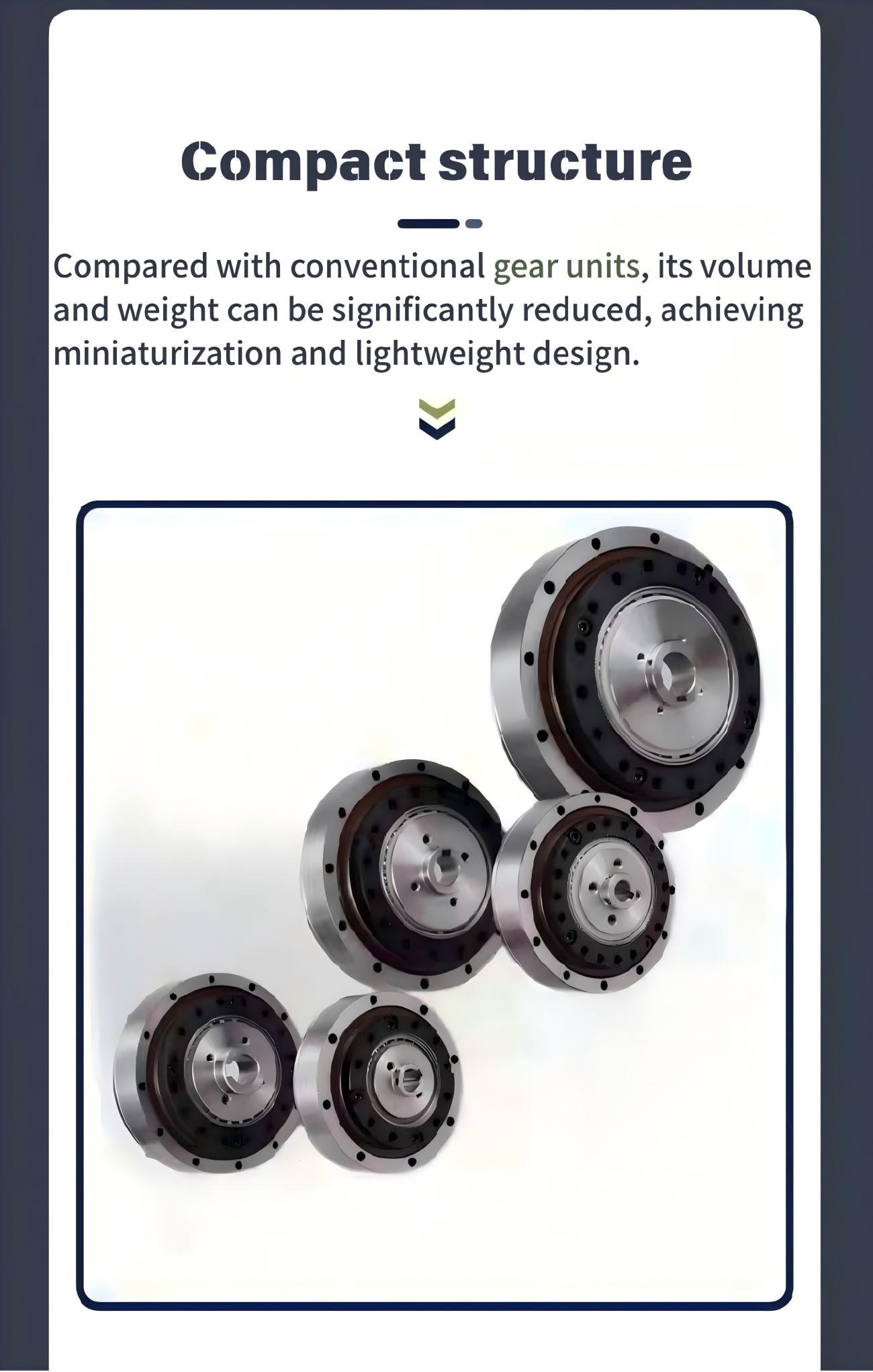

PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 6
PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 7

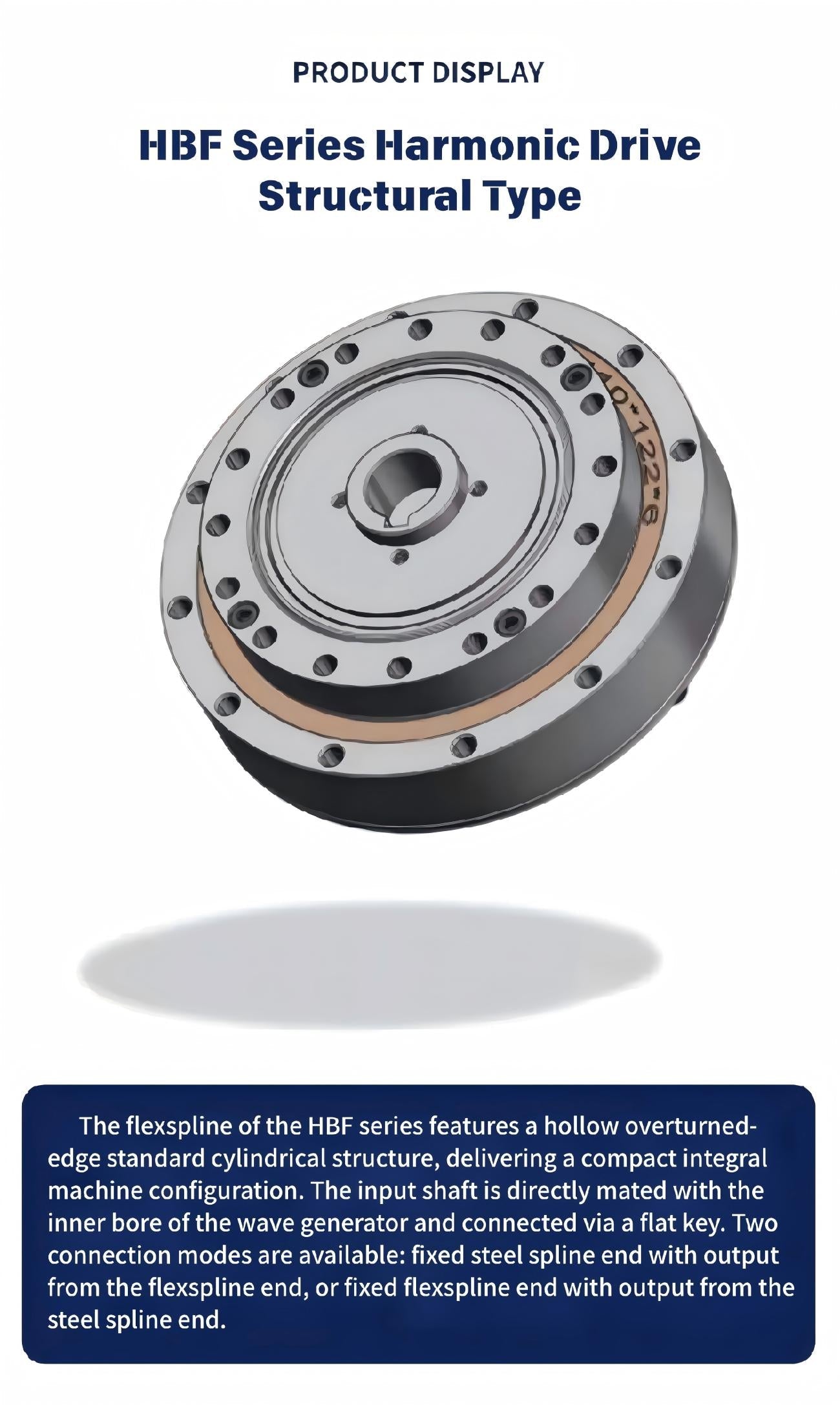

PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 8
PY TECHNOLOGY HBF Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 9
▤ Technical Specifications ⌃
Parameter Value Value Value Value Value Value
Model HBF-25 HBF-25 HBF-25 HBF-25 HBF-25 HBF-25
Reduction Ratio 30 50 80 100 120 160
Weight (kg) 1.21 1.21 1.21 1.21 1.21 1.21
Rated Torque at 2000 r/min (Nm) 27 51 82 87 87 87
Rated Torque at 2000 r/min (Kgf·m) 2.8 5.2 8.4 8.9 8.9 8.9
Permissible Peak Torque (Start/Stop) (Nm) 50 127 178 204 217 229
Permissible Peak Torque (Start/Stop) (Kgf·m) 5.1 13 18 21 22 23
Allowable Average Load Torque (Nm) 38 72 113 140 140 140
Allowable Average Load Torque (Kgf·m) 3.9 7.3 12 14 14 14
Instantaneous Permissible Maximum Torque (Nm) 95 242 332 369 395 408
Instantaneous Permissible Maximum Torque (Kgf·m) 9.7 25 34 38 40 42
Permissible Max Input Speed (Oil Lubrication) (r/min) 7500 7500 7500 7500 7500 7500
Permissible Max Input Speed (Grease Lubrication) (r/min) 5600 5600 5600 5600 5600 5600
Permissible Average Input Speed (Oil Lubrication) (r/min) 5600 5600 5600 5600 5600 5600
Permissible Average Input Speed (Grease Lubrication) (r/min) 3500 3500 3500 3500 3500 3500
Moment of Inertia (x10^4 kgm²) 0.413 0.413 0.413 0.413 0.413 0.413
Moment of Inertia (x10^5 kgf·ms²) 0.421 0.421 0.421 0.421 0.421 0.421
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20 ≤20 ≤20
