EYOU

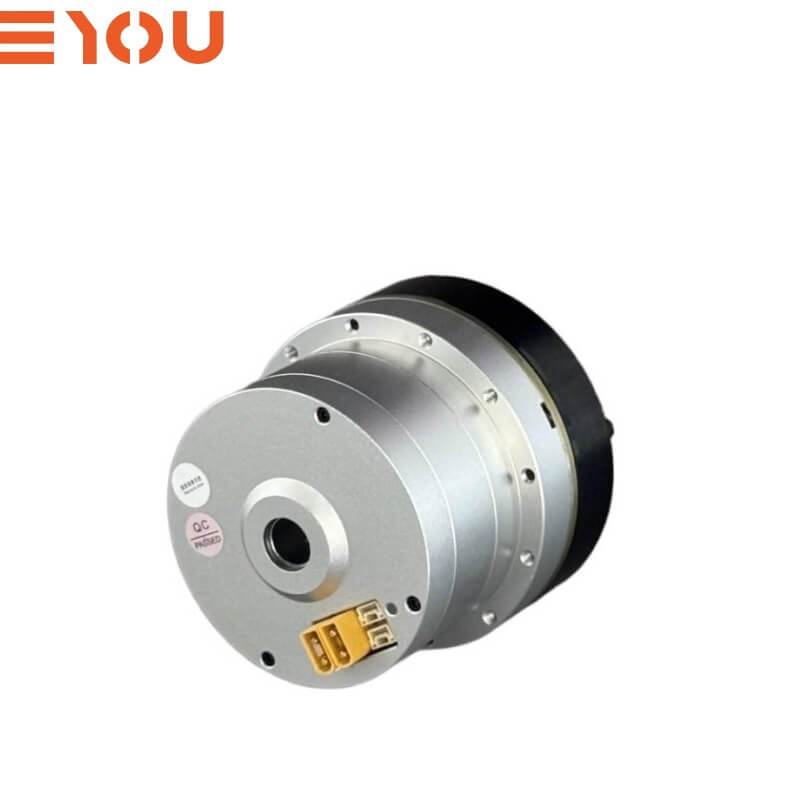

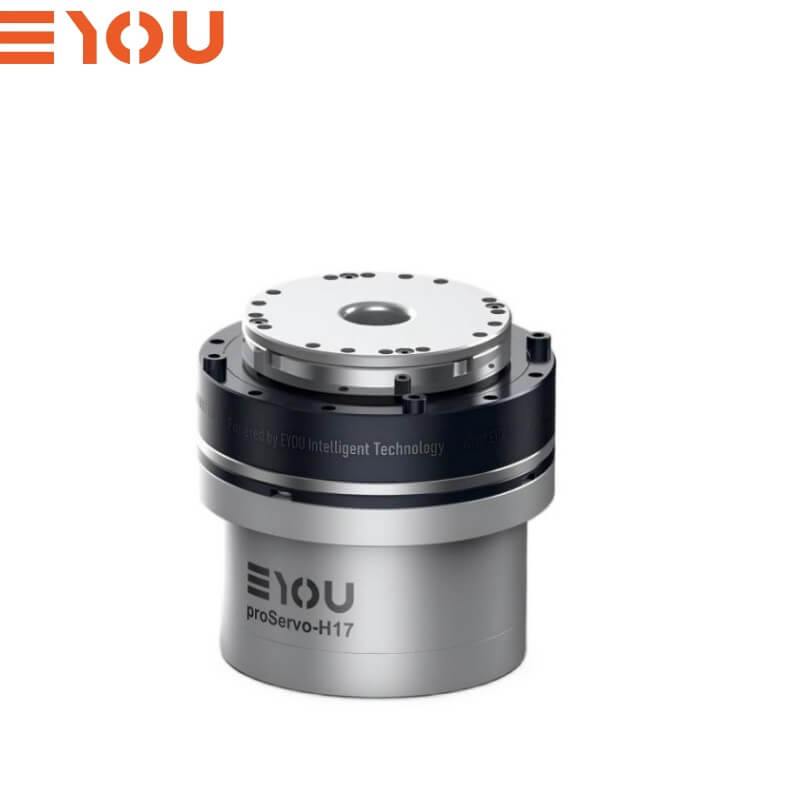

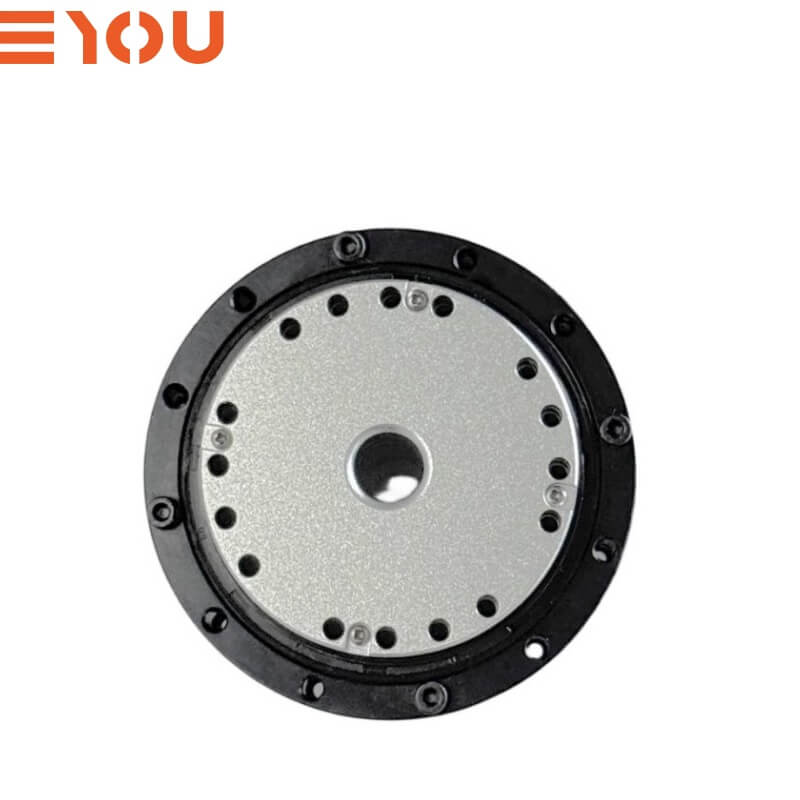

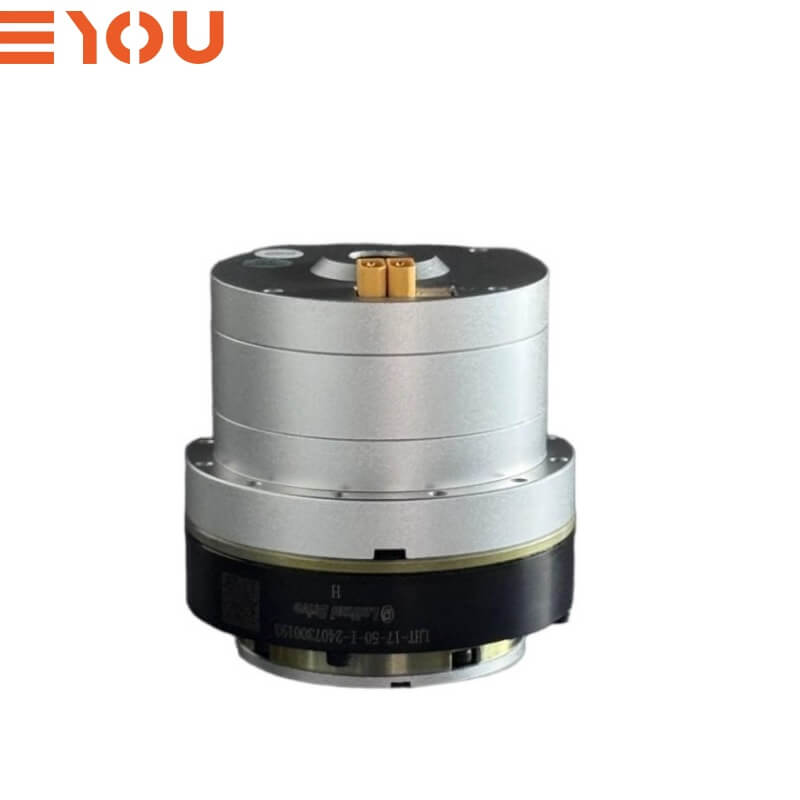

EYOU PH17 Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$700
Version
Gear Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU PH17 Motor CAD model for mechanical integration.stp ▶ EYOU PH17 Motor dimension drawing for installation reference.pdf ▶

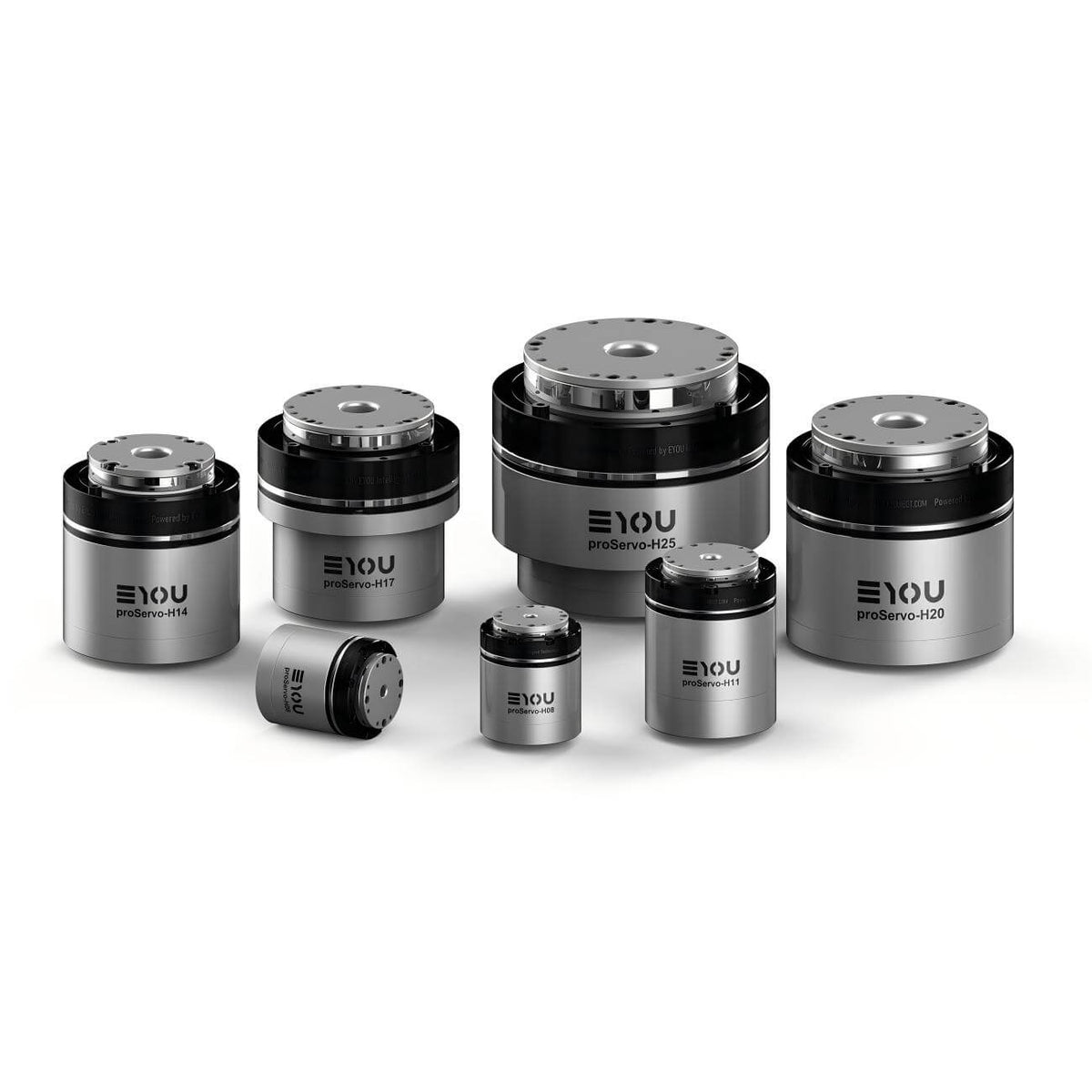

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 1

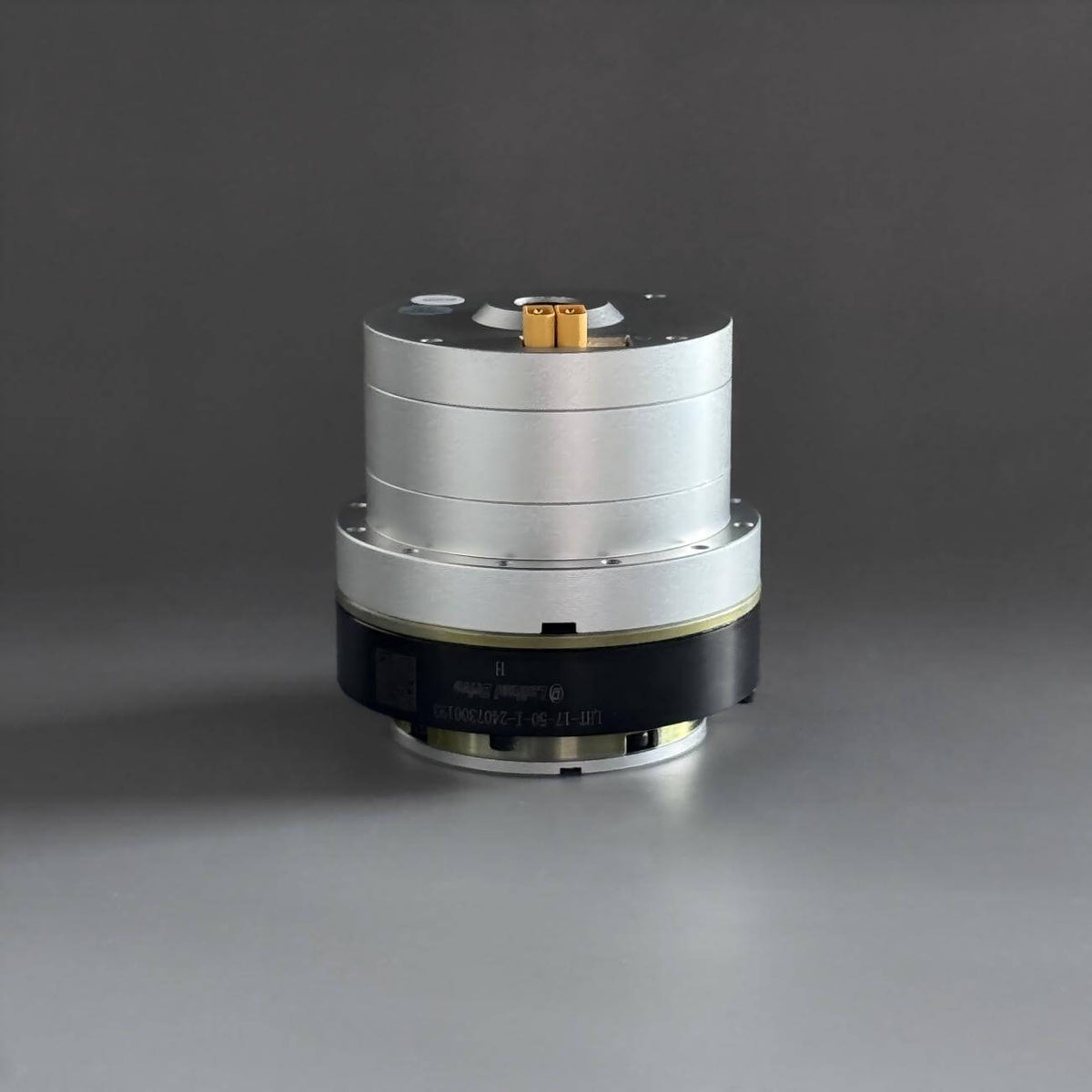

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 2

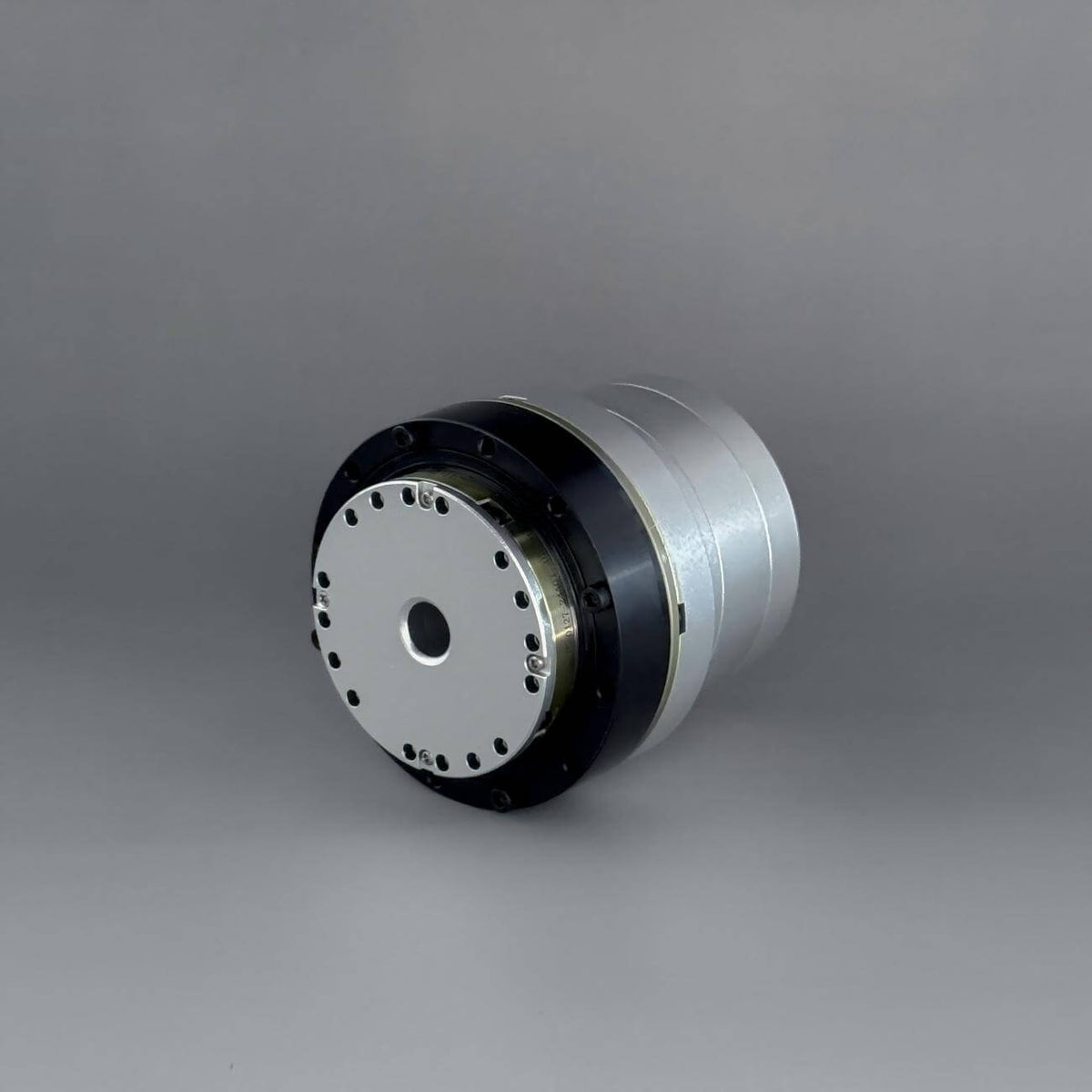

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 3

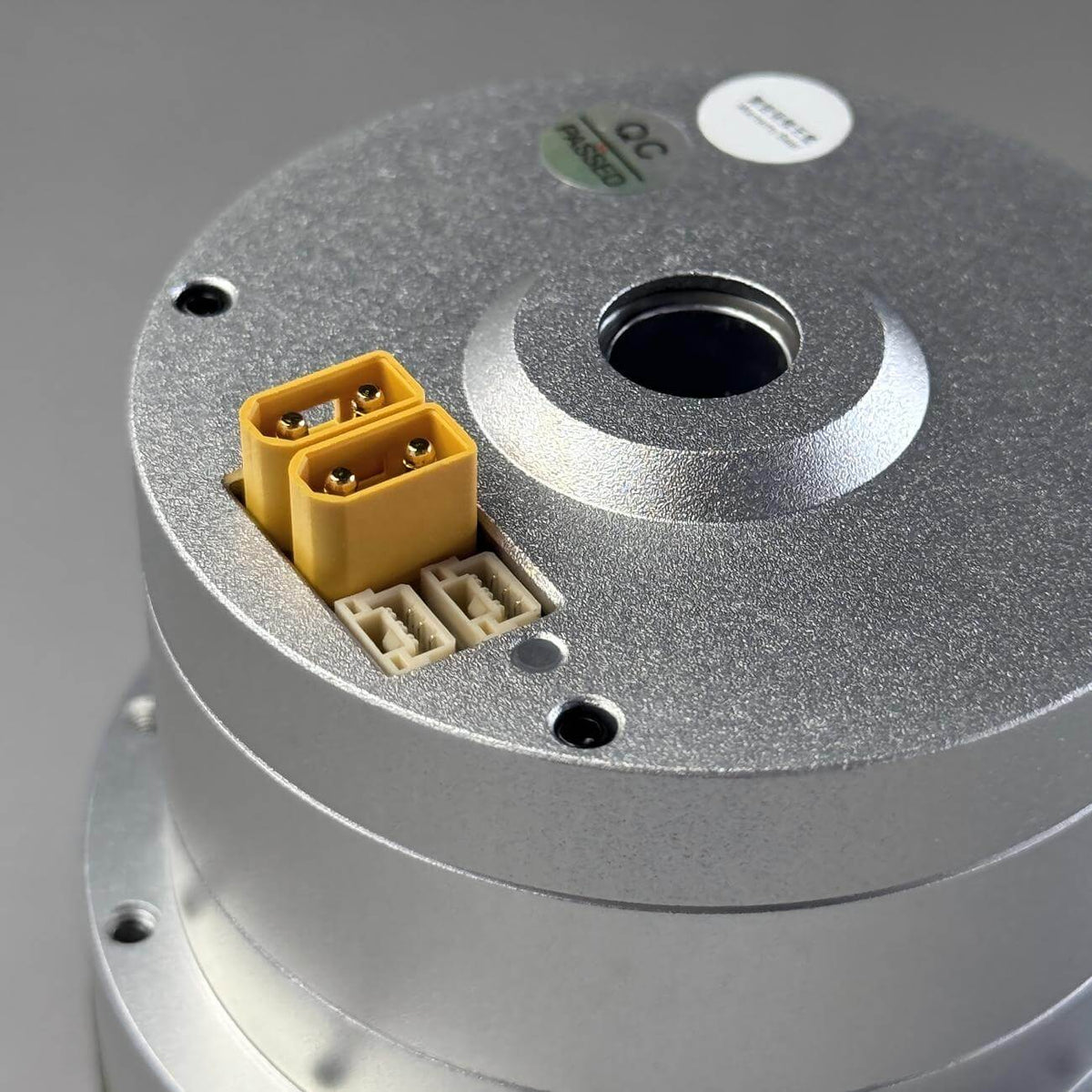

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 4

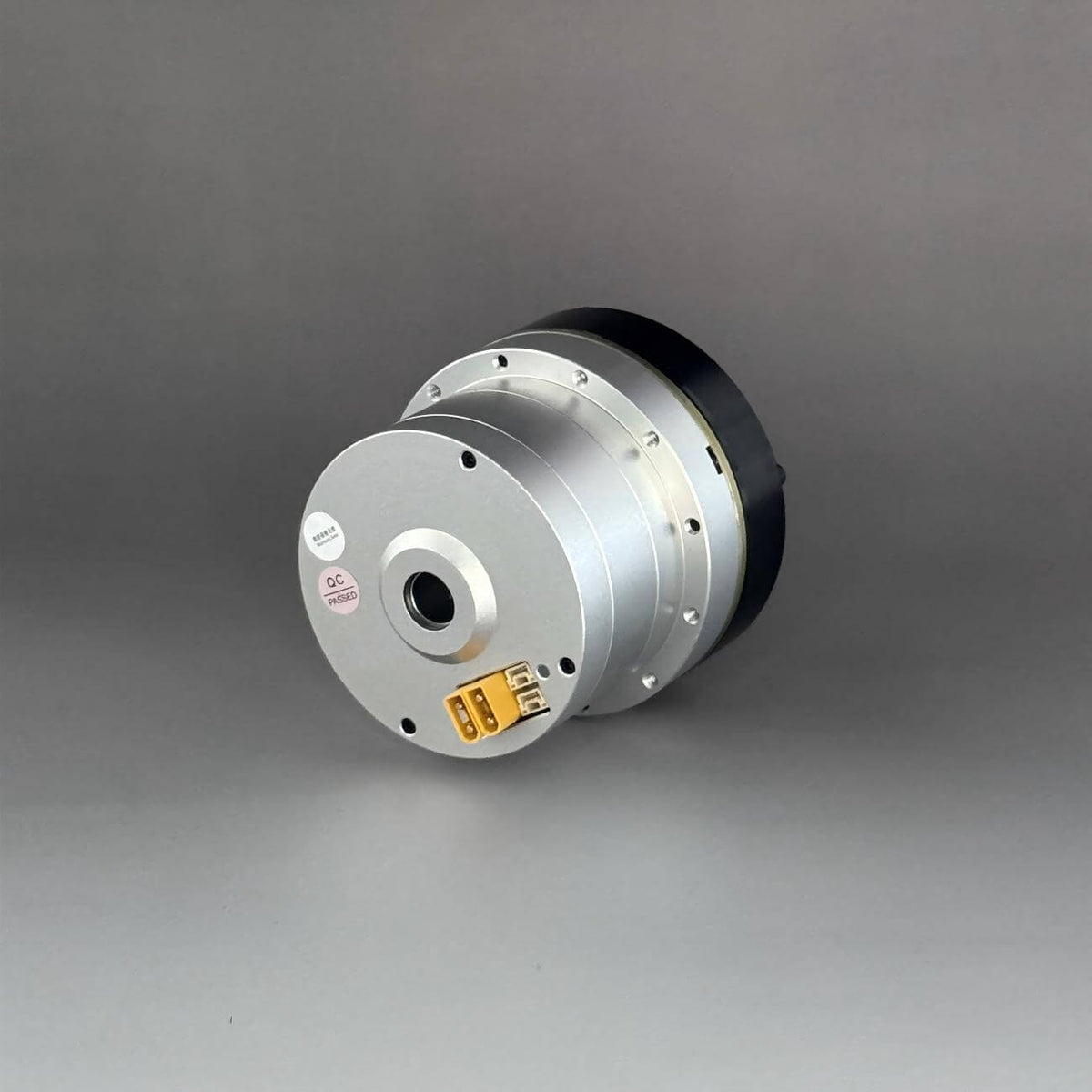

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 5

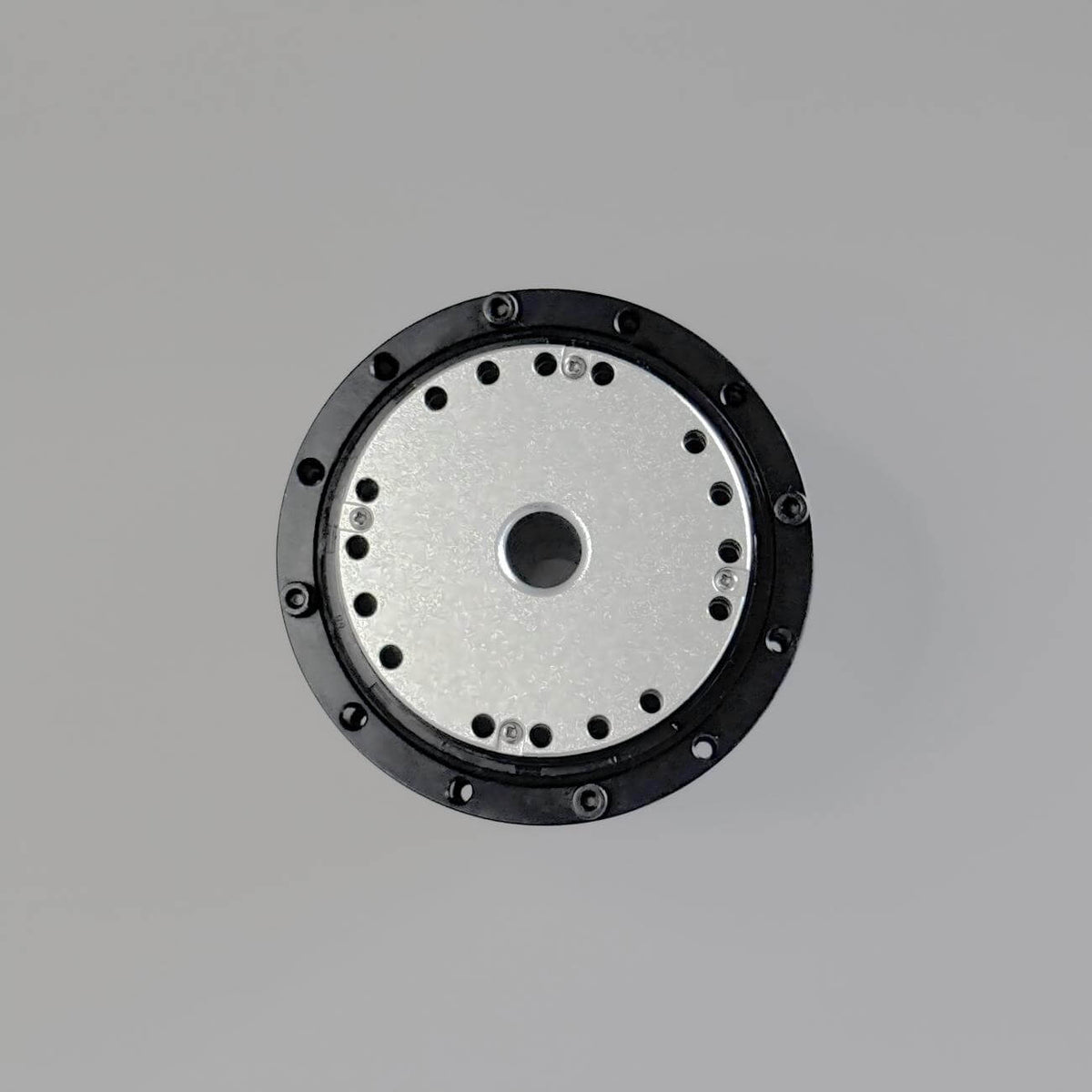

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 6

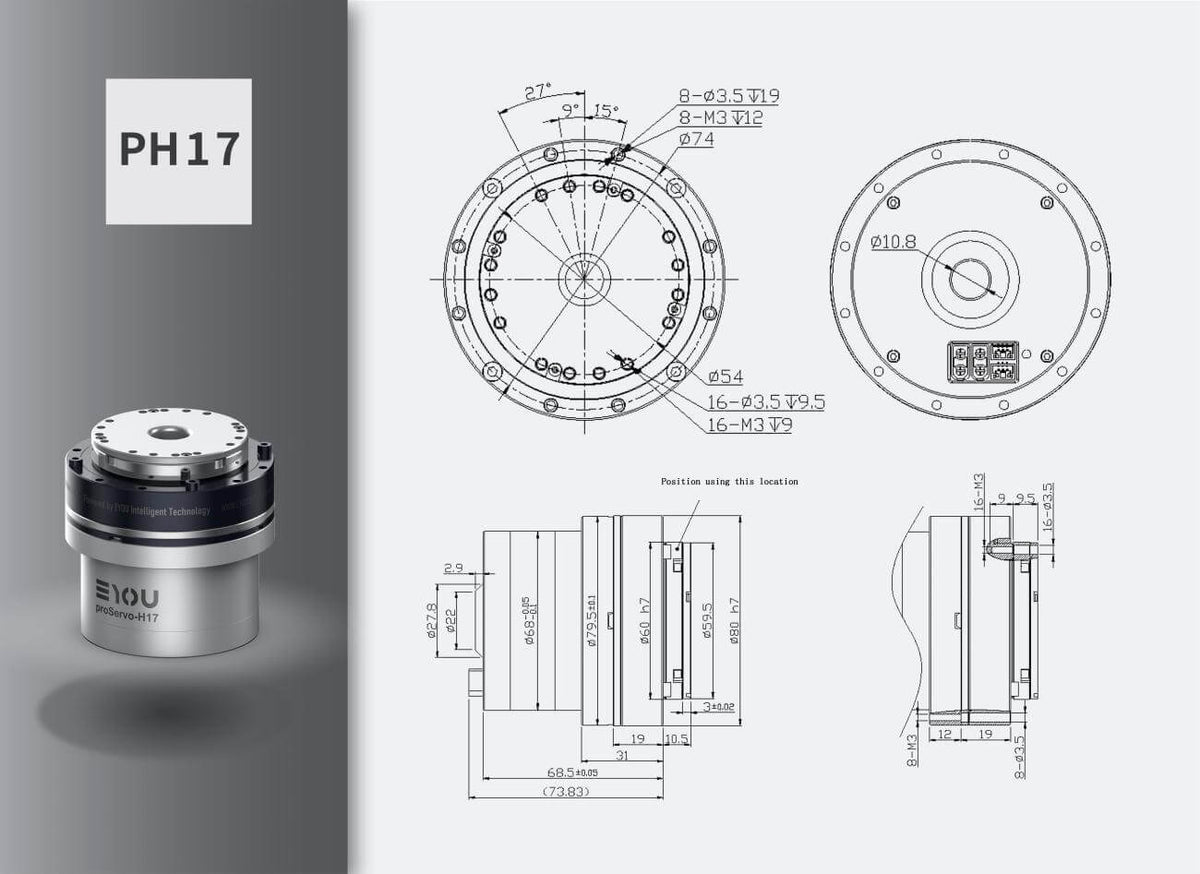

EYOU PH17 Motor | Robot Servo Motor for Robotics Development detail image 7
▤ Technical Specifications ⌃
Parameter Value Value
Model PH17 PH17
Motor Type Internal Rotor Torque Motor Internal Rotor Torque Motor
Diameter 80mm 80mm
Through Bore ID 14mm 14mm
Weight（With Brake / Without Brake） 1350/1223g 1350/1223g
Backlash 15arcsec 15arcsec
Noise ＜70db ＜70db
Temperature Range -20~80℃ -20~80℃
Operating Voltage 24~48v 24~48v
Rated Power 200w 200w
Gear Ratio 51 101
Rated Speed 60rpm 30rpm
Rated Torque 22N.M 38N.M
Peak Torque 52N.M 66N.M
Encoder Accuracy 19bit 19bit
Encoder Type Dual Magnetic Encoder Dual Magnetic Encoder
