NANGU MG996R Servo Motor

  • Fast‑Mode Stall Torque (kg): 5V: 20.5 kg; 6V: 22.5 kg; 7.4V: 25.5 kg; 8.4V: 27.5 kg
  • Standard‑Mode Stall Torque (kg): 5V: 20.5 kg; 6V: 22 kg; 7.4V: 25 kg; 8.4V: 27 kg
  • Fast‑Mode Speed (60°/s): 5V: 0.13 s; 6V: 0.11 s; 7.4V: 0.10 s; 8.4V: 0.09 s
  • Standard‑Mode Speed (60°/s): 5V: 0.27 s; 6V: 0.24 s; 7.4V: 0.22 s; 8.4V: 0.20 s
  • Fast‑Mode No‑load Current (mA): 5V: 400 mA; 6V: 500 mA; 7.4V: 550 mA; 8.4V: 600 mA
$15
Version
speed

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

NANGU MG996R Servo Motor dimension drawing for installation reference.pdf ▶

NANGU MG996R Servo Motor

The NANGU MG996R Servo Motor is a NANGU servo motor intended for robot joints, compact motion systems, automation equipment, and engineering integration.

Features

  • **Fast‑Mode Stall Torque (kg):** 5V: 20.5 kg; 6V: 22.5 kg; 7.4V: 25.5 kg; 8.4V: 27.5 kg
  • **Standard‑Mode Stall Torque (kg):** 5V: 20.5 kg; 6V: 22 kg; 7.4V: 25 kg; 8.4V: 27 kg
  • **Fast‑Mode Speed (60°/s):** 5V: 0.13 s; 6V: 0.11 s; 7.4V: 0.10 s; 8.4V: 0.09 s
  • **Standard‑Mode Speed (60°/s):** 5V: 0.27 s; 6V: 0.24 s; 7.4V: 0.22 s; 8.4V: 0.20 s
  • **Fast‑Mode No‑load Current (mA):** 5V: 400 mA; 6V: 500 mA; 7.4V: 550 mA; 8.4V: 600 mA
  • **Fast‑Mode Stall Current (A):** 5V: 4 A; 6V: 5 A; 7.4V: 5.3 A; 8.4V: 5.6 A
  • **Standard‑Mode No‑load Current (mA):** 5V: 400 mA; 6V: 450 mA; 7.4V: 500 mA; 8.4V: 550 mA
  • **Standard‑Mode Stall Current (A):** 5V: 2.2 A; 6V: 2.5 A; 7.4V: 3.2 A; 8.4V: 4 A

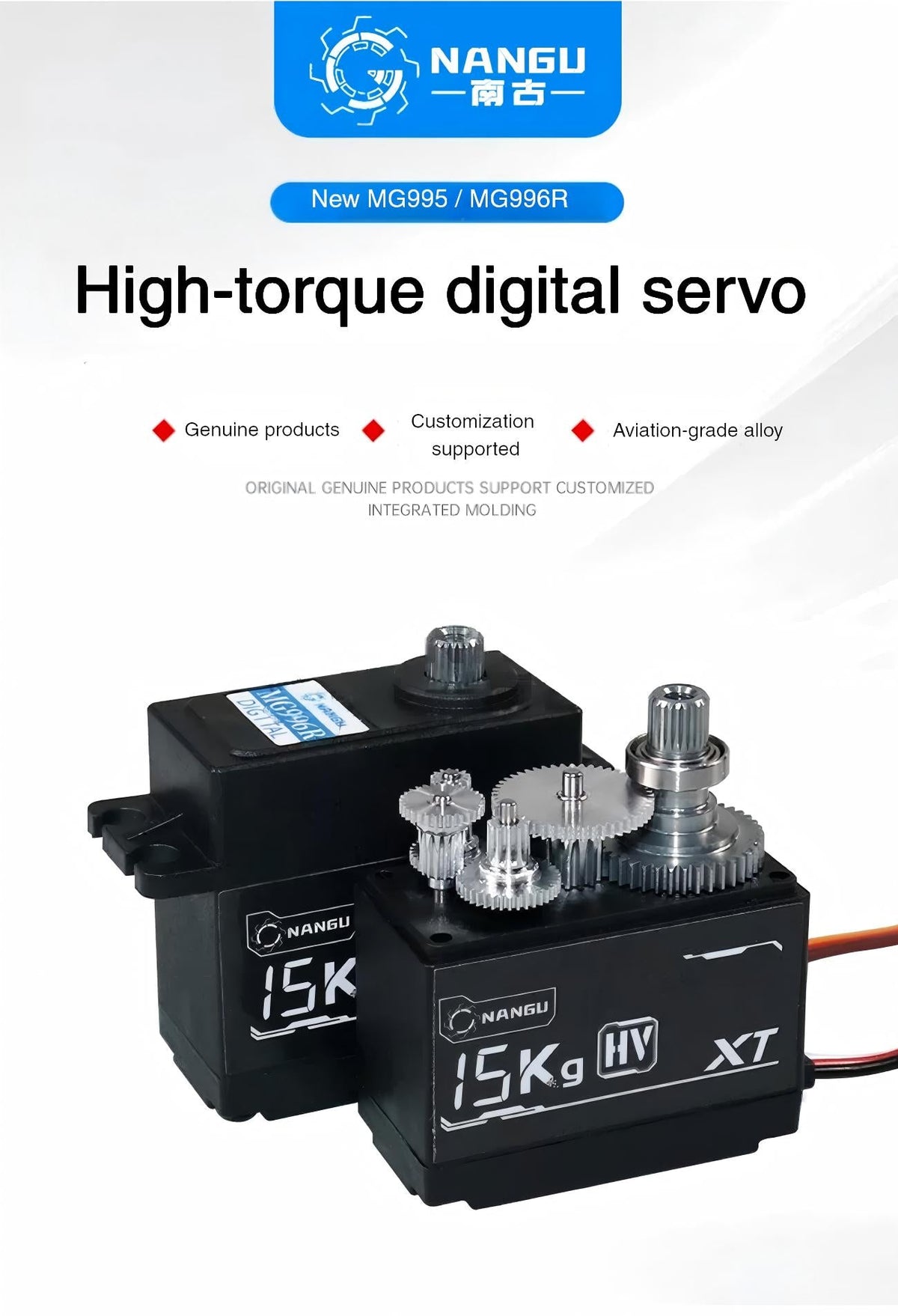

NANGU MG996R Servo Motor detail image 1

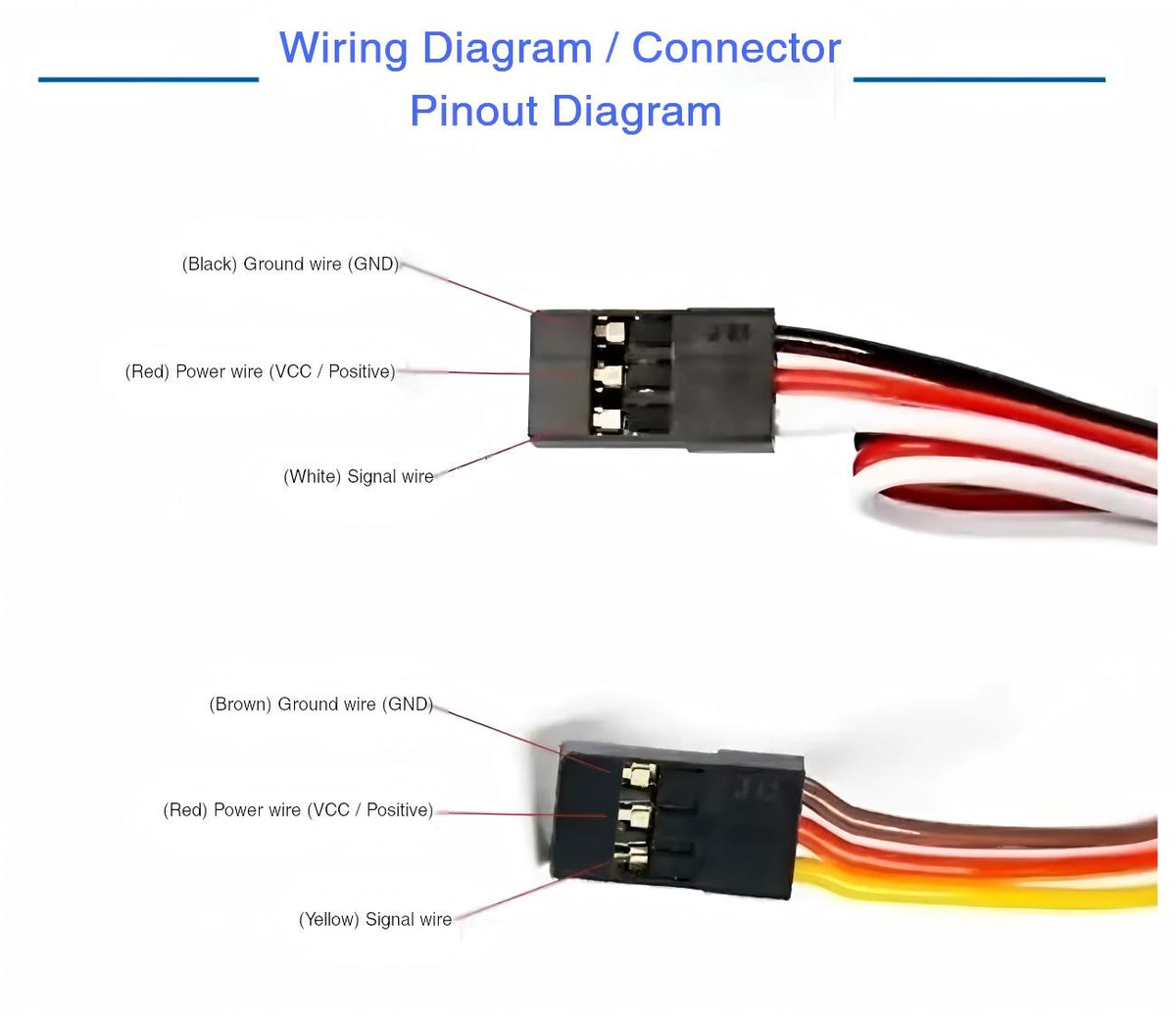

NANGU MG996R Servo Motor detail image 2

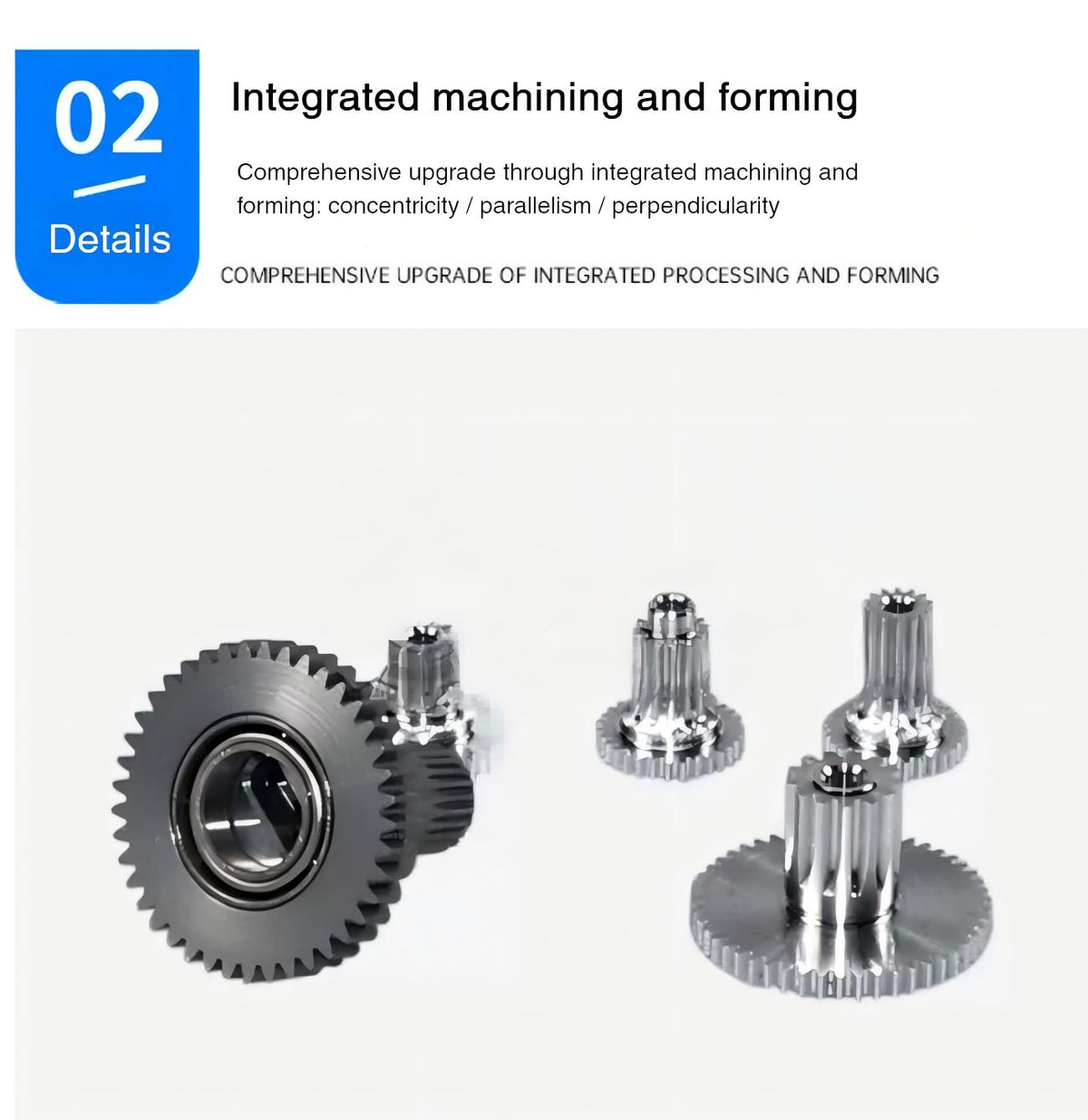

NANGU MG996R Servo Motor detail image 3

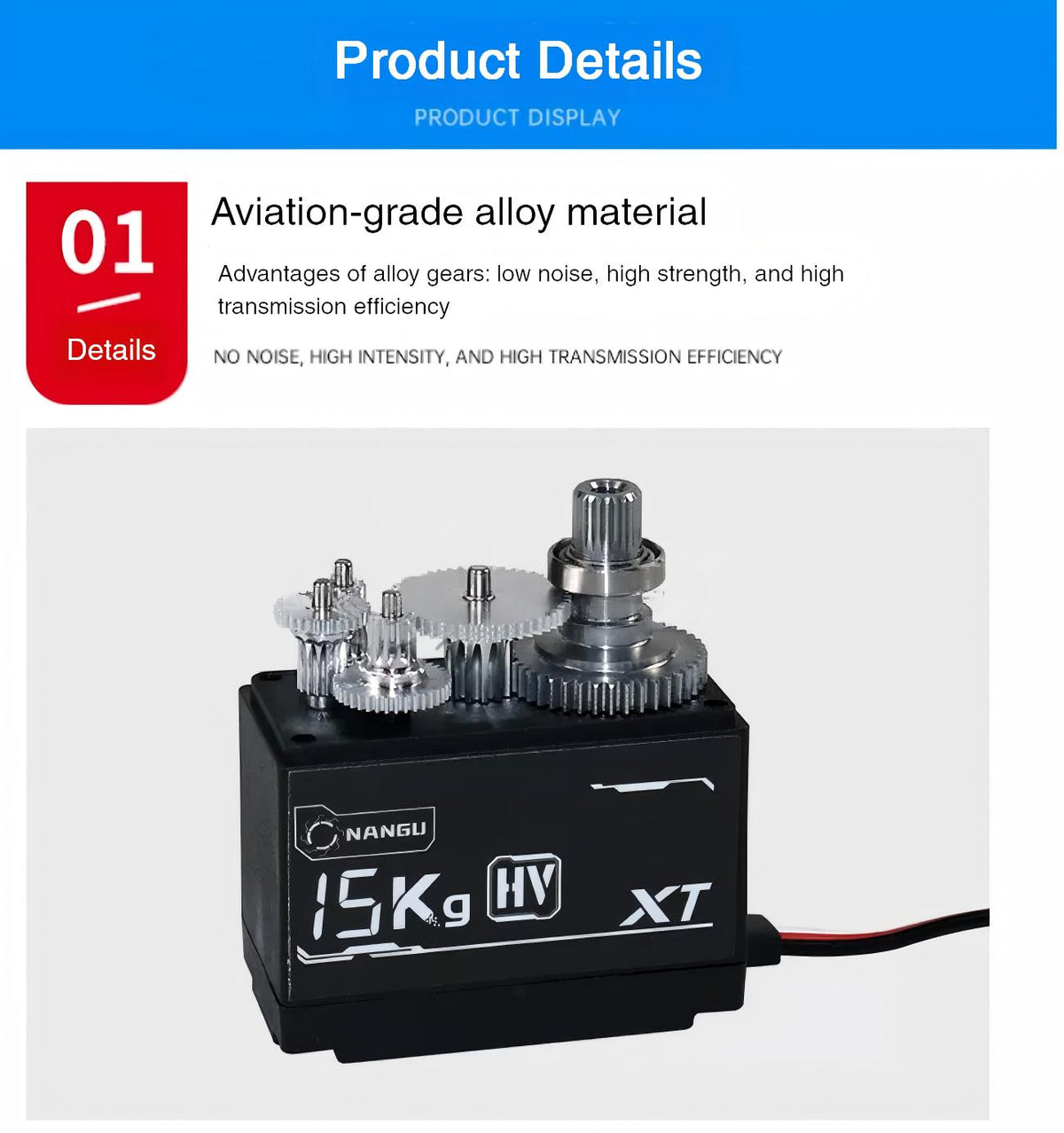

NANGU MG996R Servo Motor detail image 4

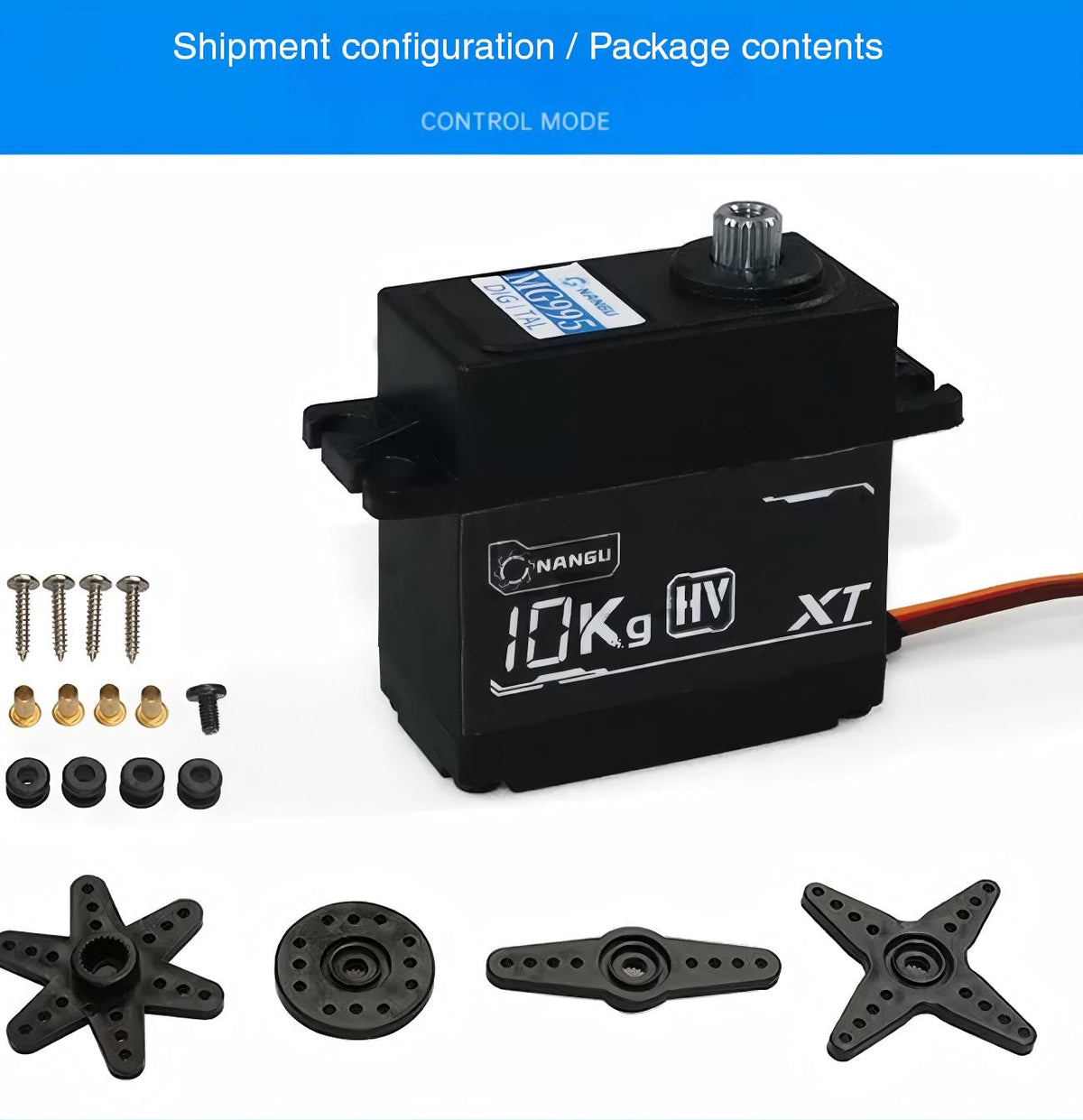

NANGU MG996R Servo Motor detail image 5

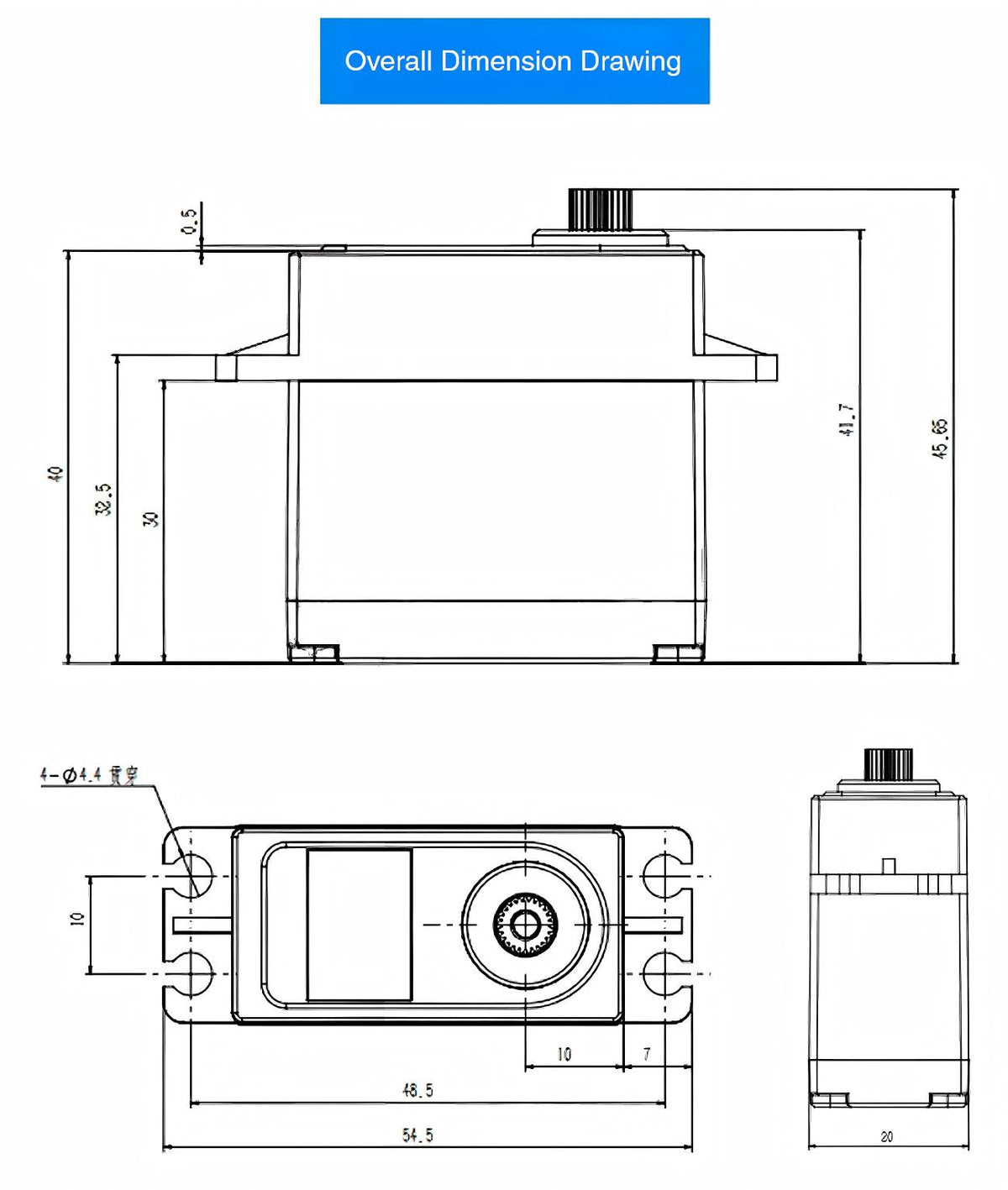

NANGU MG996R Servo Motor detail image 6
▤ Technical Specifications ⌃
Parameter 5V 6V 7.4V 8.4V
Fast speed - - - -
Fast‑Mode Speed (60°/s) 0.13 s 0.11 s 0.10 s 0.09 s
Fast‑Mode No‑load Current (mA) 400 mA 500 mA 550 mA 600 mA
Fast‑Mode Stall Torque (kg) 20.5 kg 22.5 kg 25.5 kg 27.5 kg
Fast‑Mode Stall Current (A) 4 A 5 A 5.3 A 5.6 A
Standard speed - - - -
Standard‑Mode Speed (60°/s) 0.27 s 0.24 s 0.22 s 0.20 s
Standard‑Mode No‑load Current (mA) 400 mA 450 mA 500 mA 550 mA
Standard‑Mode Stall Torque (kg) 20.5 kg 22 kg 25 kg 27 kg
Standard‑Mode Stall Current (A) 2.2 A 2.5 A 3.2 A 4 A
