LSLIDAR

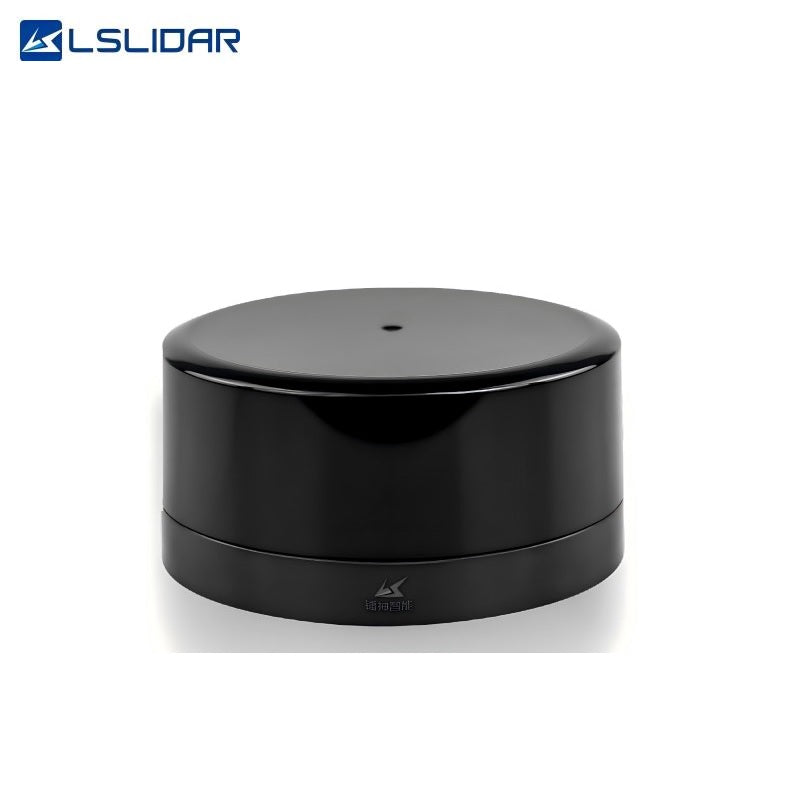

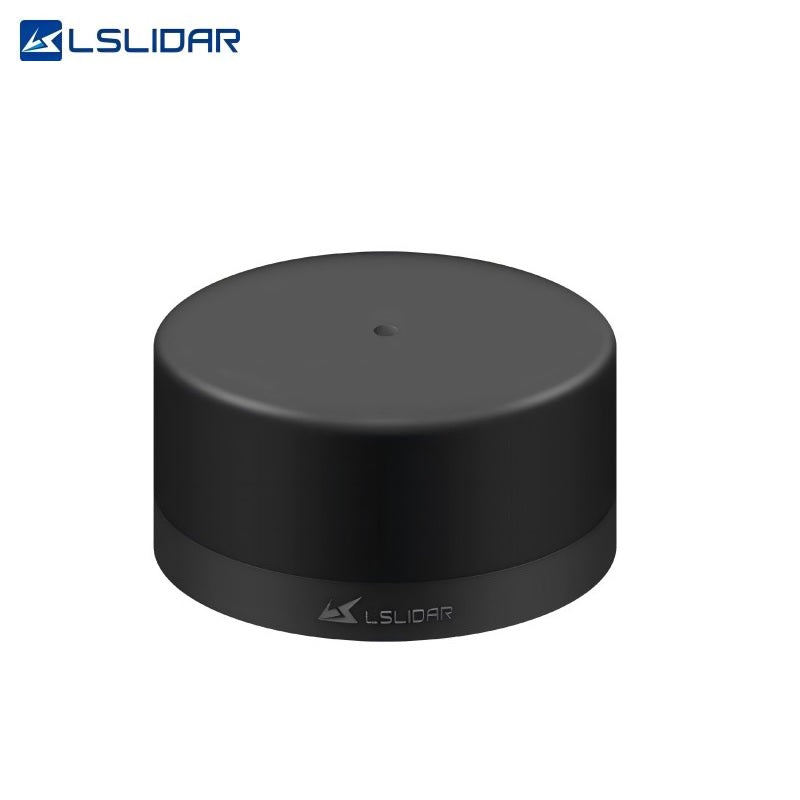

LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Laser Wavelength: 905 nm

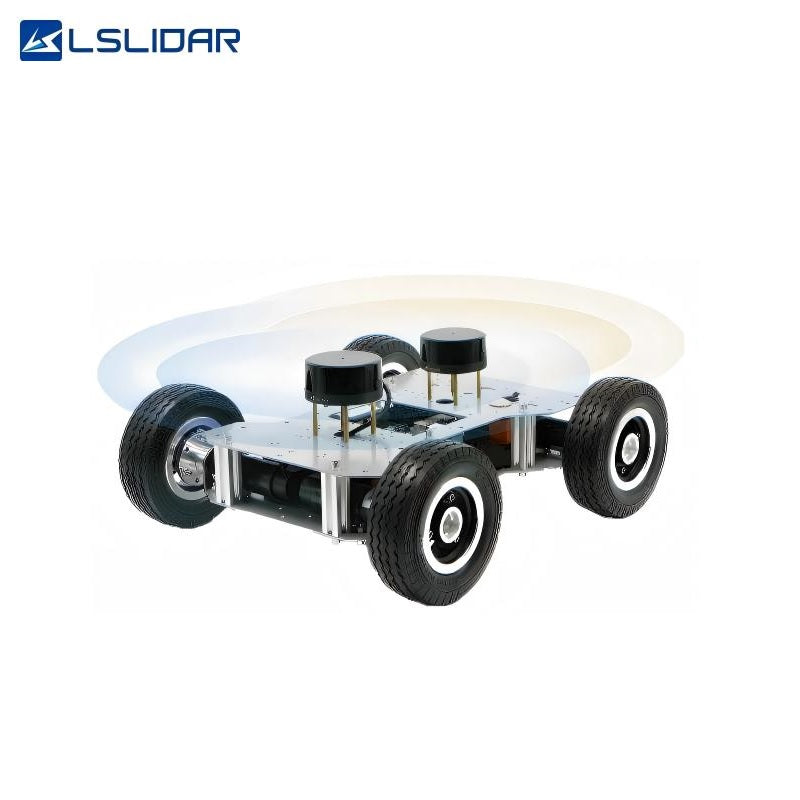

  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$295
Version

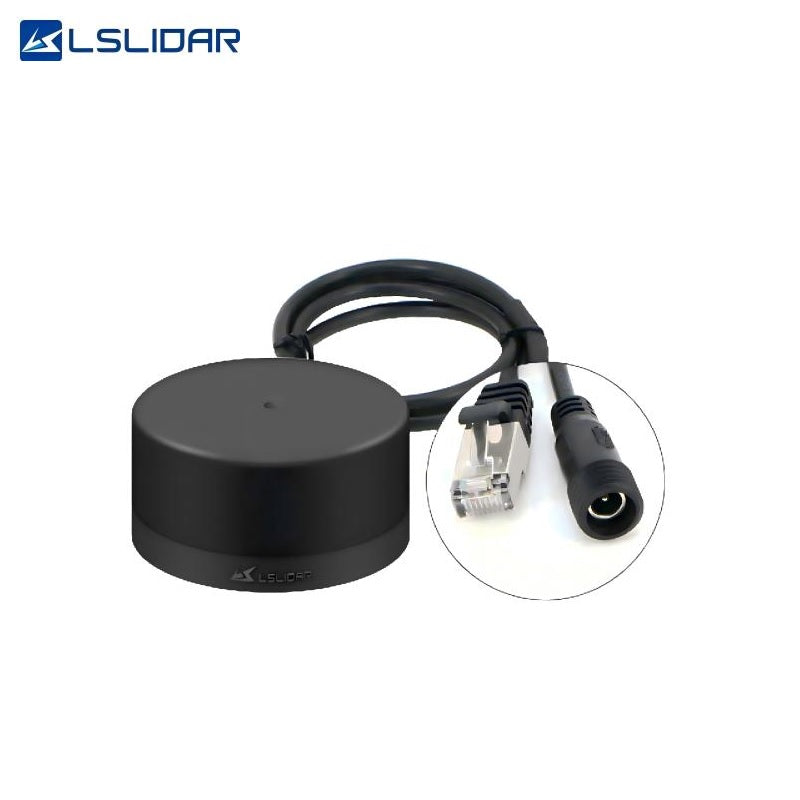

Adapter Module

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

LSLIDAR M10 LiDAR product documentation for robotics integration.pdf ▶ LSLIDAR M10 LiDAR product documentation for robotics integration.pdf ▶

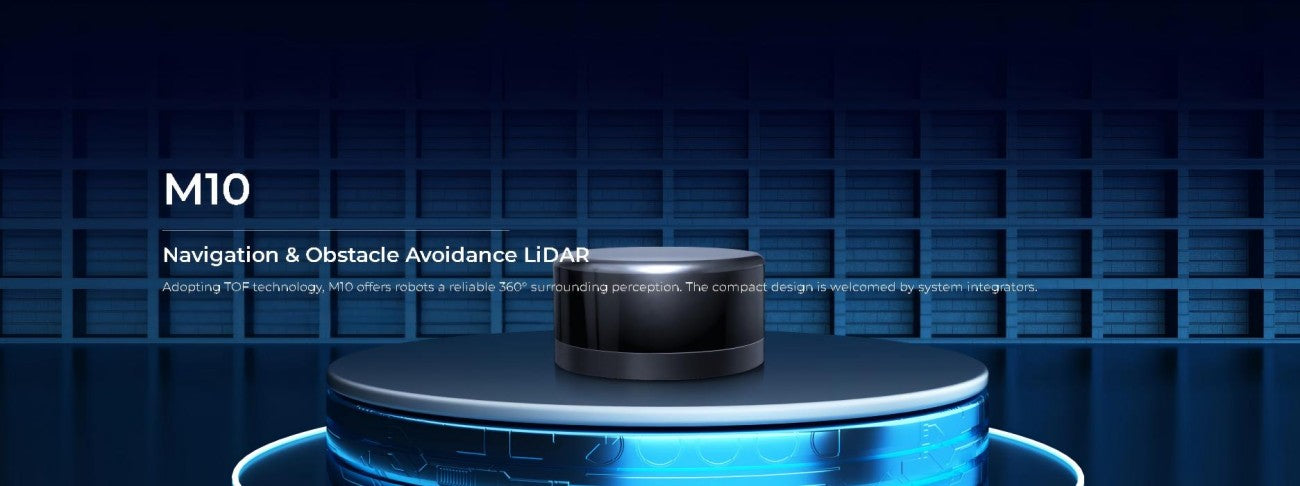

LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

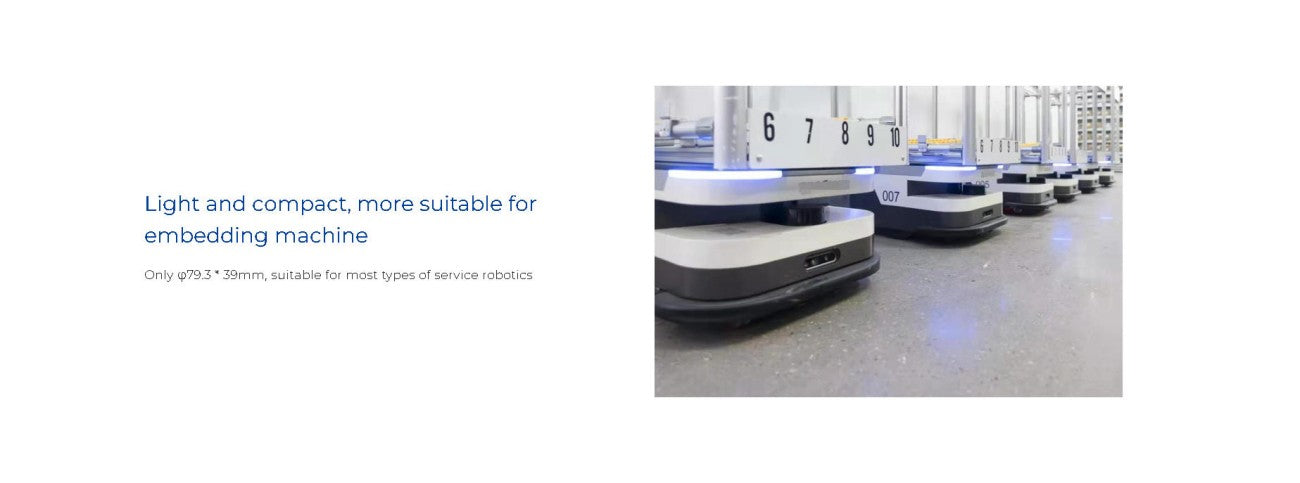

LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

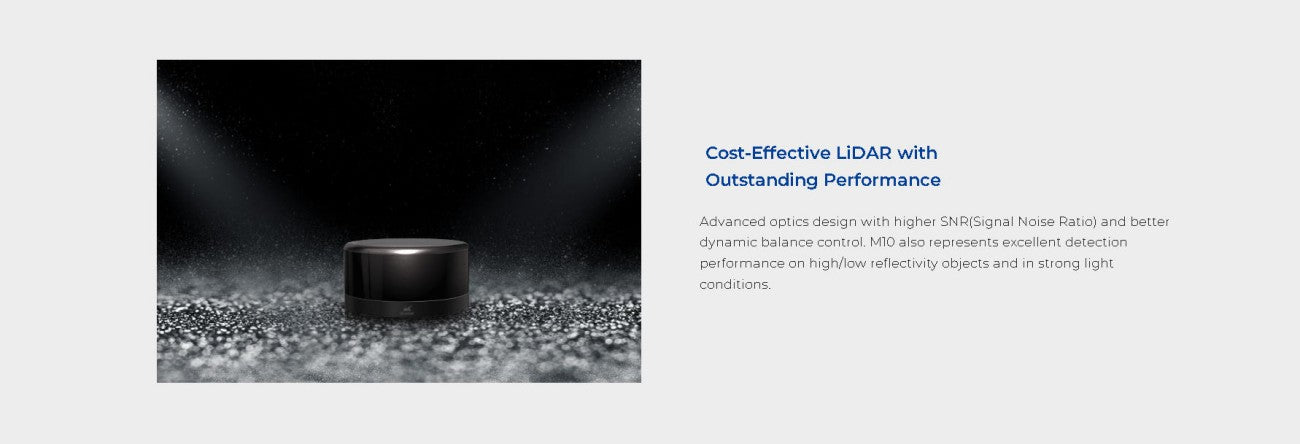

LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

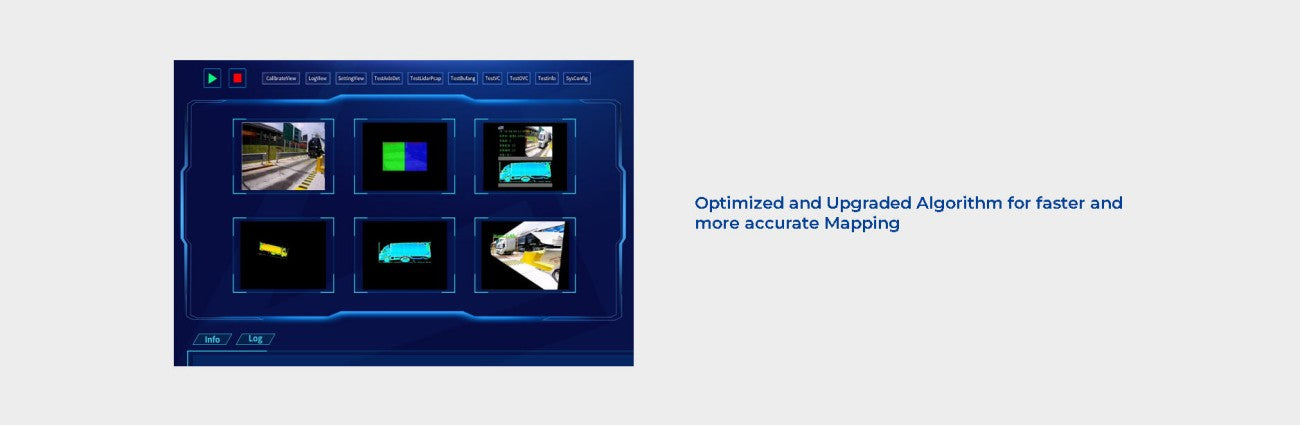

LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
LSLIDAR M10 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

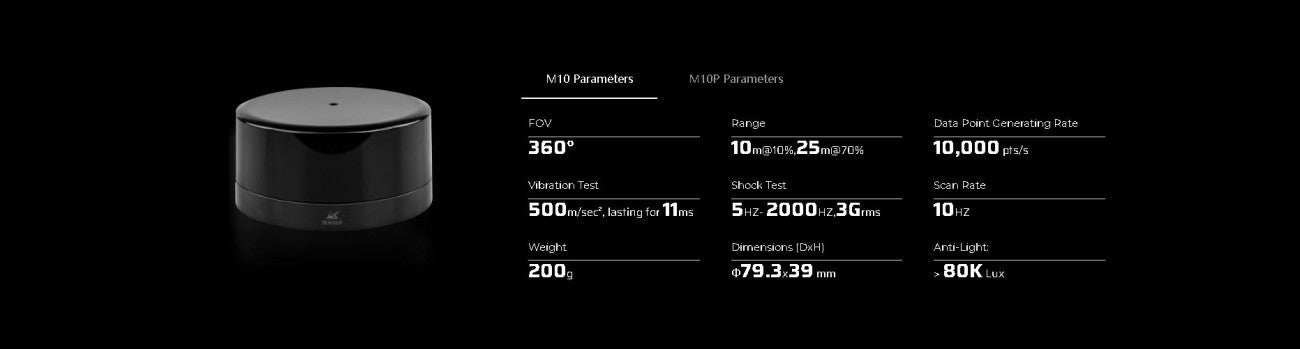

▤ Technical Specifications ⌃
Parameter M10 M10P M10 PHY
Laser Wavelength 905 nm 905 nm 905 nm
Laser Class Class I (eye-safe) Class I (eye-safe) Class I (eye-safe)
Data Content Distance, angle Distance, angle Distance, angle
Detection Range 10m@10%, 25m@70% 10m@10%, 25m@70% 10m@10%, 25m@70%
Measurement Accuracy ±3 cm ±3 cm ±3 cm
Emission Repetition Rate 10 kHz 20 kHz 10 kHz
Scanning Frequency 10 / 20 Hz 12 Hz 10 Hz
Point Rate 10,000 points/s 20,000 points/s 10,000 points/s
Output Data Resolution 1 mm 1 mm 1 mm
Angular Resolution 0.36° / 0.72° 0.22° 0.36°
Power Supply Range 5–15V (Ethernet); 4.75–5.25V (Serial) 5–15 V (Ethernet) 9–32 V DC
Ingress Protection Rating IP65 IP65 IP65
Operating Temperature –20°C to +50°C –20°C to +50°C –10°C to +50°C
Communication Interface Standard serial port (baud rate: 460800 bps) Standard serial port (baud rate: 512000 bps) Ethernet
Shock Resistance 500 m/s², 11 ms duration 500 m/s², 11 ms duration 500 m/s², 11 ms duration
Ambient Light Immunity 80,000 Lux 80,000 Lux ——
Weight ≈200 g ≈200 g ≈200 g
Dimensions (D × H) Ø79.6 × 39 mm Ø79.6 × 39 mm Ø79.6 × 39 mm
