OCServo

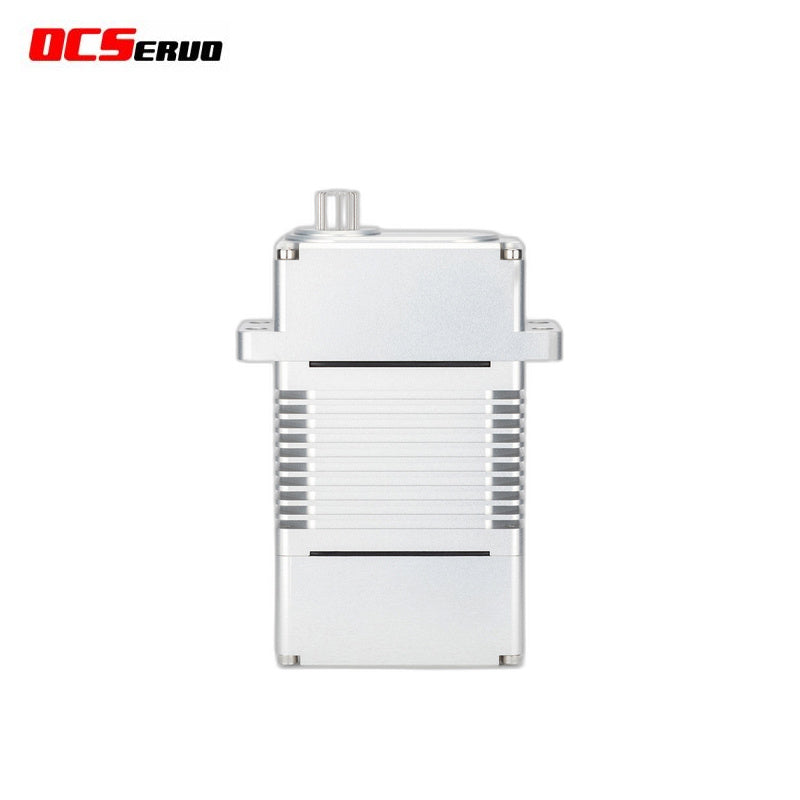

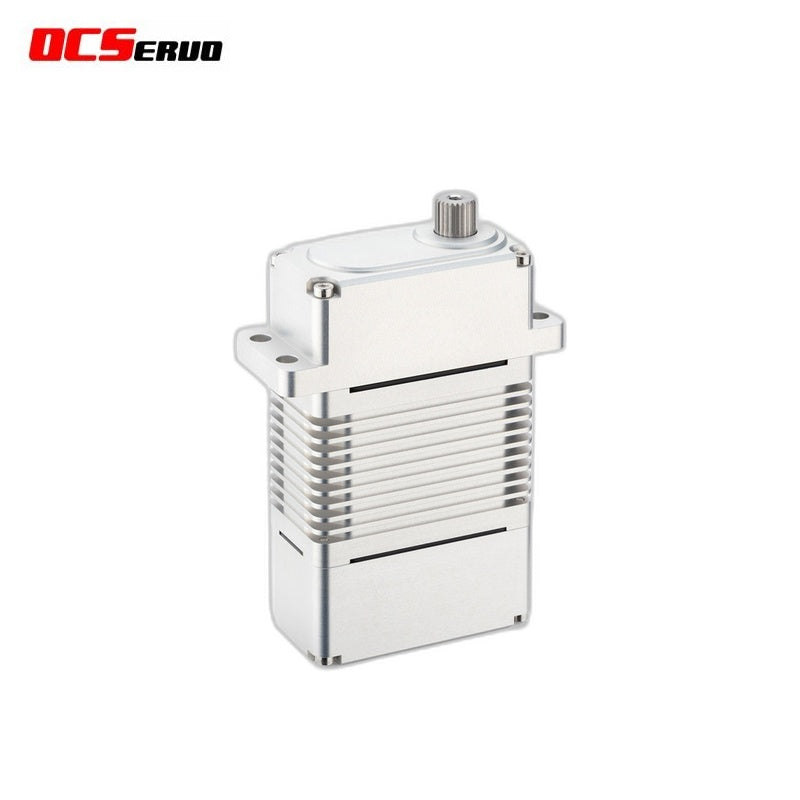

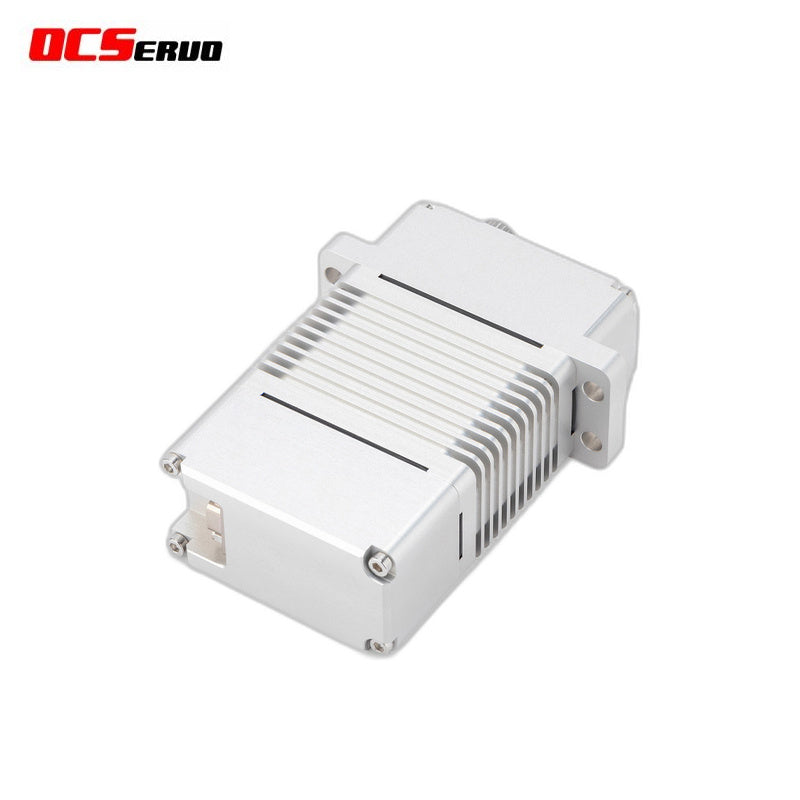

OCServo OCS-D4001 Servo Motor

  • Stall torque (kg·cm): 24V: 320; 28V: 360; 30V: 390
  • Rated torque (kg·cm): 24V: 115; 28V: 133; 30V: 145
  • Operating Voltage: 24V / 28V / 30V
  • No load speed (sec/60°): 24V: 0.28; 28V: 0.20; 30V: 0.16
  • Command Type: PWM or CAN or 480
$910
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D4001 dimensional drawing.pdf ▶

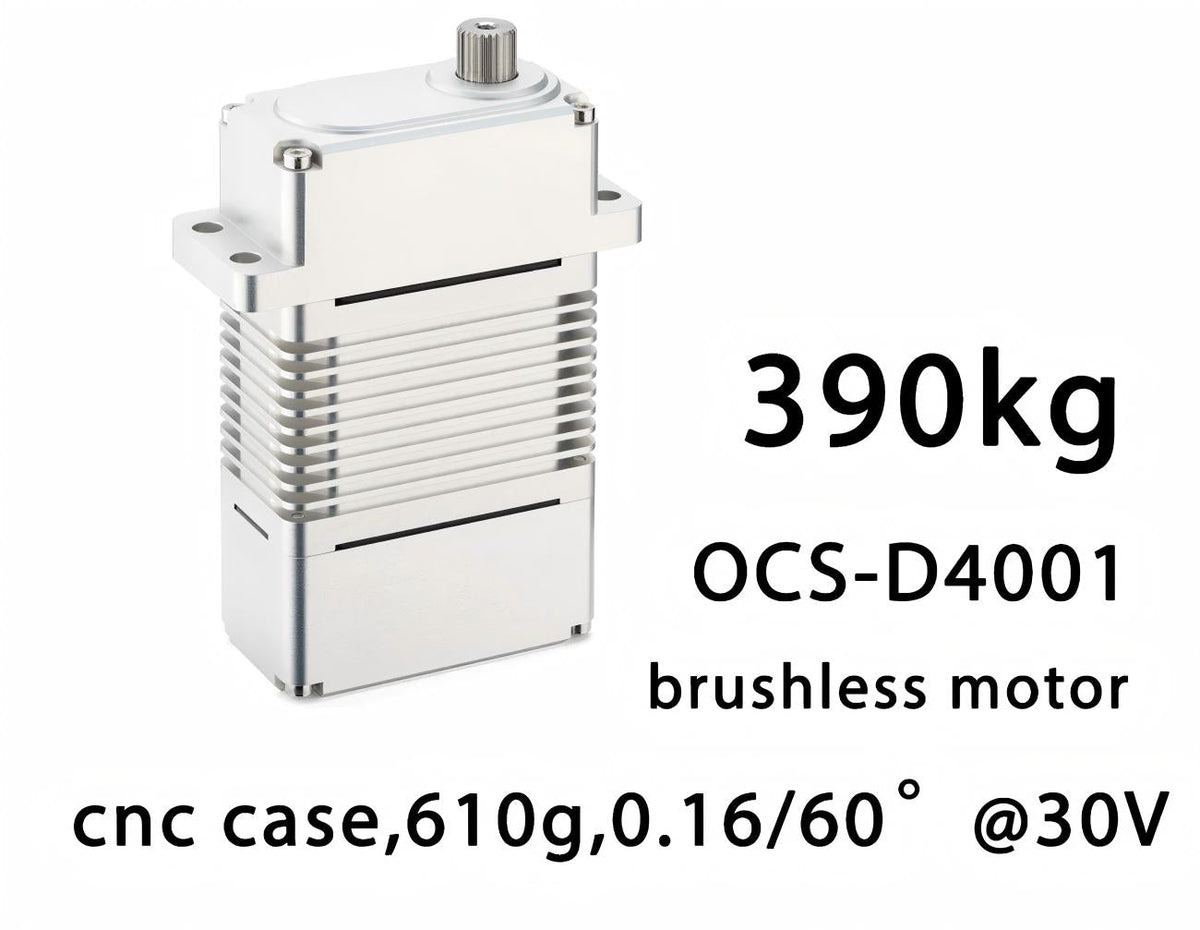

OCServo OCS-D4001 Servo Motor detail image

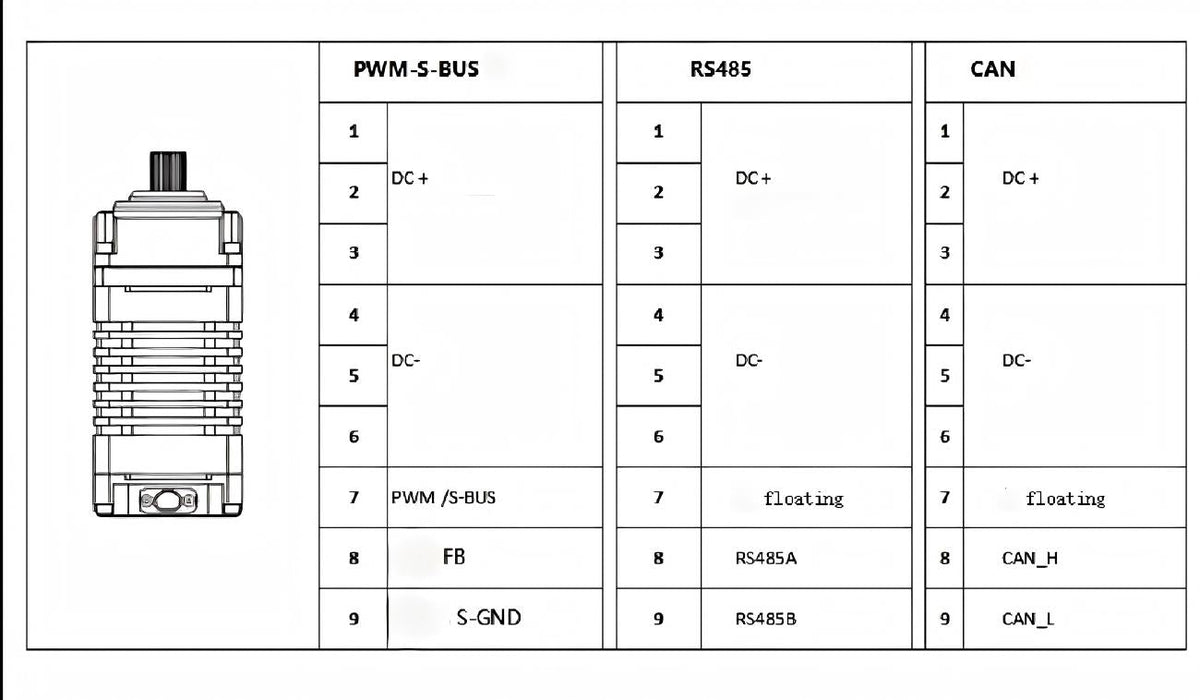

OCServo OCS-D4001 Servo Motor detail image
OCServo OCS-D4001 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
30V400kg-cm BLS Servo
Item No.
OCS-D4001
Storage Temperature Range
-30°C ~ 70°C
Operating Temperature Range
-30°C ~ 65°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
68 × 35 × 120
Weight (g)
610
Gear Type
Steel Gear
Limit Angle
-
Bearings
6 Ball bearings
Output Spline
25T - Φ11.8mm
Horn Type
7075-Aluminium CNC
Case Material
7075-Aluminium CNC
Connector Wire
J30J-9TJ (Need to purchase separately)
Motor Type
BLS motor
Waterproof Performance
Yes
Operating Voltage
24V / 28V / 30V
No load speed (sec/60°)
24V: 0.28; 28V: 0.20; 30V: 0.16
Running current (at no load) (mA)
24V: 200; 28V: 300; 30V: 400
Stall torque (kg·cm)
24V: 320; 28V: 360; 30V: 390
Rated torque (kg·cm)
24V: 115; 28V: 133; 30V: 145
Rated current (A)
24V: 1.9; 28V: 2.0; 30V: 2.3
Stall current (A)
24V: <5; 28V: <6.5; 30V: <7
Idle current (mA)
60 (all voltages)
Command Type
PWM or CAN or 480
Amplifier Type
Digital Controller
Pulse Width Range
500~2500 μsec (customizable)
Neutral Position
1500 μsec (customizable)
Running Degree
180° (when 500~2500 μsec) customizable
Dead Band Width
3 μsec
Rotating Direction
CCW (when 1000~2000 μsec) customizable
