GENISOM

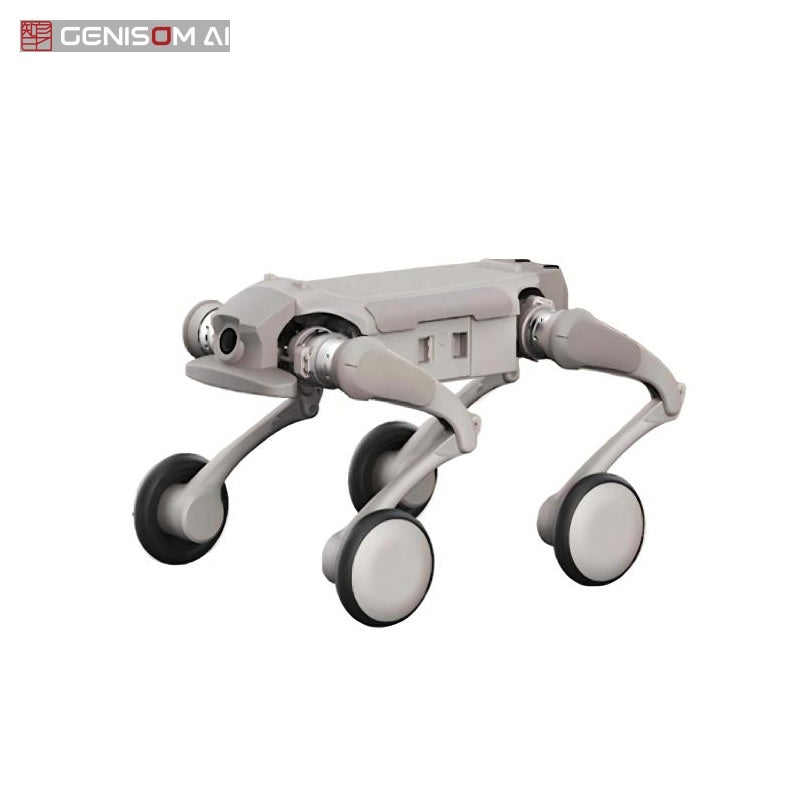

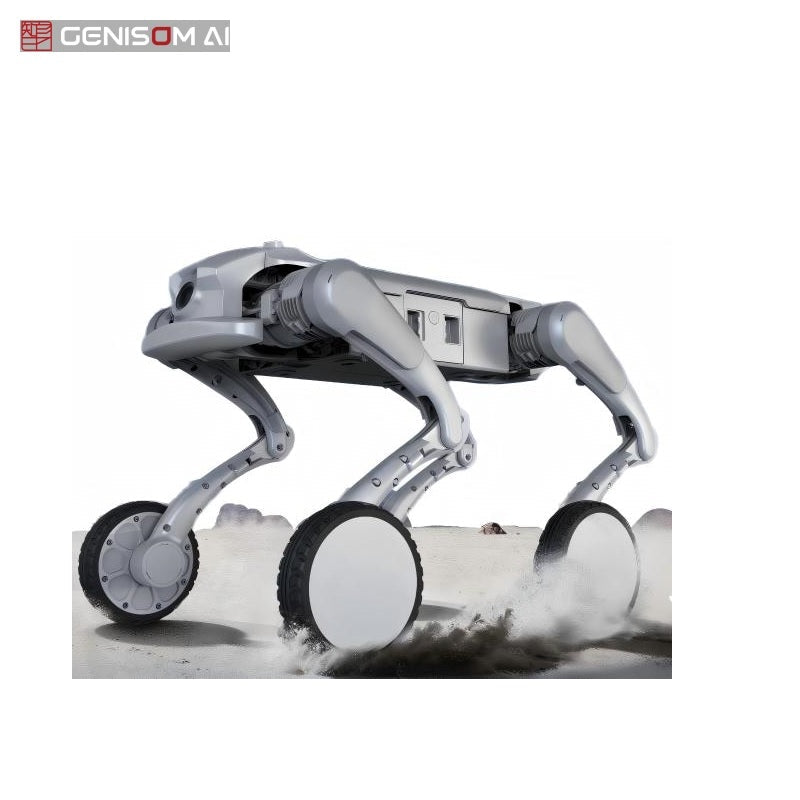

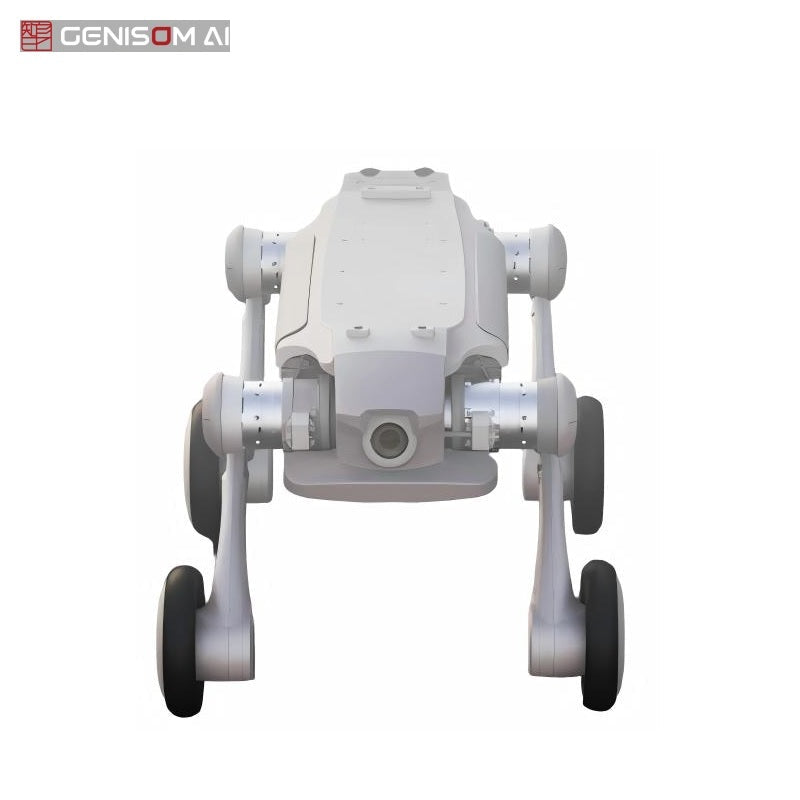

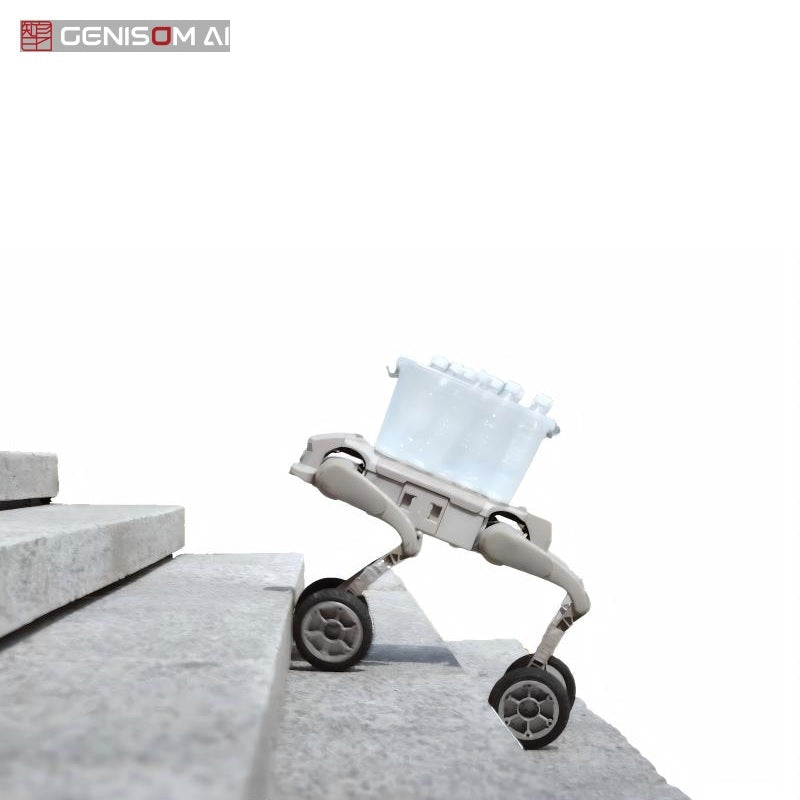

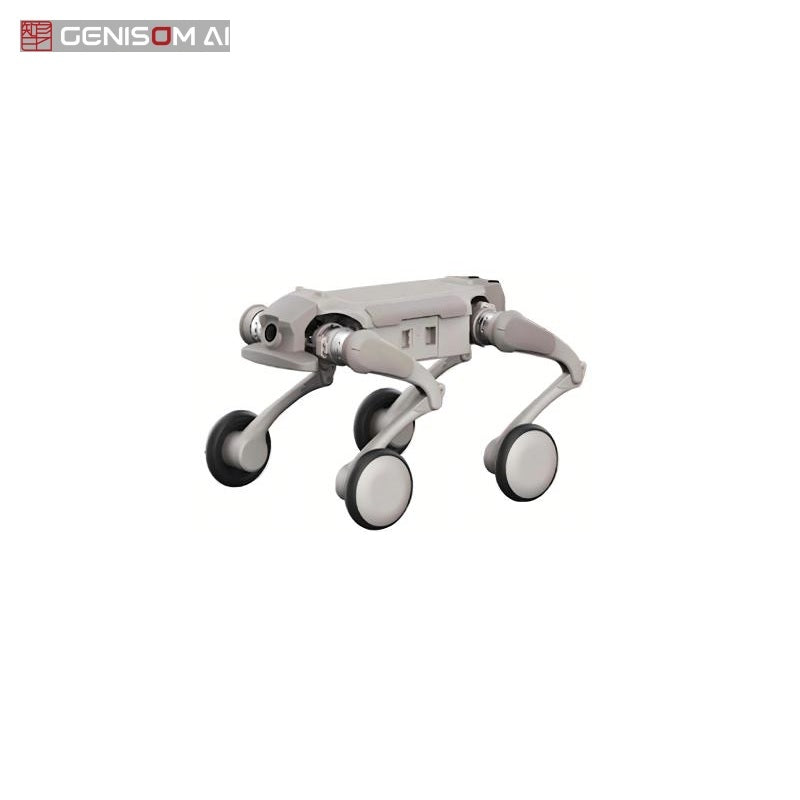

GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research

  • GENISOM quadruped robot platform for robotics research, embodied AI development, and education labs.
  • Suitable for teams building robot locomotion, autonomous behavior, perception, and field robotics workflows.
  • Designed for robotics developers, universities, and engineering teams evaluating quadruped robot applications.
  • Supports practical robot platform development for prototyping, demonstrations, automation, and lab experiments.
$13,150
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research detail image 1

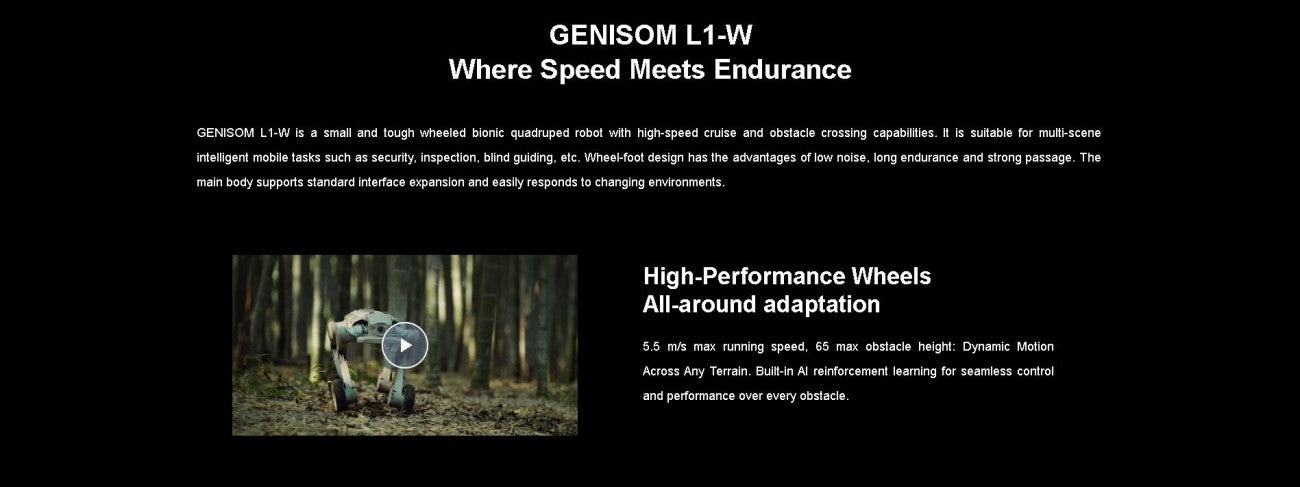

GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research detail image 2
GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research detail image 3

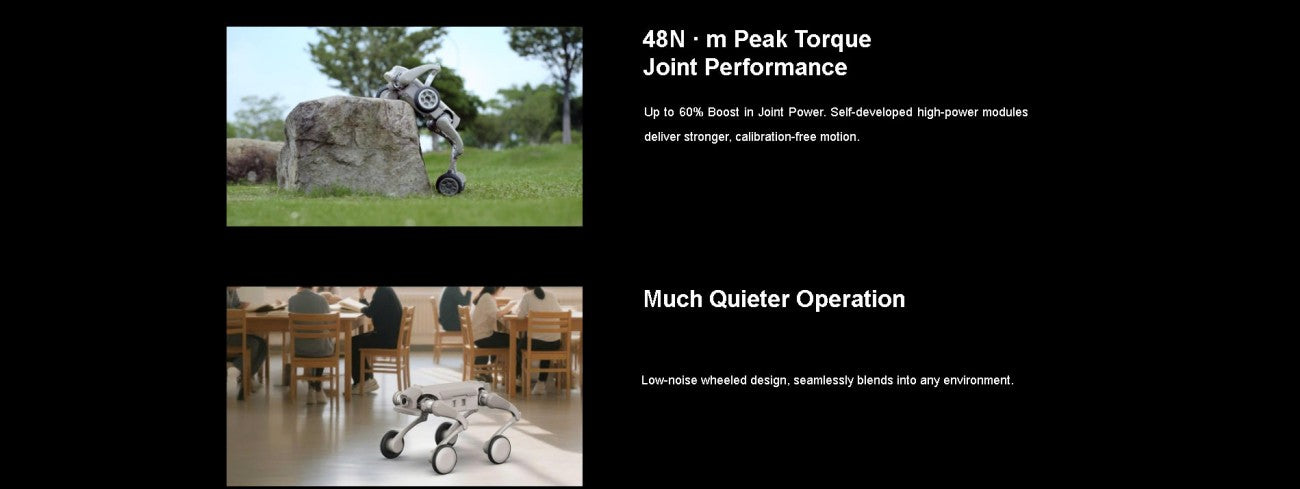

GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research detail image 4

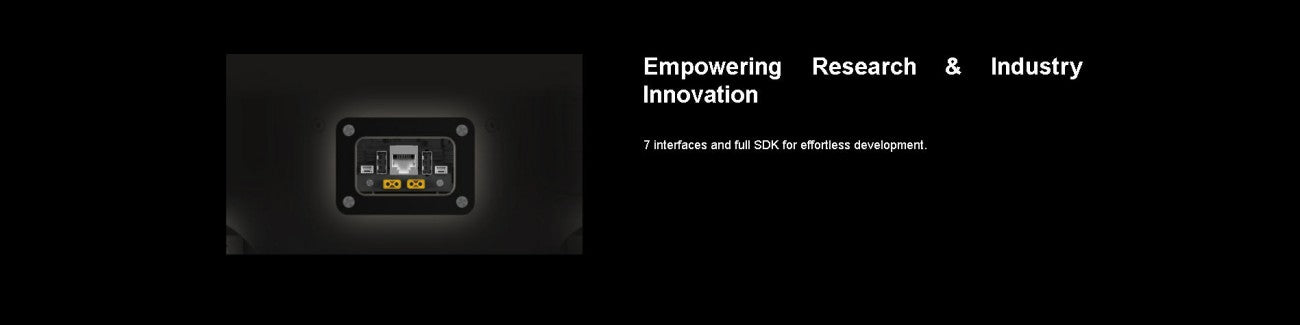

GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research detail image 5

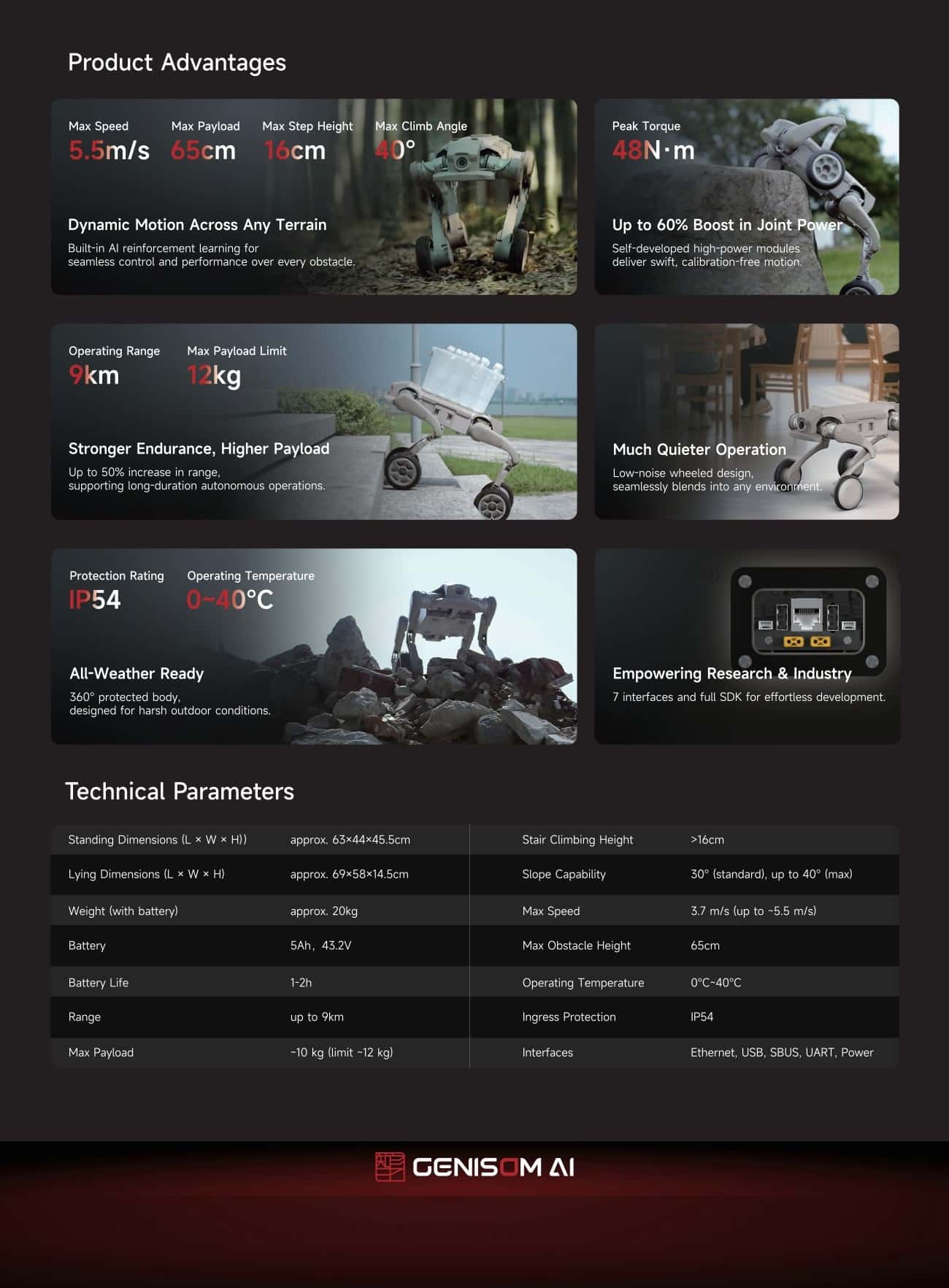

GENISOM L1-W Robot | Quadruped Robot Platform for Robotics Research detail image 6
▤ PARAMETER ⌃
Total Degrees of Freedom
GENISOM L1-W: 12 DOF GENISOM L1-W EDU: 12 DOF
Standing Dimensions (L×W×H)
GENISOM L1-W: Approx. 630mm × 440mm × 455mm GENISOM L1-W EDU: Approx. 630mm × 440mm × 455mm
Crouching Dimensions (L×W×H)
GENISOM L1-W: Approx. 690mm × 580mm × 145mm GENISOM L1-W EDU: Approx. 690mm × 580mm × 145mm
Total Weight
GENISOM L1-W: 20 kg GENISOM L1-W EDU: 20 kg
Battery Life
GENISOM L1-W: 1–2 h GENISOM L1-W EDU: 1–2 h
Maximum Range
GENISOM L1-W: 9 km GENISOM L1-W EDU: 9 km
Maximum Speed
GENISOM L1-W: 3.7 m/s GENISOM L1-W EDU: 3.7 m/s
Maximum Payload
GENISOM L1-W: ≈10 kg (Extreme ~12 kg) GENISOM L1-W EDU: ≈10 kg (Extreme ~12 kg)
Operating Temperature
GENISOM L1-W: 0 °C – 40 °C GENISOM L1-W EDU: 0 °C – 40 °C
Protection Rating
GENISOM L1-W: IP54 GENISOM L1-W EDU: IP54
Functional Interfaces
GENISOM L1-W: Ethernet Port, USB Port, Power Port, SBUS Interface, UART Interface GENISOM L1-W EDU: Ethernet Port, USB Port, Power Port, SBUS Interface, UART Interface
Secondary Development
GENISOM L1-W: Supported GENISOM L1-W EDU: Supported
Aluminum Alloy Precision Joint Motors
GENISOM L1-W: 12 GENISOM L1-W EDU: 12
High-Performance Hub Motors
GENISOM L1-W: 4 GENISOM L1-W EDU: 4
Wheels
GENISOM L1-W: 6-inch Solid Tires GENISOM L1-W EDU: 6-inch Solid Tires
Jetson Orin NX 16G Computing Board
GENISOM L1-W: \ GENISOM L1-W EDU: √
Mid 360 LiDAR
GENISOM L1-W: \ GENISOM L1-W EDU: √
Realsense Depth Camera
GENISOM L1-W: \ GENISOM L1-W EDU: √
GNSS Positioning Module
GENISOM L1-W: \ GENISOM L1-W EDU: √
5G Communication Module
GENISOM L1-W: \ GENISOM L1-W EDU: √
RTK Antenna
GENISOM L1-W: \ GENISOM L1-W EDU: √
Functional Interfaces: Gigabit Ethernet Port, Power Port, SBUS + RS485 Interface, USB 3.0 Port (for Orin NX), USB 3.0 Port (for 3588)
GENISOM L1-W: \ GENISOM L1-W EDU: √
Zhihang RoamerX Lite Software Package
GENISOM L1-W: \ GENISOM L1-W EDU: √
