CmdRob

CmdRob M170 Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$1,300
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob M170 Motor dimension drawing for installation reference.pdf ▶ CmdRob M170 Motor dimension drawing for installation reference.pdf ▶ CmdRob M170 Motor CAD model for mechanical integration.stp ▶ CmdRob M170 Motor CAD model for mechanical integration.stp ▶

CmdRob M170 Motor

The CmdRob M170 Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

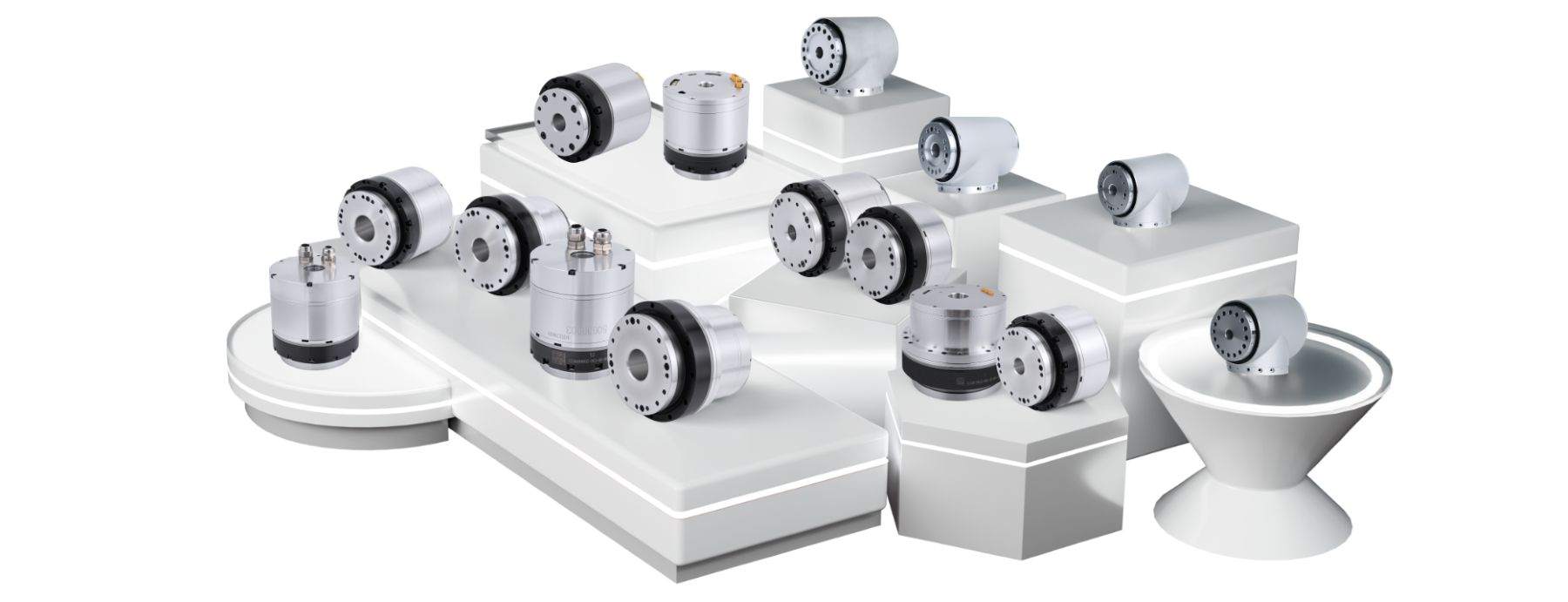

CmdRob M170 Motor detail image 1

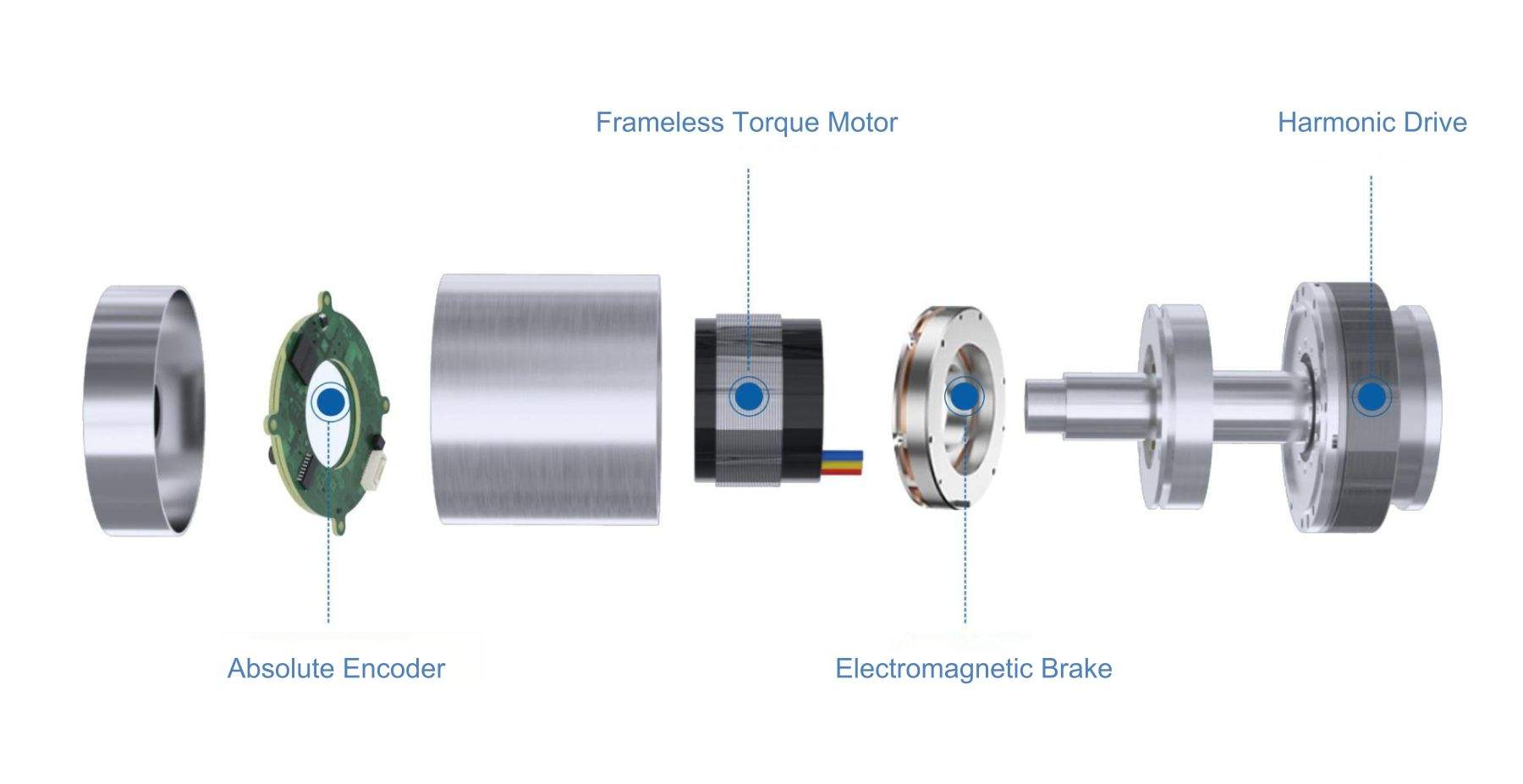

CmdRob M170 Motor detail image 2
CmdRob M170 Motor detail image 3
CmdRob M170 Motor detail image 4
CmdRob M170 Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
M170: 51 M170: 81 M170: 101 M170: 121
Input Voltage
M170: 220 (±10%)V M170: 220 (±10%)V M170: 220 (±10%)V M170: 220 (±10%)V
Maximum Torque
M170: 892N.m M170: 1270N.m M170: 1400N.m M170: 1530N.m
91.02kgf.m
M170: 129.59kgf.m M170: 142.85kgf.m M170: 156.12kgf.m
Average Load Torque
M170: 255N.m M170: 369N.m M170: 484N.m M170: 586N.m
26.02kgf.m
M170: 37.65kgf.m M170: 49.38kgf.m M170: 59.79kgf.m
Start-Stop Peak Torque
M170: 523N.m M170: 675N.m M170: 738N.m M170: 802N.m
53.36kgf.m
M170: 68.87kgf.m M170: 75.30kgf.m M170: 81.83kgf.m
Maximum Speed
M170: 80r/min M170: 50r/min M170: 40r/min M170: 33r/min
Rated Speed
M170: 40r/min M170: 25r/min M170: 20r/min M170: 17r/min
Motor Torque Constant
M170: 0.72N·m/A M170: 0.67N·m/A M170: 0.67N·m/A M170: 0.67N·m/A
0.073kgf·m/A
M170: 0.068kgf·m/A M170: 0.068kgf·m/A M170: 0.068kgf·m/A
Maximum Current
M170: 20.49A M170: 17.82A M170: 15.62A M170: 14.17A
Allowable Continuous Current
M170: 9.99A M170: 9.74A M170: 10.24A M170: 10.35A
Back EMF Constant
M170: 53.7V/krpm M170: 53.7V/krpm M170: 53.7V/krpm M170: 53.7V/krpm
Phase Resistance (20°C)
M170: 0.298Ω M170: 0.298Ω M170: 0.298Ω M170: 0.298Ω
Phase Inductance
M170: 0.99mH M170: 0.99mH M170: 0.99mH M170: 0.99mH
Moment of Inertia
M170: 1819.4(kg·mm²) M170: 1819.4(kg·mm²) M170: 1819.4(kg·mm²) M170: 1819.4(kg·mm²)
1819.4*10^-4(kgf·cm·s²)
M170: 1819.4*10^-4(kgf·cm·s²) M170: 1819.4*10^-4(kgf·cm·s²) M170: 1819.4*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
M170: 20arc-sec M170: 20arc-sec M170: 20arc-sec M170: 20arc-sec
Positioning Accuracy(2)
M170: 60arc-sec M170: 60arc-sec M170: 60arc-sec M170: 60arc-sec
Encoder Communication Protocol
M170: BISS / TAMAGAWA M170: BISS / TAMAGAWA M170: BISS / TAMAGAWA M170: BISS / TAMAGAWA
Encoder Communication Interface
M170: BISS-C / TAMAGAWA M170: BISS-C / TAMAGAWA M170: BISS-C / TAMAGAWA M170: BISS-C / TAMAGAWA
Encoder Resolution(Single-turn)
M170: 17-bit (131,072 pulses/rev) M170: 17-bit (131,072 pulses/rev) M170: 17-bit (131,072 pulses/rev) M170: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
M170: 16-bit (-32,768 to +32,767 revs) M170: 16-bit (-32,768 to +32,767 revs) M170: 16-bit (-32,768 to +32,767 revs) M170: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
M170: 6,684,672pulses/rev M170: 10,616,832pulses/rev M170: 13,238,272pulses/rev M170: 15,859,712pulses/rev
Mass
M170: 8.3 KG M170: 8.3 KG M170: 8.3 KG M170: 8.3 KG
Ambient Environmental Conditions
M170: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M170: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M170: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M170: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
M170: 10000 M170: 15000 M170: 15000 M170: 15000
Motor Insulation
M170: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M170: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M170: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M170: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
M170: Omnidirectional Mounting M170: Omnidirectional Mounting M170: Omnidirectional Mounting M170: Omnidirectional Mounting
Protection Rating
M170: Totally Enclosed, Non-Ventilated (IP54) M170: Totally Enclosed, Non-Ventilated (IP54) M170: Totally Enclosed, Non-Ventilated (IP54) M170: Totally Enclosed, Non-Ventilated (IP54)
