HIGH TORQUE

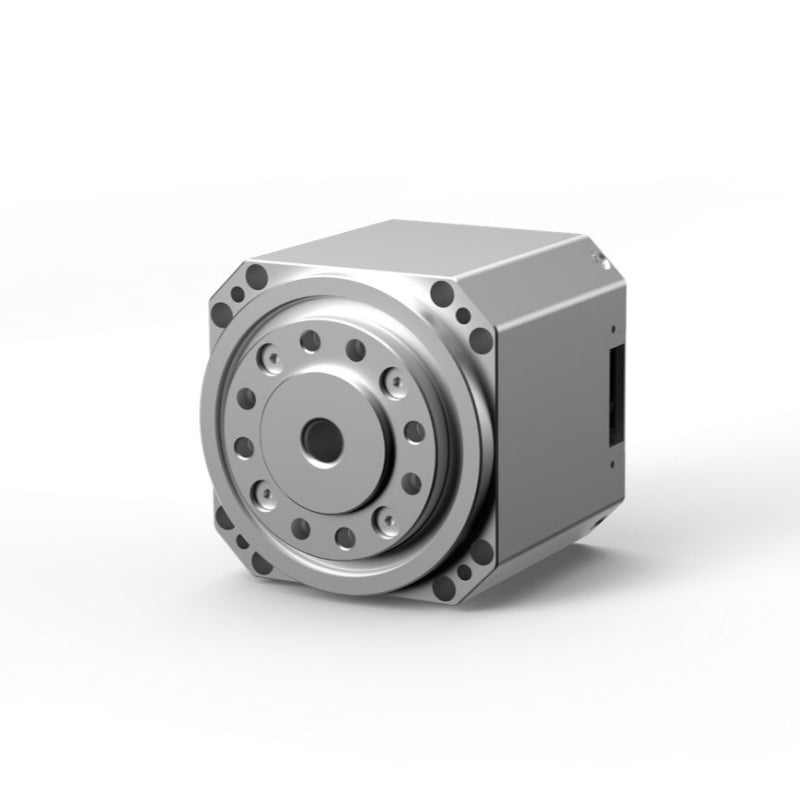

HIGH TORQUE HTCP-5031-06-CYC Hollow Joint Module

  • Designed for humanoid robots, robotic arms, and compact robotics platforms.
  • Hollow joint structure enables flexible cable routing and compact mechanical integration.
  • 31:1 reduction ratio provides efficient torque output for robotic motion.
  • Dual encoder feedback supports precise joint control and stable operation.
  • CANFD/CAN communication enables flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTCP-5031-06-CYC Hollow Joint Module

The HIGH TORQUE HTCP-5031-06-CYC is a compact hollow joint module designed for humanoid robots, robotic arms, and advanced robotics development platforms. It integrates a motor, planetary reduction mechanism, encoder feedback, and communication interface into a compact actuator solution for precise robotic motion control and flexible system integration.

Hollow Joint Design

The HTCP-5031-06-CYC features a hollow structure that supports cleaner cable routing and improved mechanical integration. With a compact 50 × 53 mm form factor, it is suitable for space-limited robotic designs including humanoid robots, robotic arms, and custom research platforms.

31:1 Planetary Reduction

The integrated 31:1 reduction mechanism provides efficient torque transmission for robotic joint applications. With 4 Nm rated torque and 16 Nm locked-rotor torque, the module delivers reliable motion output for lightweight robotic systems requiring accurate and responsive movement.

Dual Encoder Feedback

The HTCP-5031-06-CYC integrates encoder feedback with 14-bit input and output encoder resolution, enabling precise position feedback and improved joint control performance. This makes it suitable for robotics applications requiring stable and repeatable motion control.

CANFD/CAN Communication

Supporting CANFD/CAN communication and up to 3 kHz control frequency, the module allows flexible connection with robotic controllers and embedded systems. Its 12–50.4 V voltage range makes it adaptable for various robotic platforms, including education, research, and prototype development.

HIGH TORQUE HTCP-5031-06-CYC Hollow Joint Module
▤ PARAMETER ⌃

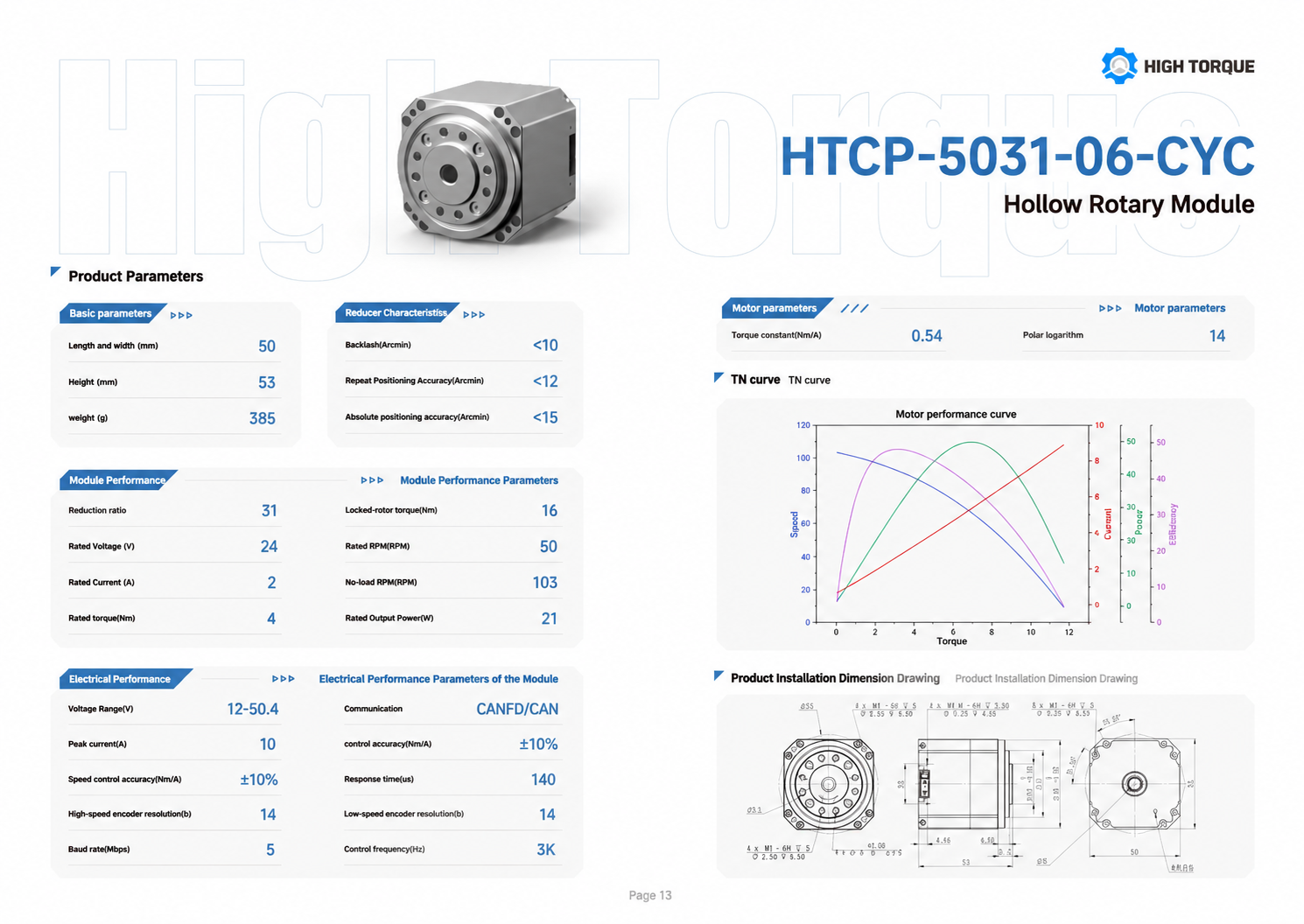

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 50 mm
Height 53 mm
Weight 385 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 31
Rated Voltage 24 V
Rated Current 2 A
Rated Torque 4 Nm
Locked-Rotor Torque 16 Nm
Rated RPM 50 RPM
No-Load RPM 103 RPM
Rated Output Power 21 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 10 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
