Ti5 ROBOT

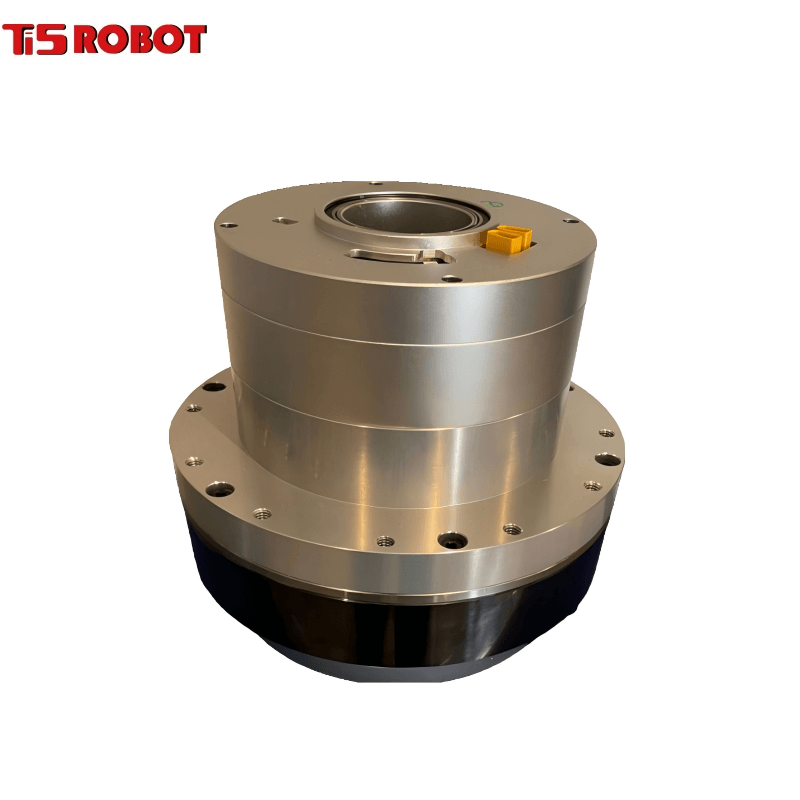

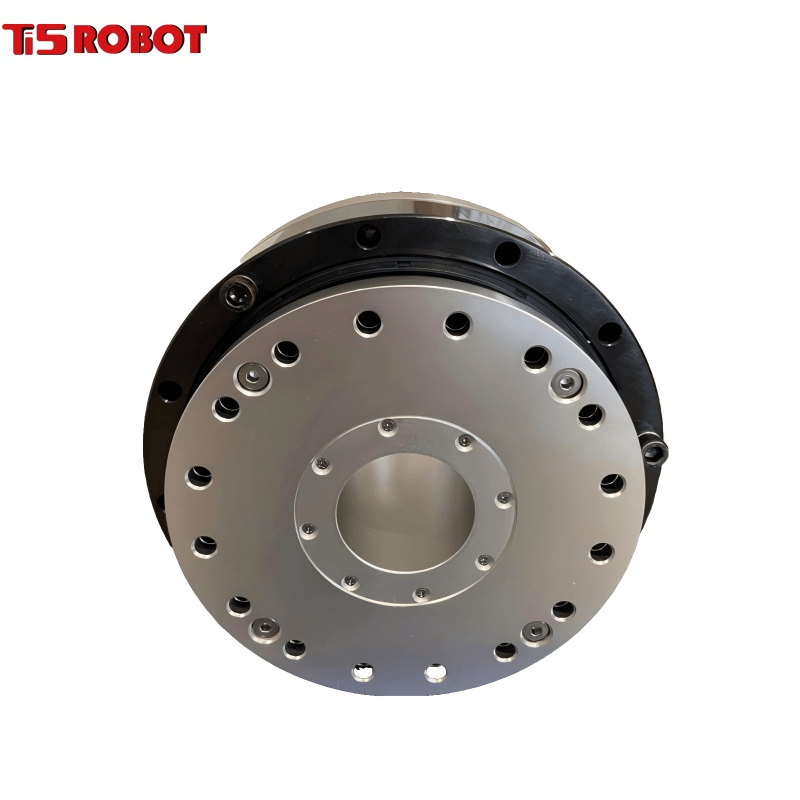

Ti5 ROBOT CRA-RI110-170-PRO Motor | High-Torque Robot Servo Motor for Robotics

  • Robot servo motor for robotic joints and motion control development.
  • Designed for robot actuators, humanoid robotics, and automation systems.
  • Suitable for robotics developers, engineering labs, and education projects.
$1,755
Version
Encoder
Brake

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Developer Support

Ti5 ROBOT CRA-RI110-170-PRO Motor documentation with specifications, drawings, and integration reference information ▶

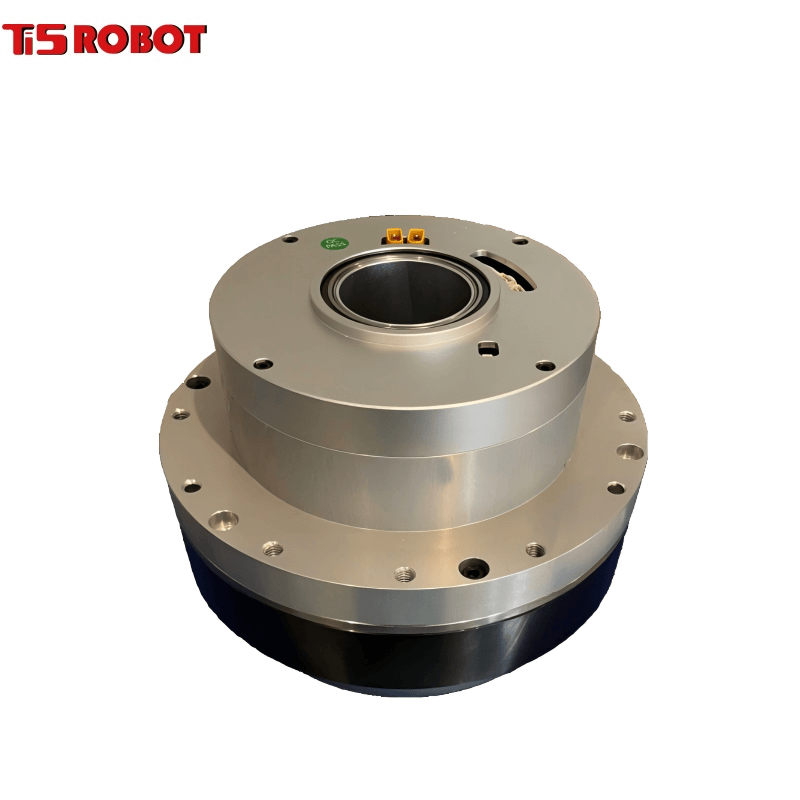

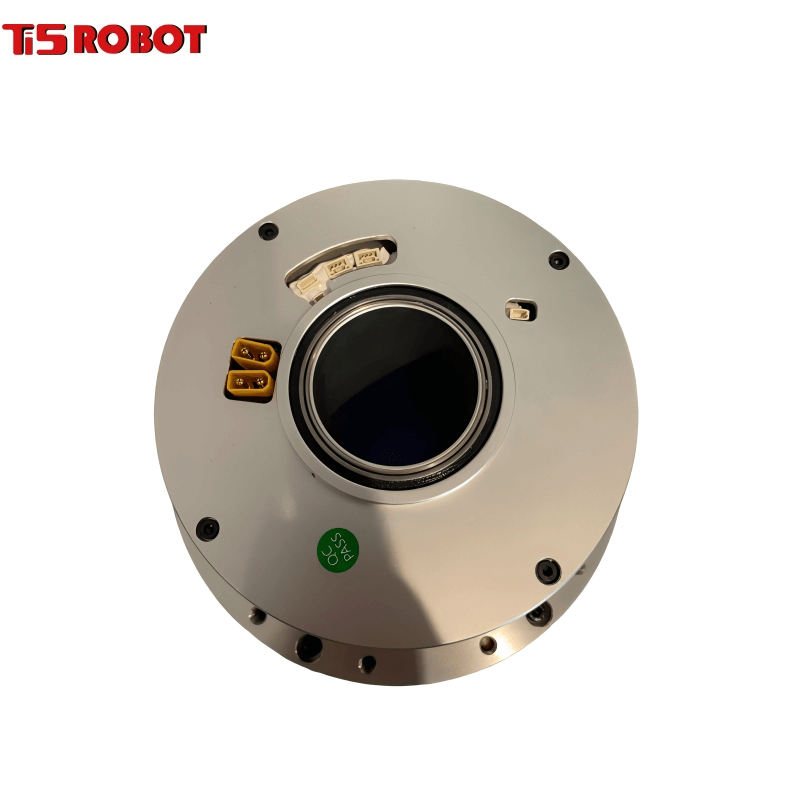

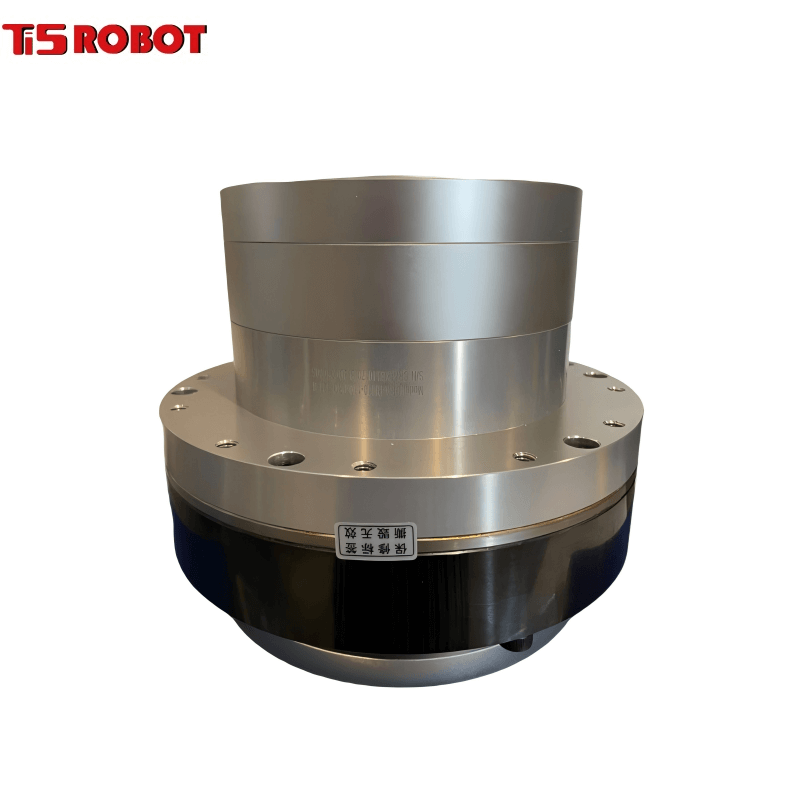

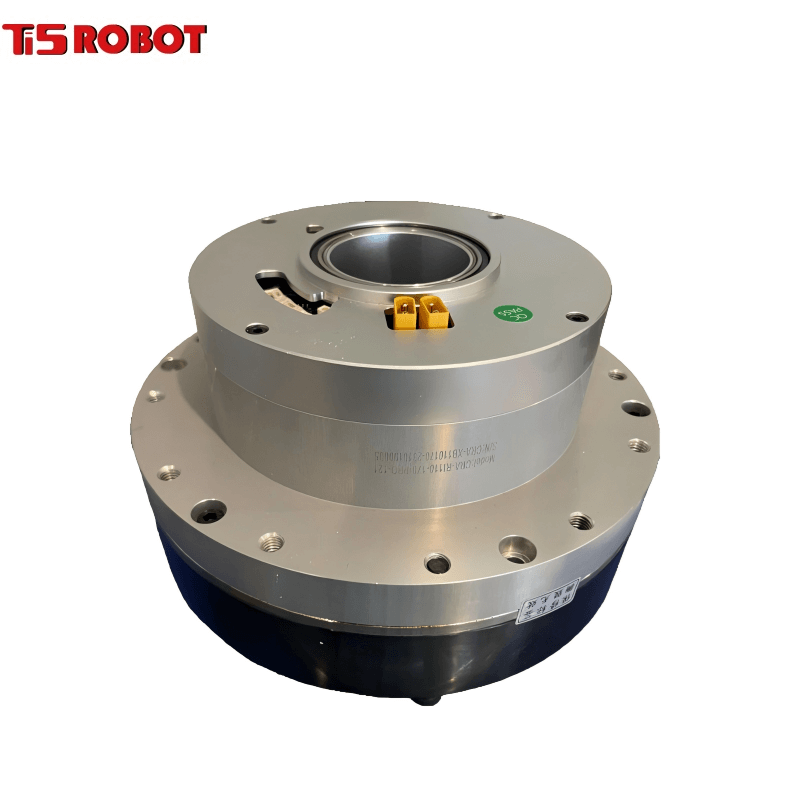

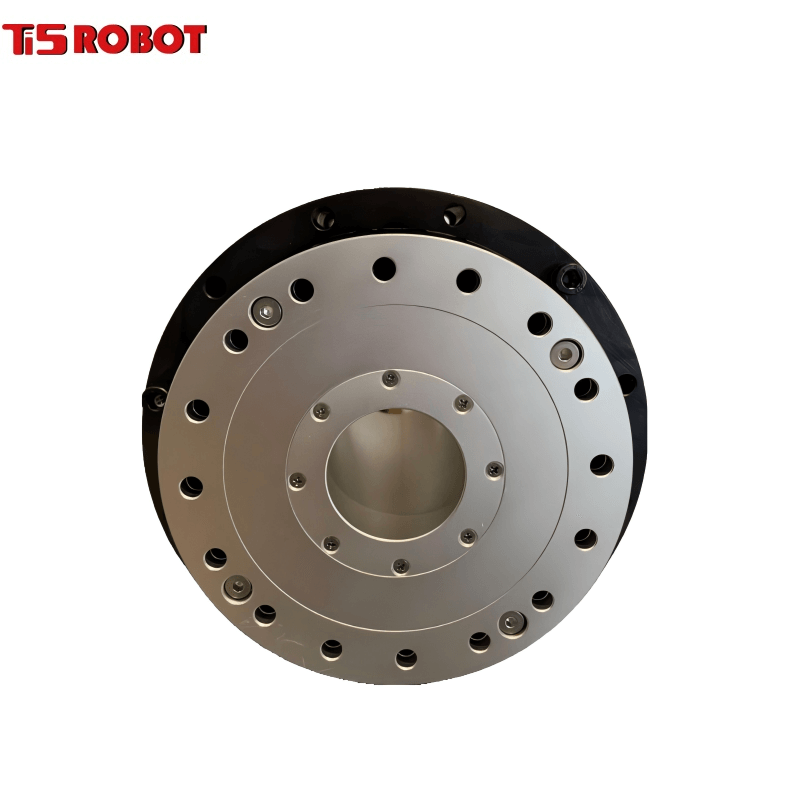

Ti5 ROBOT CRA-RI110-170-PRO Motor

The Ti5 ROBOT CRA-RI110-170-PRO Motor is a robot servo motor for robotic joints, compact actuator modules, humanoid robotics, and automation systems. It is suitable for robotics developers, research labs, education teams, and engineering builders integrating precision motion hardware.

Features

  • **Robot servo motor platform:** Designed for robotic joint and actuator development.
  • **Robotics integration:** Suitable for humanoid robotics, robot hardware, and compact motion modules.
  • **Developer-focused:** Built for research, prototyping, education, and industrial automation.
  • **Source-backed listing:** Product data is extracted from the reference product page.
Ti5 ROBOT CRA-RI110-170-PRO Motor | High-Torque Robot Servo Motor for Robotics Ti5 ROBOT CRA-RI110-170-PRO Motor | High-Torque Robot Servo Motor for Robotics Ti5 ROBOT CRA-RI110-170-PRO Motor | High-Torque Robot Servo Motor for Robotics Ti5 ROBOT CRA-RI110-170-PRO Motor | High-Torque Robot Servo Motor for Robotics Ti5 ROBOT CRA-RI110-170-PRO Motor | High-Torque Robot Servo Motor for Robotics
▤ PARAMETER ⌃
Parameter
Value
Motor Model
CRA-RI110-170-PRO-XX/CRA-RI110-170-PRO-XX-B
Reduction Ratio
51/81/101/121/161
Start-stop Peak Torque
497/641/702/762/800N.m
Maximum Allowable Average Load Torque
242/351/460/557/557N.m
2000 Rpm/(Reduction Ratio) Rated Torque at this speed
169/255/328/363/363N·m
Output End Peak Rotational Speed
33/21/16/14/10RPM
Rated Speed
22/15/12/10/7RPM
Motor Power
1500W
Supply Voltage
24-48V
Maximum Continuous Current
30.2A
Rated Current
14.1A
Encoder Resolution
16Bit
Back Clearance
20/20/10/10/10arcsec
Torque Constant
0.293N·m/A
Hole
40mm
Length: Without brake / With brake
121.7±0.5mm / 147.7±0.5mm
Weight: Without brake / With brake
6.84kg / 7.52kg
Inertia: Without brake / With brake
8333.3g·cm² / 10709.2g·cm²
