Leaderdrive

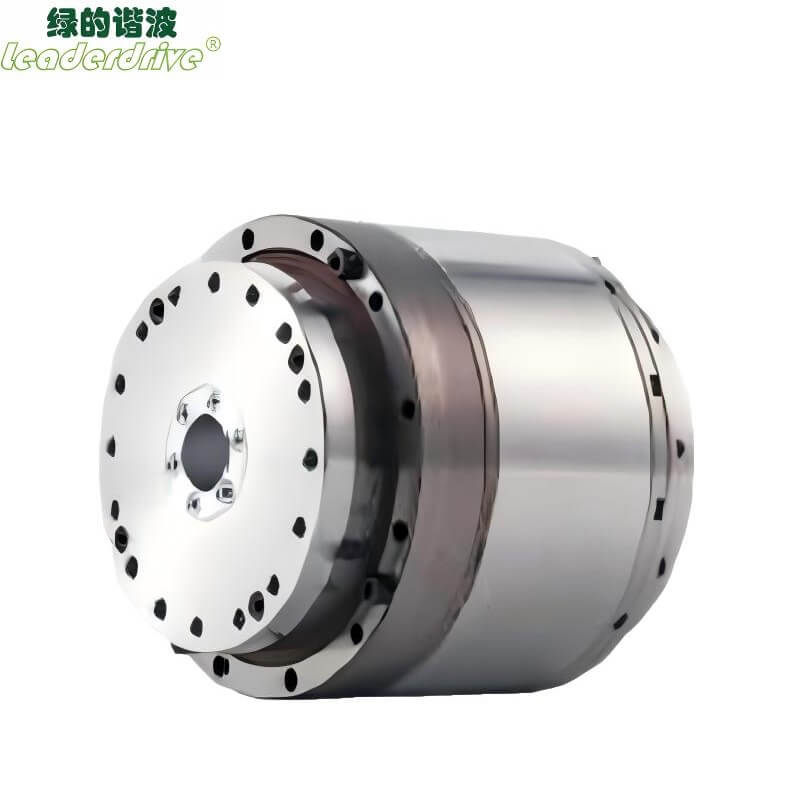

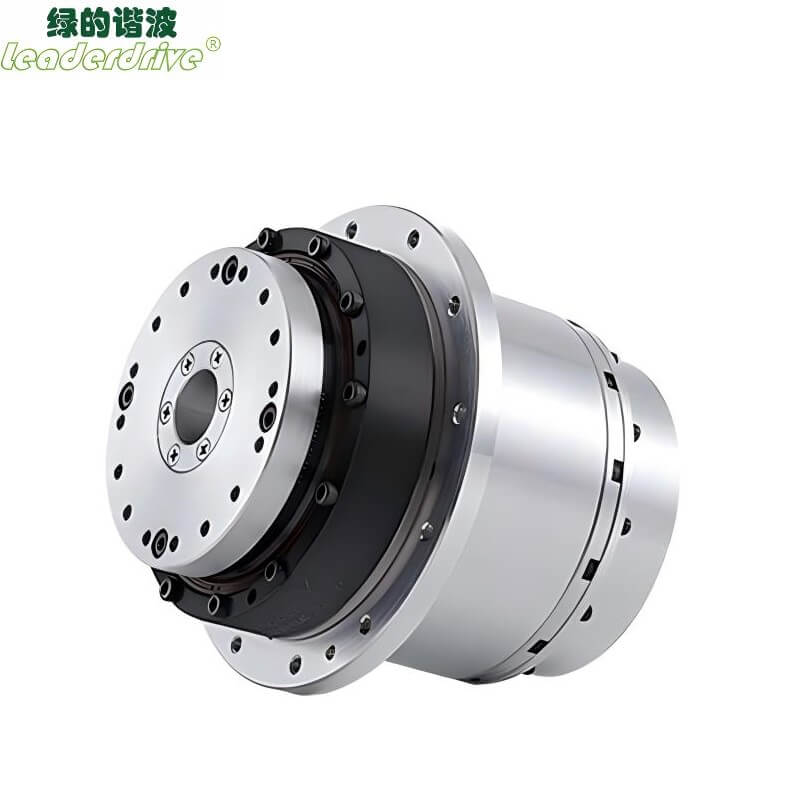

Leaderdrive KAH Motor | Robot Actuator Motor for Precision Robotics

  • Leaderdrive motor platform for precision robotics and automation systems.
  • Designed for robotic joints, motion modules, and compact actuator assemblies.
  • Suitable for robot hardware development, research labs, and industrial automation.
$2,900
Version
Model No
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Leaderdrive KAH Motor product overview, specifications, and application reference manual ▶ Leaderdrive KAH Motor 3D CAD model for mechanical design and integration ▶

Leaderdrive KAH Motor

The Leaderdrive KAH Motor is a Leaderdrive motor for robotic joints, precision motion systems, automation equipment, and robot hardware development. It is suitable for engineering teams, robotics developers, research labs, and automation builders integrating compact motion modules.

Features

  • **Precision motion platform:** Designed for robotic joints and automation hardware.
  • **Developer-focused integration:** Suitable for robot actuator modules and engineering prototypes.
  • **Robotics applications:** Built for research, automation, and compact motion systems.
  • **Source-backed listing:** Product data is extracted from the reference product page.
▤ Technical Specifications ⌃
KAH14 and KAH17 Series Parameter Table
Series KAH-14 KAH-17
Mode: KAH- 14A 14B 14C 17A 17B 17C 17D
Reduction ratio 1:51 1:81 1:101 1:51 1:81 1:101 1:121
Maximum torque at start and stop N·m 23 29 34 42 53 66 66
Maximum average torque N·m 8.6 13.5 13.5 32 33 49 49
220VAC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 127.5 70.6 1.96 0.56 15.36 80.2 44.4 1.56 0.56 24.10 64.4 35.6 1.41 0.44 30.68 119.6 60.8 3.35 1.65 19.39 75.3 38.3 2.10 1.04 31.73 60.4 30.7 2.51 1.24 39.51 50.4 25.6 2.09 1.04 47.11
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 4.311 5.256 23.85 2.135 3.869 30.66
110VAC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 40.8 70.6 4.06 1.17 7.36 64.8 44.4 3.23 1.16 11.68 80.8 35.6 3.03 0.93 14.57 100.0 60.8 6.78 3.35 9.56 63.0 38.3 8.26 4.18 7.85 50.5 30.7 7.08 3.53 13.87 42.1 25.6 6.26 2.95 16.58
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 2.089 2.593 11.07 1.036 1.684 14.79
DC bus voltage 48VDC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 88.2 70.6 7.59 2.84 3.03 55.6 44.4 7.67 3.57 3.78 44.6 35.6 5.66 2.25 6.01 78.4 60.8 16.50 8.47 3.74 49.4 38.3 11.23 5.34 6.12 39.6 30.7 13.20 6.53 7.50 33.1 25.6 10.98 5.46 8.98
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 0.275 0.352 6.32 0.262 0.313 7.98
Absolute Encoder Encoder type Resolution (single motor revolution) Motor Multi-turn counter Multi-turn hollow shaft absolute encoder 219 (524,288), 222 (4,194,304) or 224 (16,777,216) 216 (65,536)
Incremental encoder Resolution Hollow shaft incremental encoder, 40000 pulse/rev (multiplied by 4)
Output shaft resolution pulse/rev 2040000 3240000 4040000 2040000 3240000 4040000 4840000
Uni-directional positional accuracy Arc sec 40 30 30 40 30 30 30
Repeatability of positioning accuracy Arc sec 8 7 7 8 7 7 7
Overturning stiffness x104 N·m /rad 7.05 9.8 22.08 25.8
Torsional stiffness x104 N·m /rad 0.46 0.6 1.07 1.3
Inertia moment Without brake With brake kg m2 kg m2 0.09 0.11 0.19 0.22 0.28 0.31 0.15 0.17 0.41 0.45 0.51 0.56 1.16 1.28
Mass Without brake With brake kg kg 1.3 1.5 1.8 2.0
Number of motor poles 16
Motor insulation Heat-resistant class: F(155℃) Insulation resistance: more than 200MΩ(DC500V) Dielectric strength: AC1500V (1 minute)
Protection structure (Degrees of Protection) Totally enclosed self-cooled type (default: IP65, special customized: IP67)
KAH20 and KAH25 Series Parameter Table
Series KAH-20 KAH-25
Mode: KAH- 20A 20B 20C 20D 20E 25A 25B 25C 25D 25E
Reduction ratio 1:51 1:81 1:101 1:121 1:161 1:51 1:81 1:101 1:121 1:161
Maximum torque at start and stop N·m 69 91 102 108 113 121 169 194 207 217
Maximum average torque N·m 42 58 61 61 61 68.5 107 133 133 133
220VAC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 119.6 60.8 4.53 2.12 19.81 75.3 38.3 3.89 1.85 31.35 60.4 30.7 3.41 1.56 39.10 50.4 25.6 2.78 1.30 46.92 37.9 19.3 2.21 0.98 62.24 102.0 58.8 8.05 3.38 20.28 64.2 37.0 7.08 3.32 32.21 51.5 29.7 6.52 3.31 40.16 43.0 24.8 5.81 2.76 48.11 32.3 18.6 4.58 2.08 64.02
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 2.135 3.869 30.66 1.779 3.375 40.84
110VAC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 100.0 60.8 9.49 4.28 9.82 63.0 38.3 7.87 3.72 15.61 50.5 30.7 7.08 3.14 19.45 42.1 25.6 6.25 2.62 23.32 31.7 19.3 4.91 1.97 31.04 80.4 54.9 13.57 5.69 12.04 50.6 34.6 11.93 5.60 19.12 40.6 27.7 10.99 5.58 23.84 33.9 23.1 9.78 4.66 28.56 25.5 17.4 7.71 3.52 38.00
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 1.036 1.684 14.79 0.809 1.534 18.56
DC bus voltage 48VDC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 78.4 60.8 17.89 10.88 3.86 49.4 38.3 18.86 12.03 4.82 39.6 30.7 13.33 7.97 7.65 33.1 25.6 11.79 6.66 9.16 24.8 19.3 9.27 5.03 12.19 60.8 51.0 28.61 16.19 4.23 38.3 32.1 32.01 20.27 5.28 30.7 25.7 23.15 15.87 8.38 25.6 21.5 20.62 13.25 10.04 19.3 16.2 16.24 9.96 13.36
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 0.262 0. 313 7.98 0.239 0.282 10.57
Absolute Encoder Encoder type Resolution (single motor revolution) Motor Multi-turn counter Multi-turn hollow shaft absolute encoder 219 (524,288), 222 (4,194,304) or 224 (16,777,216) 216 (65,536)
Incremental encoder Resolution Hollow shaft incremental encoder, 40000 pulse/rev (multiplied by 4)
Output shaft resolution pulse/rev 2040000 3240000 4040000 4840000 6440000 2040000 3240000 4040000 4840000 6440000
Uni-directional positional accuracy Arc sec 40 30 30 30 30 40 30 30 30 30
Repeatability of positioning accuracy Arc sec 8 7 7 7 7 8 7 7 7 7
Overturning stiffness x104 N·m /rad 23.5 27.3 34.7 42.8
Torsional stiffness x104 N·m /rad 1.8 2.3 3.4 4.6
Inertia moment Without brake With brake kg m2 kg m2 0.19 0.22 0.57 0.63 0.86 0.95 1.23 1.35 2.18 2.35 0.49 0.58 1.24 1.51 1.93 2.31 2.85 3.31 5.01 5.97
Mass Without brake With brake kg kg 2.2 2.5 3.2 3.6
Number of motor poles 16
Motor insulation Heat-resistant class: F(155℃) Insulation resistance: more than 200MΩ(DC500V) Dielectric strength: AC1500V (1 minute)
Protection structure (Degrees of Protection) Totally enclosed self-cooled type (default: IP65, special customized: IP67)
KAH32 and KAH40 Series Parameter Table
Series KAH-32 KAH-40
Mode: KAH- 32A 32B 32C 32D 32E 40A 40B 40C 40D 40E
Reduction ratio 1:51 1:81 1:101 1:121 1:161 1:51 1:81 1:101 1:121 1:161
Maximum torque at start and stop N·m 267 376 411 436 459 497 641 702 762 800
Maximum average torque N·m 133 206 267 267 267 242 351 460 557 557
220VAC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 88.2 51.0 14.37 5.96 22.30 55.6 32.1 12.74 5.82 35.42 44.6 25.7 11.17 6.04 44.17 37.2 21.5 9.89 5.05 52.92 28.0 16.1 7.82 3.79 70.41 76.5 43.1 22.79 8.67 27.91 48.1 27.2 18.51 7.92 44.32 38.6 21.8 16.26 8.32 55.26 32.2 18.2 14.73 8.41 66.23 24.2 13.7 11.62 6.32 88.09
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 1.438 3.165 44.29 1.024 3.026 50.87
110VAC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 68.6 45.1 25.29 10.50 12.67 43.2 28.4 22.42 10.24 20.12 34.7 22.8 19.66 10.64 25.09 28.9 19.0 17.41 8.88 30.06 21.7 14.3 13.77 6.68 39.99 52.9 35.3 35.85 14.55 16.63 33.3 22.2 29.12 13.29 26.41 26.7 17.8 25.58 13.97 32.93 22.3 14.9 23.17 14.11 39.47 16.8 11.2 18.29 10.61 52.50
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 0.730 1.408 22.51 0.530 1.207 44.96
DC bus voltage 48VDC Maximum speed Rated speed Maximum current Rated current Torque constant RPM RPM Arms Arms N m/Arms 51.00 41.20 51.25 25.53 5.21 32.10 25.90 57.94 31.74 6.49 25.70 20.80 39.83 25.87 10.32 21.50 17.40 35.33 21.64 12.34 16.10 13.00 27.95 16.26 16.42 35.30 29.40 72.66 35.38 6.84 22.20 18.50 75.06 41.10 8.54 17.80 14.90 51.81 33.95 13.55 14.90 12.40 46.98 34.34 16.22 11.20 9.30 37.05 25.80 21.59
Phase resistance Phase inductance Back EMF Ohms mH Vrms/kRPM 0.188 0. 265 12.05 0.139 0.207 17.48
Absolute Encoder Encoder type Resolution (single motor revolution) Motor Multi-turn counter Multi-turn hollow shaft absolute encoder 219 (524,288), 222 (4,194,304) or 224 (16,777,216) 216 (65,536)
Incremental encoder Resolution Hollow shaft incremental encoder, 40000 pulse/rev (multiplied by 4)
Output shaft resolution pulse/rev 2040000 3240000 4040000 4840000 6440000 2040000 3240000 4040000 4840000 6440000
Uni-directional positional accuracy Arc sec 40 30 30 30 30 40 30 30 30 30
Repeatability of positioning accuracy Arc sec 8 7 7 7 7 8 7 7 7 7
Overturning stiffness x104 N·m /rad 87.5 113.6 149.5 187.4
Torsional stiffness x104 N·m /rad 7.6 9.9 14 18.6
Inertia moment Without brake With brake kg m2 kg m2 1.72 2.03 4.34 5.29 6.76 8.09 9.98 11.59 17.54 20.90 3.91 4.62 9.86 12.03 15.36 18.39 22.68 26.35 39.86 47.50
Mass Without brake With brake kg kg 6.2 6.7 9.1 9.7
Number of motor poles 16
Motor insulation Heat-resistant class: F(155℃) Insulation resistance: more than 200MΩ(DC500V) Dielectric strength: AC1500V (1 minute)
Protection structure (Degrees of Protection) Totally enclosed self-cooled type (default: IP65, special customized: IP67)
